HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111197

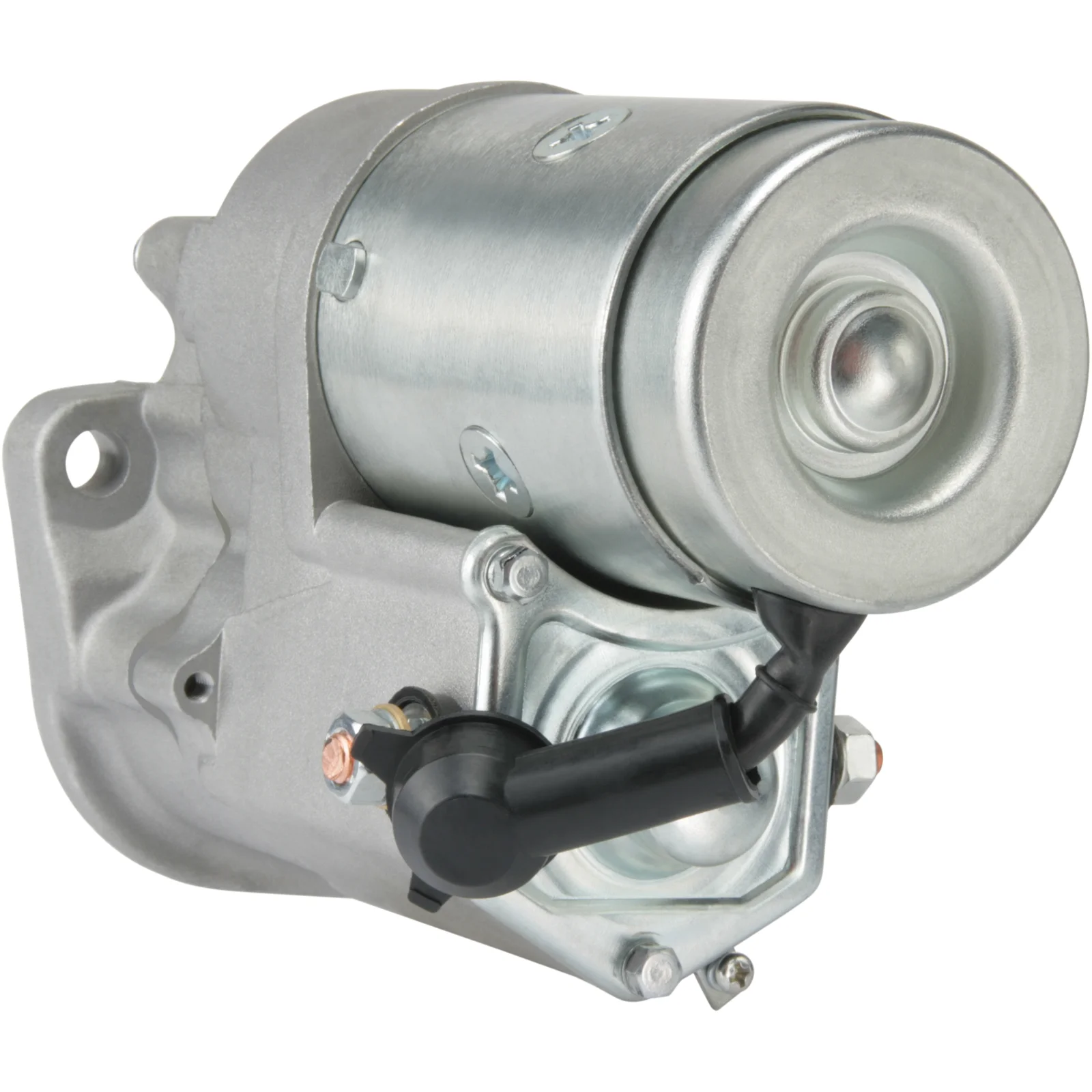

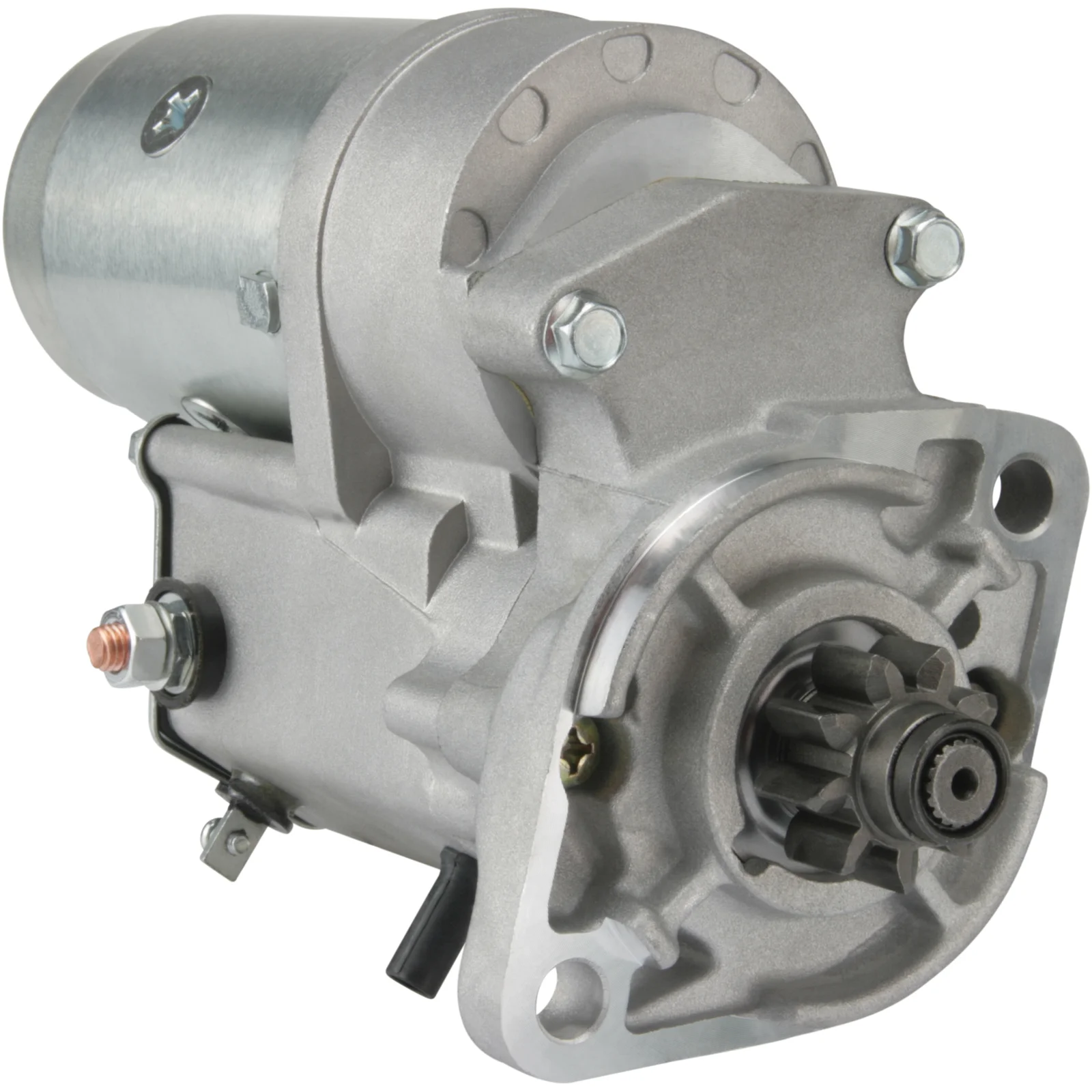

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mounting flange: 82.50
Drive distance: 26.00
Mounting hole 2 mm: 12.20
Mounting hole 1 mm: 12.20
Distance / back: 148.00
Distance / front: 38.50
Number / teeth: 9
B+: M8
Position / 50: 25
Terminal 50: M4
Gear type: GR
Distance in millimeters: 105.00
Rotation: CW
Total length in millimeters: 232.50
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    F032111197, 1K371-63010, 1K371-63011, 15425-63010, 15425-63011, 15425-63012, 15425-63013, 15425-63014, 15425-63016, 16652-63012, 16652-63013, 17121-63010, 17123-63016, 17490-63014, 028000-9030, 028000-9031, 028000-9032, 228000-0691, 228000-4570, 228000-4571, 228000-4572, 228000-4573, 228000-4590, 228000-4591, 228000-4592, 228000-4593, 228000-4750, 228000-5270, 228000-5272, 228000-5273, 428000-2030

  • Normalised article numbler
    cst40129, cst40311, dsn2064, f032111197, lrs01316, lrs02572, s6096, s6334denso, str30039, 1k37163010, 1k37163011, 8ea732665001, 4300, 18004, 18004n, 18154, 18154n, 18275, 18411n, 20780, 22209nd, 103941, 252086, 252109, 255170, 11040524, 11040920, 91295183, 0280009030, 0280009031, 0280009032, 690539092, 1542563010, 1542563011, 1542563012, 1542563013, 1542563014, 1542563016, 1665263012, 1665263013, 1712163010, 1712363016, 1749063014, 2280000691, 2280004570, 2280004571, 2280004572, 2280004573, 2280004590, 2280004591, 2280004592, 2280004593, 2280004750, 2280005270, 2280005272, 2280005273, 4280002030
  • Description
    Voltage: 12
    kW: 2.0
    Mounting flange: 82.50
    Drive distance: 26.00
    Mounting hole 2 mm: 12.20
    Mounting hole 1 mm: 12.20
    Distance / back: 148.00
    Distance / front: 38.50
    Number / teeth: 9
    B+: M8
    Position / 50: 25
    Terminal 50: M4
    Gear type: GR
    Distance in millimeters: 105.00
    Rotation: CW
    Total length in millimeters: 232.50
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032111197, 1K371-63010, 1K371-63011, 15425-63010, 15425-63011, 15425-63012, 15425-63013, 15425-63014, 15425-63016, 16652-63012, 16652-63013, 17121-63010, 17123-63016, 17490-63014, 028000-9030, 028000-9031, 028000-9032, 228000-0691, 228000-4570, 228000-4571, 228000-4572, 228000-4573, 228000-4590, 228000-4591, 228000-4592, 228000-4593, 228000-4750, 228000-5270, 228000-5272, 228000-5273, 428000-2030

    • Normalised article numbler
      cst40129, cst40311, dsn2064, f032111197, lrs01316, lrs02572, s6096, s6334denso, str30039, 1k37163010, 1k37163011, 8ea732665001, 4300, 18004, 18004n, 18154, 18154n, 18275, 18411n, 20780, 22209nd, 103941, 252086, 252109, 255170, 11040524, 11040920, 91295183, 0280009030, 0280009031, 0280009032, 690539092, 1542563010, 1542563011, 1542563012, 1542563013, 1542563014, 1542563016, 1665263012, 1665263013, 1712163010, 1712363016, 1749063014, 2280000691, 2280004570, 2280004571, 2280004572, 2280004573, 2280004590, 2280004591, 2280004592, 2280004593, 2280004750, 2280005270, 2280005272, 2280005273, 4280002030
