HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111221

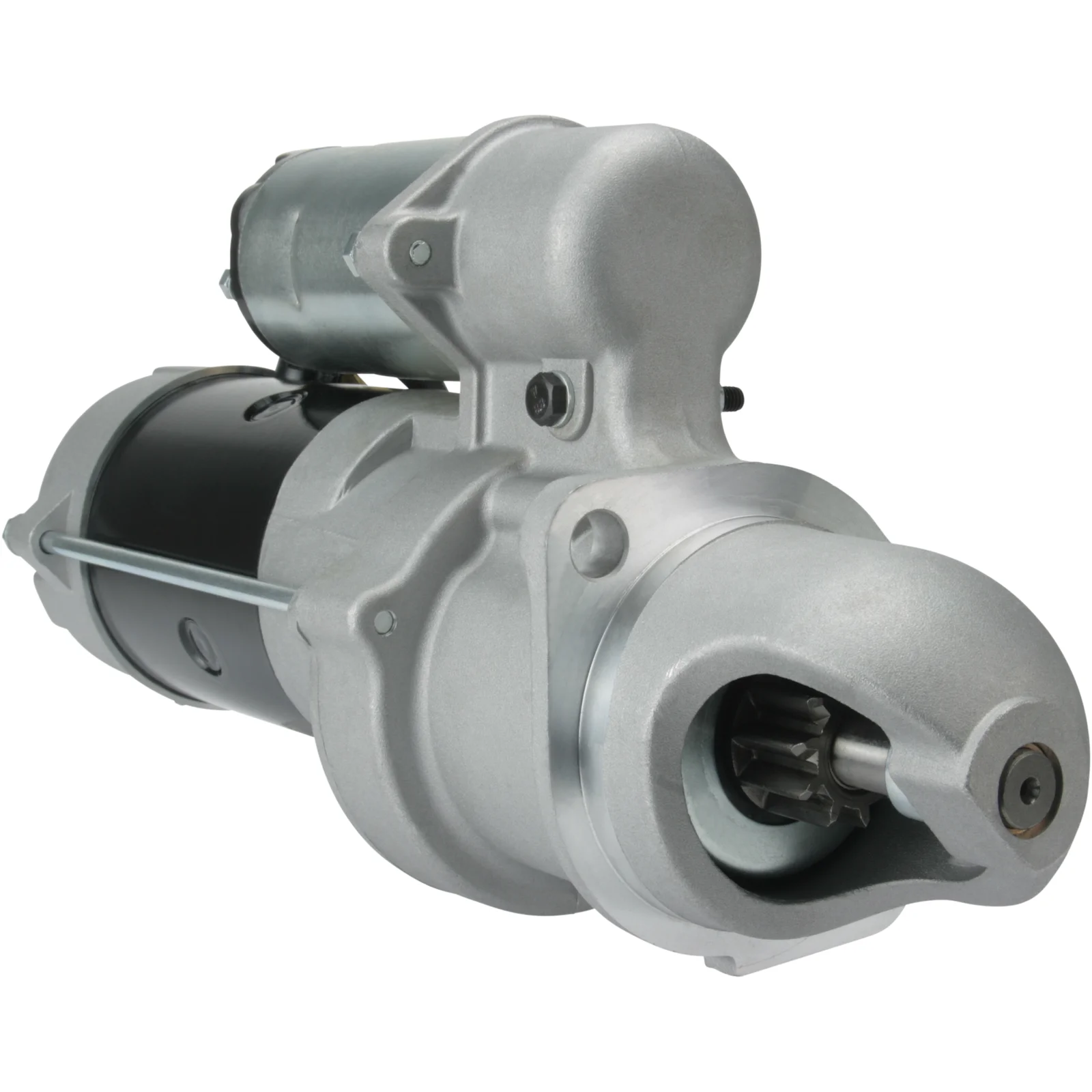

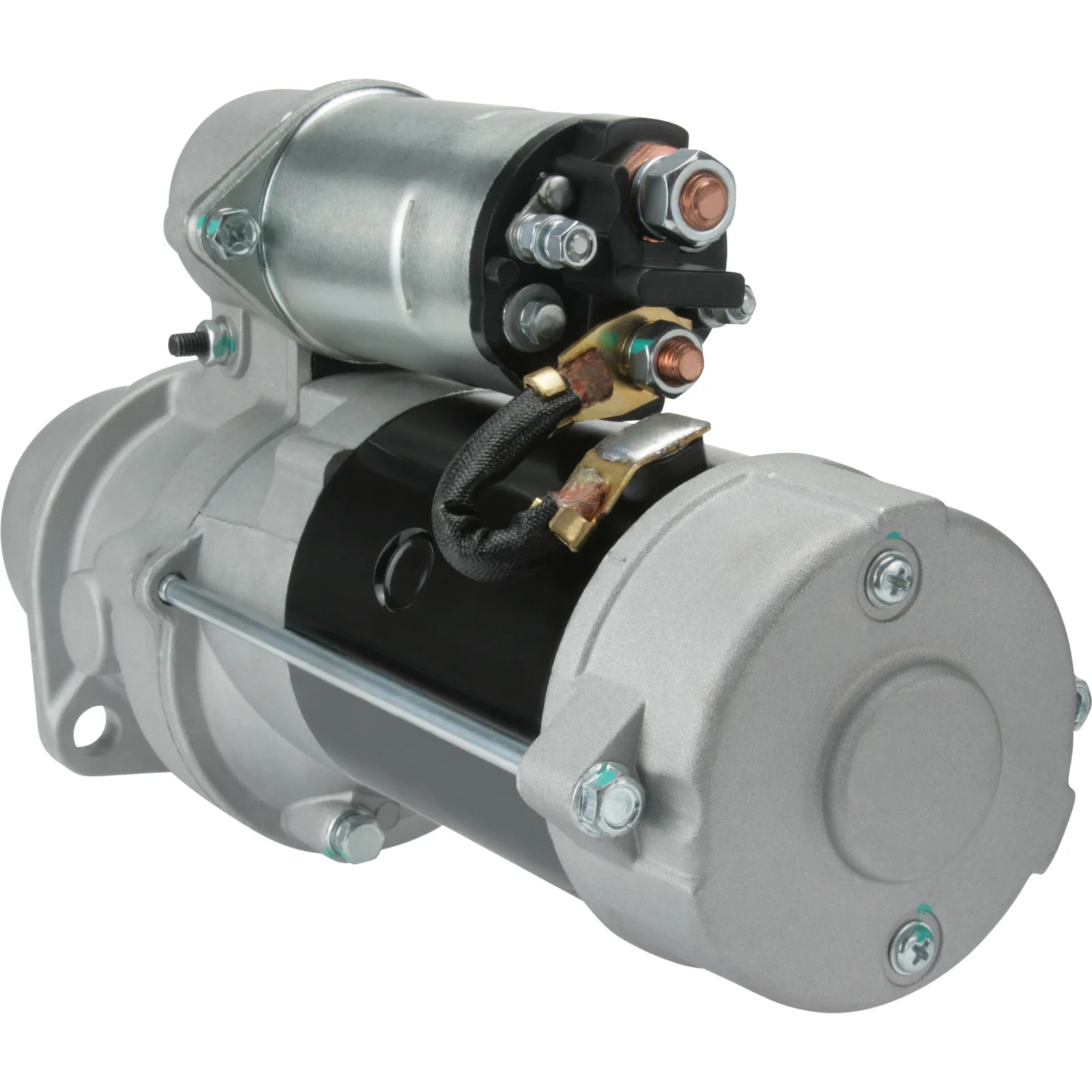

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.5, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kilowatts: 2.5
Mounting flange: 82.50
Drive distance: 33.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 262.00
Distance / front: 76.00
Number / teeth: 10
B+: M10
Position / 15a: 20
Terminal 15a: M5
Position / 50: 50
Terminal 50: M5
Gear type: GR
Distance in millimeters: 105.00
Rotation: CW
Total length in millimeters: 340.00
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Remarks: Replacing: 28MT.
Number / mounting holes: 2 (0)

Files

  • OEM
    0-23000-2060, F032111221, re509658, RE62916, 501400, 1107577, 1107599, 1107863, 1107871, 1109251, 1113271, 35259580

  • Normalised article numbler
    cst50116, drz5133, f032111221, f042003105, f042s03105, re509658, re62916, s1066, str7072, 4000, 4960, 6570, 6570r, 6601n, 18422n, 33788, 250227, 254203, 501400, 501549, 508422, 1107577, 1107599, 1107863, 1107871, 1109251, 1113271, 35258810, 35259580, 0230002060, 686001102
  • Description
    Voltage: 12
    kilowatts: 2.5
    Mounting flange: 82.50
    Drive distance: 33.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 262.00
    Distance / front: 76.00
    Number / teeth: 10
    B+: M10
    Position / 15a: 20
    Terminal 15a: M5
    Position / 50: 50
    Terminal 50: M5
    Gear type: GR
    Distance in millimeters: 105.00
    Rotation: CW
    Total length in millimeters: 340.00
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: Replacing: 28MT.
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      0-23000-2060, F032111221, re509658, RE62916, 501400, 1107577, 1107599, 1107863, 1107871, 1109251, 1113271, 35259580

    • Normalised article numbler
      cst50116, drz5133, f032111221, f042003105, f042s03105, re509658, re62916, s1066, str7072, 4000, 4960, 6570, 6570r, 6601n, 18422n, 33788, 250227, 254203, 501400, 501549, 508422, 1107577, 1107599, 1107863, 1107871, 1109251, 1113271, 35258810, 35259580, 0230002060, 686001102
