Article no.: F032111222

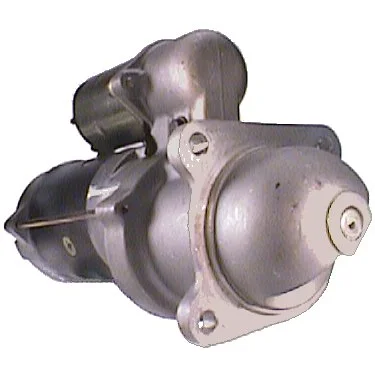

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.8, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 2.8
Mount. flange: 89.00
Drive distance: 20.00
Mount. hole 3 mm: 10.70
Mount. hole 2 mm: 10.70
Mount. hole 1 mm: 10.70
Distance / back: 274.50
Distance / front: 61.50
Number / teeth: 10
B+: M10
Position / 15a: 2
Position / 50: 55
Terminal 50: M5
Gear type: GR
Distance 2: 89.50
Distance 3: 89.50
Distance mm: 126.00
Rotation: CW
Total length mm: 338.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: Yes
Remarks: Replacing: 28MT.
Number / mount. holes: 3 (0)

Files

  • OEM
    0-23000-2000, F032111222, 1109540, 1113288, 1998389, 2385788

  • Normalised article numbler
    cst50105, cst60109, drz5124, f032111222, s1012, 8ea732860001, 4407, 6168, 6581, 6581n, 33782, 60842, 60868, 251459, 254710, 508423, 1109540, 1113288, 1998389, 2385788, 91014246, 0230002000, 692016102
  • Description
    Voltage: 12
    kW: 2.8
    Mount. flange: 89.00
    Drive distance: 20.00
    Mount. hole 3 mm: 10.70
    Mount. hole 2 mm: 10.70
    Mount. hole 1 mm: 10.70
    Distance / back: 274.50
    Distance / front: 61.50
    Number / teeth: 10
    B+: M10
    Position / 15a: 2
    Position / 50: 55
    Terminal 50: M5
    Gear type: GR
    Distance 2: 89.50
    Distance 3: 89.50
    Distance mm: 126.00
    Rotation: CW
    Total length mm: 338.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: Yes
    Remarks: Replacing: 28MT.
    Number / mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      0-23000-2000, F032111222, 1109540, 1113288, 1998389, 2385788

    • Normalised article numbler
      cst50105, cst60109, drz5124, f032111222, s1012, 8ea732860001, 4407, 6168, 6581, 6581n, 33782, 60842, 60868, 251459, 254710, 508423, 1109540, 1113288, 1998389, 2385788, 91014246, 0230002000, 692016102
