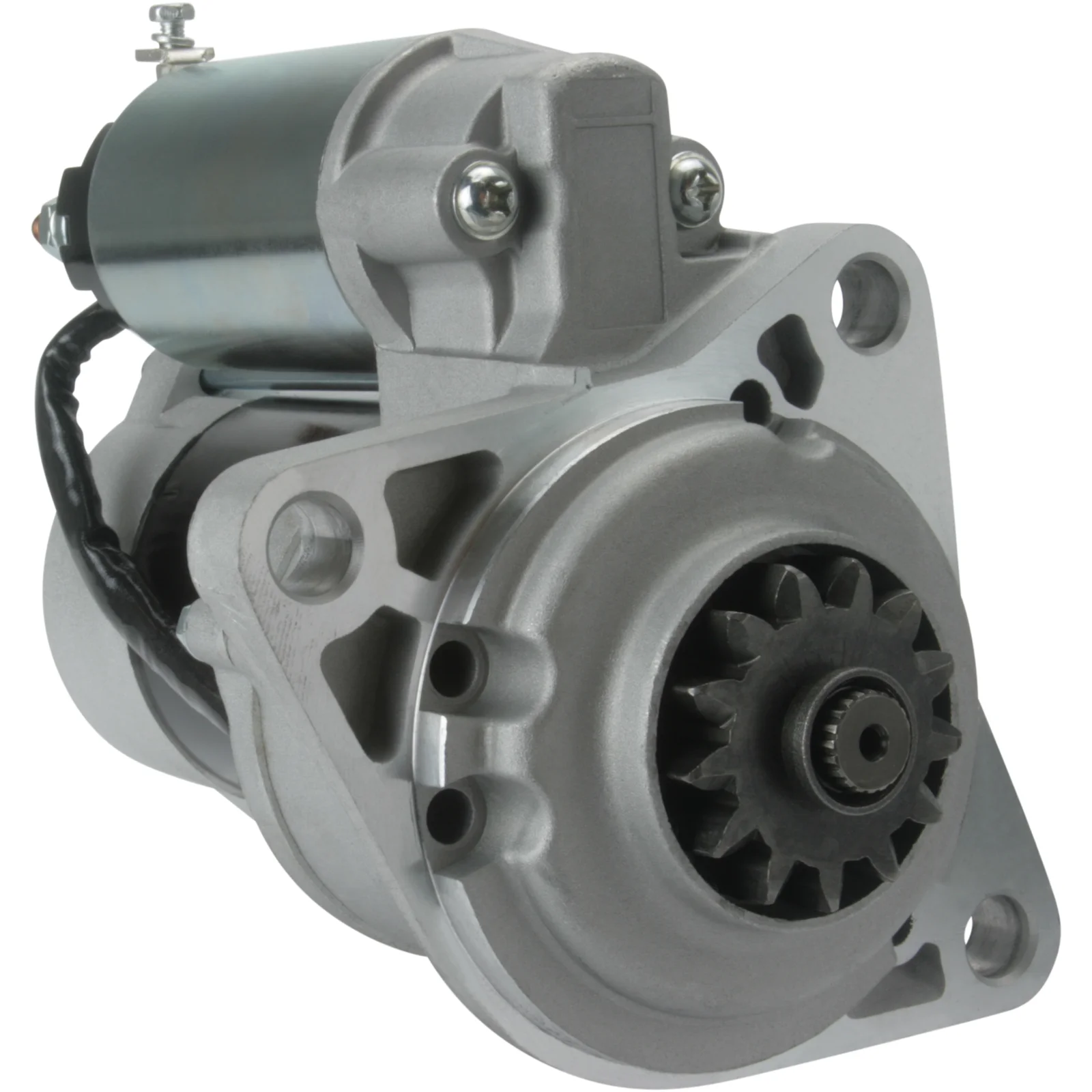

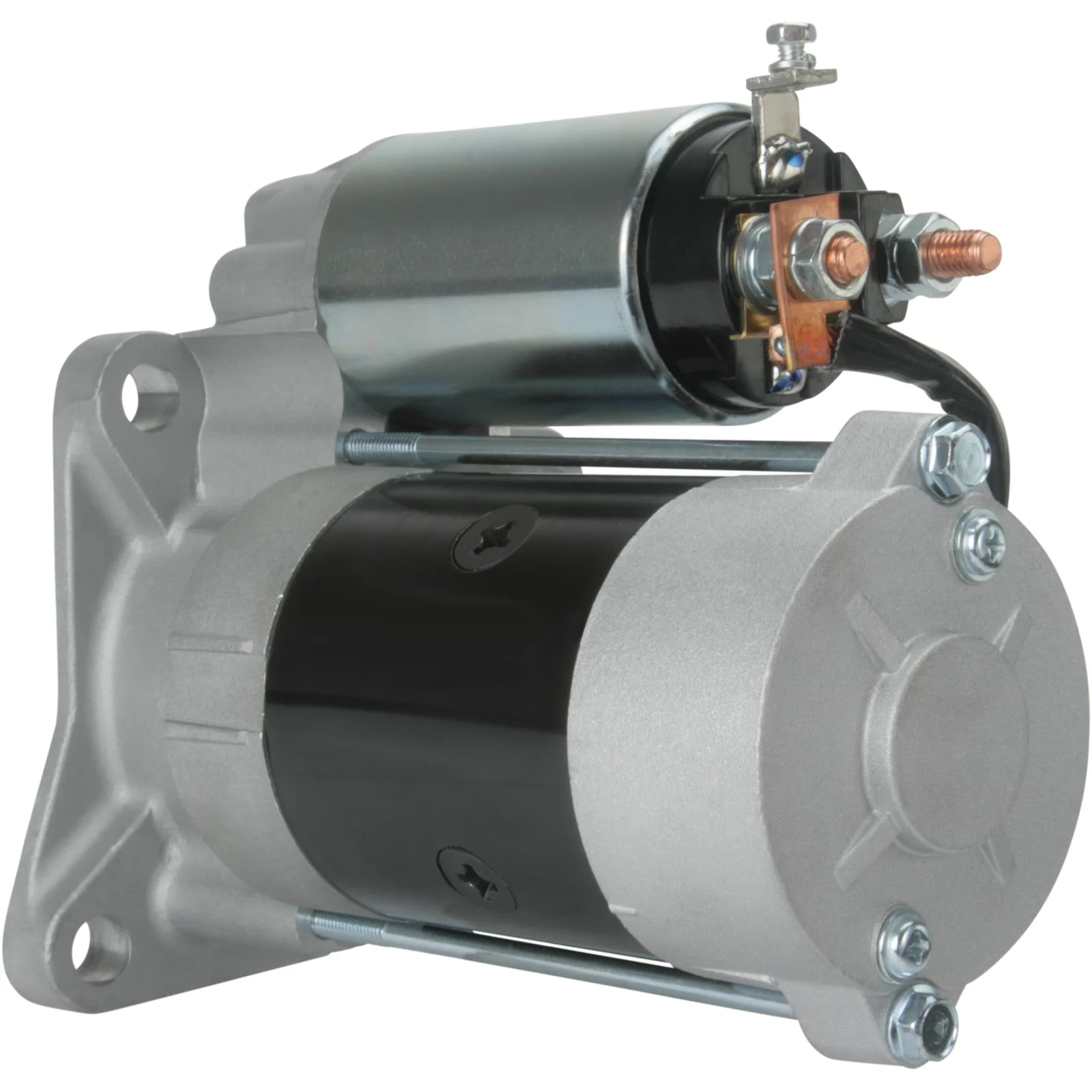

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111273

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.7, No./teeth: 12, Rotation: CW

Description

Voltage: 12
kW: 2.7
Mount. flange: 100.00
Drive dist.: 31.50
Mount. hole 3 mm: 14.00
Mount. hole 2 mm: 14.00
Mount. hole 1 mm: 14.00
Dist./back: 199.50
Dist./front: 38.00
Number/teeth: 12
B+: M8
Position/50: 60
Terminal 50: M5
Gear type: GR
Dist. 2: 145.00
Dist. 3: 105.00
Dist. mm: 105.00
Rotation: CW
Total length mm: 240.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 3 (0)

Files

  • OEM
    F032111273, M002T54571, M002T54572, M005T22171, m2t54571, m2t54572, m5t22171, 4840-18-400, 4840-18-400A, 4840-18-400B, 2021166, 901098891

  • Normalised article numbler
    cst35112, cst35200, drs0105, drs0503, f032111273, f042001165, f042s01165, lrs01254, lrs01402, m002t54571, m002t54572, m005t22171, m2t54571, m2t54572, m5t22171, s5069, str28005, str6047, 8ea015642181, 8ea737265001, 4471, 18171, 18171n, 18171r, 22024mi, 104138, 201011, 251433, 252289, 255120, 2021166, 11040325, 484018400, 484018400a, 484018400b, 624004122, 626043132, 901098891
  • Description
    Voltage: 12
    kW: 2.7
    Mount. flange: 100.00
    Drive dist.: 31.50
    Mount. hole 3 mm: 14.00
    Mount. hole 2 mm: 14.00
    Mount. hole 1 mm: 14.00
    Dist./back: 199.50
    Dist./front: 38.00
    Number/teeth: 12
    B+: M8
    Position/50: 60
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 145.00
    Dist. 3: 105.00
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 240.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032111273, M002T54571, M002T54572, M005T22171, m2t54571, m2t54572, m5t22171, 4840-18-400, 4840-18-400A, 4840-18-400B, 2021166, 901098891

    • Normalised article numbler
      cst35112, cst35200, drs0105, drs0503, f032111273, f042001165, f042s01165, lrs01254, lrs01402, m002t54571, m002t54572, m005t22171, m2t54571, m2t54572, m5t22171, s5069, str28005, str6047, 8ea015642181, 8ea737265001, 4471, 18171, 18171n, 18171r, 22024mi, 104138, 201011, 251433, 252289, 255120, 2021166, 11040325, 484018400, 484018400a, 484018400b, 624004122, 626043132, 901098891
