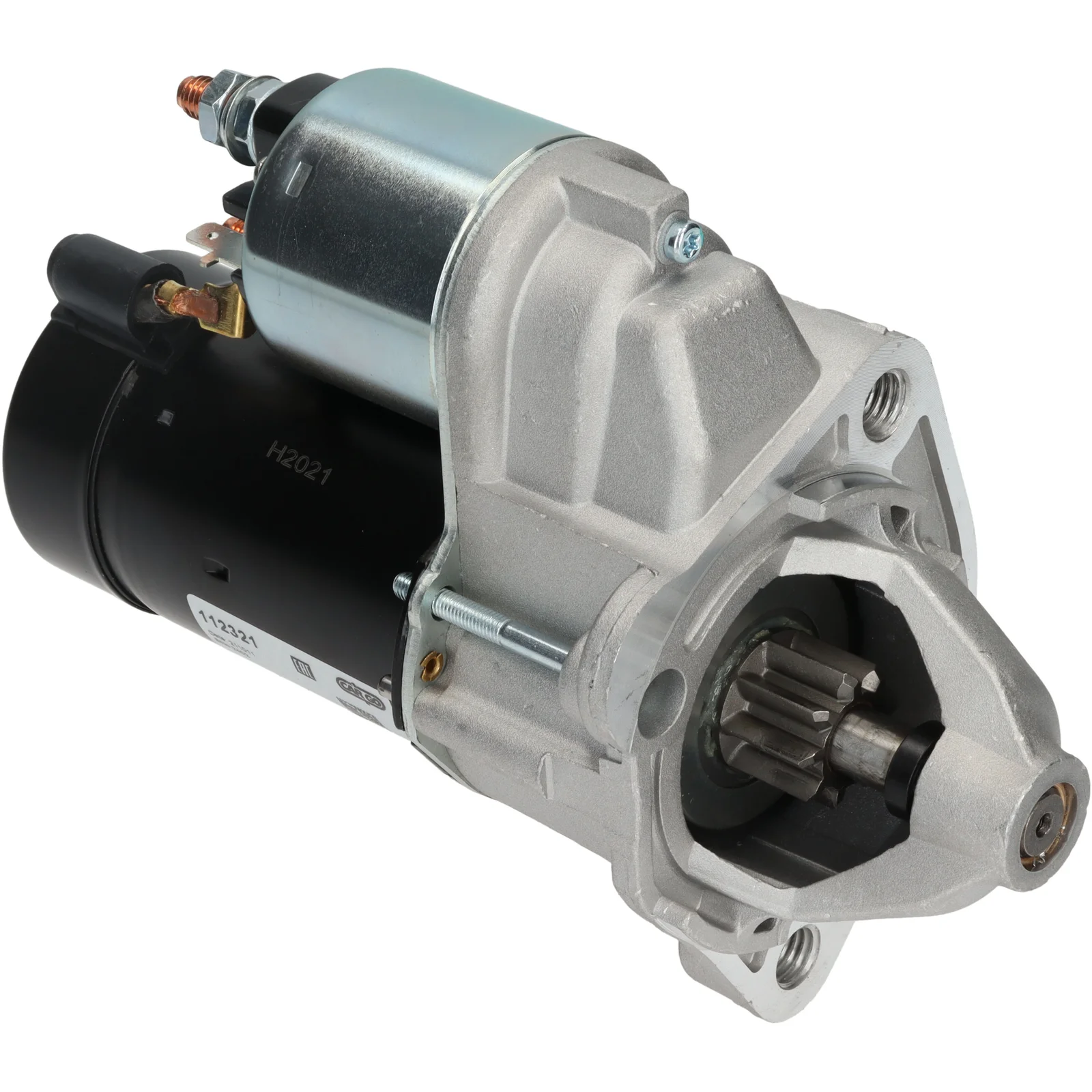

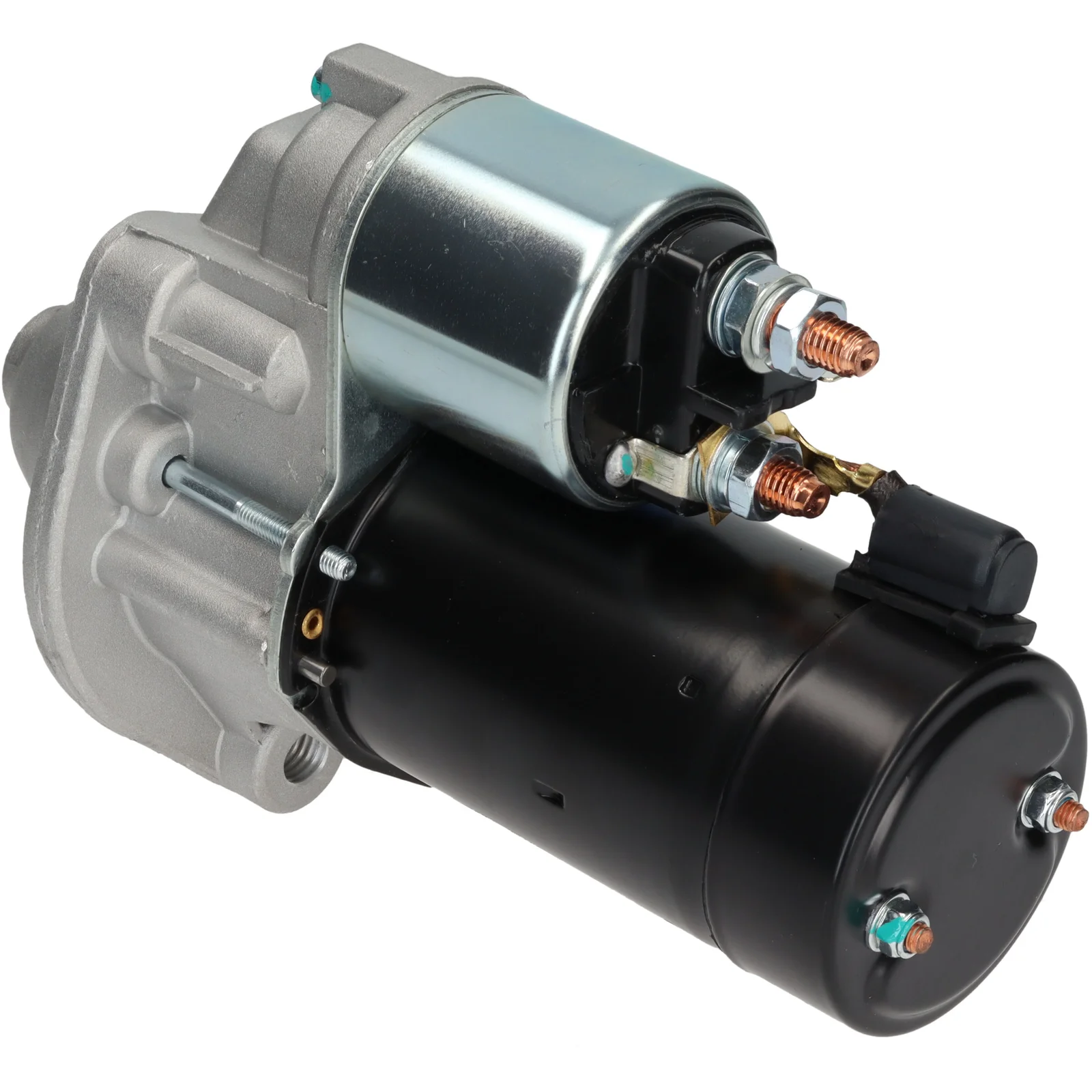

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112321

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.1, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.1
Mounting flange: 82.50
Drive distance: 13.50
Distance/backup: 174.00
Distance/front: 52.50
Number of teeth: 9
B+: M8
Position/B+: 60
Position/50: 15
Terminal 50: 6.30
Gear type: GR
Distributor in millimeters: 100.00
Rotation: CW
Total length in millimeters: 227.50
Clutch type: Dry
Drive type: Steel
Product information: BN
Waterproof: No
Oil sealed: No
Number of mounting holes: 2 (2)

Files

  • OEM
    AZE2186, b001110043, cs612, F032112321, 06b911023, 06B911023X, 11.139.417, 1986S00658, 0001107012, 0001107013, 0001107017, 0001107018, 0001107054, 0001107055, 0001107068, 0001107069, 0001107073, 0001107074, 0001112005, 0001112006, 0001112013, 0001112014, 026911023c, 026911023CX, 026911023E, 026911023F, 026911023g, 026911023GX, 053911023, 053911023a, 053911023AX, 053911023b, 053911023BX, 058911023b, 058911023BX

  • Normalised article numbler
    aze2186, b001110043, bso7252, cs612, cst10106, drs4630, drs4640, drs6330, f032112321, f042002028, f042200157, f042202000, f042s02028, frs639, is9411, lrs00681, lrs00990, ms679, ms82, msn2071, qs2000, s0054, s0054bosch, s3189s, sr0416x, sr0421x, str2035, str2035a, str50028, vs277, 06b911023, 06b911023x, 8ea011610461, 8ea726193001, 8ea730182001, 1284, 1451, 1986s00658, 3532, 10569, 10612, 11130, 11701, 17751, 17751n, 17751r, 21945bo, 103343, 201045, 220004, 220004a, 251319, 251434, 261319, 261434, 436030, 438430, 442015, 455680, 726837, 0001107012, 0001107013, 0001107017, 0001107018, 0001107054, 0001107055, 0001107068, 0001107069, 0001107073, 0001107074, 0001112005, 0001112006, 0001112013, 0001112014, 4114630, 4114640, 4116330, 8014630, 8014640, 8016330, 8212368, 11014630, 11014640, 11016330, 11139417, 026911023c, 026911023cx, 026911023e, 026911023f, 026911023g, 026911023gx, 42016330, 053911023, 053911023a, 053911023ax, 053911023b, 053911023bx, 058911023b, 058911023bx, 311049092, 311130092, 943251333, 943251417, 0986014630, 0986016330, 0986016337, 0986019474, 0986019477, 063521070680, 063521070730, 943251333010, 943251417010, 944280163300
  • Description
    Voltage: 12
    kW: 1.1
    Mounting flange: 82.50
    Drive distance: 13.50
    Distance/backup: 174.00
    Distance/front: 52.50
    Number of teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 15
    Terminal 50: 6.30
    Gear type: GR
    Distributor in millimeters: 100.00
    Rotation: CW
    Total length in millimeters: 227.50
    Clutch type: Dry
    Drive type: Steel
    Product information: BN
    Waterproof: No
    Oil sealed: No
    Number of mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      AZE2186, b001110043, cs612, F032112321, 06b911023, 06B911023X, 11.139.417, 1986S00658, 0001107012, 0001107013, 0001107017, 0001107018, 0001107054, 0001107055, 0001107068, 0001107069, 0001107073, 0001107074, 0001112005, 0001112006, 0001112013, 0001112014, 026911023c, 026911023CX, 026911023E, 026911023F, 026911023g, 026911023GX, 053911023, 053911023a, 053911023AX, 053911023b, 053911023BX, 058911023b, 058911023BX

    • Normalised article numbler
      aze2186, b001110043, bso7252, cs612, cst10106, drs4630, drs4640, drs6330, f032112321, f042002028, f042200157, f042202000, f042s02028, frs639, is9411, lrs00681, lrs00990, ms679, ms82, msn2071, qs2000, s0054, s0054bosch, s3189s, sr0416x, sr0421x, str2035, str2035a, str50028, vs277, 06b911023, 06b911023x, 8ea011610461, 8ea726193001, 8ea730182001, 1284, 1451, 1986s00658, 3532, 10569, 10612, 11130, 11701, 17751, 17751n, 17751r, 21945bo, 103343, 201045, 220004, 220004a, 251319, 251434, 261319, 261434, 436030, 438430, 442015, 455680, 726837, 0001107012, 0001107013, 0001107017, 0001107018, 0001107054, 0001107055, 0001107068, 0001107069, 0001107073, 0001107074, 0001112005, 0001112006, 0001112013, 0001112014, 4114630, 4114640, 4116330, 8014630, 8014640, 8016330, 8212368, 11014630, 11014640, 11016330, 11139417, 026911023c, 026911023cx, 026911023e, 026911023f, 026911023g, 026911023gx, 42016330, 053911023, 053911023a, 053911023ax, 053911023b, 053911023bx, 058911023b, 058911023bx, 311049092, 311130092, 943251333, 943251417, 0986014630, 0986016330, 0986016337, 0986019474, 0986019477, 063521070680, 063521070730, 943251333010, 943251417010, 944280163300
