HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114853

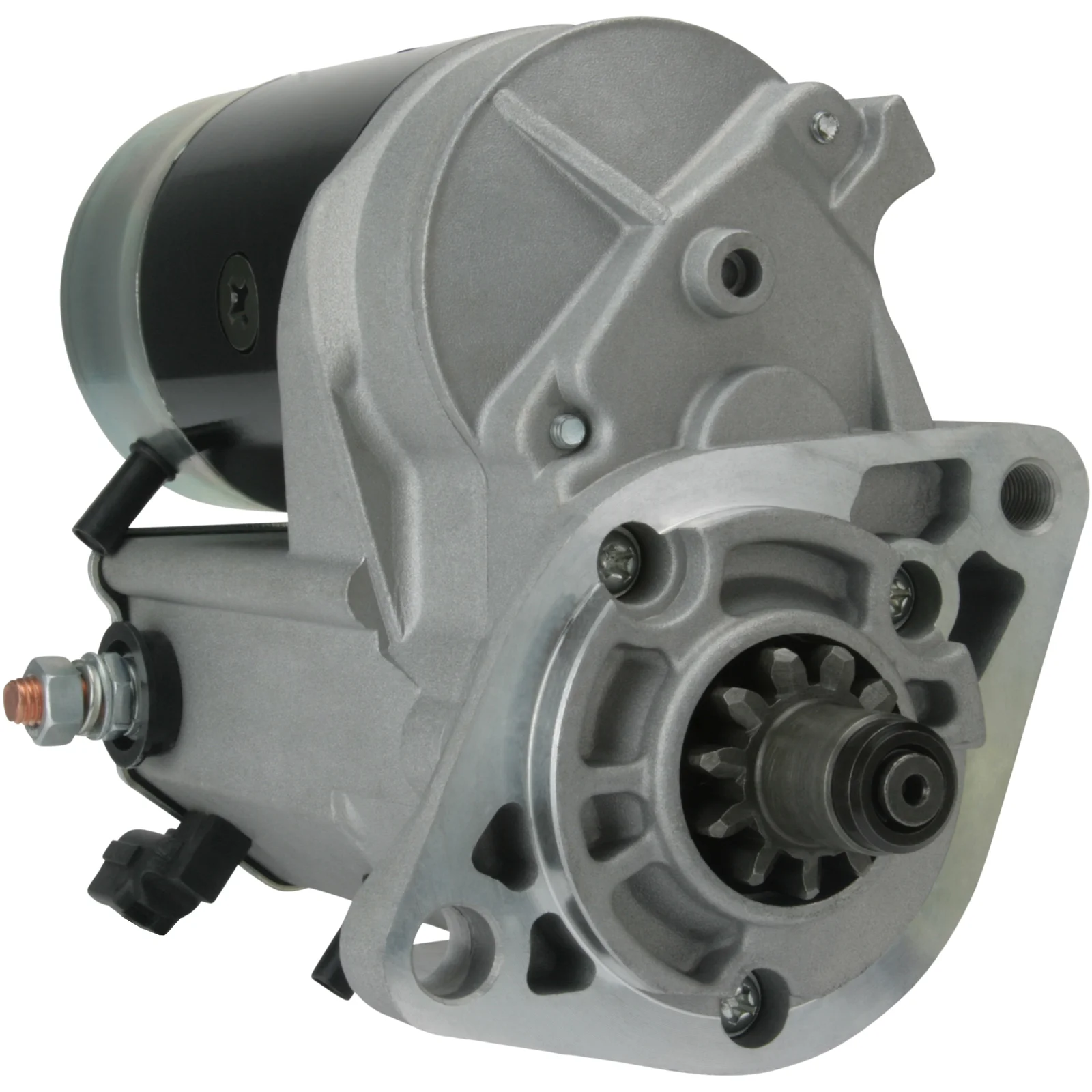

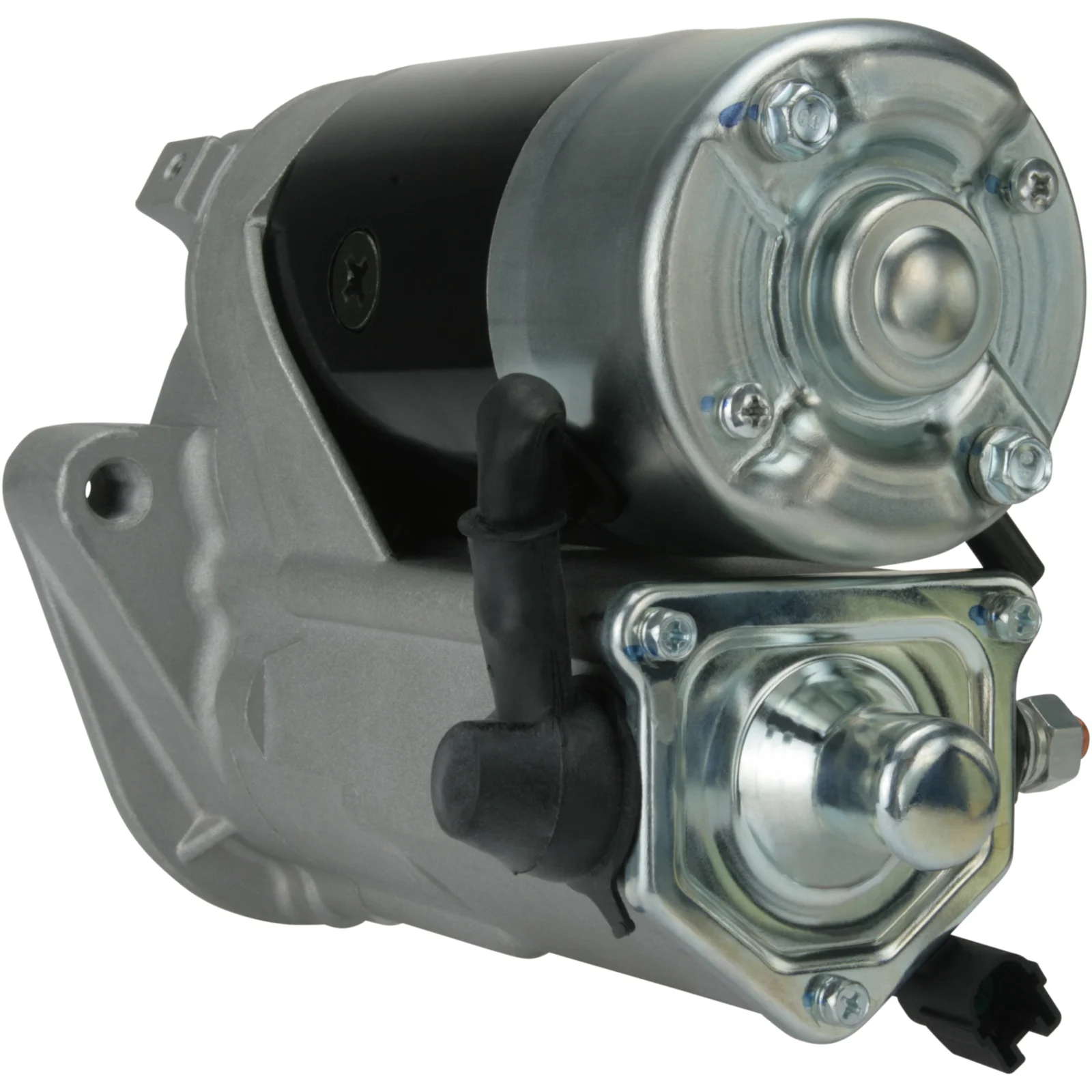

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.7, No./teeth: 11, Rotation: CW

Description

Toyota Hilux Starter motor 12V-2.7kW 12V - 2.7kW, 11k A - 82.5mm, B - 18mm For Yourex product order 91-555-4263

Voltage: 12
kW: 2.7
Mounting flange: 82.50
Drive distance: 18.00
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: M12-1.25
Distance/ rear: 190.00
Distance/ front: 43.50
Number/ teeth: 11
B+: M10
Position/B+: 15
Position/50: 22
Terminal 50: Plug
Gear type: GR
Distance mm: 129.50
Rotation: CW
Total length mm: 259.00
Product info: BN
Number/ mounting holes: 2 (1)

Files

  • OEM
    cs1448, F032114853, RGO 114853, TG4280002631, 1986S00590, 28100-0L050, 28100-0l050, 28100-0L051, 28100-0L052, 28100-54451, 114853, 428000-2630, 428000-2631, 428000-2632, 428000-2633

  • Normalised article numbler
    cs1448, cst40325, drs0449, dsn1371, f032114853, lrs02287, rgo114853, s6059, str70343, tg4280002631, 8ea011612431, 1986s00590, 9755, 33287n, 101448, 107260, 114853, 253458, 281000l050, 281000l051, 281000l052, 11040810, 190585112, 335220112, 0986026030, 2810054451, 4280002630, 4280002631, 4280002632, 4280002633
  • Description
    Toyota Hilux Starter motor 12V-2.7kW 12V - 2.7kW, 11k A - 82.5mm, B - 18mm For Yourex product order 91-555-4263

    Voltage: 12
    kW: 2.7
    Mounting flange: 82.50
    Drive distance: 18.00
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: M12-1.25
    Distance/ rear: 190.00
    Distance/ front: 43.50
    Number/ teeth: 11
    B+: M10
    Position/B+: 15
    Position/50: 22
    Terminal 50: Plug
    Gear type: GR
    Distance mm: 129.50
    Rotation: CW
    Total length mm: 259.00
    Product info: BN
    Number/ mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      cs1448, F032114853, RGO 114853, TG4280002631, 1986S00590, 28100-0L050, 28100-0l050, 28100-0L051, 28100-0L052, 28100-54451, 114853, 428000-2630, 428000-2631, 428000-2632, 428000-2633

    • Normalised article numbler
      cs1448, cst40325, drs0449, dsn1371, f032114853, lrs02287, rgo114853, s6059, str70343, tg4280002631, 8ea011612431, 1986s00590, 9755, 33287n, 101448, 107260, 114853, 253458, 281000l050, 281000l051, 281000l052, 11040810, 190585112, 335220112, 0986026030, 2810054451, 4280002630, 4280002631, 4280002632, 4280002633
