HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114060

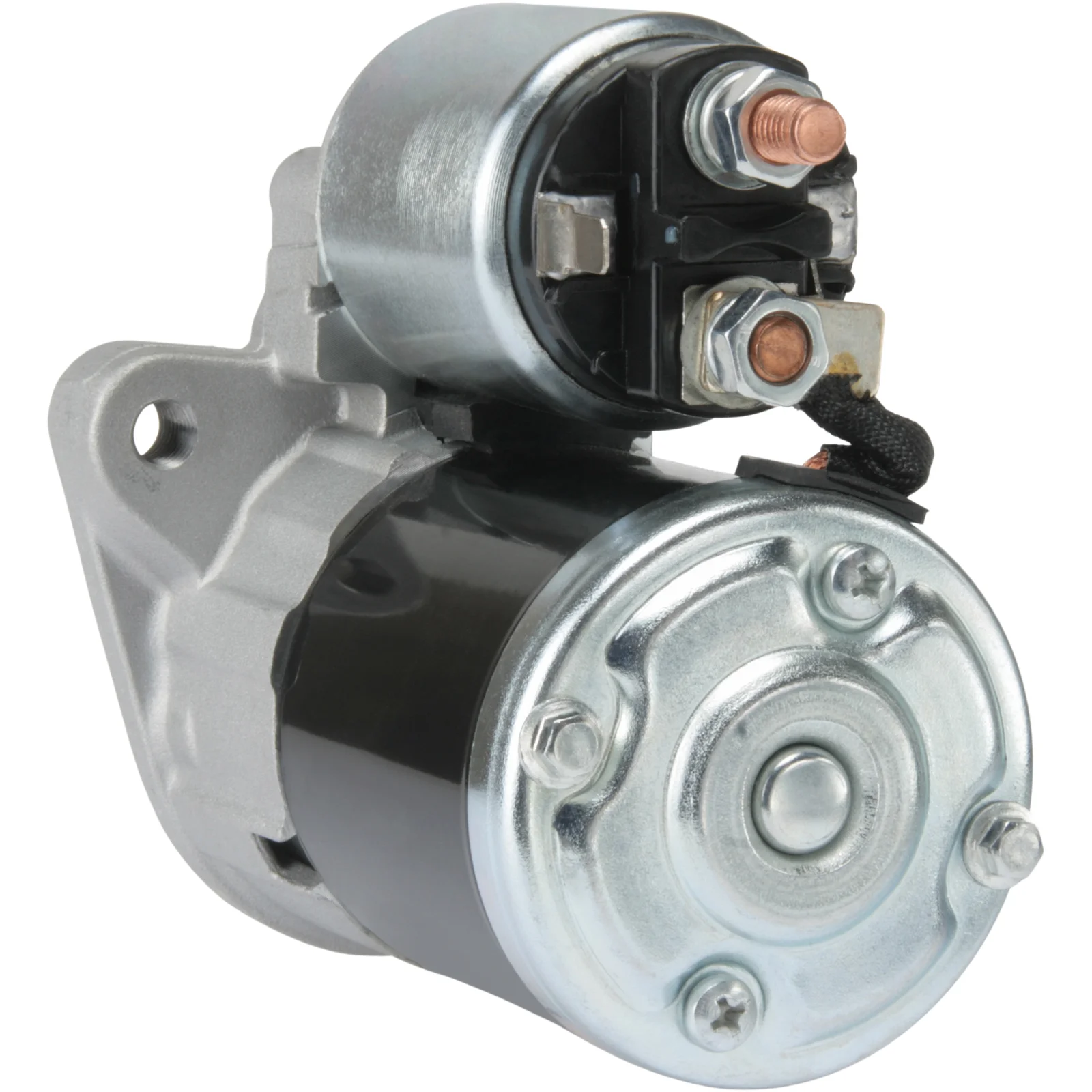

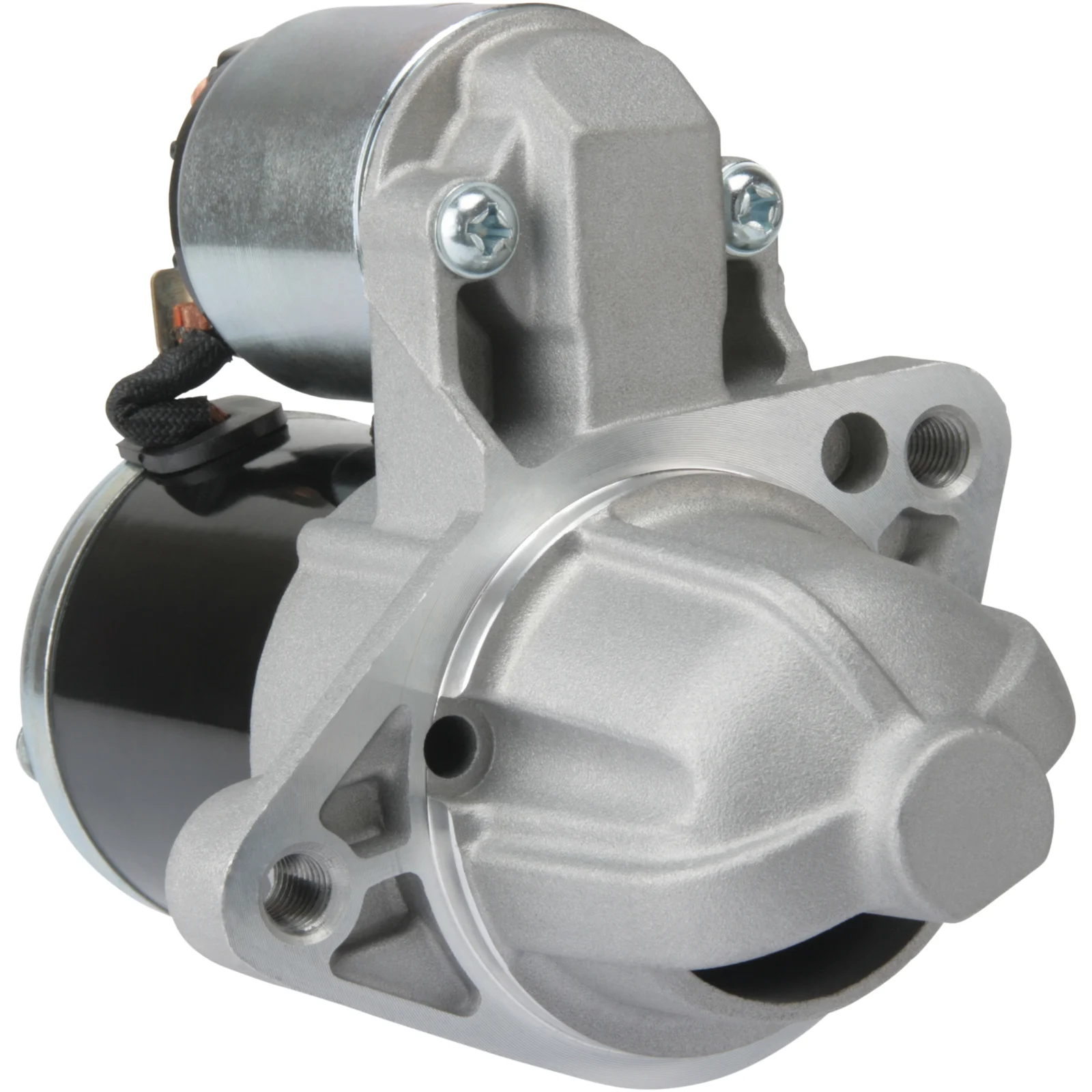

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.0, No./teeth: 8, Rotation: CW

Description

Suzuki Starter motor 12V-1.0kW, 8K 12V - 1.0kW, 8K A - 70mm, B - 29mm For longer engine see 91-528-8658! For Yourex product order 91-528-2323

Voltage: 12
kW: 1.0
Mounting flange: 70.00
Drive distance: 28.00
Distance/back: 122.00
Distance/front: 60.00
Number of teeth: 8
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: DD/GR
Distance in millimeters: 101.00
Rotation: CW
Total length in millimeters: 183.00
Product info: BN
Number of mounting holes: 2 (2)

Files

  • OEM
    CST35180, CST40207, DRS0101, DRS0873, F032114060, F042200130, J5218026, M000T36071, M000T36071AM, M000T36071ZE, M000T36073, M000T36073AM, M000T84981, M000T86581, M001T86681, M002T46781, M002T46781ZE, M002T47681, M0T-36071, M0T36071, M0T36071AM, M0T36071ZE, M0T36073, M0T36073AM, M0T84981, M0T86581, M1T86681, M2T-46781, M2T46781, M2T46781ZE, M2T47681, S5234, 8EA012528-631, 8EA738154-001, 25-3146, 25-4227, 180.524.082, 345.017.082, 345.022.082, 0986 023 230, 1986S00923, 9764, 31100 86G00 000, 31100-63J00, 31100-63J10, 31100-75F60, 31100-80G0, 31100-80G00, 31100-80G10, 31100-80G20, 31100-86G00, 32620, 32620N, 32621N, 105440, 114060, 201310, 220826, 220826A, 228000-8930, 428000-3600, 446505, 446518, 446532, 458700, 3110081A30, 8080243, 11040713, 31100080G1, 71742375, 71750026, 71792034, 71792036, 71793347, 717922031, 717922033, 0986023230, 64529217869

  • Normalised article numbler
    cst35180, cst40207, drs0101, drs0873, f032114060, f042200130, j5218026, m000t36071, m000t36071am, m000t36071ze, m000t36073, m000t36073am, m000t84981, m000t86581, m001t86681, m002t46781, m002t46781ze, m002t47681, m0t36071, m0t36071am, m0t36071ze, m0t36073, m0t36073am, m0t84981, m0t86581, m1t86681, m2t46781, m2t46781ze, m2t47681, s5234, 8ea012528631, 8ea738154001, 1986s00923, 9764, 32620, 32620n, 32621n, 105440, 114060, 201310, 220826, 220826a, 253146, 254227, 446505, 446518, 446532, 458700, 3110063j00, 3110063j10, 3110075f60, 3110080g0, 3110080g00, 3110080g10, 3110080g20, 3110081a30, 3110086g00, 3110086g00000, 8080243, 11040713, 31100080g1, 71742375, 71750026, 71792034, 71792036, 71793347, 180524082, 345017082, 345022082, 717922031, 717922033, 0986023230, 2280008930, 4280003600, 64529217869
  • Description
    Suzuki Starter motor 12V-1.0kW, 8K 12V - 1.0kW, 8K A - 70mm, B - 29mm For longer engine see 91-528-8658! For Yourex product order 91-528-2323

    Voltage: 12
    kW: 1.0
    Mounting flange: 70.00
    Drive distance: 28.00
    Distance/back: 122.00
    Distance/front: 60.00
    Number of teeth: 8
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: DD/GR
    Distance in millimeters: 101.00
    Rotation: CW
    Total length in millimeters: 183.00
    Product info: BN
    Number of mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      CST35180, CST40207, DRS0101, DRS0873, F032114060, F042200130, J5218026, M000T36071, M000T36071AM, M000T36071ZE, M000T36073, M000T36073AM, M000T84981, M000T86581, M001T86681, M002T46781, M002T46781ZE, M002T47681, M0T-36071, M0T36071, M0T36071AM, M0T36071ZE, M0T36073, M0T36073AM, M0T84981, M0T86581, M1T86681, M2T-46781, M2T46781, M2T46781ZE, M2T47681, S5234, 8EA012528-631, 8EA738154-001, 25-3146, 25-4227, 180.524.082, 345.017.082, 345.022.082, 0986 023 230, 1986S00923, 9764, 31100 86G00 000, 31100-63J00, 31100-63J10, 31100-75F60, 31100-80G0, 31100-80G00, 31100-80G10, 31100-80G20, 31100-86G00, 32620, 32620N, 32621N, 105440, 114060, 201310, 220826, 220826A, 228000-8930, 428000-3600, 446505, 446518, 446532, 458700, 3110081A30, 8080243, 11040713, 31100080G1, 71742375, 71750026, 71792034, 71792036, 71793347, 717922031, 717922033, 0986023230, 64529217869

    • Normalised article numbler
      cst35180, cst40207, drs0101, drs0873, f032114060, f042200130, j5218026, m000t36071, m000t36071am, m000t36071ze, m000t36073, m000t36073am, m000t84981, m000t86581, m001t86681, m002t46781, m002t46781ze, m002t47681, m0t36071, m0t36071am, m0t36071ze, m0t36073, m0t36073am, m0t84981, m0t86581, m1t86681, m2t46781, m2t46781ze, m2t47681, s5234, 8ea012528631, 8ea738154001, 1986s00923, 9764, 32620, 32620n, 32621n, 105440, 114060, 201310, 220826, 220826a, 253146, 254227, 446505, 446518, 446532, 458700, 3110063j00, 3110063j10, 3110075f60, 3110080g0, 3110080g00, 3110080g10, 3110080g20, 3110081a30, 3110086g00, 3110086g00000, 8080243, 11040713, 31100080g1, 71742375, 71750026, 71792034, 71792036, 71793347, 180524082, 345017082, 345022082, 717922031, 717922033, 0986023230, 2280008930, 4280003600, 64529217869
