HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115986

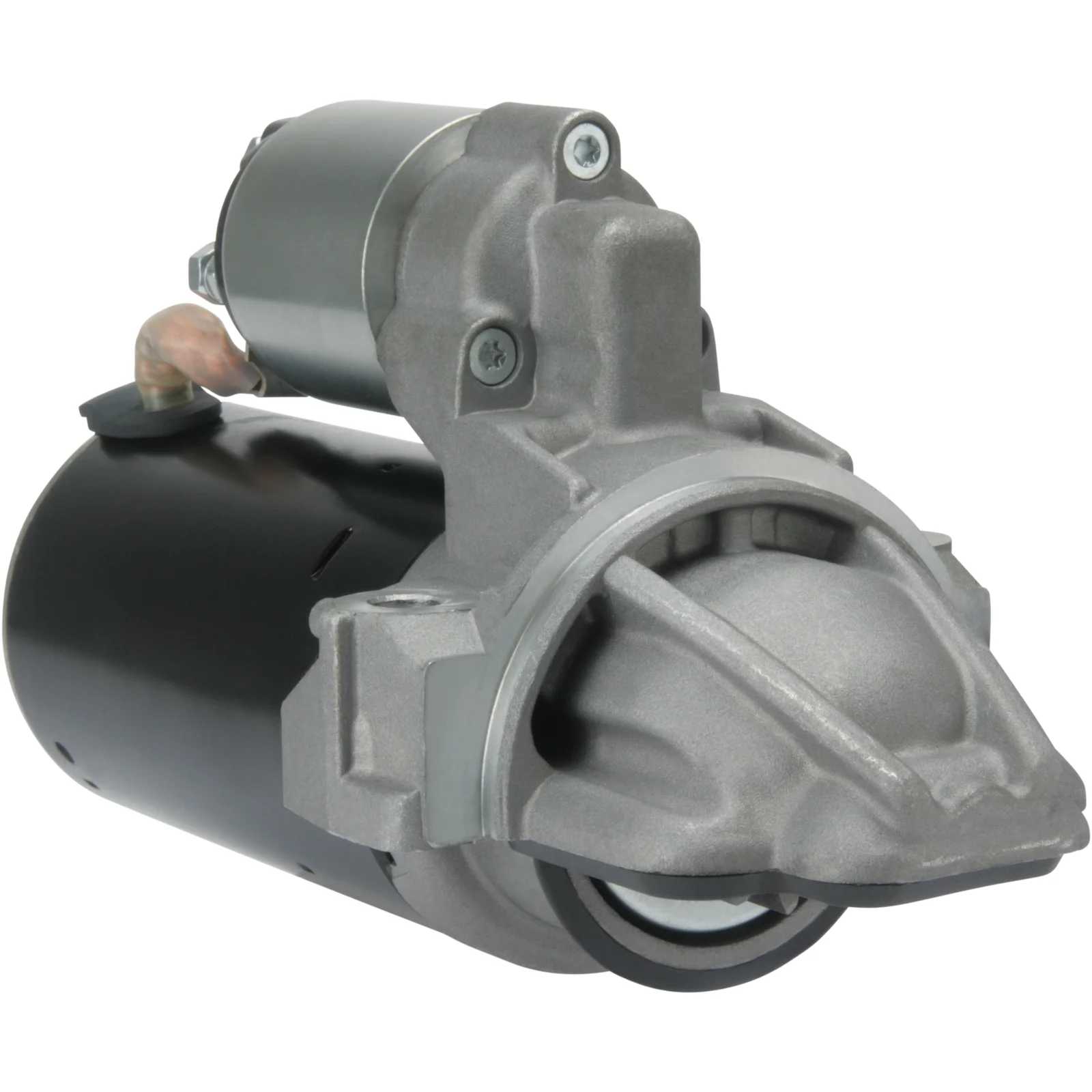

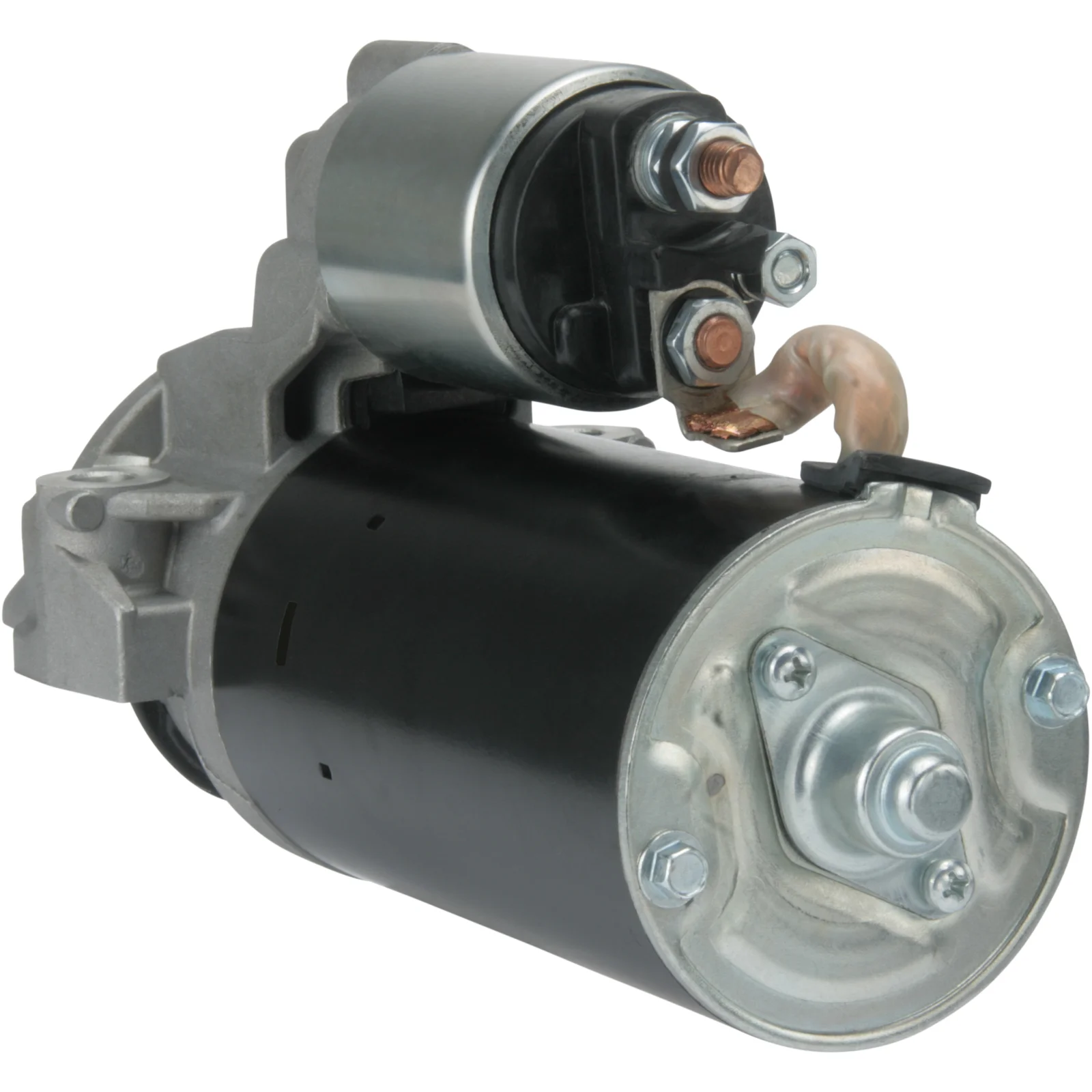

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.5, No./teeth: 12, Rotation: CW

Description

Voltage: 12
kW: 2.5
Mounting flange: 89.00
Drive distance: 35.00
Mounting hole 2 mm: 10.50
Mounting hole 1 mm: 10.50
Distance / back: 159.00
Distance / front: 82.00
Number / teeth: 12
B+: M8
Position / 50: 20
Terminal 50: M6
Gear type: GR
Distance mm: 89.00
Rotation: CW
Total length mm: 255.00
Starter type: Start/Stop
Product information: BN
Number / mounting holes: 2 (0)

Files

  • OEM
    CC1T11000DA, CC1T11000DB, CC1T11000DC, CC1T11000DD, F032115986, K9678690180, RGO 115986, 1986S00841, 0001139023, 0001139024, 1731765, 1740948, 1745176, 2033120, 9678690180

  • Normalised article numbler
    cc1t11000da, cc1t11000db, cc1t11000dc, cc1t11000dd, cst10491, drs0856, f032115986, k9678690180, lrs02623, rgo115986, s0744s, 8ea011611651, 1986s00841, 30229n, 220682, 220682a, 254296, 255308, 438601, 458876, 0001139023, 0001139024, 1731765, 1740948, 1745176, 2033120, 11090269, 42003009, 319082122, 590565122, 0986027010, 9678690180
  • Description
    Voltage: 12
    kW: 2.5
    Mounting flange: 89.00
    Drive distance: 35.00
    Mounting hole 2 mm: 10.50
    Mounting hole 1 mm: 10.50
    Distance / back: 159.00
    Distance / front: 82.00
    Number / teeth: 12
    B+: M8
    Position / 50: 20
    Terminal 50: M6
    Gear type: GR
    Distance mm: 89.00
    Rotation: CW
    Total length mm: 255.00
    Starter type: Start/Stop
    Product information: BN
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      CC1T11000DA, CC1T11000DB, CC1T11000DC, CC1T11000DD, F032115986, K9678690180, RGO 115986, 1986S00841, 0001139023, 0001139024, 1731765, 1740948, 1745176, 2033120, 9678690180

    • Normalised article numbler
      cc1t11000da, cc1t11000db, cc1t11000dc, cc1t11000dd, cst10491, drs0856, f032115986, k9678690180, lrs02623, rgo115986, s0744s, 8ea011611651, 1986s00841, 30229n, 220682, 220682a, 254296, 255308, 438601, 458876, 0001139023, 0001139024, 1731765, 1740948, 1745176, 2033120, 11090269, 42003009, 319082122, 590565122, 0986027010, 9678690180
