Article no.: F032112367

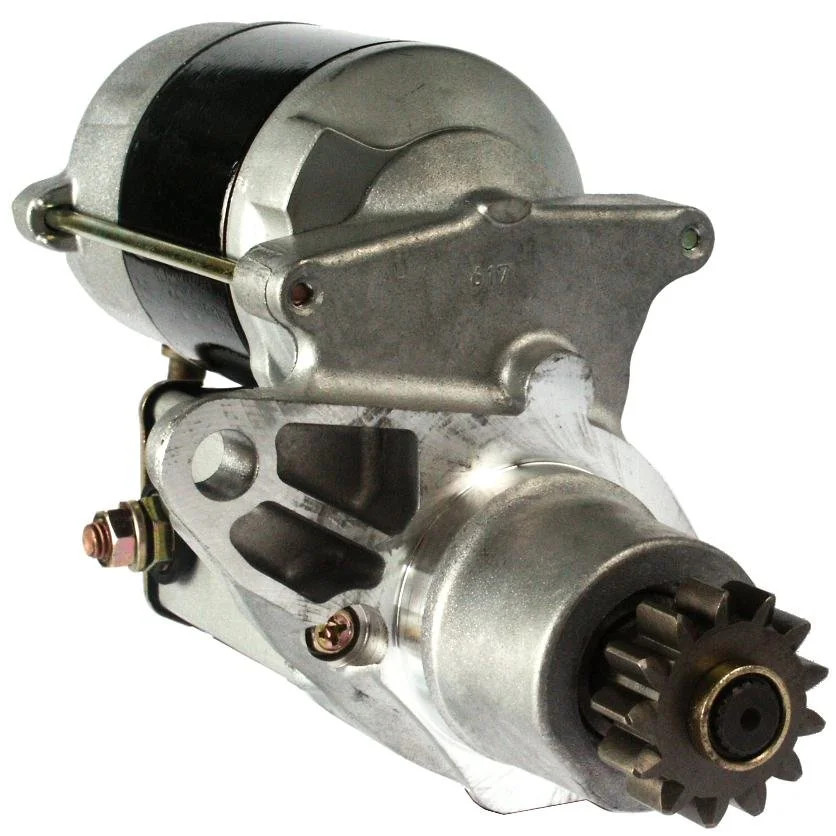

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 13, Rotation: CCW

Description

Voltage: 12
kW: 1.4
Mounting flange: 55.00
Drive distance: 66.00
Mounting hole 2 mm: 11.30
Mounting hole 1 mm: 11.30
Distance/for back: 113.00
Distance/for front: 71.50
Number of teeth: 13
B+: M8
Position/B+: 15
Position/50: 35
Terminal 50: Plug
Gear type: GR
Distance in millimeters: 121.00
Rotation: CCW
Total length in millimeters: 217.00
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number of mounting holes: 2 (0)

Files

  • OEM
    F032112367, js1218, RGO 112367, 28100-03100, 28100-28020, 28100-74260, 28100-74270, 28100-74290, 228000-6170, 228000-6172, 228000-6173, 228000-6273, 228000-6280, 228000-6281, 228000-6282, 228000-6283, 228000-7260

  • Normalised article numbler
    cst40281, dendsn929, drs0116, drt0631, dsn929, dstv182, f032112367, f042000181, f042000182, f042s00181, f042s00182, js1218, les0177, lrs01659, rgo112367, s6034, s6034denso, s6057, s6057denso, s6364s, st00182r, str8075, str8085, 8ea012526251, 17774, 17774n, 17774r, 17777n, 21984nd, 104699, 105371, 201218, 220485, 220485a, 220487, 220487a, 253205, 253206, 460232, 11040630, 063280053, 335073132, 944280721, 0986020631, 0986025320, 2280006170, 2280006172, 2280006173, 2280006273, 2280006280, 2280006281, 2280006282, 2280006283, 2280007260, 2810003100, 2810028020, 2810074260, 2810074270, 2810074290, 063280053010, 944280721000
  • Description
    Voltage: 12
    kW: 1.4
    Mounting flange: 55.00
    Drive distance: 66.00
    Mounting hole 2 mm: 11.30
    Mounting hole 1 mm: 11.30
    Distance/for back: 113.00
    Distance/for front: 71.50
    Number of teeth: 13
    B+: M8
    Position/B+: 15
    Position/50: 35
    Terminal 50: Plug
    Gear type: GR
    Distance in millimeters: 121.00
    Rotation: CCW
    Total length in millimeters: 217.00
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number of mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032112367, js1218, RGO 112367, 28100-03100, 28100-28020, 28100-74260, 28100-74270, 28100-74290, 228000-6170, 228000-6172, 228000-6173, 228000-6273, 228000-6280, 228000-6281, 228000-6282, 228000-6283, 228000-7260

    • Normalised article numbler
      cst40281, dendsn929, drs0116, drt0631, dsn929, dstv182, f032112367, f042000181, f042000182, f042s00181, f042s00182, js1218, les0177, lrs01659, rgo112367, s6034, s6034denso, s6057, s6057denso, s6364s, st00182r, str8075, str8085, 8ea012526251, 17774, 17774n, 17774r, 17777n, 21984nd, 104699, 105371, 201218, 220485, 220485a, 220487, 220487a, 253205, 253206, 460232, 11040630, 063280053, 335073132, 944280721, 0986020631, 0986025320, 2280006170, 2280006172, 2280006173, 2280006273, 2280006280, 2280006281, 2280006282, 2280006283, 2280007260, 2810003100, 2810028020, 2810074260, 2810074270, 2810074290, 063280053010, 944280721000
