HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112441

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.3, No./teeth: 9, Rotation: CW

Description

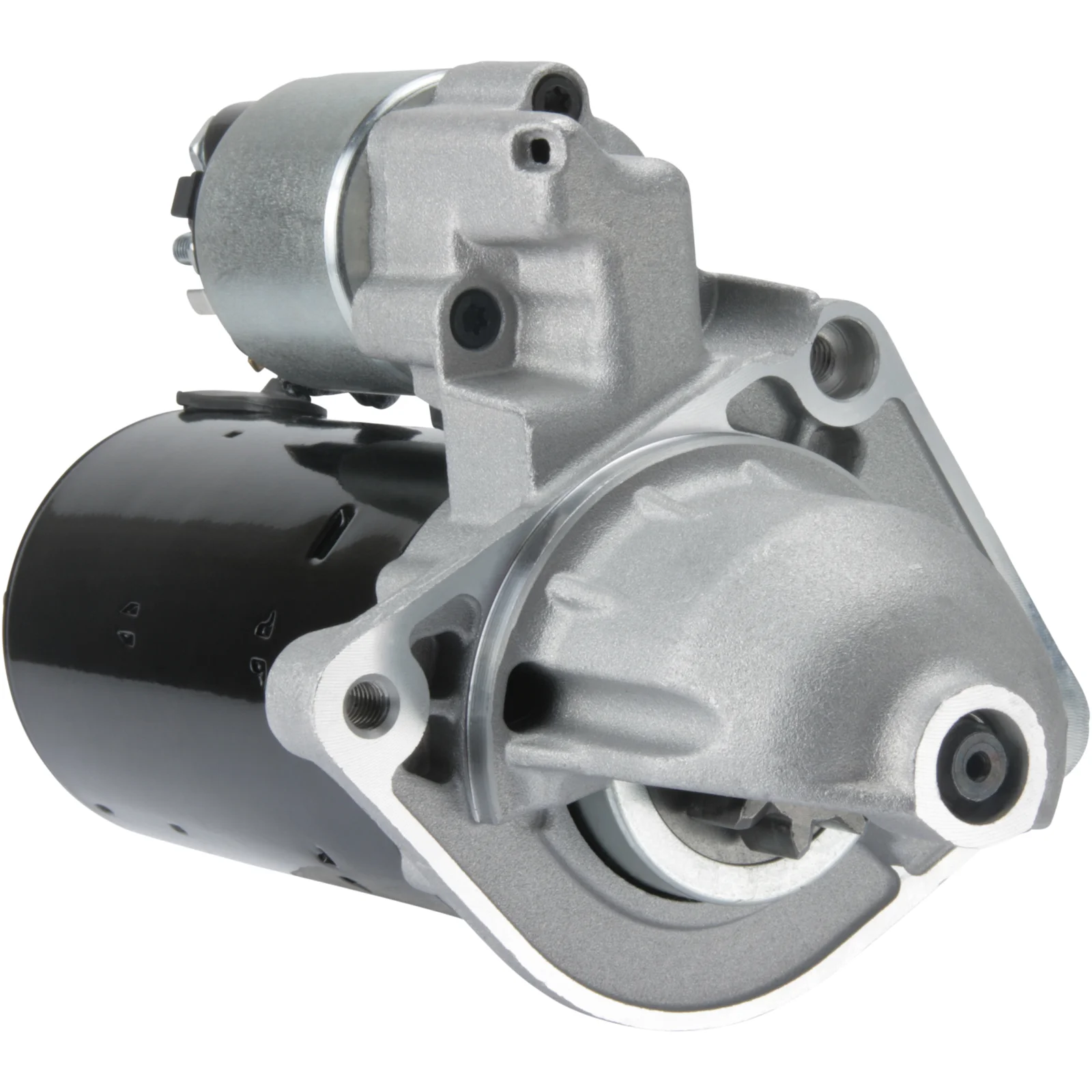

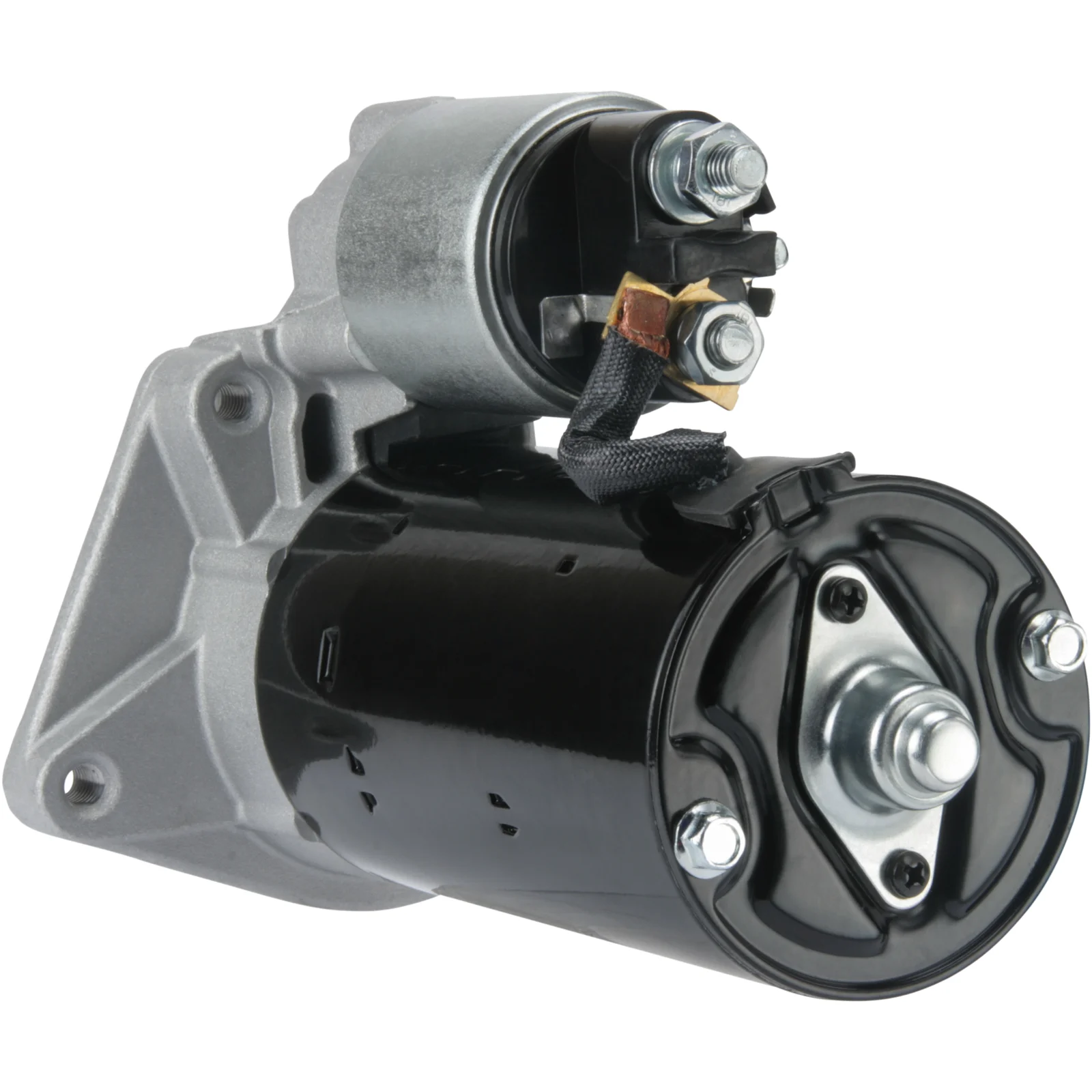

Iveco Daily Starter motor 12V-2.3kW 12V - 2.3kW, 9k A - 82.5mm, B - 27mm Also see 91-255-2571 (0001 109 series, has (A) flange diameter 84mm). For Yourex product order 91-255-1895

Voltage: 12
kW: 2.3
Mounting flange: 84.00
Drive distance: 27.00
Mounting hole 3 mm: M8
Distance/back: 187.00
Distance/front: 67.00
Number/teeth: 9
B+: M8
Position/50: 15
Terminal 50: M6
Gear type: GR
Distance 2: 121.50
Distance 3: 95.00
Distance mm: 72.00
Rotation: CW
Total length mm: 258.00
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Remarks: A: 81.00-84.00 mm.
Number/mounting holes: 3 (3)

Files

  • OEM
    AZE6526, cs1203, F000AL0143, F000AL0149, F032112441, MK666919, RGO 112441, 0001 223 003, 0001 223 024, 11.131.560, 0986 018 950, 1986S00016, 1986S00742, 1986S00757, 1986S10034, 112441, 0001109306, 0001109307, 0001109371, 0001109375, 0001109376, 0001109462, 0001223003, 0001223007, 0001223024, 1516689R, 2994100, 2995990, 42498717, 50408688, 0000069502571, 69502571, 97336488EB, 500059592, 500307724, 504086888, 504201467, 5001849990, 5803220990, 7700377051

  • Normalised article numbler
    aze6526, bso7299, cs1203, cst10164, cst10511, drs0185, drs0185n, drs0185x, drs8490, drs8950, drs8950x, f000al0143, f000al0149, f032112441, f032us0054, f042200159, f042202535, f042s02174, f042s02195, is1164, lrs01471, mk666919, ms114, msn2009, pbns3043, rgo112441, s0099, s0099pr, s0099sr, s0614bosch, s0614pr, s0614s, str20027, str22125, str2245, str50379, strb201, 8ea011350021, 8ea011610111, 1986s00016, 1986s00742, 1986s00757, 1986s10034, 3020, 32471n, 32471r, 101203, 104740, 106653, 112441, 201142, 220156, 220156a, 220435, 220435a, 252411, 438487, 458208, 458280, 726198, 0001109306, 0001109307, 0001109371, 0001109375, 0001109376, 0001109462, 0001223003, 0001223007, 0001223024, 1516689r, 2994100, 2995990, 8018490, 8212449, 11018490, 11018950, 11131560, 20513043, 42018950, 42498717, 50408688, 0000069502571, 69502571, 97336488eb, 318081092, 330026092, 500059592, 500307724, 500598093, 504086888, 504201467, 0986018490, 0986018950, 0986018953, 0986024833, 0986026920, 5001849990, 5803220990, 7700377051, 063521093070, 063522230240
  • Description
    Iveco Daily Starter motor 12V-2.3kW 12V - 2.3kW, 9k A - 82.5mm, B - 27mm Also see 91-255-2571 (0001 109 series, has (A) flange diameter 84mm). For Yourex product order 91-255-1895

    Voltage: 12
    kW: 2.3
    Mounting flange: 84.00
    Drive distance: 27.00
    Mounting hole 3 mm: M8
    Distance/back: 187.00
    Distance/front: 67.00
    Number/teeth: 9
    B+: M8
    Position/50: 15
    Terminal 50: M6
    Gear type: GR
    Distance 2: 121.50
    Distance 3: 95.00
    Distance mm: 72.00
    Rotation: CW
    Total length mm: 258.00
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: A: 81.00-84.00 mm.
    Number/mounting holes: 3 (3)

    Files

  • Suitable for these vehicles

    • OEM
      AZE6526, cs1203, F000AL0143, F000AL0149, F032112441, MK666919, RGO 112441, 0001 223 003, 0001 223 024, 11.131.560, 0986 018 950, 1986S00016, 1986S00742, 1986S00757, 1986S10034, 112441, 0001109306, 0001109307, 0001109371, 0001109375, 0001109376, 0001109462, 0001223003, 0001223007, 0001223024, 1516689R, 2994100, 2995990, 42498717, 50408688, 0000069502571, 69502571, 97336488EB, 500059592, 500307724, 504086888, 504201467, 5001849990, 5803220990, 7700377051

    • Normalised article numbler
      aze6526, bso7299, cs1203, cst10164, cst10511, drs0185, drs0185n, drs0185x, drs8490, drs8950, drs8950x, f000al0143, f000al0149, f032112441, f032us0054, f042200159, f042202535, f042s02174, f042s02195, is1164, lrs01471, mk666919, ms114, msn2009, pbns3043, rgo112441, s0099, s0099pr, s0099sr, s0614bosch, s0614pr, s0614s, str20027, str22125, str2245, str50379, strb201, 8ea011350021, 8ea011610111, 1986s00016, 1986s00742, 1986s00757, 1986s10034, 3020, 32471n, 32471r, 101203, 104740, 106653, 112441, 201142, 220156, 220156a, 220435, 220435a, 252411, 438487, 458208, 458280, 726198, 0001109306, 0001109307, 0001109371, 0001109375, 0001109376, 0001109462, 0001223003, 0001223007, 0001223024, 1516689r, 2994100, 2995990, 8018490, 8212449, 11018490, 11018950, 11131560, 20513043, 42018950, 42498717, 50408688, 0000069502571, 69502571, 97336488eb, 318081092, 330026092, 500059592, 500307724, 500598093, 504086888, 504201467, 0986018490, 0986018950, 0986018953, 0986024833, 0986026920, 5001849990, 5803220990, 7700377051, 063521093070, 063522230240
