Article no.: F032112005

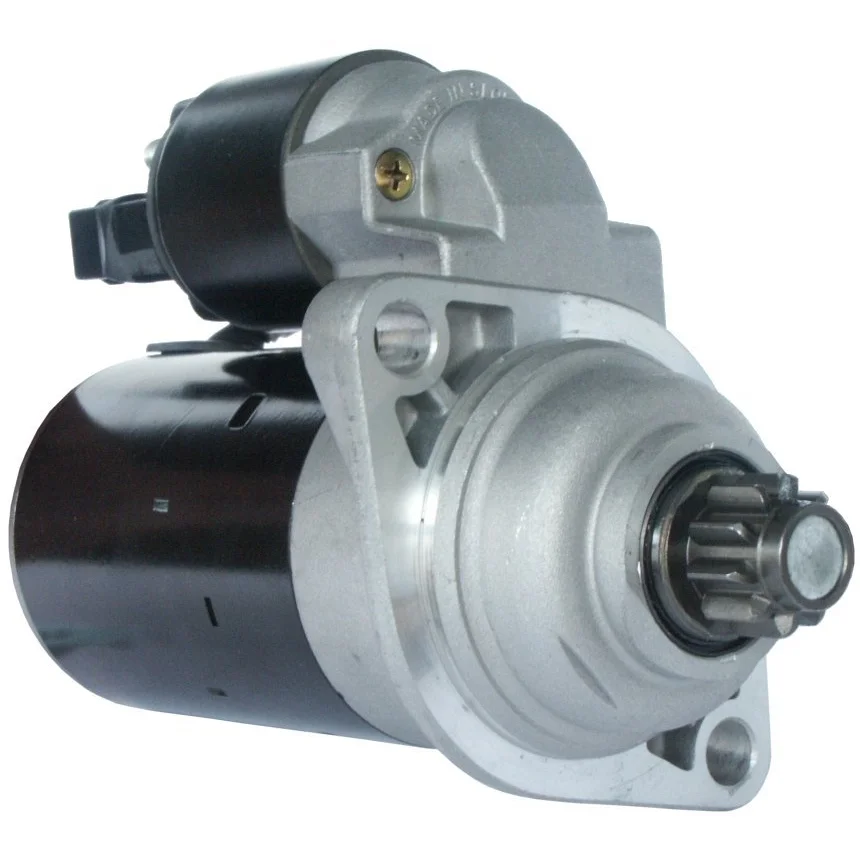

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.1, No./teeth: 10, Rotation: CCW

Description

Starter motor 12V-1.1kW, 10k, CCW 12V - 1.1kW, 10k, CCW A - 76mm, B - 53mm Manual transmission. For Yourex product order 91-620-1804

Voltage: 12
kW: 1.1
Mounting flange: 76.00
Drive distance: 52.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance/back: 151.00
Distance/front: 58.00
Number of teeth: 10
B+: M8
Position/50: 15
Terminal 50: 4.80
Gear type: GR
Distance in millimeters: 110.50
Rotation: CCW
Total length in millimeters: 211.50
Clutch type: Wet
Drive type: Steel
Production info: BN
Waterproof: No
Oil sealed: No
Number of mounting holes: 2 (0)

Files

  • OEM
    A0111548002, A6601540902, aze2634, AZE2634, BSO7218, cs1119, CS1119, CST10104, drs8040, DRS8040, DRS8040N, F000AL0501, F032112005, F032US0048, F042002049, F042S02049, FRS208, is1094, IS1094, LRT00178, MS406, MSN2098, QS2502, R95VW11000AB, R95VW11000AC, R95VW11000AC1, RGO 112005, RM95VW11000AC1, RM95VW11000BC, S0048, S0048PR, S114553, S114553A, STR-2107, STR2107, STR50024, 0001 121 008, 0001 121 009, 0001 121 026, 0001 121 027, 02A 911 023L, 02A911023F, 02A911023FX, 02a911023l, 02A911023LV, 02A911023LX, 02A911023T, 02A911023TV, 02A911023TX, 02T 911 023B, 02T911023BX, 2-1975-bo, 2A911023F, 2A911023L, 2A911023LV, 2A911023LX, 2A911023T, 5P0955602A, 8EA012527-311, 8ea737579-001, 8EA737579001, 11.131.137, 25-2243, 95VW-11000-AA, 95VW-11000-AB, 95VW11000AC, 311.073.102, 0986 018 040, 1986S00785, 3860, 3872, 4577, 0004717V005, 0004717V005000000, 0004717V006, 17780, 17780N, 17780R, 101119, 103683, 112005, 201033, 220055, 220055A, 438428, 458160, 458221, 726118, 726918, 915111D, 1029407, 1029409, 1072155, 1092114, 0001121008, 0001121009, 0001121026, 0001121027, 1345533, 1416228, 7203208, 8018040, 11018040, 20510178, 020911023S, 020911023SX, 020911023T, 020911023TX, 42018040, 055911023K, 055911023L, 0111548002, 0986018040, 0986018044, 0986018047, 6601540902, 011154800280, 063521210260, 660154090280, 943253119010, 944280180400

  • Normalised article numbler
    a0111548002, a6601540902, aze2634, bso7218, cs1119, cst10104, drs8040, drs8040n, f000al0501, f032112005, f032us0048, f042002049, f042s02049, frs208, is1094, lrt00178, ms406, msn2098, qs2502, r95vw11000ab, r95vw11000ac, r95vw11000ac1, rgo112005, rm95vw11000ac1, rm95vw11000bc, s0048, s0048pr, s114553, s114553a, str2107, str50024, 02a911023f, 02a911023fx, 02a911023l, 02a911023lv, 02a911023lx, 02a911023t, 02a911023tv, 02a911023tx, 02t911023b, 02t911023bx, 2a911023f, 2a911023l, 2a911023lv, 2a911023lx, 2a911023t, 5p0955602a, 8ea012527311, 8ea737579001, 95vw11000aa, 95vw11000ab, 95vw11000ac, 1986s00785, 3860, 3872, 4577, 0004717v005, 0004717v005000000, 0004717v006, 17780, 17780n, 17780r, 21975bo, 101119, 103683, 112005, 201033, 220055, 220055a, 252243, 438428, 458160, 458221, 726118, 726918, 915111d, 1029407, 1029409, 1072155, 1092114, 0001121008, 0001121009, 0001121026, 0001121027, 1345533, 1416228, 7203208, 8018040, 11018040, 11131137, 20510178, 020911023s, 020911023sx, 020911023t, 020911023tx, 42018040, 055911023k, 055911023l, 0111548002, 311073102, 0986018040, 0986018044, 0986018047, 6601540902, 011154800280, 063521210260, 660154090280, 943253119010, 944280180400
  • Description
    Starter motor 12V-1.1kW, 10k, CCW 12V - 1.1kW, 10k, CCW A - 76mm, B - 53mm Manual transmission. For Yourex product order 91-620-1804

    Voltage: 12
    kW: 1.1
    Mounting flange: 76.00
    Drive distance: 52.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance/back: 151.00
    Distance/front: 58.00
    Number of teeth: 10
    B+: M8
    Position/50: 15
    Terminal 50: 4.80
    Gear type: GR
    Distance in millimeters: 110.50
    Rotation: CCW
    Total length in millimeters: 211.50
    Clutch type: Wet
    Drive type: Steel
    Production info: BN
    Waterproof: No
    Oil sealed: No
    Number of mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      A0111548002, A6601540902, aze2634, AZE2634, BSO7218, cs1119, CS1119, CST10104, drs8040, DRS8040, DRS8040N, F000AL0501, F032112005, F032US0048, F042002049, F042S02049, FRS208, is1094, IS1094, LRT00178, MS406, MSN2098, QS2502, R95VW11000AB, R95VW11000AC, R95VW11000AC1, RGO 112005, RM95VW11000AC1, RM95VW11000BC, S0048, S0048PR, S114553, S114553A, STR-2107, STR2107, STR50024, 0001 121 008, 0001 121 009, 0001 121 026, 0001 121 027, 02A 911 023L, 02A911023F, 02A911023FX, 02a911023l, 02A911023LV, 02A911023LX, 02A911023T, 02A911023TV, 02A911023TX, 02T 911 023B, 02T911023BX, 2-1975-bo, 2A911023F, 2A911023L, 2A911023LV, 2A911023LX, 2A911023T, 5P0955602A, 8EA012527-311, 8ea737579-001, 8EA737579001, 11.131.137, 25-2243, 95VW-11000-AA, 95VW-11000-AB, 95VW11000AC, 311.073.102, 0986 018 040, 1986S00785, 3860, 3872, 4577, 0004717V005, 0004717V005000000, 0004717V006, 17780, 17780N, 17780R, 101119, 103683, 112005, 201033, 220055, 220055A, 438428, 458160, 458221, 726118, 726918, 915111D, 1029407, 1029409, 1072155, 1092114, 0001121008, 0001121009, 0001121026, 0001121027, 1345533, 1416228, 7203208, 8018040, 11018040, 20510178, 020911023S, 020911023SX, 020911023T, 020911023TX, 42018040, 055911023K, 055911023L, 0111548002, 0986018040, 0986018044, 0986018047, 6601540902, 011154800280, 063521210260, 660154090280, 943253119010, 944280180400

    • Normalised article numbler
      a0111548002, a6601540902, aze2634, bso7218, cs1119, cst10104, drs8040, drs8040n, f000al0501, f032112005, f032us0048, f042002049, f042s02049, frs208, is1094, lrt00178, ms406, msn2098, qs2502, r95vw11000ab, r95vw11000ac, r95vw11000ac1, rgo112005, rm95vw11000ac1, rm95vw11000bc, s0048, s0048pr, s114553, s114553a, str2107, str50024, 02a911023f, 02a911023fx, 02a911023l, 02a911023lv, 02a911023lx, 02a911023t, 02a911023tv, 02a911023tx, 02t911023b, 02t911023bx, 2a911023f, 2a911023l, 2a911023lv, 2a911023lx, 2a911023t, 5p0955602a, 8ea012527311, 8ea737579001, 95vw11000aa, 95vw11000ab, 95vw11000ac, 1986s00785, 3860, 3872, 4577, 0004717v005, 0004717v005000000, 0004717v006, 17780, 17780n, 17780r, 21975bo, 101119, 103683, 112005, 201033, 220055, 220055a, 252243, 438428, 458160, 458221, 726118, 726918, 915111d, 1029407, 1029409, 1072155, 1092114, 0001121008, 0001121009, 0001121026, 0001121027, 1345533, 1416228, 7203208, 8018040, 11018040, 11131137, 20510178, 020911023s, 020911023sx, 020911023t, 020911023tx, 42018040, 055911023k, 055911023l, 0111548002, 311073102, 0986018040, 0986018044, 0986018047, 6601540902, 011154800280, 063521210260, 660154090280, 943253119010, 944280180400
