HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114775

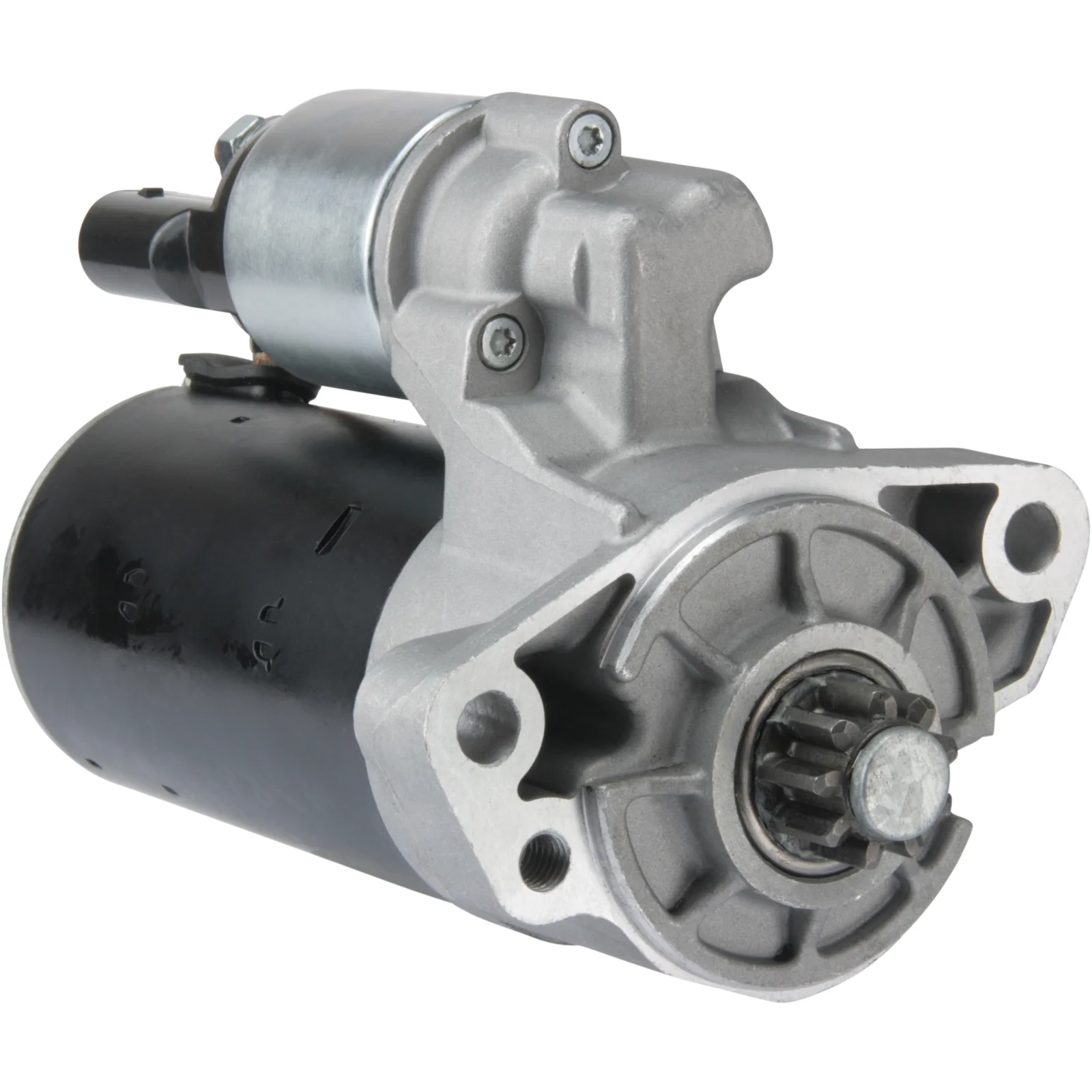

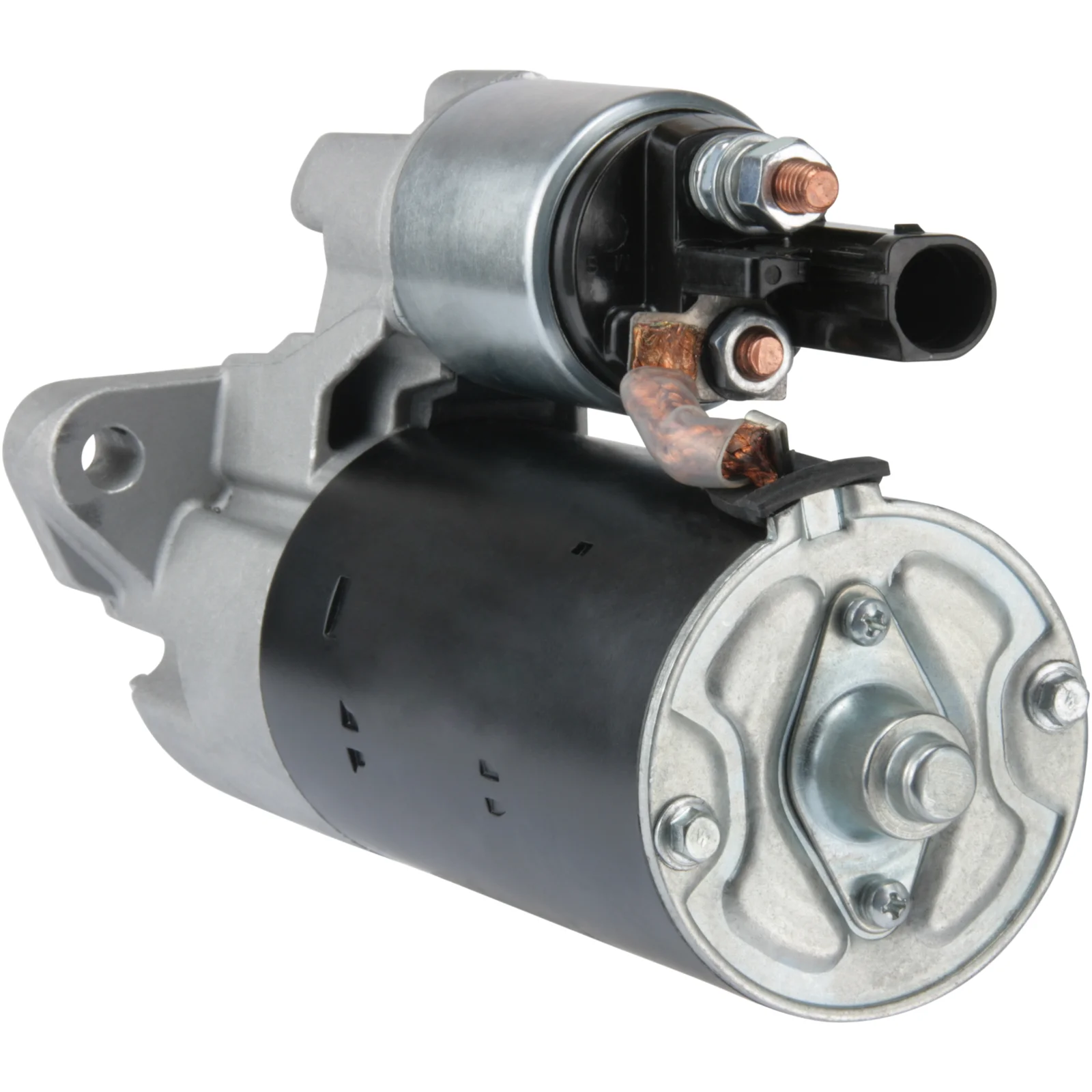

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Description

VAG 3.0TDI Starter motor 12V-2.2kW 12V - 2.2kW, 9k A - 76.2mm, B - 25mm For Yourex product order 91-620-2405

Volts: 12
kW: 2.2
Mounting flange: 76.20
Drive distance: 25.00
Mounting hole 3 mm: 10.50
Mounting hole 1 mm: 11.00
Distance / back: 192.50
Distance / front: 28.50
Number / teeth: 9
B+: M8
Position / 50: 15
Terminal 50: Plug
Gear type: GR
Distance 2: 23.50
Distance 3: 104.50
Distance mm: 101.50
Rotation: CW
Total length mm: 235.50
Drive type: Steel
Number / mounting holes: 3 (1)

Files

  • OEM
    F032114775, RGO 114775, 0001 125 609, 0001 125 610, 059 911 024H, 0986 024 050, 1986S00824, 114775, 0001109054, 0001125609, 0001125610, 059911024E, 059911024h

  • Normalised article numbler
    cst10421, drs0244, f032114775, lrs02624, rgo114775, s0270, s0270pr, 8ea011611881, 1986s00824, 3384, 17678, 17678n, 17678r, 114775, 254297, 254373, 458920, 0001109054, 0001125609, 0001125610, 11024050, 059911024e, 059911024h, 300586093, 311282092, 0986024050, 0986024057
  • Description
    VAG 3.0TDI Starter motor 12V-2.2kW 12V - 2.2kW, 9k A - 76.2mm, B - 25mm For Yourex product order 91-620-2405

    Volts: 12
    kW: 2.2
    Mounting flange: 76.20
    Drive distance: 25.00
    Mounting hole 3 mm: 10.50
    Mounting hole 1 mm: 11.00
    Distance / back: 192.50
    Distance / front: 28.50
    Number / teeth: 9
    B+: M8
    Position / 50: 15
    Terminal 50: Plug
    Gear type: GR
    Distance 2: 23.50
    Distance 3: 104.50
    Distance mm: 101.50
    Rotation: CW
    Total length mm: 235.50
    Drive type: Steel
    Number / mounting holes: 3 (1)

    Files

  • Suitable for these vehicles

    • OEM
      F032114775, RGO 114775, 0001 125 609, 0001 125 610, 059 911 024H, 0986 024 050, 1986S00824, 114775, 0001109054, 0001125609, 0001125610, 059911024E, 059911024h

    • Normalised article numbler
      cst10421, drs0244, f032114775, lrs02624, rgo114775, s0270, s0270pr, 8ea011611881, 1986s00824, 3384, 17678, 17678n, 17678r, 114775, 254297, 254373, 458920, 0001109054, 0001125609, 0001125610, 11024050, 059911024e, 059911024h, 300586093, 311282092, 0986024050, 0986024057
