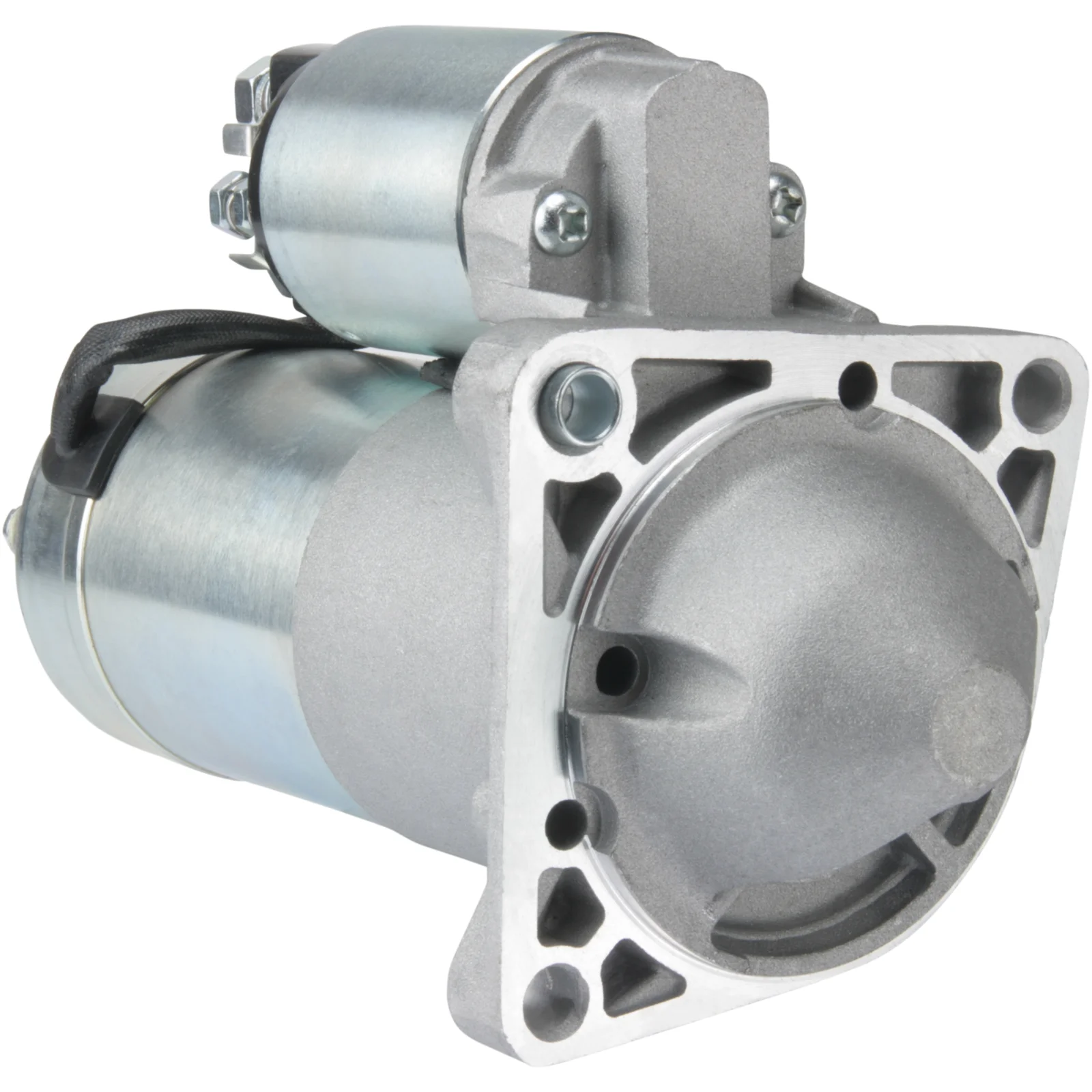

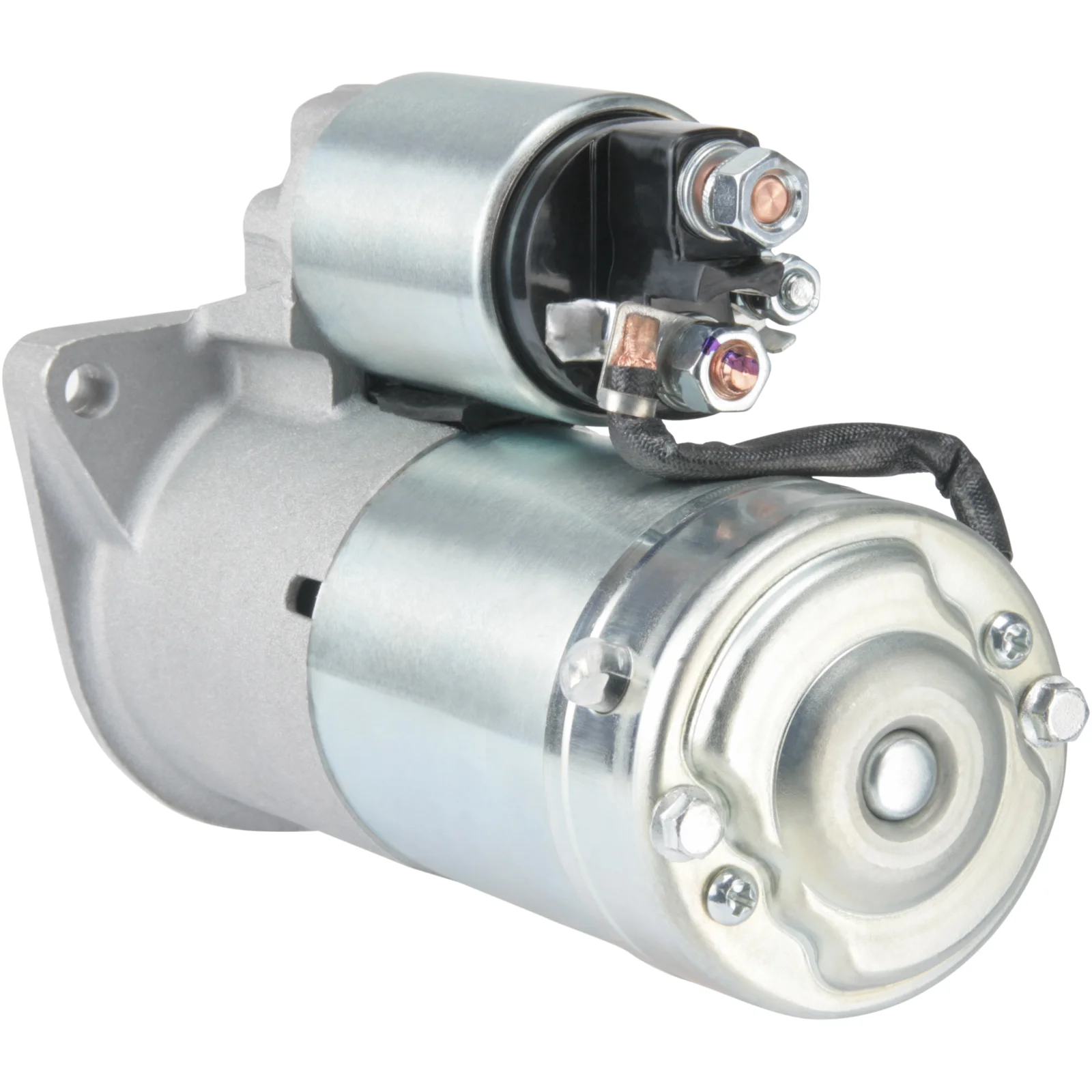

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114058

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.7, No./teeth: 10, Rotation: CW

Description

Starter motor 12V-1.9kW M/T 12V - 1.9kW, 10k A - 82mm, B - 5mm Manual gear box! 12V - 1.9kW, 10k For Yourex product order 91-485-3017

Voltage: 12
kW: 1.7
Mount. flange: 82.00
Drive distance: 4.00
Mount. hole 3 mm: 8.50
Mount. hole 2 mm: 8.50
Mount. hole 1 mm: 8.50
Distance/back: 180.00
Distance/front: 40.00
Number/teeth: 10
B+: M8
Position/50: 15
Terminal 50: M6
Gear type: GR
Distance 2: 82.00
Distance 3: 82.00
Distance mm: 116.00
Rotation: CW
Total length mm: 220.00
Number/mounting holes: 3 (0)

Files

  • OEM
    cs1428, F032114058, GM 1202283, GM 55585238, GM 6202073, M001T30171, M001T30172, M001T30173, M1T-30171, M1T-30172, M1T-30173, M1T30171, M1T30172, M1T30173, R1540030, RGO 114058, 1986S00915, 114058, 1202283, 1202594, 6202073, 9562203, 55352882, 55585238, 93169020, 93169021

  • Normalised article numbler
    cs1428, cst35172, drs3988, drs3988n, drs3988x, f032114058, f042001089, f042s01089, gm1202283, gm55585238, gm6202073, lrs02173, m001t30171, m001t30172, m001t30173, m1t30171, m1t30172, m1t30173, mitm1t30173, r1540030, rgo114058, s5042, s5042pr, str3200, 8ea012527641, 8ea738259091, 1986s00915, 3143, 33173n, 101428, 106674, 114058, 220580, 220580a, 253347, 438397, 458767, 1202283, 1202594, 6202073, 9562203, 11090101, 42001171, 55352882, 55585238, 93169020, 93169021, 328051102, 0986022061, 0986022063
  • Description
    Starter motor 12V-1.9kW M/T 12V - 1.9kW, 10k A - 82mm, B - 5mm Manual gear box! 12V - 1.9kW, 10k For Yourex product order 91-485-3017

    Voltage: 12
    kW: 1.7
    Mount. flange: 82.00
    Drive distance: 4.00
    Mount. hole 3 mm: 8.50
    Mount. hole 2 mm: 8.50
    Mount. hole 1 mm: 8.50
    Distance/back: 180.00
    Distance/front: 40.00
    Number/teeth: 10
    B+: M8
    Position/50: 15
    Terminal 50: M6
    Gear type: GR
    Distance 2: 82.00
    Distance 3: 82.00
    Distance mm: 116.00
    Rotation: CW
    Total length mm: 220.00
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1428, F032114058, GM 1202283, GM 55585238, GM 6202073, M001T30171, M001T30172, M001T30173, M1T-30171, M1T-30172, M1T-30173, M1T30171, M1T30172, M1T30173, R1540030, RGO 114058, 1986S00915, 114058, 1202283, 1202594, 6202073, 9562203, 55352882, 55585238, 93169020, 93169021

    • Normalised article numbler
      cs1428, cst35172, drs3988, drs3988n, drs3988x, f032114058, f042001089, f042s01089, gm1202283, gm55585238, gm6202073, lrs02173, m001t30171, m001t30172, m001t30173, m1t30171, m1t30172, m1t30173, mitm1t30173, r1540030, rgo114058, s5042, s5042pr, str3200, 8ea012527641, 8ea738259091, 1986s00915, 3143, 33173n, 101428, 106674, 114058, 220580, 220580a, 253347, 438397, 458767, 1202283, 1202594, 6202073, 9562203, 11090101, 42001171, 55352882, 55585238, 93169020, 93169021, 328051102, 0986022061, 0986022063
