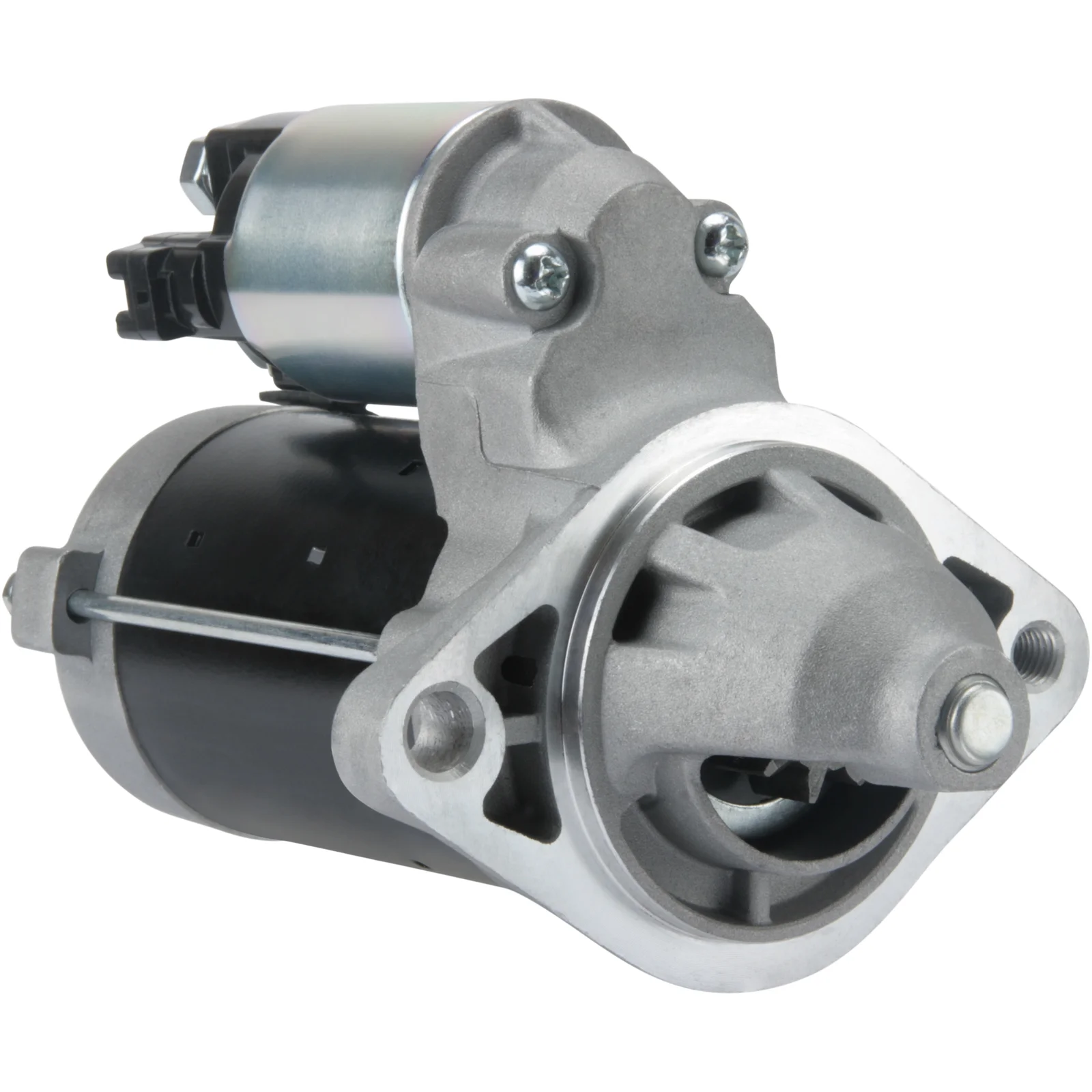

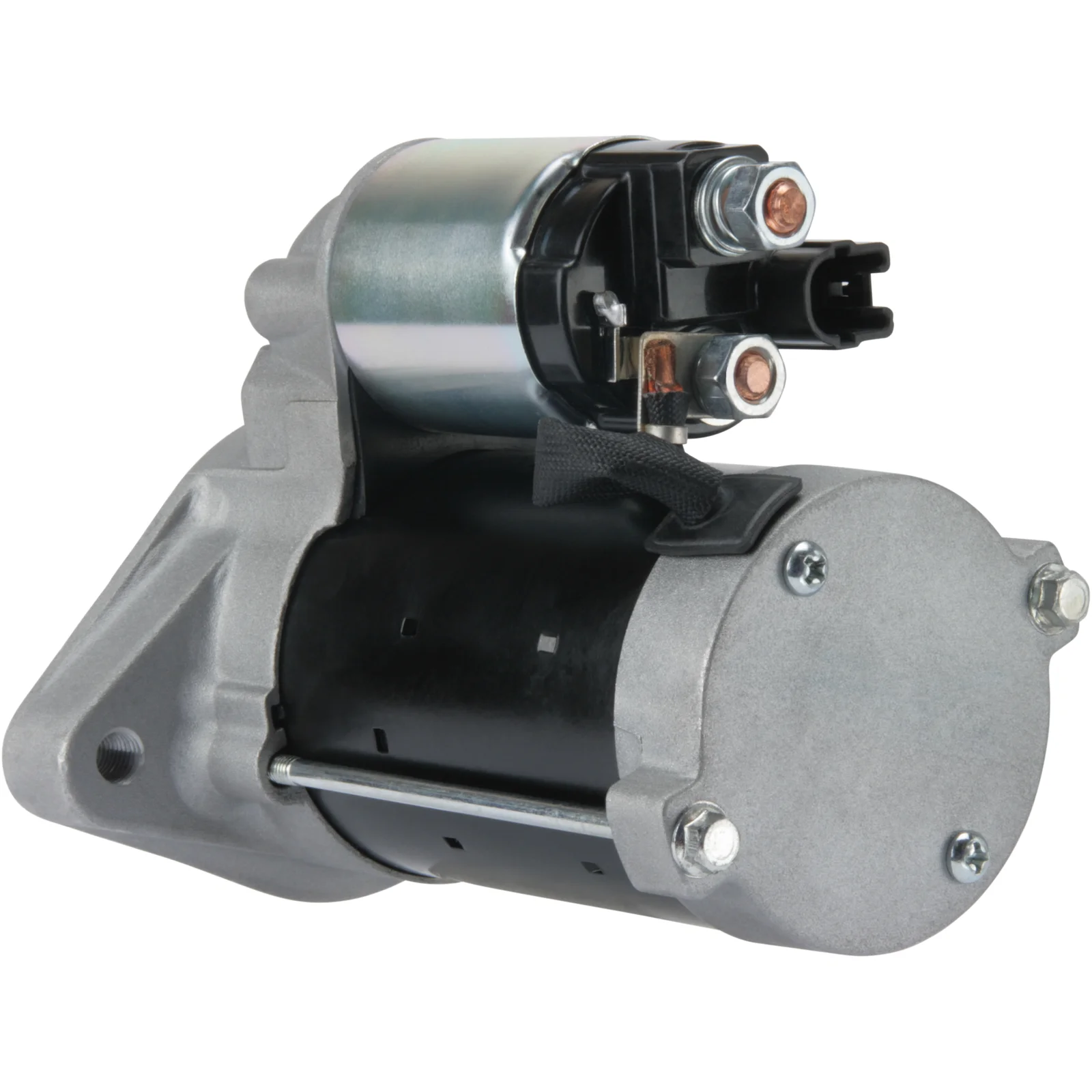

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114056

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.3, No./teeth: 9, Rotation: CW

Description

Toyota Starter motor 12V-1.3kW 12V - 1.3kW, 9k A - 74mm, B - 15mm For Yourex product order 91-555-4450

Voltage: 12
kW: 1.3
Mounting flange: 74.00
Drive distance: 15.50
Mounting hole 2 mm: 11.00
Distance/back: 145.00
Distance/front: 47.00
Number of teeth: 9
B+: M8
Position/50: 20
Terminal 50: Plug
Gear type: GR
Distance mm: 114.00
Rotation: CW
Total length mm: 196.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number of mounting holes: 2 (1)

Files

  • OEM
    DSN 920, F032114056, js1362, MS428000-0680, RGO 114056, 1986S01021, 28100-0D090, 28100-0D180, 114056, 428000-0680, 428000-4500, 428000-7710

  • Normalised article numbler
    cst40268, dendsn920, drs0347, dsn920, f032114056, f042s00281, j5212122, js1362, lrs02399, ms4280000680, rgo114056, s6061, s6061denso, s6061pr, 8ea012528941, 1986s01021, 9715, 31346n, 106586, 114056, 201362, 220542, 220542a, 254071, 281000d090, 281000d180, 446527, 11040602, 063280048, 335226092, 0986023260, 4280000680, 4280004500, 4280007710, 063280048010
  • Description
    Toyota Starter motor 12V-1.3kW 12V - 1.3kW, 9k A - 74mm, B - 15mm For Yourex product order 91-555-4450

    Voltage: 12
    kW: 1.3
    Mounting flange: 74.00
    Drive distance: 15.50
    Mounting hole 2 mm: 11.00
    Distance/back: 145.00
    Distance/front: 47.00
    Number of teeth: 9
    B+: M8
    Position/50: 20
    Terminal 50: Plug
    Gear type: GR
    Distance mm: 114.00
    Rotation: CW
    Total length mm: 196.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number of mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      DSN 920, F032114056, js1362, MS428000-0680, RGO 114056, 1986S01021, 28100-0D090, 28100-0D180, 114056, 428000-0680, 428000-4500, 428000-7710

    • Normalised article numbler
      cst40268, dendsn920, drs0347, dsn920, f032114056, f042s00281, j5212122, js1362, lrs02399, ms4280000680, rgo114056, s6061, s6061denso, s6061pr, 8ea012528941, 1986s01021, 9715, 31346n, 106586, 114056, 201362, 220542, 220542a, 254071, 281000d090, 281000d180, 446527, 11040602, 063280048, 335226092, 0986023260, 4280000680, 4280004500, 4280007710, 063280048010
