HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114037

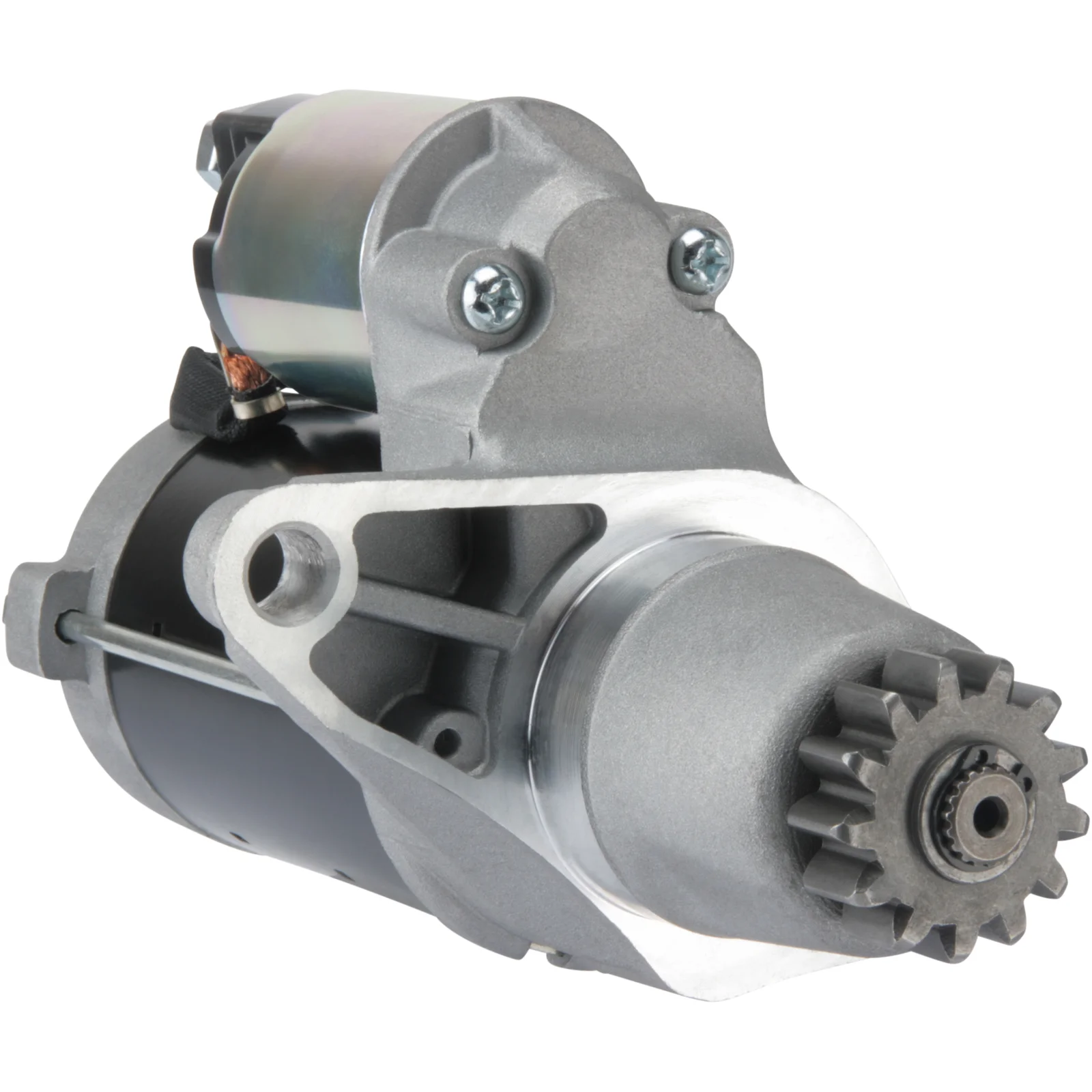

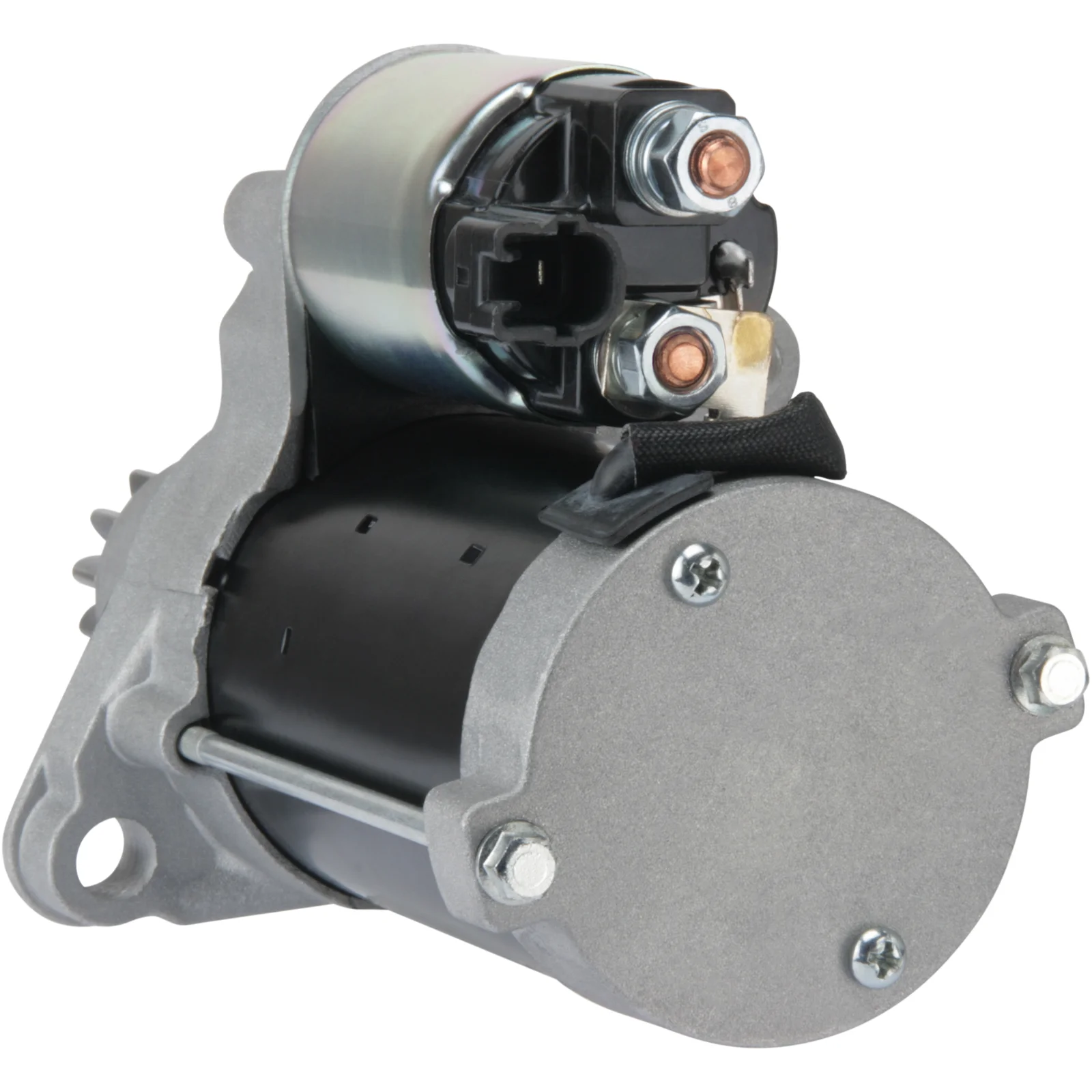

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.6, No./teeth: 13, Rotation: CCW

Description

Toyota Avensis Starter motor 12V-1.6kW 12V - 1.6kW, 13 teeth, CCW Solenoid terminal "50" is on the right side. Alternative: at 91-555-2804, the Solenoid terminal "50" is on the left side. For HC-CARGO product order 91-555-4070

Voltage: 12
kW: 1.6
Mounting flange: 55.00
Drive distance: 66.00
Mounting hole 2 mm: 11.70
Mounting hole 1 mm: 11.70
Distance/back: 141.00
Distance/front: 71.00
Number of teeth: 13
B+: M8
Position/50: 17
Terminal 50: Plug
Gear type: GR
Distance in millimeters: 121.50
Rotation: CCW
Total length in millimeters: 215.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number of mounting holes: 2 (0)

Files

  • OEM
    F032114037, js1363, RGO 114037, 1986S00605, 28100-0A011, 28100-0H060, 28100-0H061, 28100-0h110, 28100-0V012, 28100-20020, 28100-20021, 28100-20022, 28100-28040, 28100-28041, 28100-28042, 28100-28062, 28100-28072, 28100-31100, 28100-31101, 28100-31102, 114037, 228000-9900, 228000-9901, 228000-9902, 428000-0700, 428000-0701, 428000-1840, 428000-1841, 428000-1842, 428000-4530, 428000-7720

  • Normalised article numbler
    cst40303, cst40327, drs0561, dsn1003, f032114037, js1363, lrs02261, lrs02427, lrs02452, rgo114037, s6029, s6108denso, s6237s, 1986s00605, 17825, 17825n, 17825r, 17825rw, 107132, 114037, 201363, 253432, 254099, 254124, 281000a011, 281000h060, 281000h061, 281000h110, 281000v012, 8212648, 11040718, 11040776, 335217132, 335229132, 635030132, 0986026080, 2280009900, 2280009901, 2280009902, 2810020020, 2810020021, 2810020022, 2810028040, 2810028041, 2810028042, 2810028062, 2810028072, 2810031100, 2810031101, 2810031102, 4280000700, 4280000701, 4280001840, 4280001841, 4280001842, 4280004530, 4280007720
  • Description
    Toyota Avensis Starter motor 12V-1.6kW 12V - 1.6kW, 13 teeth, CCW Solenoid terminal "50" is on the right side. Alternative: at 91-555-2804, the Solenoid terminal "50" is on the left side. For HC-CARGO product order 91-555-4070

    Voltage: 12
    kW: 1.6
    Mounting flange: 55.00
    Drive distance: 66.00
    Mounting hole 2 mm: 11.70
    Mounting hole 1 mm: 11.70
    Distance/back: 141.00
    Distance/front: 71.00
    Number of teeth: 13
    B+: M8
    Position/50: 17
    Terminal 50: Plug
    Gear type: GR
    Distance in millimeters: 121.50
    Rotation: CCW
    Total length in millimeters: 215.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number of mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114037, js1363, RGO 114037, 1986S00605, 28100-0A011, 28100-0H060, 28100-0H061, 28100-0h110, 28100-0V012, 28100-20020, 28100-20021, 28100-20022, 28100-28040, 28100-28041, 28100-28042, 28100-28062, 28100-28072, 28100-31100, 28100-31101, 28100-31102, 114037, 228000-9900, 228000-9901, 228000-9902, 428000-0700, 428000-0701, 428000-1840, 428000-1841, 428000-1842, 428000-4530, 428000-7720

    • Normalised article numbler
      cst40303, cst40327, drs0561, dsn1003, f032114037, js1363, lrs02261, lrs02427, lrs02452, rgo114037, s6029, s6108denso, s6237s, 1986s00605, 17825, 17825n, 17825r, 17825rw, 107132, 114037, 201363, 253432, 254099, 254124, 281000a011, 281000h060, 281000h061, 281000h110, 281000v012, 8212648, 11040718, 11040776, 335217132, 335229132, 635030132, 0986026080, 2280009900, 2280009901, 2280009902, 2810020020, 2810020021, 2810020022, 2810028040, 2810028041, 2810028042, 2810028062, 2810028072, 2810031100, 2810031101, 2810031102, 4280000700, 4280000701, 4280001840, 4280001841, 4280001842, 4280004530, 4280007720
