HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111455

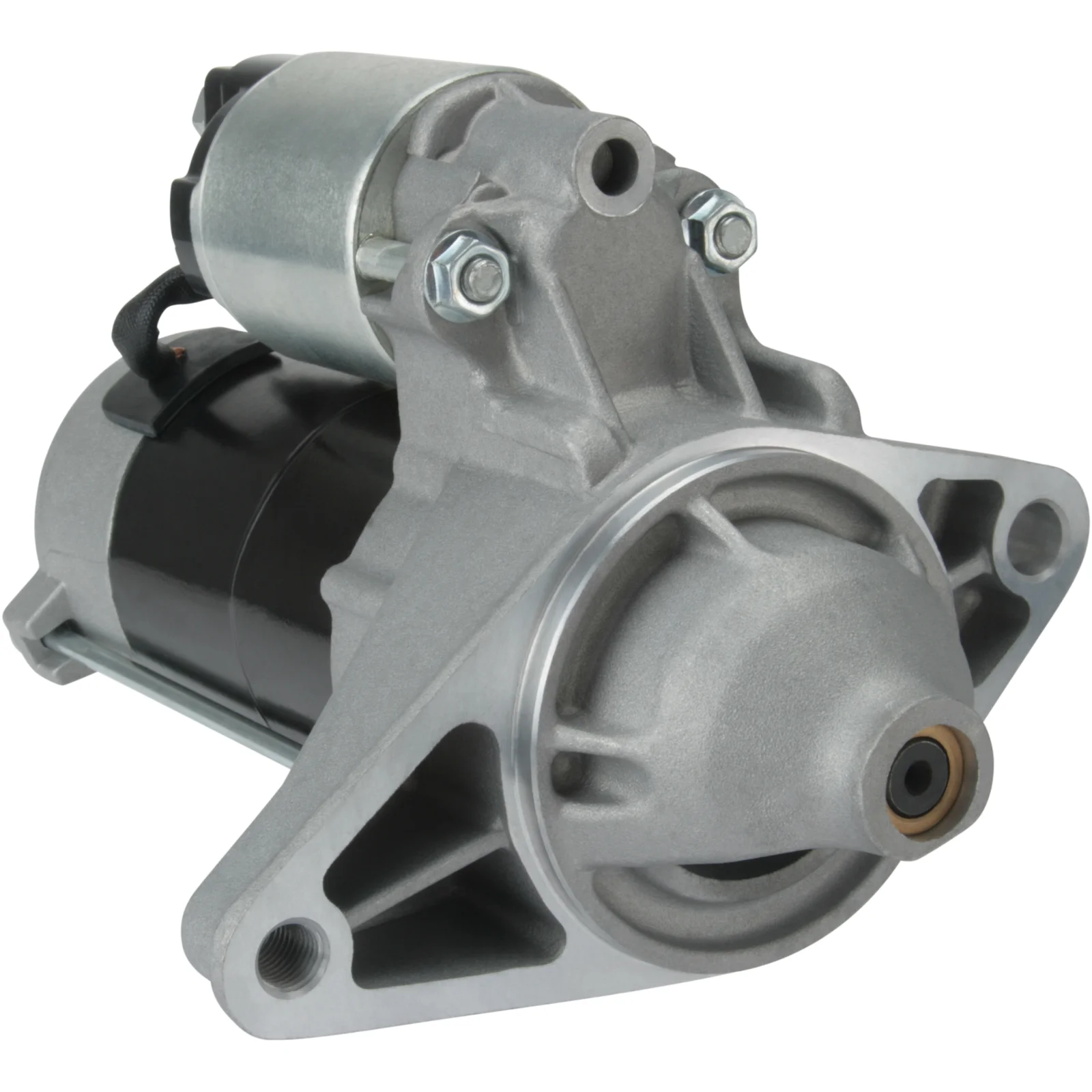

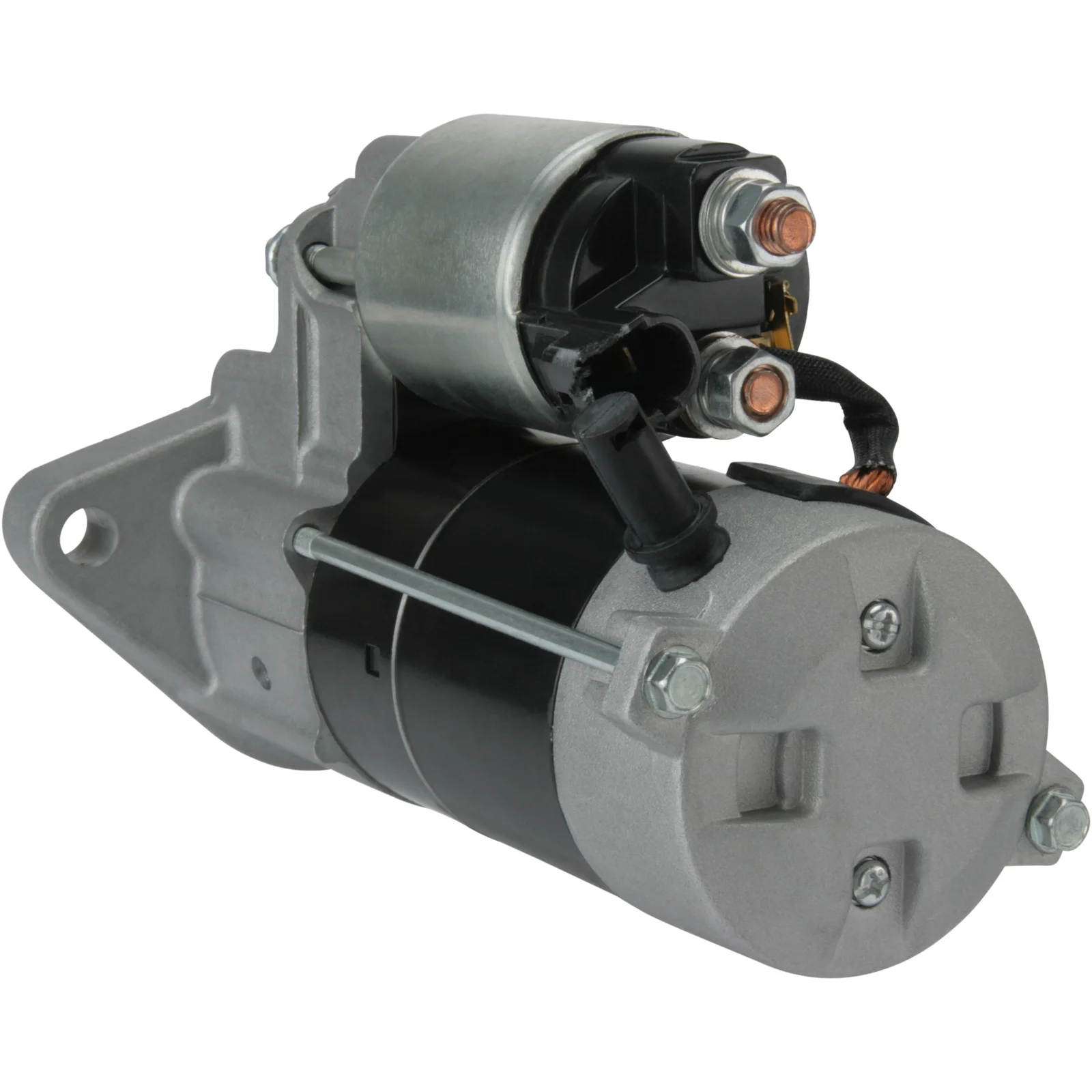

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.8, No./teeth: 9, Rotation: CW

Description

Toyota 87> Starter motor 12V-0.8kW 12V - 0.8kW, 8/9 teeth for Yourex product order 91-555-1604

Voltage: 12
kW: 0.8
Mounting flange: 74.00
Drive distance: 8.50
Mounting hole 1 mm: 11.00
Distance/behind: 159.00
Distance/in front: 42.00
Number/teeth: 9
B+: M8
Position/50: 45
Terminal 50: Plug
Gear type: GR
Distance mm: 133.00
Rotation: CW
Total length mm: 201.00
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 2 (1)

Files

  • OEM
    F032111455, js918, RGO 111455, 1986S00563, 28100-0F900, 28100-16010, 28100-16040, 28100-16041, 28100-16070, 28100-16071, 28100-16160, 28100-16230, 28100-87213, 111455, 128000-2680, 128000-2682, 128000-4480, 128000-5680, 128000-5681, 128000-5682, 128000-6420, 128000-6421, 128000-6422, 228000-0940, 228000-0941, 228000-2900, 2810087213000

  • Normalised article numbler
    ats214, ats218, cst40116, drs3178, drs3179, drs3384, drs3643, f032111455, f042000203, f042s00203, frs650, j5212077, j5212082, js918, lrs00995, lrt00129, qs2271, rgo111455, s6020, s6020s, s6223s, str22030, str30047, str8263, 8ea012527131, 8ea731795001, 8ea737119001, 1986s00563, 4283, 4330, 9512, 11738, 20760, 20918, 21693nd, 30982r, 105023, 106422, 106436, 111455, 251166, 252258, 252290, 281000f900, 438437, 458509, 3952247, 3952252, 8052261, 8052277, 11040746, 335030092, 335037092, 335058092, 335094092, 943251905, 0986016491, 0986019141, 0986019161, 0986020531, 1280002680, 1280002682, 1280004480, 1280005680, 1280005681, 1280005682, 1280006420, 1280006421, 1280006422, 2280000940, 2280000941, 2280002900, 2810016010, 2810016040, 2810016041, 2810016070, 2810016071, 2810016160, 2810016230, 2810087213, 943254007010, 944280522770, 944280522820, 2810087213000
  • Description
    Toyota 87> Starter motor 12V-0.8kW 12V - 0.8kW, 8/9 teeth for Yourex product order 91-555-1604

    Voltage: 12
    kW: 0.8
    Mounting flange: 74.00
    Drive distance: 8.50
    Mounting hole 1 mm: 11.00
    Distance/behind: 159.00
    Distance/in front: 42.00
    Number/teeth: 9
    B+: M8
    Position/50: 45
    Terminal 50: Plug
    Gear type: GR
    Distance mm: 133.00
    Rotation: CW
    Total length mm: 201.00
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      F032111455, js918, RGO 111455, 1986S00563, 28100-0F900, 28100-16010, 28100-16040, 28100-16041, 28100-16070, 28100-16071, 28100-16160, 28100-16230, 28100-87213, 111455, 128000-2680, 128000-2682, 128000-4480, 128000-5680, 128000-5681, 128000-5682, 128000-6420, 128000-6421, 128000-6422, 228000-0940, 228000-0941, 228000-2900, 2810087213000

    • Normalised article numbler
      ats214, ats218, cst40116, drs3178, drs3179, drs3384, drs3643, f032111455, f042000203, f042s00203, frs650, j5212077, j5212082, js918, lrs00995, lrt00129, qs2271, rgo111455, s6020, s6020s, s6223s, str22030, str30047, str8263, 8ea012527131, 8ea731795001, 8ea737119001, 1986s00563, 4283, 4330, 9512, 11738, 20760, 20918, 21693nd, 30982r, 105023, 106422, 106436, 111455, 251166, 252258, 252290, 281000f900, 438437, 458509, 3952247, 3952252, 8052261, 8052277, 11040746, 335030092, 335037092, 335058092, 335094092, 943251905, 0986016491, 0986019141, 0986019161, 0986020531, 1280002680, 1280002682, 1280004480, 1280005680, 1280005681, 1280005682, 1280006420, 1280006421, 1280006422, 2280000940, 2280000941, 2280002900, 2810016010, 2810016040, 2810016041, 2810016070, 2810016071, 2810016160, 2810016230, 2810087213, 943254007010, 944280522770, 944280522820, 2810087213000
