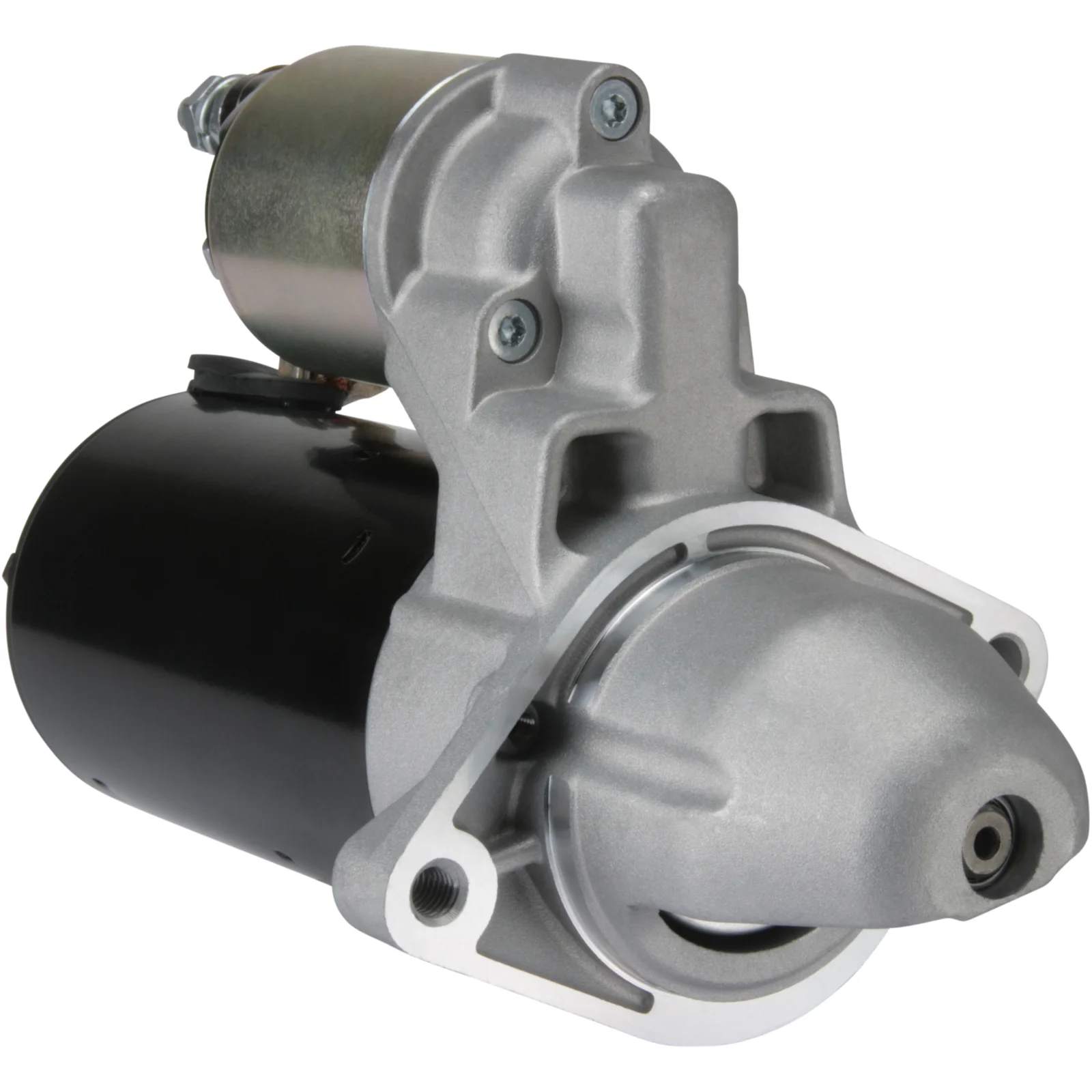

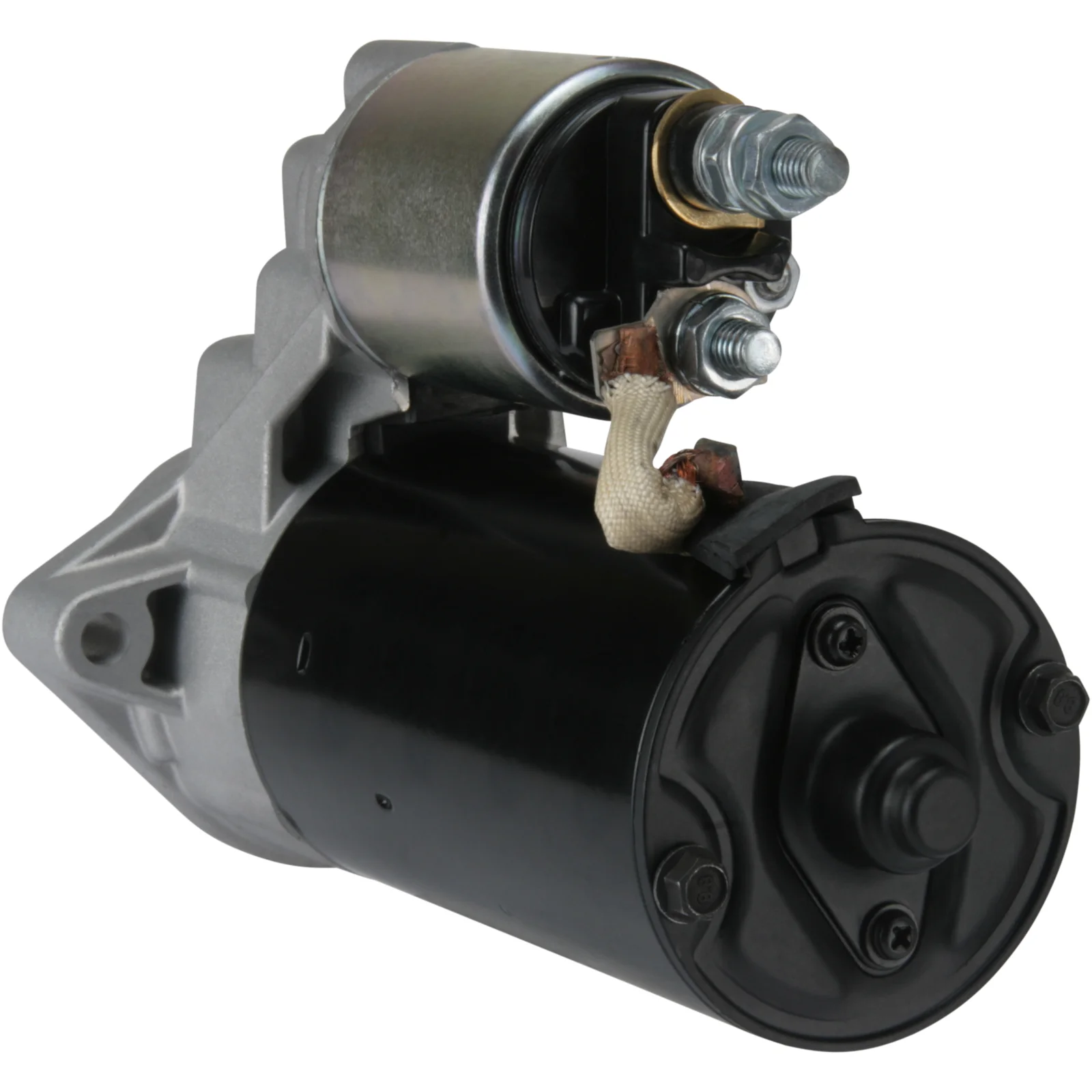

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115400

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mounting flange: 64.00
Drive distance: 24.00
Mounting hole 1 mm: 8.50
Distance / back: 158.00
Distance / front: 58.50
Number / teeth: 10
B+: M8
Gear type: GR
Distance mm: 102.00
Rotation: CW
Total length mm: 230.00
Starter type: Start / Stop
Product info: BN
Number / mounting holes: 2 (1)

Files

  • OEM
    BS5111000BA, cs1535, F032115400, FS5111000BA, RGO 115400, 1986S00876, 0001138011, 0001138012, 0001172400, 0001172401, 0001172604, 1726350, 1885666, 51810307, 51916170, 55591492, 95511895, 95522317, 1612794380, 1616323380

  • Normalised article numbler
    bs5111000ba, cs1535, cst10448, drs0311, f032115400, fs5111000ba, lrs02516, rgo115400, s0311, s0704s, 8ea012528601, 8ea738259411, 1986s00876, 3166, 5802fr, 33284n, 220686, 220686a, 254188, 254633, 438344, 458801, 0001138011, 0001138012, 0001172400, 0001172401, 0001172604, 1726350, 1885666, 8080361, 11025080, 11090207, 42025080, 51810307, 51916170, 55591492, 88214277, 95511895, 95522317, 318220102, 500561093, 500561102, 1612794380, 1616323380
  • Description
    Voltage: 12
    kW: 1.4
    Mounting flange: 64.00
    Drive distance: 24.00
    Mounting hole 1 mm: 8.50
    Distance / back: 158.00
    Distance / front: 58.50
    Number / teeth: 10
    B+: M8
    Gear type: GR
    Distance mm: 102.00
    Rotation: CW
    Total length mm: 230.00
    Starter type: Start / Stop
    Product info: BN
    Number / mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      BS5111000BA, cs1535, F032115400, FS5111000BA, RGO 115400, 1986S00876, 0001138011, 0001138012, 0001172400, 0001172401, 0001172604, 1726350, 1885666, 51810307, 51916170, 55591492, 95511895, 95522317, 1612794380, 1616323380

    • Normalised article numbler
      bs5111000ba, cs1535, cst10448, drs0311, f032115400, fs5111000ba, lrs02516, rgo115400, s0311, s0704s, 8ea012528601, 8ea738259411, 1986s00876, 3166, 5802fr, 33284n, 220686, 220686a, 254188, 254633, 438344, 458801, 0001138011, 0001138012, 0001172400, 0001172401, 0001172604, 1726350, 1885666, 8080361, 11025080, 11090207, 42025080, 51810307, 51916170, 55591492, 88214277, 95511895, 95522317, 318220102, 500561093, 500561102, 1612794380, 1616323380
