Article no.: F032111694

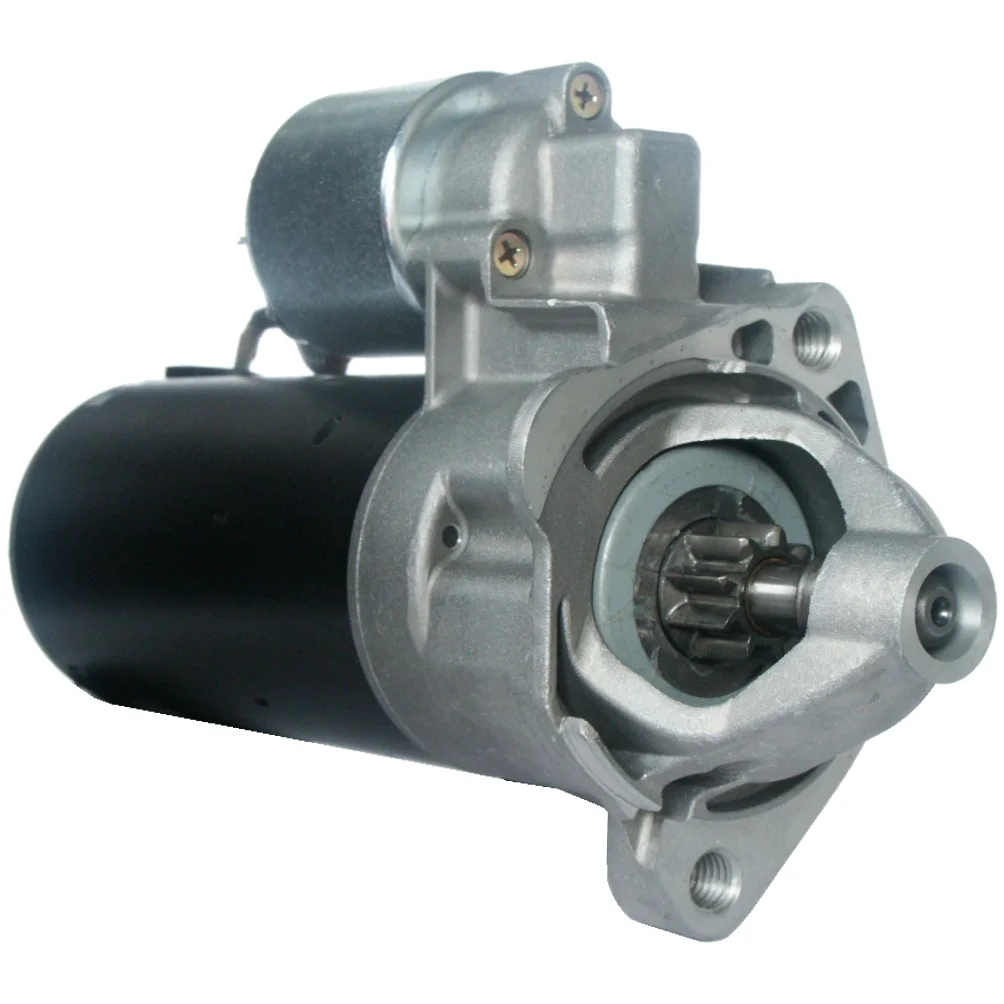

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.8, No./teeth: 9, Rotation: CW

Description

Audi/VW Diesel Starter motor 12V-1.7kW 12V - 1.7kW, 9k 12V - 1.7kW, 9k For Yourrex product order 91-620-1824 Voltage: 12
kW: 1.8
Mounting flange: 82.50
Drive distance: 16.00
Dist./back: 215.00
Dist./front: 56.50
Number of teeth: 9
B+: M8
Position/50: 15
Terminal 50: 6.30
Gear type: GR
Dist. mm: 100.50
Rotation: CW
Total length mm: 270.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number of mounting holes: 2 (2)

Files

  • OEM
    aze2541, aze2578, cs624, D7R 33, d7r33, F032111694, RGO 111694, 0001 110 052, 0001 110 066, 0001 110 067, 0001 110 106, 0001 110 107, 0001 110 122, 0001 110 123, 0001 110 136, 0001 110 137, 0001 110 138, 0001 110 139, 11.130.773, 11.130.911, 068 911 023S, 068 911 024B, 068 911 024C, 068 911 024E, 068 911 024F, 068 911 024G, 0773, 0986 016 240, 1986S00760, 111694, 137269, 527505, 0001110022, 0001110045, 0001110046, 0001110066, 0001110067, 0001110106, 0001110107, 0001110108, 0001110122, 0001110123, 0001110126, 0001110127, 0001110128, 0001110129, 0001110136, 0001110137, 0001110138, 0001110139, 9710100, 068911023P, 068911023r, 068911023RX, 068911023s, 068911023SX, 068911024b, 068911024BX, 068911024c, 068911024CX, 068911024e, 068911024EX, 068911024f, 068911024FX, 068911024g, 068911024GX, 068911024T, 081165106

  • Normalised article numbler
    aze2541, aze2578, bso7021, bso7134, cs624, cst10212, cst15208, d7r33, drs0214, drs4620, drs6240, drs6240x, dsn3015, f032111694, f032us0020, f042002069, f042002070, f042s02069, frs171, is0773, les0359, lrs00783, lrs02003, ms304, msn2028, msn2088, qs2001, rgo111694, s0039, s0039pr, s0039sr, s0669bosch, s3066, s3066pr, str2216, 8ea011350331, 8ea011610491, 8ea726181001, 8ea730194001, 0773, 1283, 1448, 1986s00760, 3533, 10548, 10624, 11127, 17977n, 17977r, 17977rw, 103334, 111694, 137269, 201017, 201045, 220037, 220037a, 250448, 251365, 436048, 455933, 527505, 726044, 726837, 726844, 838014, 0001110022, 0001110045, 0001110046, 0001110052, 0001110066, 0001110067, 0001110106, 0001110107, 0001110108, 0001110122, 0001110123, 0001110126, 0001110127, 0001110128, 0001110129, 0001110136, 0001110137, 0001110138, 0001110139, 4114620, 4116240, 8014620, 8016240, 8212891, 9710100, 11014620, 11016240, 11130773, 11130911, 42016240, 068911023p, 068911023r, 068911023rx, 068911023s, 068911023sx, 068911024b, 068911024bx, 068911024c, 068911024cx, 068911024e, 068911024ex, 068911024f, 068911024fx, 068911024g, 068911024gx, 068911024t, 081165106, 311027092, 943251323, 943251416, 0986014620, 0986014628, 0986016240, 0986016247, 063521101060, 063521101380, 943251323010, 944280162400
  • Description
    Audi/VW Diesel Starter motor 12V-1.7kW 12V - 1.7kW, 9k 12V - 1.7kW, 9k For Yourrex product order 91-620-1824 Voltage: 12
    kW: 1.8
    Mounting flange: 82.50
    Drive distance: 16.00
    Dist./back: 215.00
    Dist./front: 56.50
    Number of teeth: 9
    B+: M8
    Position/50: 15
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 100.50
    Rotation: CW
    Total length mm: 270.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number of mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      aze2541, aze2578, cs624, D7R 33, d7r33, F032111694, RGO 111694, 0001 110 052, 0001 110 066, 0001 110 067, 0001 110 106, 0001 110 107, 0001 110 122, 0001 110 123, 0001 110 136, 0001 110 137, 0001 110 138, 0001 110 139, 11.130.773, 11.130.911, 068 911 023S, 068 911 024B, 068 911 024C, 068 911 024E, 068 911 024F, 068 911 024G, 0773, 0986 016 240, 1986S00760, 111694, 137269, 527505, 0001110022, 0001110045, 0001110046, 0001110066, 0001110067, 0001110106, 0001110107, 0001110108, 0001110122, 0001110123, 0001110126, 0001110127, 0001110128, 0001110129, 0001110136, 0001110137, 0001110138, 0001110139, 9710100, 068911023P, 068911023r, 068911023RX, 068911023s, 068911023SX, 068911024b, 068911024BX, 068911024c, 068911024CX, 068911024e, 068911024EX, 068911024f, 068911024FX, 068911024g, 068911024GX, 068911024T, 081165106

    • Normalised article numbler
      aze2541, aze2578, bso7021, bso7134, cs624, cst10212, cst15208, d7r33, drs0214, drs4620, drs6240, drs6240x, dsn3015, f032111694, f032us0020, f042002069, f042002070, f042s02069, frs171, is0773, les0359, lrs00783, lrs02003, ms304, msn2028, msn2088, qs2001, rgo111694, s0039, s0039pr, s0039sr, s0669bosch, s3066, s3066pr, str2216, 8ea011350331, 8ea011610491, 8ea726181001, 8ea730194001, 0773, 1283, 1448, 1986s00760, 3533, 10548, 10624, 11127, 17977n, 17977r, 17977rw, 103334, 111694, 137269, 201017, 201045, 220037, 220037a, 250448, 251365, 436048, 455933, 527505, 726044, 726837, 726844, 838014, 0001110022, 0001110045, 0001110046, 0001110052, 0001110066, 0001110067, 0001110106, 0001110107, 0001110108, 0001110122, 0001110123, 0001110126, 0001110127, 0001110128, 0001110129, 0001110136, 0001110137, 0001110138, 0001110139, 4114620, 4116240, 8014620, 8016240, 8212891, 9710100, 11014620, 11016240, 11130773, 11130911, 42016240, 068911023p, 068911023r, 068911023rx, 068911023s, 068911023sx, 068911024b, 068911024bx, 068911024c, 068911024cx, 068911024e, 068911024ex, 068911024f, 068911024fx, 068911024g, 068911024gx, 068911024t, 081165106, 311027092, 943251323, 943251416, 0986014620, 0986014628, 0986016240, 0986016247, 063521101060, 063521101380, 943251323010, 944280162400
