Article no.: F032112307

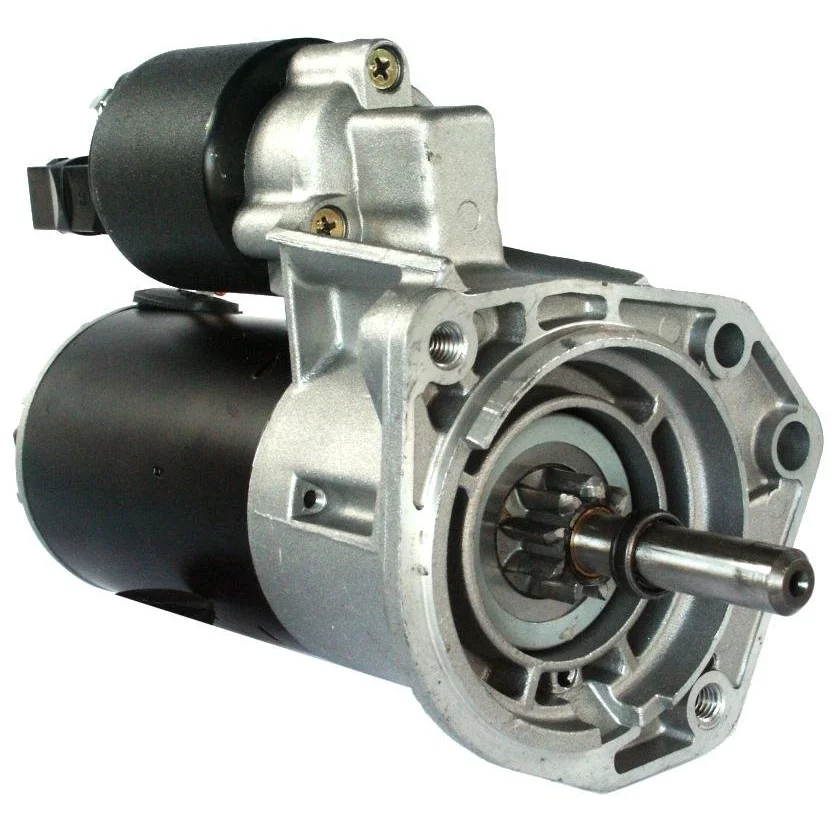

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.1, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.1
Mounting flange: 82.50
Drive distance: 2.00
Mounting hole 4 mm: M8
Mounting hole 3 mm: M8
Mounting hole 2 mm: 10.00
Mounting hole 1 mm: 8.50
Distance/back: 177.00
Distance/front: 52.00
Number/teeth: 9
B+: M8
Position/50: 15
Terminal 50: 4.80
Gear type: GR
Distance 2: 58.00
Distance 3: 104.00
Distance 4: 73.00
Distance mm: 29.00
Rotation: CW
Total length mm: 234.00
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Remarks: Bushing D.E. (clutch house): HC-CARGO 140018.
Number/mounting holes: 4 (2)

Files

  • OEM
    AZE2147, cs880, F032112307, RGO 112307, 11.139.327, 1986S00966, 0001107025, 0001107026, 0001107103, 0001107104, 036911023s, 036911023SX, 036911025b

  • Normalised article numbler
    aze2147, bso7269, cs880, drs6800, f032112307, f032us0028, f042002025, f042s02025, frs417, is9327, lrs00892, msr911, qs1927, rgo112307, s0104, s0104bosch, str2031, str50036, 8ea011610551, 8ea732659001, 1468, 1986s00966, 3811, 10880, 11763, 0016800, 30892r, 201003, 220128, 220128a, 252049, 455728, 726036, 726836, 838056, 0001107025, 0001107026, 0001107103, 0001107104, 4116800, 8016800, 8213336, 11016800, 11139327, 036911023s, 036911023sx, 036911025b, 063521071, 311057092, 943251340, 0986016800, 063521071030, 943251340010
  • Description
    Voltage: 12
    kW: 1.1
    Mounting flange: 82.50
    Drive distance: 2.00
    Mounting hole 4 mm: M8
    Mounting hole 3 mm: M8
    Mounting hole 2 mm: 10.00
    Mounting hole 1 mm: 8.50
    Distance/back: 177.00
    Distance/front: 52.00
    Number/teeth: 9
    B+: M8
    Position/50: 15
    Terminal 50: 4.80
    Gear type: GR
    Distance 2: 58.00
    Distance 3: 104.00
    Distance 4: 73.00
    Distance mm: 29.00
    Rotation: CW
    Total length mm: 234.00
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: Bushing D.E. (clutch house): HC-CARGO 140018.
    Number/mounting holes: 4 (2)

    Files

  • Suitable for these vehicles

    • OEM
      AZE2147, cs880, F032112307, RGO 112307, 11.139.327, 1986S00966, 0001107025, 0001107026, 0001107103, 0001107104, 036911023s, 036911023SX, 036911025b

    • Normalised article numbler
      aze2147, bso7269, cs880, drs6800, f032112307, f032us0028, f042002025, f042s02025, frs417, is9327, lrs00892, msr911, qs1927, rgo112307, s0104, s0104bosch, str2031, str50036, 8ea011610551, 8ea732659001, 1468, 1986s00966, 3811, 10880, 11763, 0016800, 30892r, 201003, 220128, 220128a, 252049, 455728, 726036, 726836, 838056, 0001107025, 0001107026, 0001107103, 0001107104, 4116800, 8016800, 8213336, 11016800, 11139327, 036911023s, 036911023sx, 036911025b, 063521071, 311057092, 943251340, 0986016800, 063521071030, 943251340010
