Article no.: F032110865

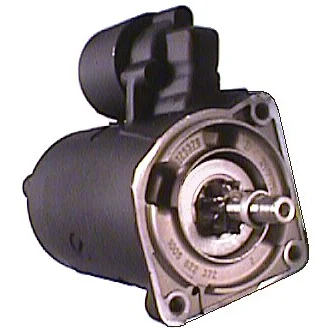

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.95, No./teeth: 9, Rotation: CW

Description

Audi/VW Starter motor 12V-0.95kW 12V - 0.95kW, 9k Attention! Automatic on certain models! For Yourrex product order 91-620-1347

Voltage: 12
kW: 0.95
Mounting flange: 82.50
Drive distance: 15.00
Mounting hole 3 mm: M8
Distance/behind: 164.00
Distance/in front: 50.50
Number of teeth: 9
B+: M8
Position/50: 15
Terminal 50: 6.30
Gear type: DD/GR
Distance 2: 74.50
Distance 3: 105.00
Distance mm: 74.50
Rotation: CW
Total length mm: 220.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Remarks: Bushing D.E. (clutch house): HC-CARGO 140500.
Number of mounting holes: 3 (3)

Files

  • OEM
    b001180009, cs297, D9E 136, d9e136, F032110865, LRS 648, M003T80571, m3t80571, RGO 110865, ZBC911023, 0001 208 247, 0001 208 709, 0001 208 710, 0001 208 711, 0001 211 504, 0001 211 505, 0986 012 360, 0986 013 470, 23300-V4171, 48764, 110865, 622727, 0001208709, 0001208710, 0001208711, 0001208712, 0001208713, 0001208714, 0001211504, 0001211505, 026911023, 026911023b, 026911023BX, 026911023x, 049911023g, 049911023GX, 049911023h, 0269110233, 9000082050, 9000082059

  • Normalised article numbler
    b001180009, cs297, cst10012, d9e136, drs0460, drs2360, drs3470, f032110865, f042s0h012, frs142, lrs00206, lrs00521, lrs00648, lrs00919, lrs648, m003t80571, m3t80571, ms57, qs1451, rgo110865, s0050, sr0406x, sr16x, str50085, str50120, strh012, vs278, zbc911023, 8ea012527011, 8ea726056001, 1240, 10297, 11124, 11125, 11530, 16408, 16408n, 16408r, 21360bo, 21460bo, 23300v4171, 48764, 103202, 110865, 251082, 260012, 261168, 432606, 433016, 433264, 436016, 622727, 0001208247, 0001208709, 0001208710, 0001208711, 0001208712, 0001208713, 0001208714, 0001211504, 0001211505, 4110460, 4113470, 8010460, 8013470, 11010460, 11013470, 026911023, 026911023b, 026911023bx, 026911023x, 42013470, 049911023g, 049911023gx, 049911023h, 0269110233, 311104092, 311105092, 943251434, 943251619, 943251686, 0986010460, 0986010468, 0986010500, 0986012360, 0986013470, 0986013478, 0986019357, 9000082050, 9000082059, 943251686010
  • Description
    Audi/VW Starter motor 12V-0.95kW 12V - 0.95kW, 9k Attention! Automatic on certain models! For Yourrex product order 91-620-1347

    Voltage: 12
    kW: 0.95
    Mounting flange: 82.50
    Drive distance: 15.00
    Mounting hole 3 mm: M8
    Distance/behind: 164.00
    Distance/in front: 50.50
    Number of teeth: 9
    B+: M8
    Position/50: 15
    Terminal 50: 6.30
    Gear type: DD/GR
    Distance 2: 74.50
    Distance 3: 105.00
    Distance mm: 74.50
    Rotation: CW
    Total length mm: 220.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: Bushing D.E. (clutch house): HC-CARGO 140500.
    Number of mounting holes: 3 (3)

    Files

  • Suitable for these vehicles

    • OEM
      b001180009, cs297, D9E 136, d9e136, F032110865, LRS 648, M003T80571, m3t80571, RGO 110865, ZBC911023, 0001 208 247, 0001 208 709, 0001 208 710, 0001 208 711, 0001 211 504, 0001 211 505, 0986 012 360, 0986 013 470, 23300-V4171, 48764, 110865, 622727, 0001208709, 0001208710, 0001208711, 0001208712, 0001208713, 0001208714, 0001211504, 0001211505, 026911023, 026911023b, 026911023BX, 026911023x, 049911023g, 049911023GX, 049911023h, 0269110233, 9000082050, 9000082059

    • Normalised article numbler
      b001180009, cs297, cst10012, d9e136, drs0460, drs2360, drs3470, f032110865, f042s0h012, frs142, lrs00206, lrs00521, lrs00648, lrs00919, lrs648, m003t80571, m3t80571, ms57, qs1451, rgo110865, s0050, sr0406x, sr16x, str50085, str50120, strh012, vs278, zbc911023, 8ea012527011, 8ea726056001, 1240, 10297, 11124, 11125, 11530, 16408, 16408n, 16408r, 21360bo, 21460bo, 23300v4171, 48764, 103202, 110865, 251082, 260012, 261168, 432606, 433016, 433264, 436016, 622727, 0001208247, 0001208709, 0001208710, 0001208711, 0001208712, 0001208713, 0001208714, 0001211504, 0001211505, 4110460, 4113470, 8010460, 8013470, 11010460, 11013470, 026911023, 026911023b, 026911023bx, 026911023x, 42013470, 049911023g, 049911023gx, 049911023h, 0269110233, 311104092, 311105092, 943251434, 943251619, 943251686, 0986010460, 0986010468, 0986010500, 0986012360, 0986013470, 0986013478, 0986019357, 9000082050, 9000082059, 943251686010
