Article no.: F032112309

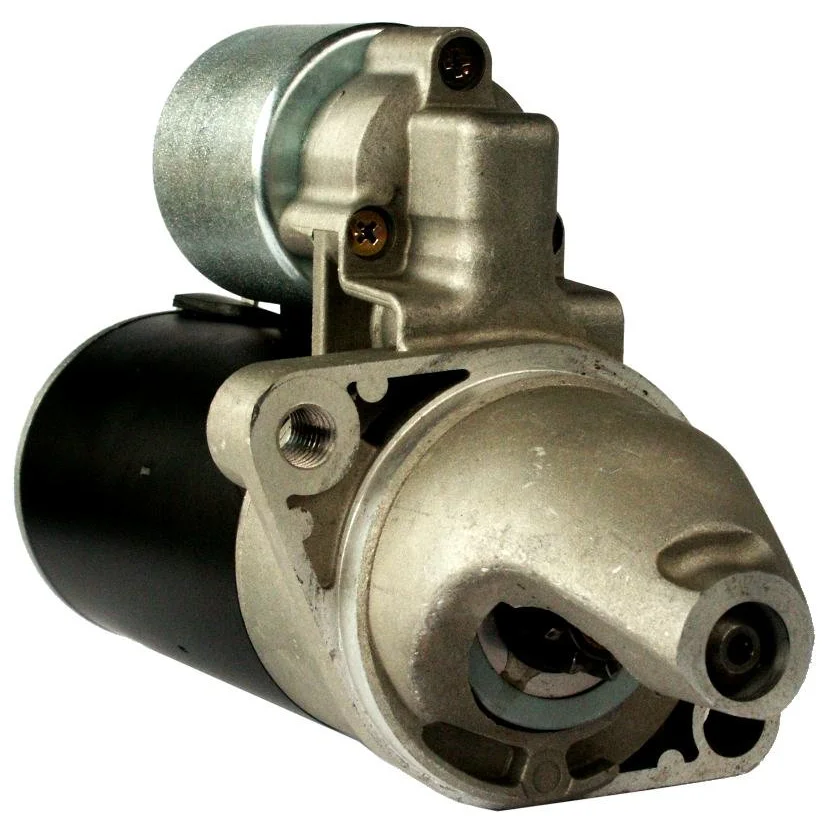

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mounting flange: 76.00
Drive distance: 27.00
Mounting hole 1 mm: 13.00
Distance/offset: 164.00
Distance/front: 67.50
Number/teeth: 9
B+: M8
Position/15a: 45
Terminal 15a: 6.30
Position/50: 15
Terminal 50: 6.30
Gear type: GR
Distance in millimeters: 105.00
Rotation: CW
Total length in millimeters: 245.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 2 (1)

Files

  • OEM
    cs725, F032112309, RGO 112309, 1986S01404, 0001108113, 0001108114, 63223438, 078911023, 078911023a, 078911023B, 078911023x

  • Normalised article numbler
    bso7232, cs725, cst10127, drs6780, f032112309, f042002038, f042s02038, is9311, lrs00971, ms217, qs2205, rgo112309, s0030, sr0413x, str2044, str50082, 8ea012527121, 8ea731769001, 1333, 1986s01404, 3655, 10725, 17407, 17407n, 17407r, 21536bo, 21536mm, 103362, 220133, 220133a, 251295, 438426, 458257, 458464, 460273, 0001108113, 0001108114, 4116780, 8016780, 8212403, 11016780, 42016780, 63223438, 078911023, 078911023a, 078911023b, 078911023x, 311058092, 943223438, 0986016780, 0986016787, 943223438010, 944280167800
  • Description
    Voltage: 12
    kW: 1.4
    Mounting flange: 76.00
    Drive distance: 27.00
    Mounting hole 1 mm: 13.00
    Distance/offset: 164.00
    Distance/front: 67.50
    Number/teeth: 9
    B+: M8
    Position/15a: 45
    Terminal 15a: 6.30
    Position/50: 15
    Terminal 50: 6.30
    Gear type: GR
    Distance in millimeters: 105.00
    Rotation: CW
    Total length in millimeters: 245.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      cs725, F032112309, RGO 112309, 1986S01404, 0001108113, 0001108114, 63223438, 078911023, 078911023a, 078911023B, 078911023x

    • Normalised article numbler
      bso7232, cs725, cst10127, drs6780, f032112309, f042002038, f042s02038, is9311, lrs00971, ms217, qs2205, rgo112309, s0030, sr0413x, str2044, str50082, 8ea012527121, 8ea731769001, 1333, 1986s01404, 3655, 10725, 17407, 17407n, 17407r, 21536bo, 21536mm, 103362, 220133, 220133a, 251295, 438426, 458257, 458464, 460273, 0001108113, 0001108114, 4116780, 8016780, 8212403, 11016780, 42016780, 63223438, 078911023, 078911023a, 078911023b, 078911023x, 311058092, 943223438, 0986016780, 0986016787, 943223438010, 944280167800
