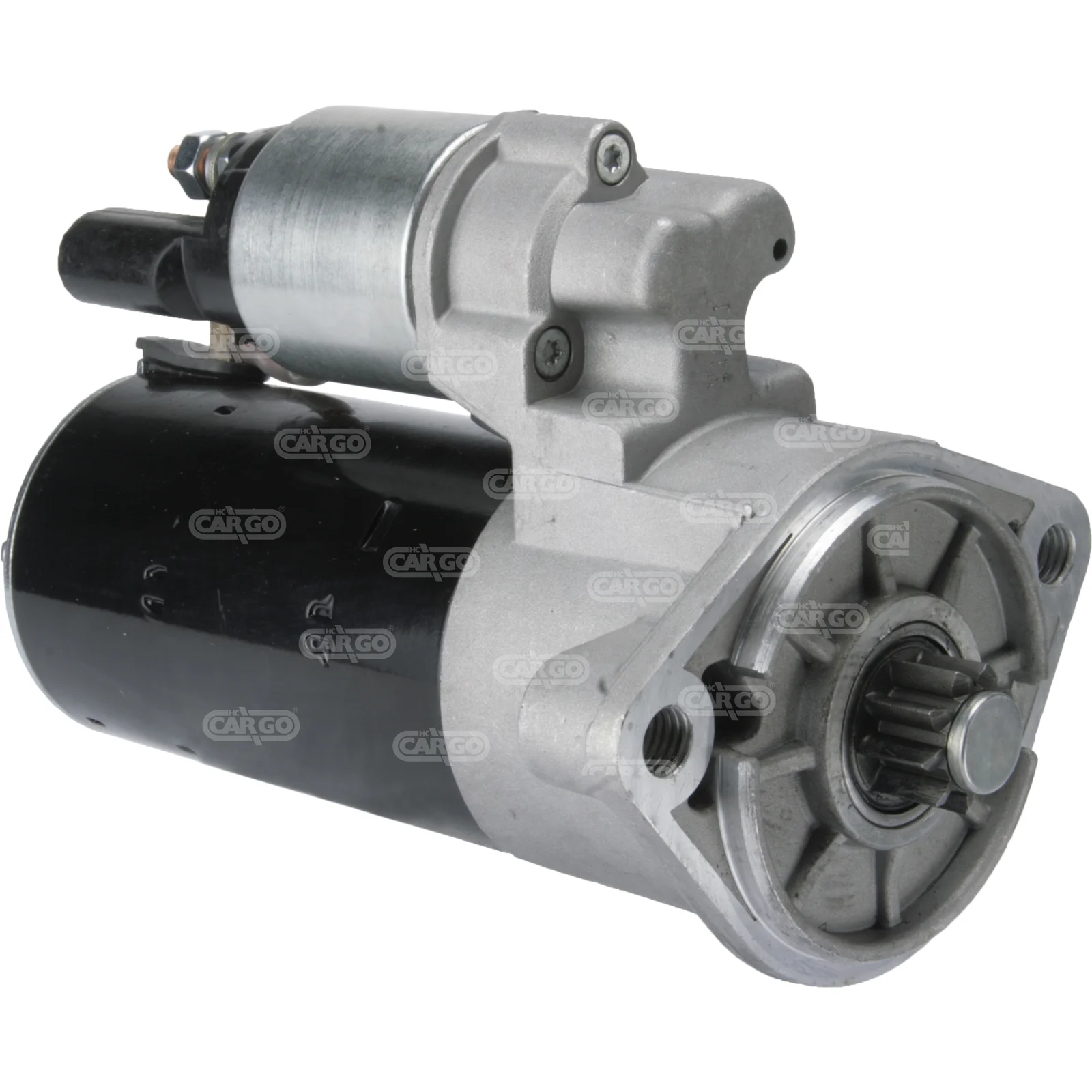

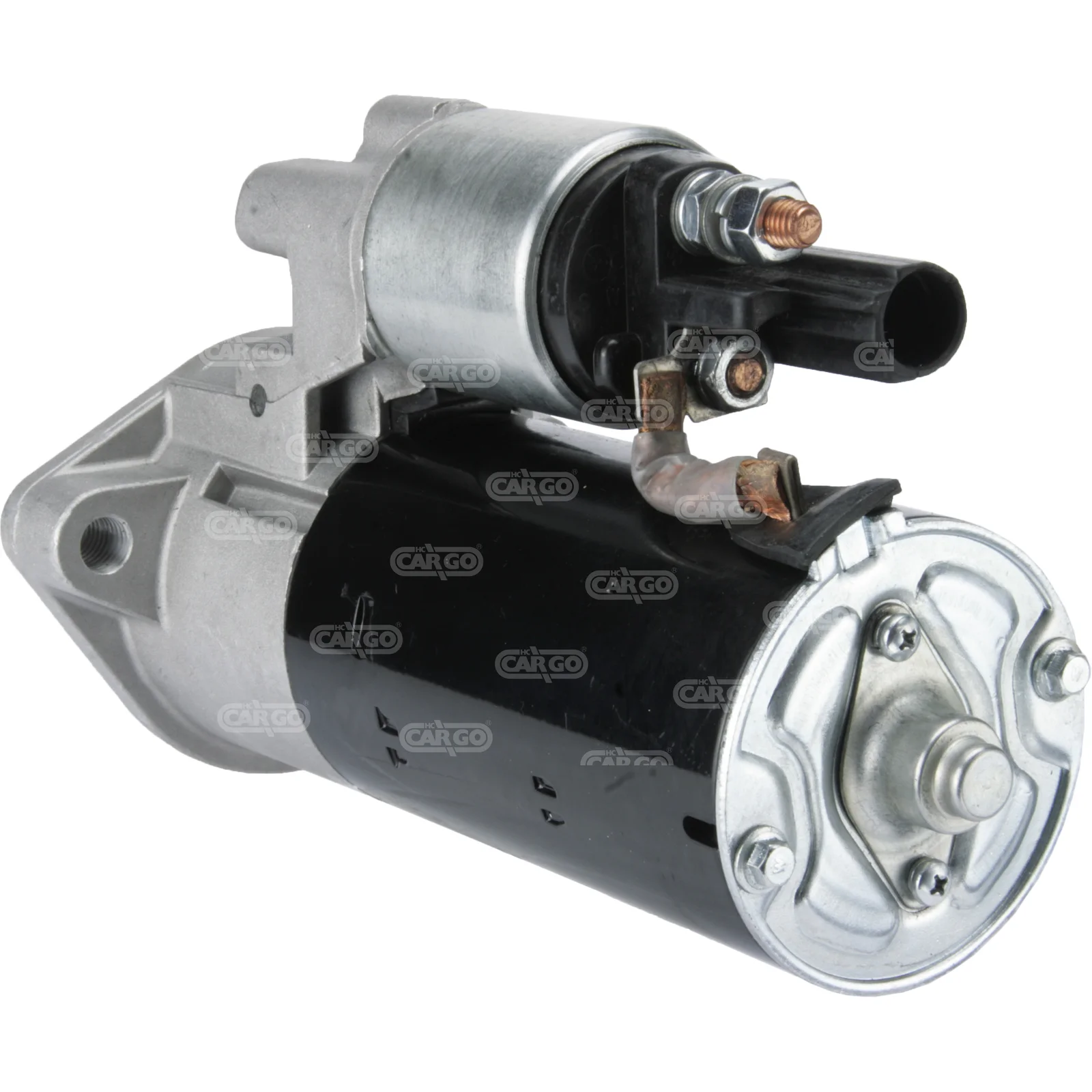

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114317

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Description

VW Crafter Starter motor 12V-2.0kW 12V - 2.0kW, 9k A - 82.5mm B - 21mm For Yourrex product order 91-620-2163

Voltage: 12
kW: 2.0
Mounting flange: 82.50
Drive distance: 20.00
Distance / back: 197.00
Distance / front: 23.00
Number / teeth: 9
B+: M8
Position / 50: 15
Terminal 50: Plug
Gear type: GR
Distance in millimeters: 105.00
Rotation: CW
Total length in millimeters: 234.00
Drive type: Steel
Number / mounting holes: 2 (2)

Files

  • OEM
    A6461510101, A646151010180, cs1435, F032114317, HVW6461510101, RGO 114317, 0001 125 055, 0001 125 056, 076 911 023A, 646 151 0101, 0986 021 630, 1986S00815, 114317, 0001125055, 0001125056, 076911023A, 076911023AX, 6461510101, 646151010180

  • Normalised article numbler
    a6461510101, a646151010180, cs1435, cst10390, drt1630, f032114317, f042s0h108, hvw6461510101, lrs02327, rgo114317, s0193, s0193pr, strh108, 8ea011611261, 1986s00815, 3061, 33220n, 101435, 106243, 114317, 220684, 220684a, 253499, 458827, 0001125055, 0001125056, 8021630, 8213012, 11021630, 42021630, 076911023a, 076911023ax, 311243092, 0986021630, 6461510101, 646151010180
  • Description
    VW Crafter Starter motor 12V-2.0kW 12V - 2.0kW, 9k A - 82.5mm B - 21mm For Yourrex product order 91-620-2163

    Voltage: 12
    kW: 2.0
    Mounting flange: 82.50
    Drive distance: 20.00
    Distance / back: 197.00
    Distance / front: 23.00
    Number / teeth: 9
    B+: M8
    Position / 50: 15
    Terminal 50: Plug
    Gear type: GR
    Distance in millimeters: 105.00
    Rotation: CW
    Total length in millimeters: 234.00
    Drive type: Steel
    Number / mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      A6461510101, A646151010180, cs1435, F032114317, HVW6461510101, RGO 114317, 0001 125 055, 0001 125 056, 076 911 023A, 646 151 0101, 0986 021 630, 1986S00815, 114317, 0001125055, 0001125056, 076911023A, 076911023AX, 6461510101, 646151010180

    • Normalised article numbler
      a6461510101, a646151010180, cs1435, cst10390, drt1630, f032114317, f042s0h108, hvw6461510101, lrs02327, rgo114317, s0193, s0193pr, strh108, 8ea011611261, 1986s00815, 3061, 33220n, 101435, 106243, 114317, 220684, 220684a, 253499, 458827, 0001125055, 0001125056, 8021630, 8213012, 11021630, 42021630, 076911023a, 076911023ax, 311243092, 0986021630, 6461510101, 646151010180
