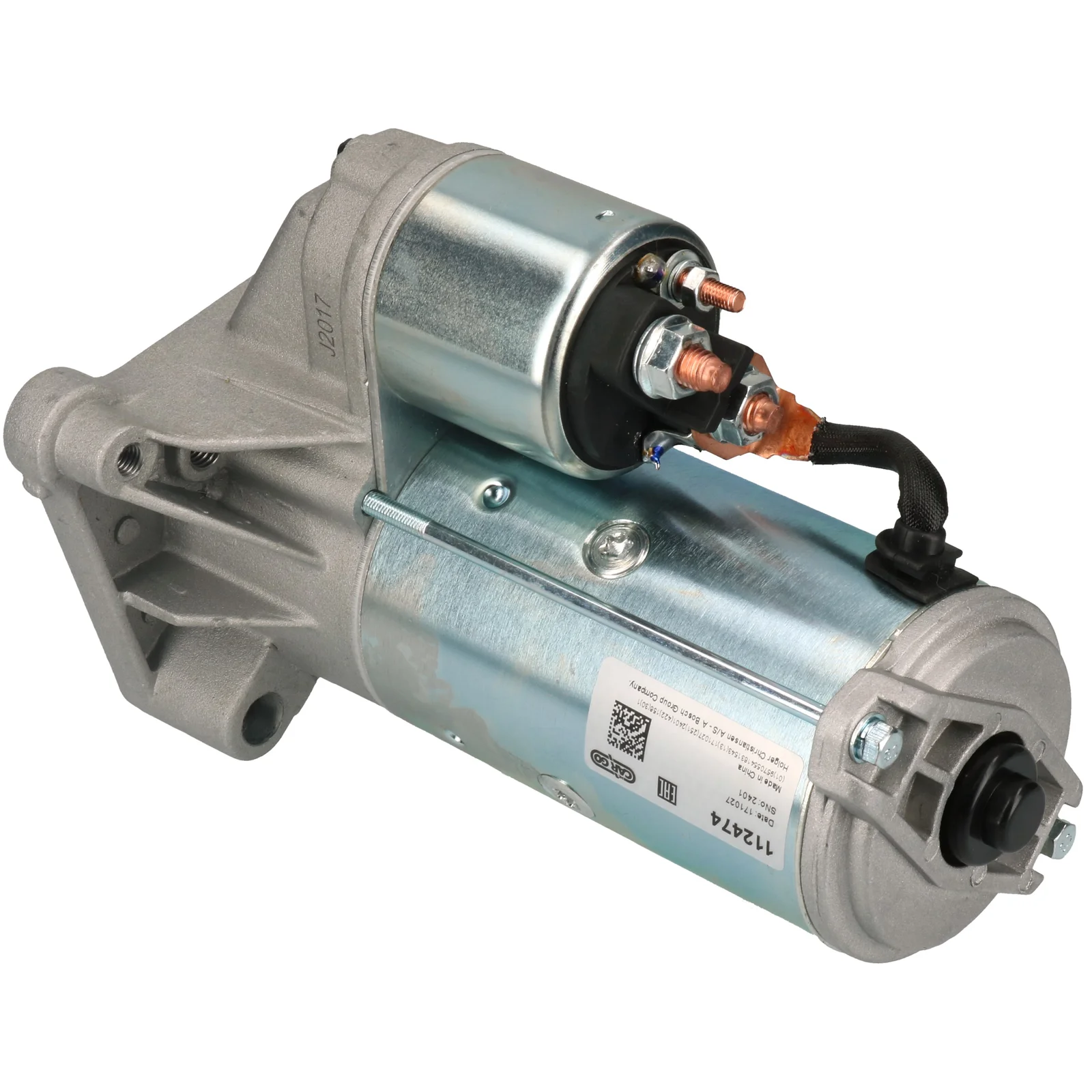

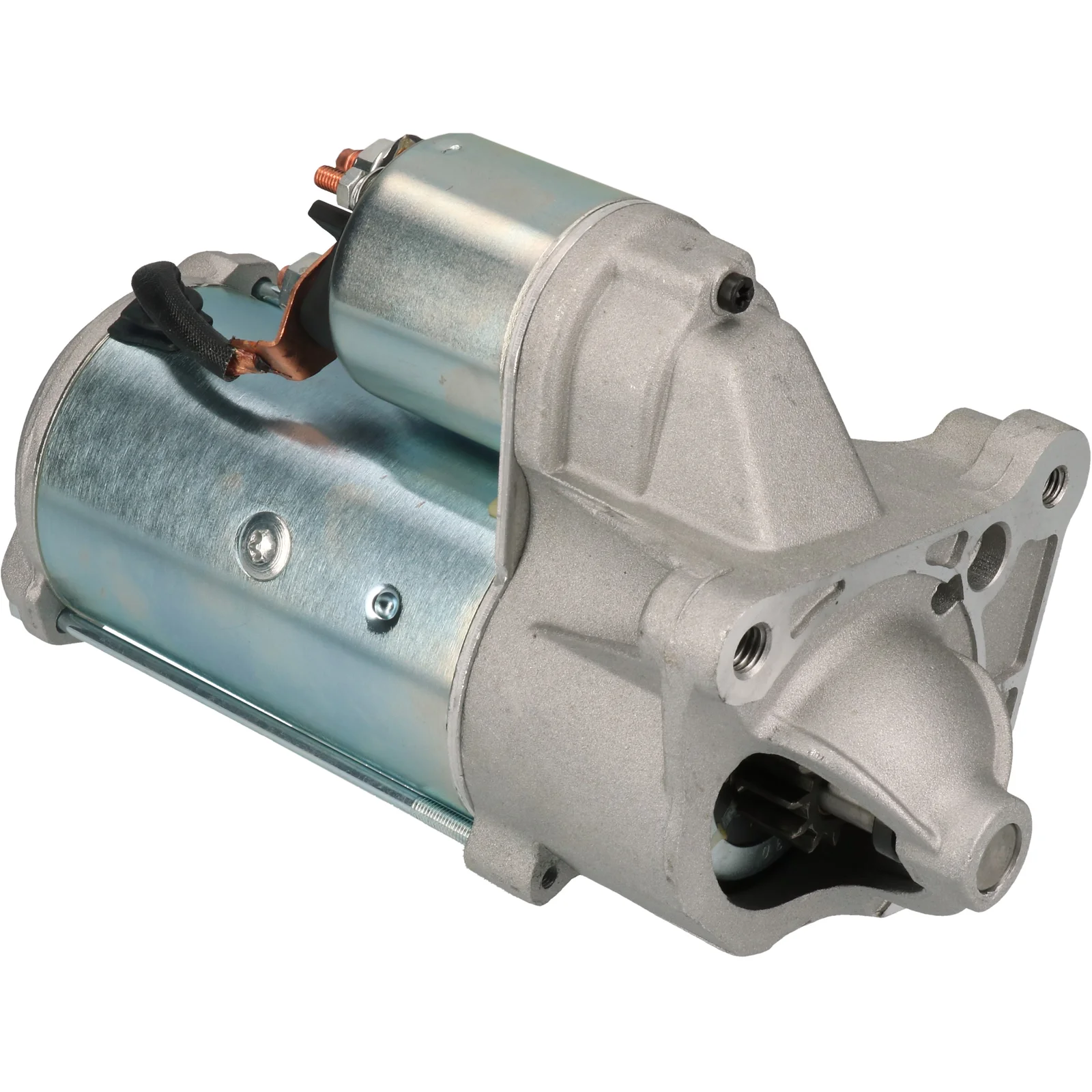

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112474

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.8, No./teeth: 11, Rotation: CW

Description

Renault Master Starter.12V-2.1kW 12V - 2.1kW, 11k, CW A - 66mm, B - 0 For Yourrex product order 91-480-2013

Voltage: 12
kW: 1.8
Drive dist.: -2.00
Mount. hole 4 mm: M10
Mount. hole 3 mm: 12.00
Dist./back: 196.00
Dist./front: 34.00
No./teeth: 11
B+: M8
Position/B+: 50
Position/50: 5
Terminal 50: M5
Gear type: GR
Dist. 2: 74.50
Dist. 3: 105.00
Dist. 4: 73.00
Dist. mm: 22.00
Rotation: CW
Total length mm: 238.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 4 (3)

Files

  • OEM
    AZE2188, cs1193, D7R 44, D7R 47, D7R 48, D7R 49, d7r44, d7r47, d7r48, d7r49, F032112474, M001T85681, M001T85682, M001T85981, M1T85681, M1T85682, M1T85981, mw30620657, R1040042, RGO 112474, 11.139.423, 0986 020 131, 1810A048, 1986S00578, 23300-00Q0E, 23300-00QAC, 23300-AW300, 23300-aw302, 31100-67j00, 31100-67J00-000, 112474, 438095, 455971, 3061819, 3062065, 4411195, 4414332, 4414402, 8251643, 8253786, 8602274, 9512644, 30620657, 91167270, 91167474, 93160655, 93174002, 93858918, 820006446B, 7700113622, 7700115479, 7700116260, 7700116260D, 7711134792, 7711134793, 7711134802, 7711134934, 8200040415, 8200054336, 8200064465, 8200064465B, 8200075362, 8200096510, 8200331251, 8200583014, 8200628419, 8200628426

  • Normalised article numbler
    aze2188, cs1193, cst15137, cst15177, cst35110, d7r44, d7r47, d7r48, d7r49, drs3817, drs3817x, drs3908, drs3955, f032112474, f042202525, f042s07010, j5211101, lrs01571, lrs01702, lrs02486, m001t85681, m001t85682, m001t85981, m1t85681, m1t85682, m1t85981, ms9, mw30620657, r1040042, rgo112474, s3058, s3058pr, s3058sr, s3059, s3059pr, s3059valeo, s5113, str4704, str54034, 8ea011350191, 8ea011610081, 8ea012528261, 1810a048, 1986s00578, 3007, 3094, 11805n, 23300aw300, 23300aw302, 32571r, 32572n, 32572r, 32703n, 101193, 101281, 105390, 105417, 105508, 107058, 112474, 201038, 201042, 220107, 220107a, 220436, 220436a, 220458, 220458a, 220478, 220478a, 253073, 253252, 254050, 254158, 438090, 438095, 438096, 439735, 455959, 455971, 455972, 726061, 726077, 726861, 726877, 838037, 2330000q0e, 2330000qac, 3061819, 3062065, 3110067j00, 3110067j00000, 4411195, 4414332, 4414402, 8080137, 8080184, 8212543, 8251643, 8253786, 8602274, 9512644, 11020130, 11090071, 11139423, 30620657, 42020131, 42438096, 91167270, 91167474, 93160655, 93174002, 93858918, 330025112, 330028112, 820006446b, 0986020131, 0986020133, 0986024350, 7700113622, 7700115479, 7700116260, 7700116260d, 7711134792, 7711134793, 7711134802, 7711134934, 8200040415, 8200054336, 8200064465, 8200064465b, 8200075362, 8200096510, 8200331251, 8200583014, 8200628419, 8200628426, 944280801370
  • Description
    Renault Master Starter.12V-2.1kW 12V - 2.1kW, 11k, CW A - 66mm, B - 0 For Yourrex product order 91-480-2013

    Voltage: 12
    kW: 1.8
    Drive dist.: -2.00
    Mount. hole 4 mm: M10
    Mount. hole 3 mm: 12.00
    Dist./back: 196.00
    Dist./front: 34.00
    No./teeth: 11
    B+: M8
    Position/B+: 50
    Position/50: 5
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 74.50
    Dist. 3: 105.00
    Dist. 4: 73.00
    Dist. mm: 22.00
    Rotation: CW
    Total length mm: 238.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 4 (3)

    Files

  • Suitable for these vehicles

    • OEM
      AZE2188, cs1193, D7R 44, D7R 47, D7R 48, D7R 49, d7r44, d7r47, d7r48, d7r49, F032112474, M001T85681, M001T85682, M001T85981, M1T85681, M1T85682, M1T85981, mw30620657, R1040042, RGO 112474, 11.139.423, 0986 020 131, 1810A048, 1986S00578, 23300-00Q0E, 23300-00QAC, 23300-AW300, 23300-aw302, 31100-67j00, 31100-67J00-000, 112474, 438095, 455971, 3061819, 3062065, 4411195, 4414332, 4414402, 8251643, 8253786, 8602274, 9512644, 30620657, 91167270, 91167474, 93160655, 93174002, 93858918, 820006446B, 7700113622, 7700115479, 7700116260, 7700116260D, 7711134792, 7711134793, 7711134802, 7711134934, 8200040415, 8200054336, 8200064465, 8200064465B, 8200075362, 8200096510, 8200331251, 8200583014, 8200628419, 8200628426

    • Normalised article numbler
      aze2188, cs1193, cst15137, cst15177, cst35110, d7r44, d7r47, d7r48, d7r49, drs3817, drs3817x, drs3908, drs3955, f032112474, f042202525, f042s07010, j5211101, lrs01571, lrs01702, lrs02486, m001t85681, m001t85682, m001t85981, m1t85681, m1t85682, m1t85981, ms9, mw30620657, r1040042, rgo112474, s3058, s3058pr, s3058sr, s3059, s3059pr, s3059valeo, s5113, str4704, str54034, 8ea011350191, 8ea011610081, 8ea012528261, 1810a048, 1986s00578, 3007, 3094, 11805n, 23300aw300, 23300aw302, 32571r, 32572n, 32572r, 32703n, 101193, 101281, 105390, 105417, 105508, 107058, 112474, 201038, 201042, 220107, 220107a, 220436, 220436a, 220458, 220458a, 220478, 220478a, 253073, 253252, 254050, 254158, 438090, 438095, 438096, 439735, 455959, 455971, 455972, 726061, 726077, 726861, 726877, 838037, 2330000q0e, 2330000qac, 3061819, 3062065, 3110067j00, 3110067j00000, 4411195, 4414332, 4414402, 8080137, 8080184, 8212543, 8251643, 8253786, 8602274, 9512644, 11020130, 11090071, 11139423, 30620657, 42020131, 42438096, 91167270, 91167474, 93160655, 93174002, 93858918, 330025112, 330028112, 820006446b, 0986020131, 0986020133, 0986024350, 7700113622, 7700115479, 7700116260, 7700116260d, 7711134792, 7711134793, 7711134802, 7711134934, 8200040415, 8200054336, 8200064465, 8200064465b, 8200075362, 8200096510, 8200331251, 8200583014, 8200628419, 8200628426, 944280801370
