Article no.: F032112053

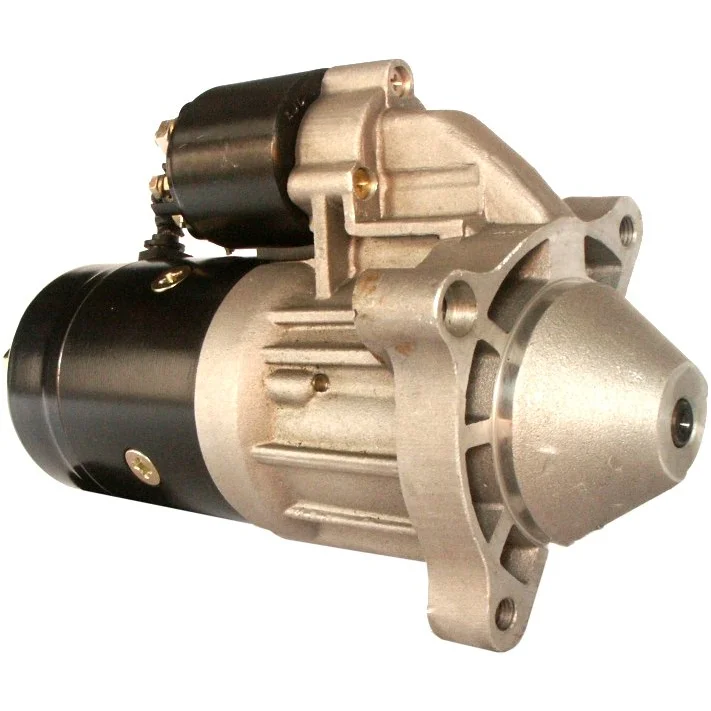

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.2
Mounting flange: 74.00
Drive distance: -6.00
Mounting hole 3 mm: M10
Distance/ rear: 238.50
Distance/ front: 34.50
Number/ teeth: 9
B+: M8
Position/50: 15
Terminal 50: M5
Gear type: GR
Distance 2: 84.00
Distance 3: 84.00
Distance mm: 120.00
Rotation: CW
Total length mm: 272.50
Clutch type: Dry
Drive type: Steel
Production info: BN
Waterproof: No
Oil sealed: No
Number/ mounting holes: 3 (3)

Files

  • OEM
    AZE4112, AZE6514, cs885, D7R57, F032112053, K1473638080, K1475489080, K9611705880, K9625382480, M002T80582, M002T84771, m2t80582, m2t84771, RGO 112053, 11.131.477, 1986S00754, 5802H5, 0001109364, 0001109443, 0001218157, 0001218757, 0001223001, 1516821R, 96253824, 1473638080, 1475489080, 9611705880, 9625382480

  • Normalised article numbler
    aze4112, aze6514, cs885, cst10105, cst15219, d7r57, drs0051, drs6950, f032112053, f042202532, f042s02179, frs685, is1146, k1473638080, k1475489080, k9611705880, k9625382480, lrs01581, lrt00108, m002t80582, m002t84771, m2t80582, m2t84771, ms31, ms631, qs1542, rgo112053, s0017, str22077, strb018l, 8ea011350151, 8ea011611061, 8ea737084001, 1986s00754, 3646, 4148, 5802cl, 5802f6, 5802f7, 5802g4, 5802h5, 5802h6, 5802l7, 5802m5, 5802s8, 10885, 31102n, 31102r, 201073, 220117, 220117a, 220363, 220363a, 252080, 253086, 438186, 455899, 455900, 726021, 726821, 0001109364, 0001109443, 0001218157, 0001218757, 0001223001, 1516821r, 8016950, 11016950, 11131477, 42016950, 96253824, 300041102, 300042102, 329011092, 329012092, 0986016943, 0986016950, 0986016953, 1473638080, 1475489080, 9611705880, 9625382480, 943251920010, 944280169500
  • Description
    Voltage: 12
    kW: 2.2
    Mounting flange: 74.00
    Drive distance: -6.00
    Mounting hole 3 mm: M10
    Distance/ rear: 238.50
    Distance/ front: 34.50
    Number/ teeth: 9
    B+: M8
    Position/50: 15
    Terminal 50: M5
    Gear type: GR
    Distance 2: 84.00
    Distance 3: 84.00
    Distance mm: 120.00
    Rotation: CW
    Total length mm: 272.50
    Clutch type: Dry
    Drive type: Steel
    Production info: BN
    Waterproof: No
    Oil sealed: No
    Number/ mounting holes: 3 (3)

    Files

  • Suitable for these vehicles

    • OEM
      AZE4112, AZE6514, cs885, D7R57, F032112053, K1473638080, K1475489080, K9611705880, K9625382480, M002T80582, M002T84771, m2t80582, m2t84771, RGO 112053, 11.131.477, 1986S00754, 5802H5, 0001109364, 0001109443, 0001218157, 0001218757, 0001223001, 1516821R, 96253824, 1473638080, 1475489080, 9611705880, 9625382480

    • Normalised article numbler
      aze4112, aze6514, cs885, cst10105, cst15219, d7r57, drs0051, drs6950, f032112053, f042202532, f042s02179, frs685, is1146, k1473638080, k1475489080, k9611705880, k9625382480, lrs01581, lrt00108, m002t80582, m002t84771, m2t80582, m2t84771, ms31, ms631, qs1542, rgo112053, s0017, str22077, strb018l, 8ea011350151, 8ea011611061, 8ea737084001, 1986s00754, 3646, 4148, 5802cl, 5802f6, 5802f7, 5802g4, 5802h5, 5802h6, 5802l7, 5802m5, 5802s8, 10885, 31102n, 31102r, 201073, 220117, 220117a, 220363, 220363a, 252080, 253086, 438186, 455899, 455900, 726021, 726821, 0001109364, 0001109443, 0001218157, 0001218757, 0001223001, 1516821r, 8016950, 11016950, 11131477, 42016950, 96253824, 300041102, 300042102, 329011092, 329012092, 0986016943, 0986016950, 0986016953, 1473638080, 1475489080, 9611705880, 9625382480, 943251920010, 944280169500
