HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114145

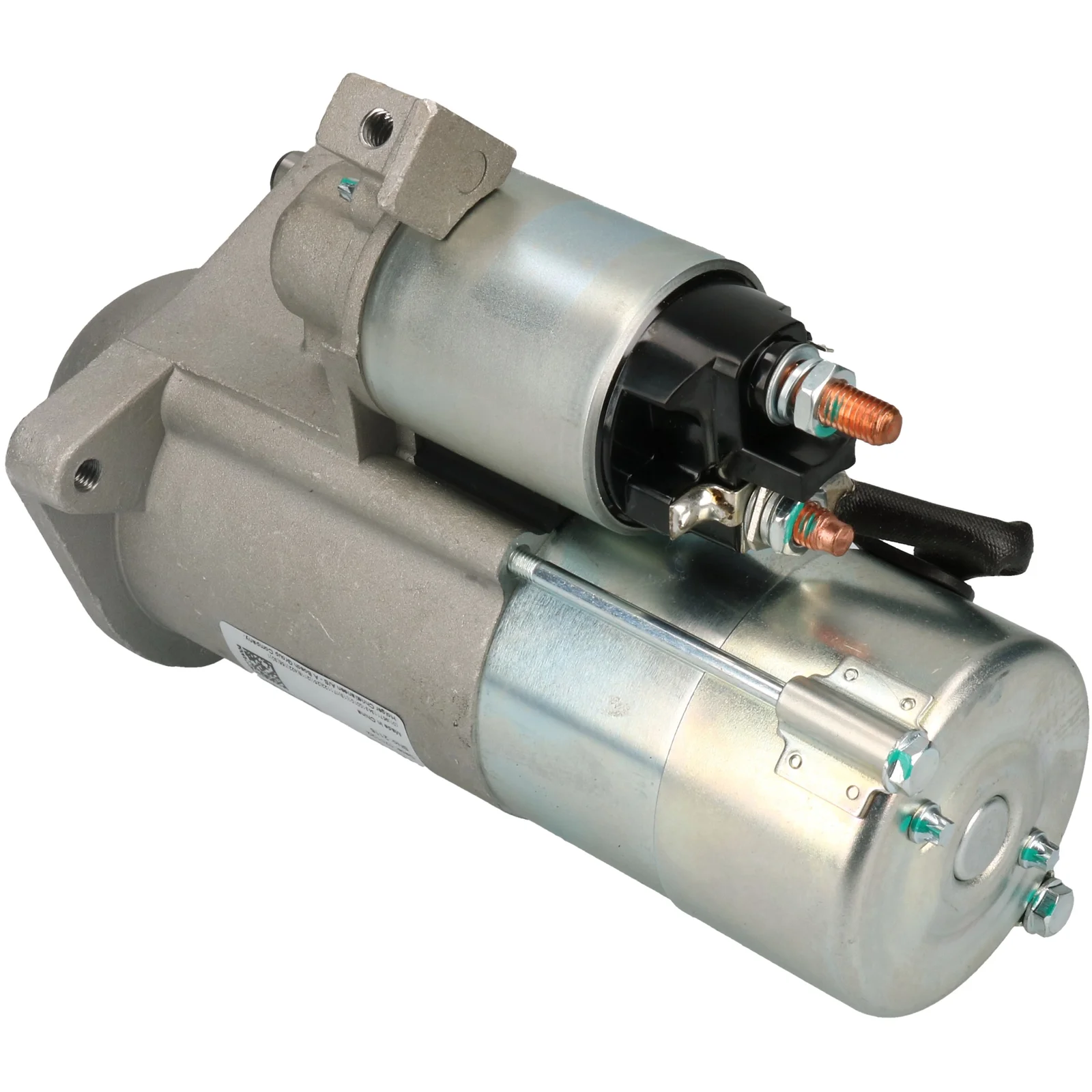

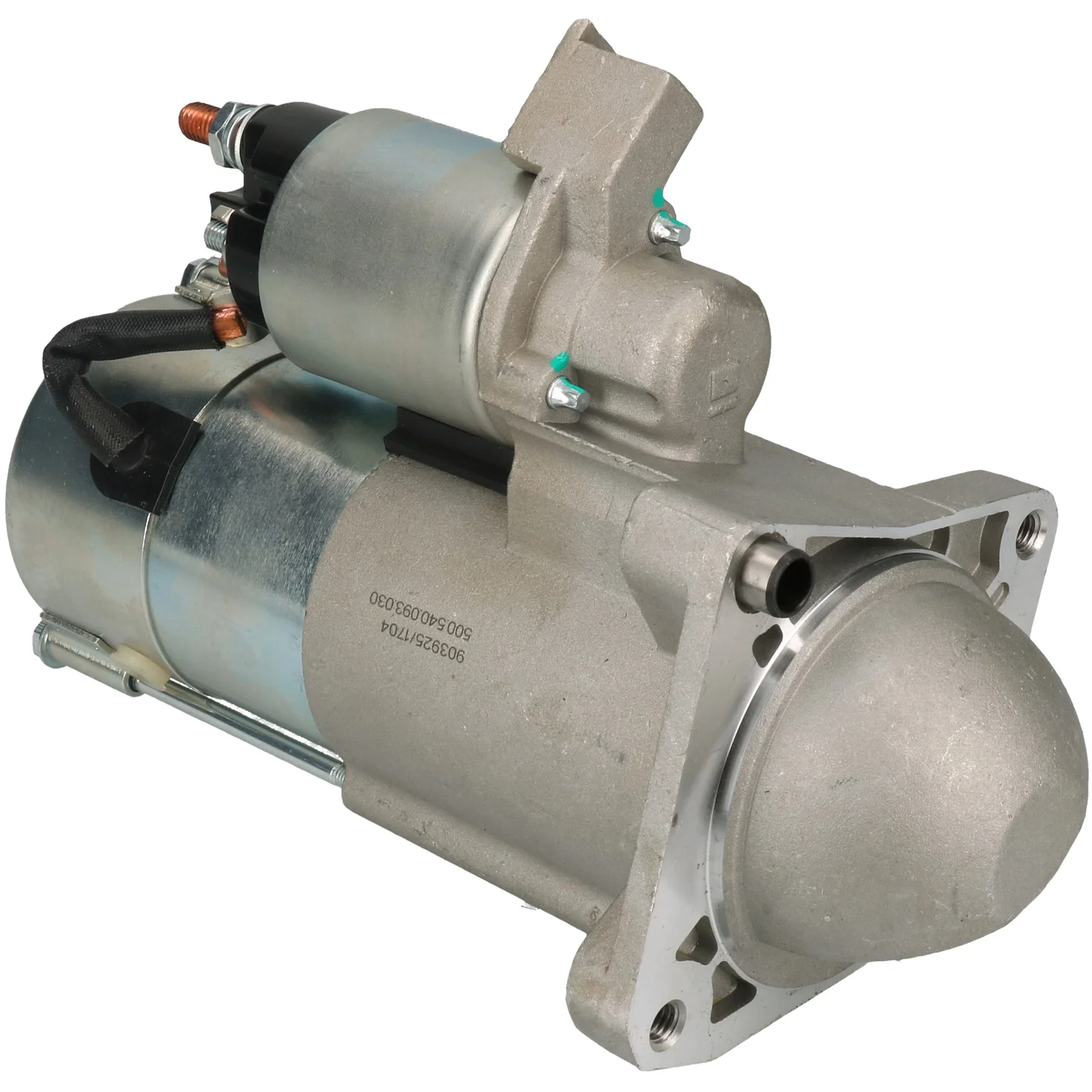

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.3, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.3
Mounting flange: 81.50
Drive distance: 1.50
Mounting hole 3 mm: M8
Distance / back: 194.00
Distance / front: 40.00
Number / teeth: 9
B+: M8
Position / B+: 60
Position / 50: 15
Terminal 50: M6
Gear type: GR
Distance 2: 82.00
Distance 3: 82.00
Distance mm: 115.50
Rotation: CW
Total length mm: 235.00
Prod. info: BN
Remarks: Remy type (Bosch type: HC-CARGO 113935)
Number / mounting holes: 3 (3)

Files

  • OEM
    cs1434, CS1434, DRS3967, DRS3967N, F032114145, K1347058080, 8EA012527-651, 8EA738259-121, 5802 AQ, 5802FA, 5820AQ, 201015, 220331, 220331A, 438401, 438516, 1524014, 1524014R, 8000032, 51832949, 51984357, 52110465, 55195967, 55832949, 71724237, 71724240, 71789529, 71794785, 71794786, 71797122, 134705808, 134705880, 551959670, 0986025580, 1347058080

  • Normalised article numbler
    cs1434, drs3967, drs3967n, f032114145, k1347058080, 8ea012527651, 8ea738259121, 5802aq, 5802fa, 5820aq, 201015, 220331, 220331a, 438401, 438516, 1524014, 1524014r, 8000032, 51832949, 51984357, 52110465, 55195967, 55832949, 71724237, 71724240, 71789529, 71794785, 71794786, 71797122, 134705808, 134705880, 551959670, 0986025580, 1347058080
  • Description
    Voltage: 12
    kW: 2.3
    Mounting flange: 81.50
    Drive distance: 1.50
    Mounting hole 3 mm: M8
    Distance / back: 194.00
    Distance / front: 40.00
    Number / teeth: 9
    B+: M8
    Position / B+: 60
    Position / 50: 15
    Terminal 50: M6
    Gear type: GR
    Distance 2: 82.00
    Distance 3: 82.00
    Distance mm: 115.50
    Rotation: CW
    Total length mm: 235.00
    Prod. info: BN
    Remarks: Remy type (Bosch type: HC-CARGO 113935)
    Number / mounting holes: 3 (3)

    Files

  • Suitable for these vehicles

    • OEM
      cs1434, CS1434, DRS3967, DRS3967N, F032114145, K1347058080, 8EA012527-651, 8EA738259-121, 5802 AQ, 5802FA, 5820AQ, 201015, 220331, 220331A, 438401, 438516, 1524014, 1524014R, 8000032, 51832949, 51984357, 52110465, 55195967, 55832949, 71724237, 71724240, 71789529, 71794785, 71794786, 71797122, 134705808, 134705880, 551959670, 0986025580, 1347058080

    • Normalised article numbler
      cs1434, drs3967, drs3967n, f032114145, k1347058080, 8ea012527651, 8ea738259121, 5802aq, 5802fa, 5820aq, 201015, 220331, 220331a, 438401, 438516, 1524014, 1524014r, 8000032, 51832949, 51984357, 52110465, 55195967, 55832949, 71724237, 71724240, 71789529, 71794785, 71794786, 71797122, 134705808, 134705880, 551959670, 0986025580, 1347058080
