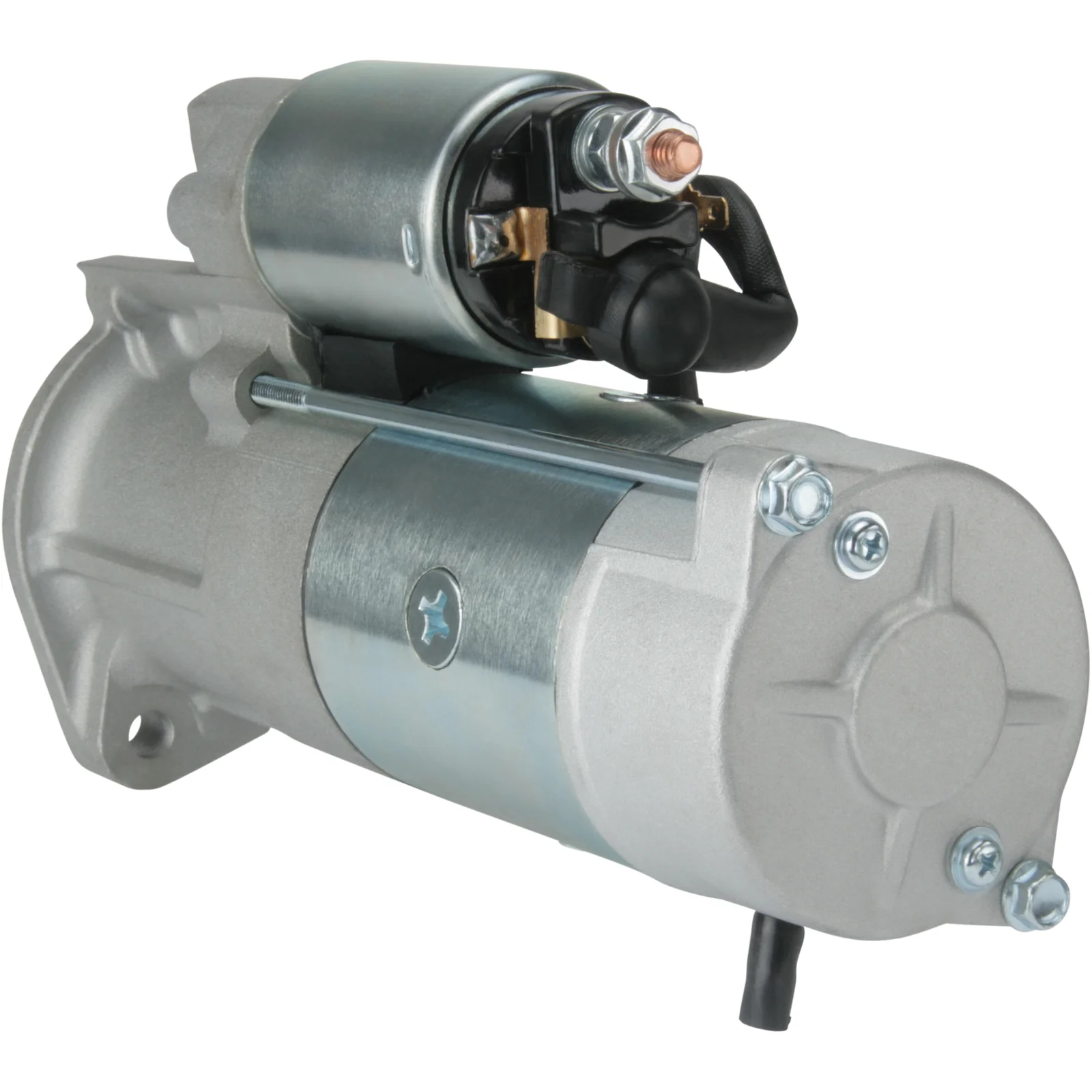

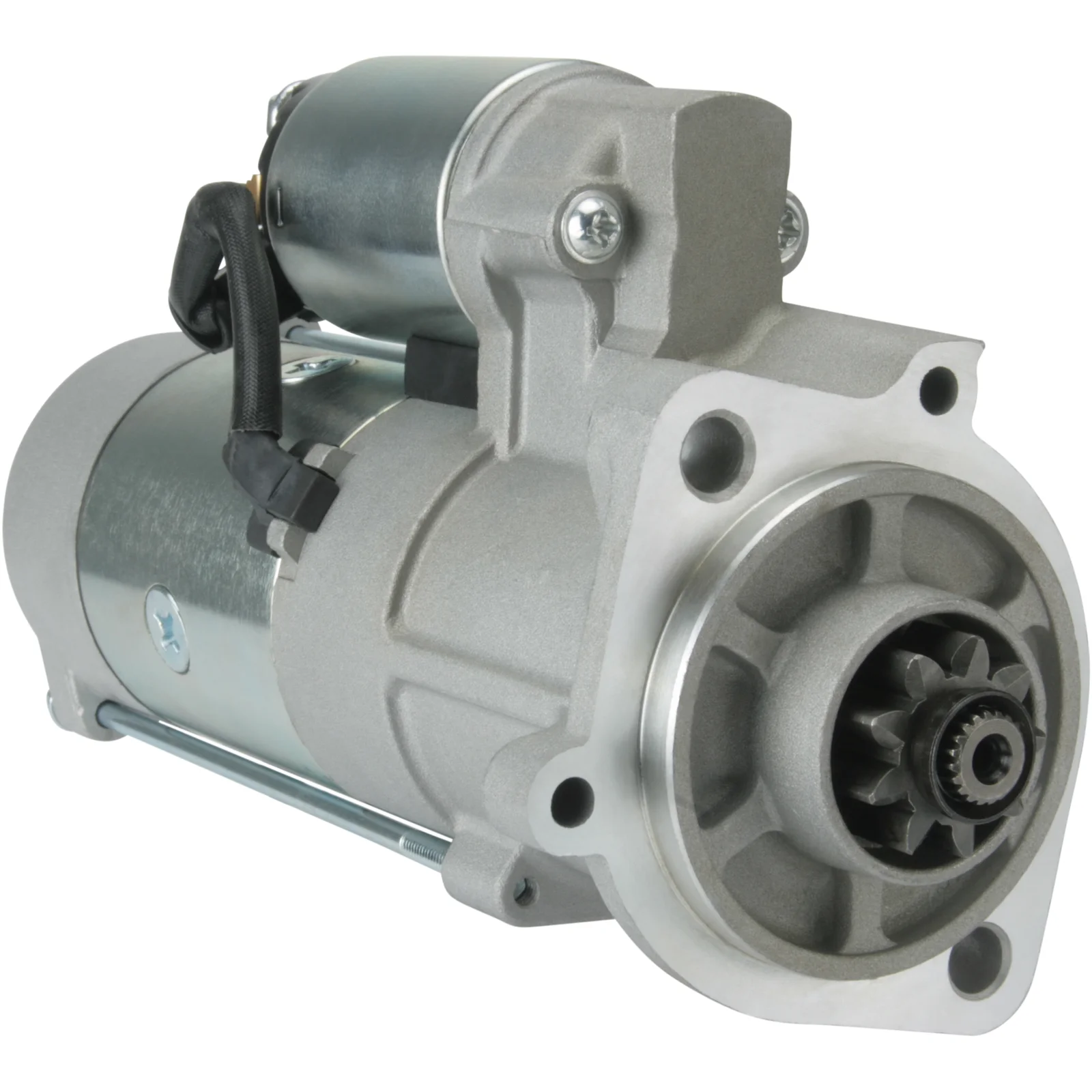

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114167

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 3.0
Mounting flange: 82.50
Drive distance: 27.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 253.50
Distance / front: 34.00
Number / teeth: 9
B+: M8
Position / 50: 15
Terminal 50: M5-6.30
Gear type: GR
Dis. mm: 104.00
Rotation: CW
Total length mm: 287.50
Prod. info: BN
Number / mounting holes: 2 (0)

Files

  • OEM
    F032114167, M008T50471, M008T50671, M008T50672, M008T50674, m8t50471, m8t50473, M8T50671, M8T50672, M8T50674, 1G77-763012, 1G777-63010, 1G777-63011, 1G777-63013, 1k012-63010, 1K012-63011, 1K012-63012, 05741747

  • Normalised article numbler
    cst35215, drs0519, f032114167, lrs02436, m008t50471, m008t50671, m008t50672, m008t50674, m8t50471, m8t50473, m8t50671, m8t50672, m8t50674, s5162, 1g77763010, 1g77763011, 1g77763012, 1g77763013, 1k01263010, 1k01263011, 1k01263012, 8ea015642171, 17586n, 254108, 255363, 05741747, 690554092
  • Description
    Voltage: 12
    kW: 3.0
    Mounting flange: 82.50
    Drive distance: 27.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 253.50
    Distance / front: 34.00
    Number / teeth: 9
    B+: M8
    Position / 50: 15
    Terminal 50: M5-6.30
    Gear type: GR
    Dis. mm: 104.00
    Rotation: CW
    Total length mm: 287.50
    Prod. info: BN
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114167, M008T50471, M008T50671, M008T50672, M008T50674, m8t50471, m8t50473, M8T50671, M8T50672, M8T50674, 1G77-763012, 1G777-63010, 1G777-63011, 1G777-63013, 1k012-63010, 1K012-63011, 1K012-63012, 05741747

    • Normalised article numbler
      cst35215, drs0519, f032114167, lrs02436, m008t50471, m008t50671, m008t50672, m008t50674, m8t50471, m8t50473, m8t50671, m8t50672, m8t50674, s5162, 1g77763010, 1g77763011, 1g77763012, 1g77763013, 1k01263010, 1k01263011, 1k01263012, 8ea015642171, 17586n, 254108, 255363, 05741747, 690554092
