HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114181

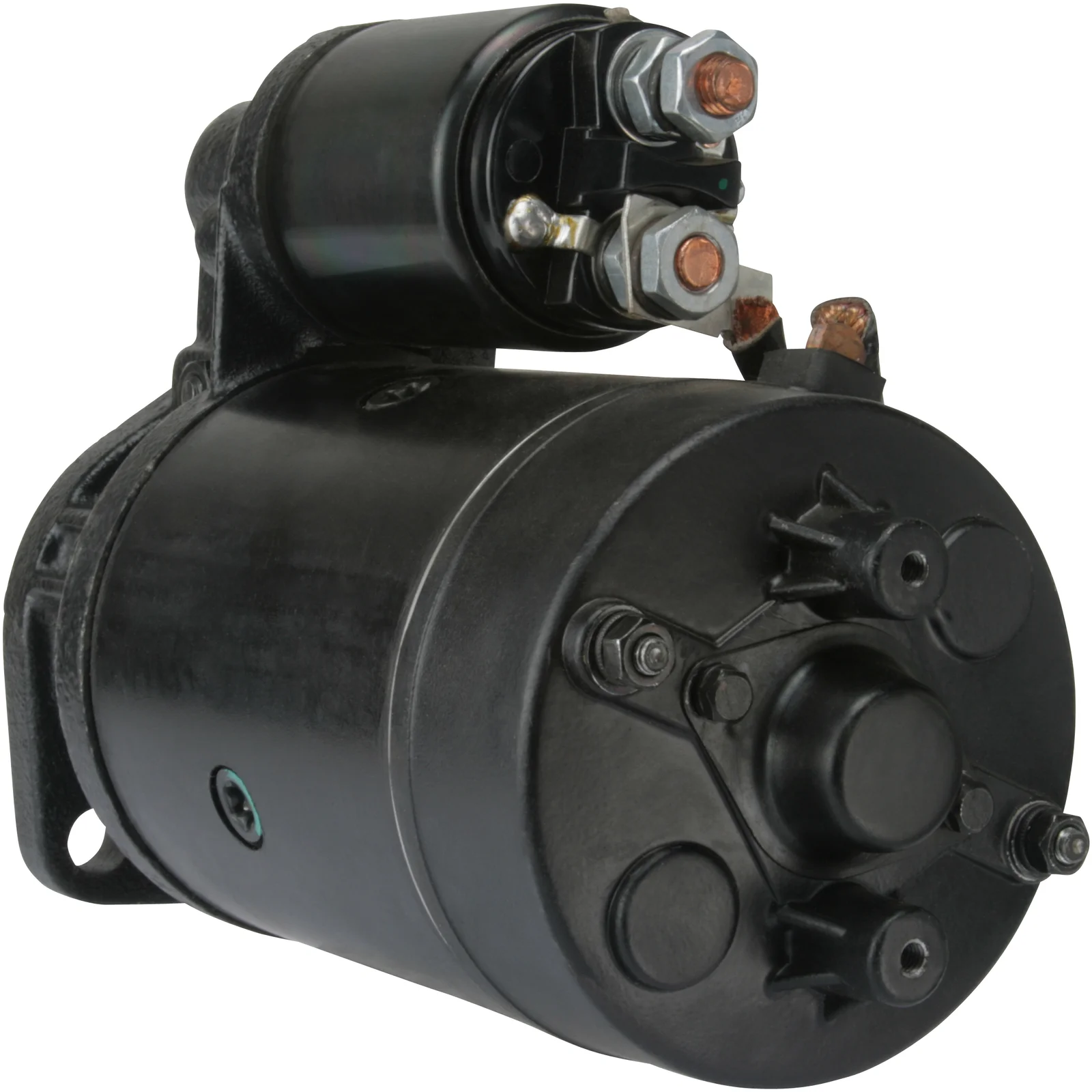

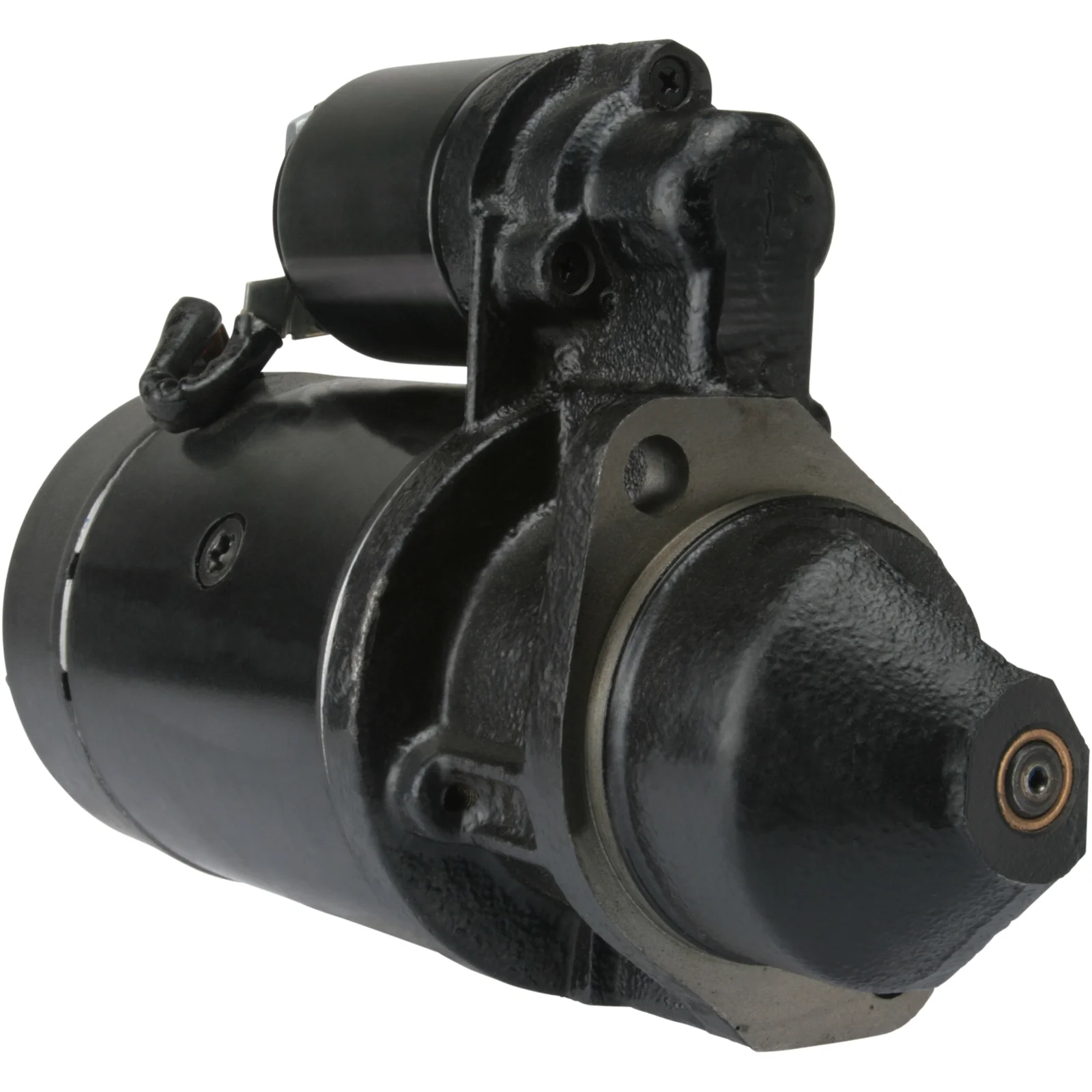

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.9, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.9
Mounting flange: 82.50
Drive distance: 21.00
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: 13.00
Distance / back: 220.00
Distance / front: 65.00
Number / teeth: 9
B+: M10
Position / B+: 60
Position / 50: 15
Terminal 50: M4
Gear type: DD
Distance in millimeters: 105.00
Rotation: CW
Total length in millimeters: 294.00
Production info: BN
Number / mounting holes: 2 (0)

Files

  • OEM
    B14R12X18H7622, cs707, F032114181, 01161386, 1161386, 01172683, 1172683, 0001354037, 0001354040, 0001354100, 0001362012, 0001366001, 008009830001

  • Normalised article numbler
    b14r12x18h7622, cs707, cst10322, drs2460, drs3328, f032114181, lrs01365, s0582, 8646, 10707, 33455, 252208, 01161386, 1161386, 01172683, 1172683, 0001354037, 0001354040, 0001354100, 0001362012, 0001366001, 8812460, 510003112, 510506092, 688005092, 688010092, 0986012460, 008009830001
  • Description
    Voltage: 12
    kW: 1.9
    Mounting flange: 82.50
    Drive distance: 21.00
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: 13.00
    Distance / back: 220.00
    Distance / front: 65.00
    Number / teeth: 9
    B+: M10
    Position / B+: 60
    Position / 50: 15
    Terminal 50: M4
    Gear type: DD
    Distance in millimeters: 105.00
    Rotation: CW
    Total length in millimeters: 294.00
    Production info: BN
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      B14R12X18H7622, cs707, F032114181, 01161386, 1161386, 01172683, 1172683, 0001354037, 0001354040, 0001354100, 0001362012, 0001366001, 008009830001

    • Normalised article numbler
      b14r12x18h7622, cs707, cst10322, drs2460, drs3328, f032114181, lrs01365, s0582, 8646, 10707, 33455, 252208, 01161386, 1161386, 01172683, 1172683, 0001354037, 0001354040, 0001354100, 0001362012, 0001366001, 8812460, 510003112, 510506092, 688005092, 688010092, 0986012460, 008009830001
