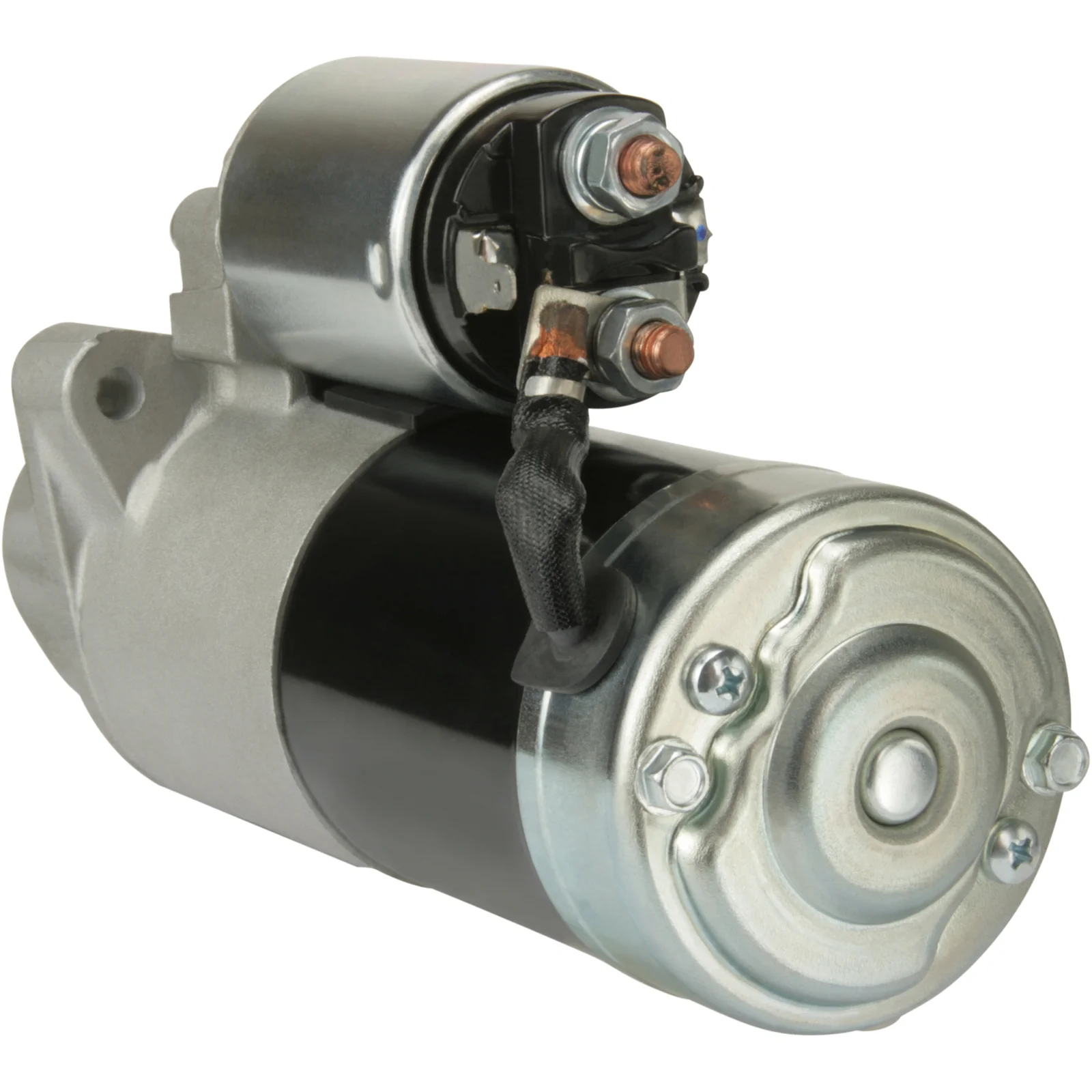

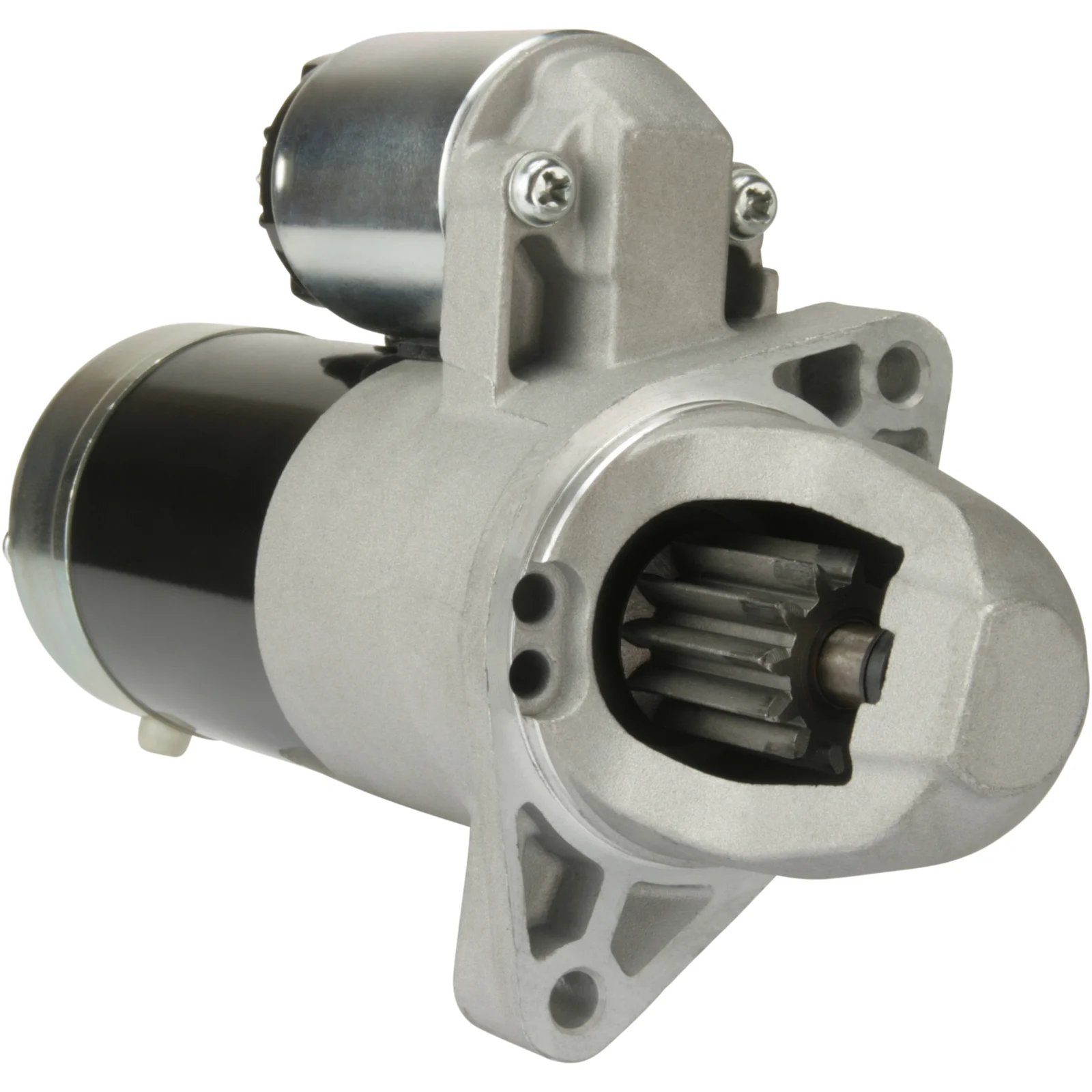

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114183

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.8, No./teeth: 12, Rotation: CCW

Description

Voltage: 12
kW: 1.8
Mounting flange: 70.00
Drive distance: 34.50
Mounting hole 2 mm: 8.50
Mounting hole 1 mm: 8.50
Distance/back: 172.00
Distance/front: 71.00
Number of teeth: 12
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Distance in millimeters: 109.00
Rotation: CCW
Total length in millimeters: 247.00
Product info: BN
Number of mounting holes: 2 (0)

Files

  • OEM
    A0061510401, cs1526, F032114183, M001T30271, M1T30271, mn960265, 1810a002, 0061510401, 6391510401

  • Normalised article numbler
    a0061510401, cs1526, cst35127, drs0482, f032114183, lrs02395, m001t30271, m1t30271, mn960265, s5142, 1810a002, 3137, 30485nos, 106912, 220716, 220716a, 254067, 254472, 11040772, 0061510401, 150563122, 325053122, 6391510401
  • Description
    Voltage: 12
    kW: 1.8
    Mounting flange: 70.00
    Drive distance: 34.50
    Mounting hole 2 mm: 8.50
    Mounting hole 1 mm: 8.50
    Distance/back: 172.00
    Distance/front: 71.00
    Number of teeth: 12
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Distance in millimeters: 109.00
    Rotation: CCW
    Total length in millimeters: 247.00
    Product info: BN
    Number of mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      A0061510401, cs1526, F032114183, M001T30271, M1T30271, mn960265, 1810a002, 0061510401, 6391510401

    • Normalised article numbler
      a0061510401, cs1526, cst35127, drs0482, f032114183, lrs02395, m001t30271, m1t30271, mn960265, s5142, 1810a002, 3137, 30485nos, 106912, 220716, 220716a, 254067, 254472, 11040772, 0061510401, 150563122, 325053122, 6391510401
