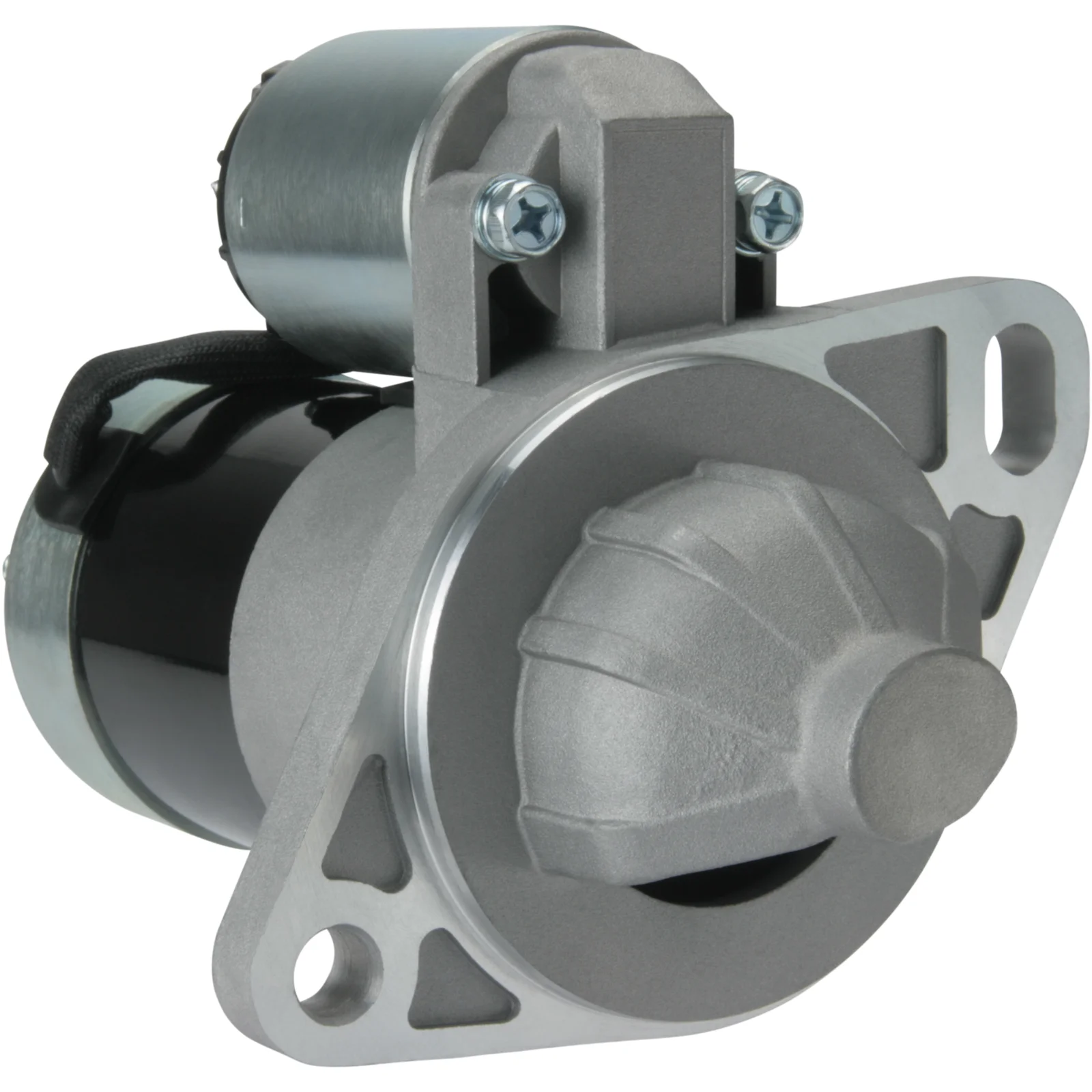

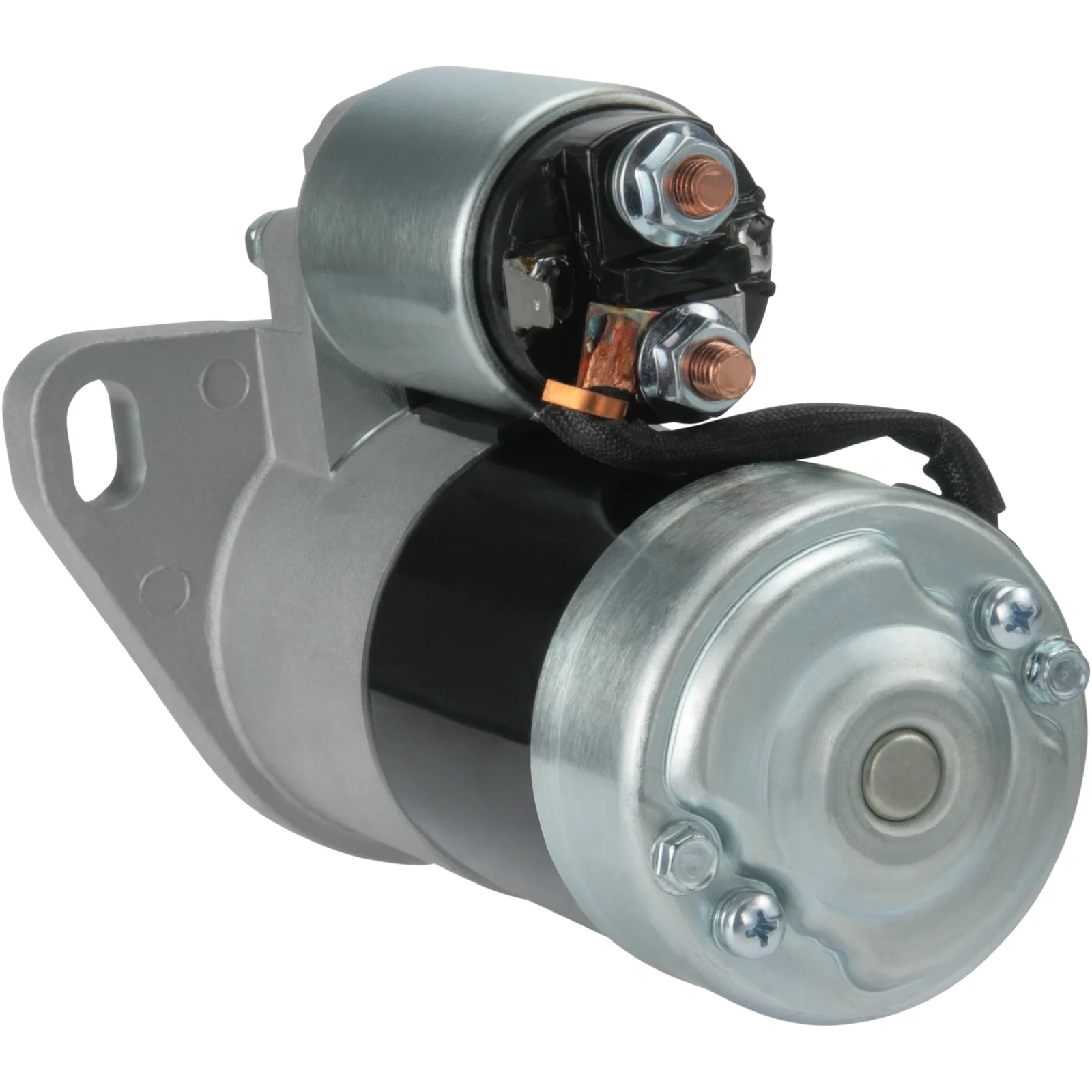

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114197

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.1, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.1
Mounting flange: 89.00
Drive distance: 17.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 12.00
Distance/rear: 153.00
Distance/front: 53.50
Number/teeth: 9
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Distance in millimeters: 127.00
Rotation: CW
Total length in millimeters: 209.00
Number/mounting holes: 2 (0)

Files

  • OEM
    AM809215, AM879204, F032114197, TY25238, 119626-77010, 119626-77011, 228000-6080, 228000-7470, 228000-7471, 228000-7472, 428000-0600, 501858

  • Normalised article numbler
    am809215, am879204, cst20181, cst20185, cst40507, dsn2078, f032114197, s6337denso, ty25238, 18426, 18426n, 254009, 254421, 501858, 682045092, 980542092, 2280006080, 2280007470, 2280007471, 2280007472, 4280000600, 11962677010, 11962677011
  • Description
    Voltage: 12
    kW: 1.1
    Mounting flange: 89.00
    Drive distance: 17.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 12.00
    Distance/rear: 153.00
    Distance/front: 53.50
    Number/teeth: 9
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Distance in millimeters: 127.00
    Rotation: CW
    Total length in millimeters: 209.00
    Number/mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AM809215, AM879204, F032114197, TY25238, 119626-77010, 119626-77011, 228000-6080, 228000-7470, 228000-7471, 228000-7472, 428000-0600, 501858

    • Normalised article numbler
      am809215, am879204, cst20181, cst20185, cst40507, dsn2078, f032114197, s6337denso, ty25238, 18426, 18426n, 254009, 254421, 501858, 682045092, 980542092, 2280006080, 2280007470, 2280007471, 2280007472, 4280000600, 11962677010, 11962677011
