HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114389

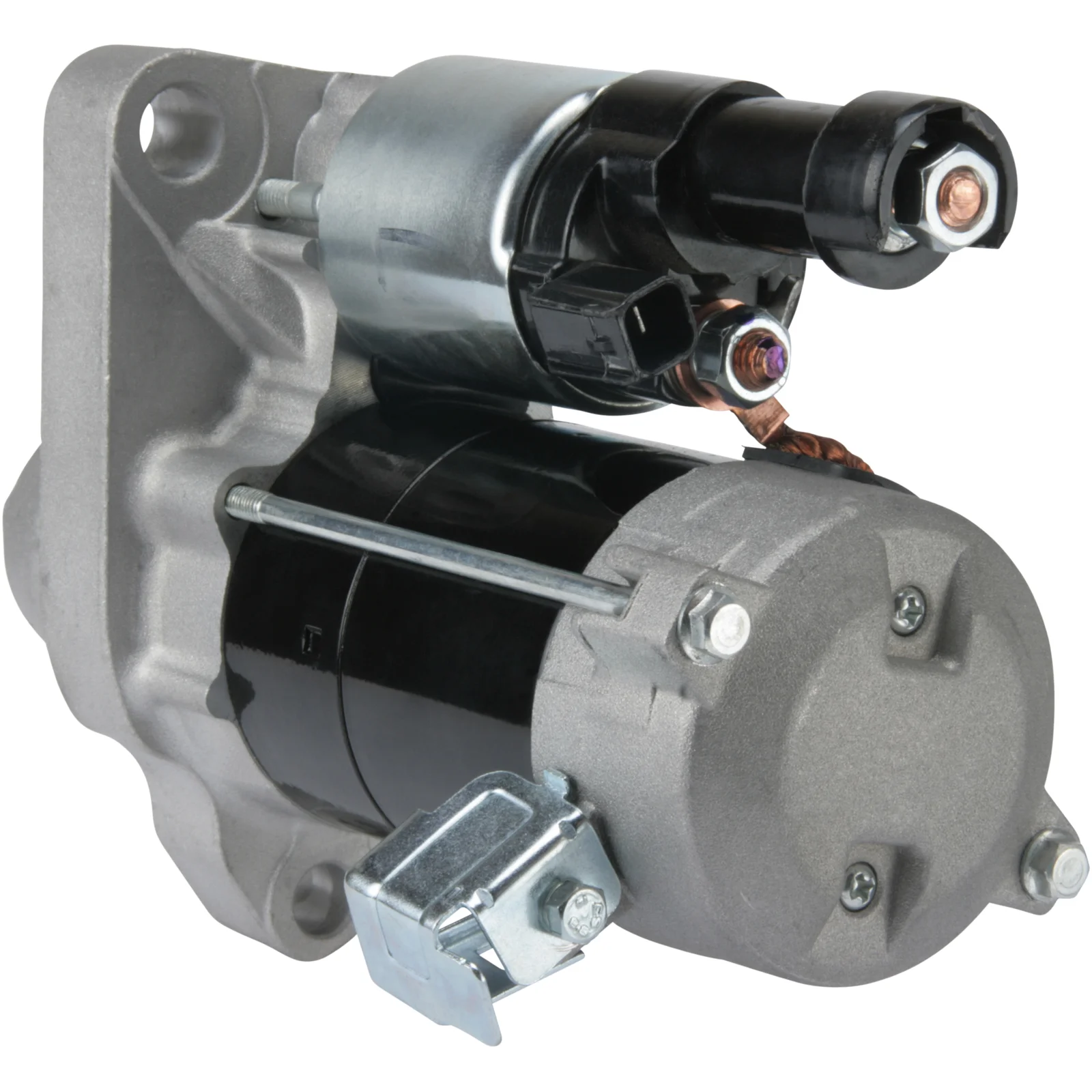

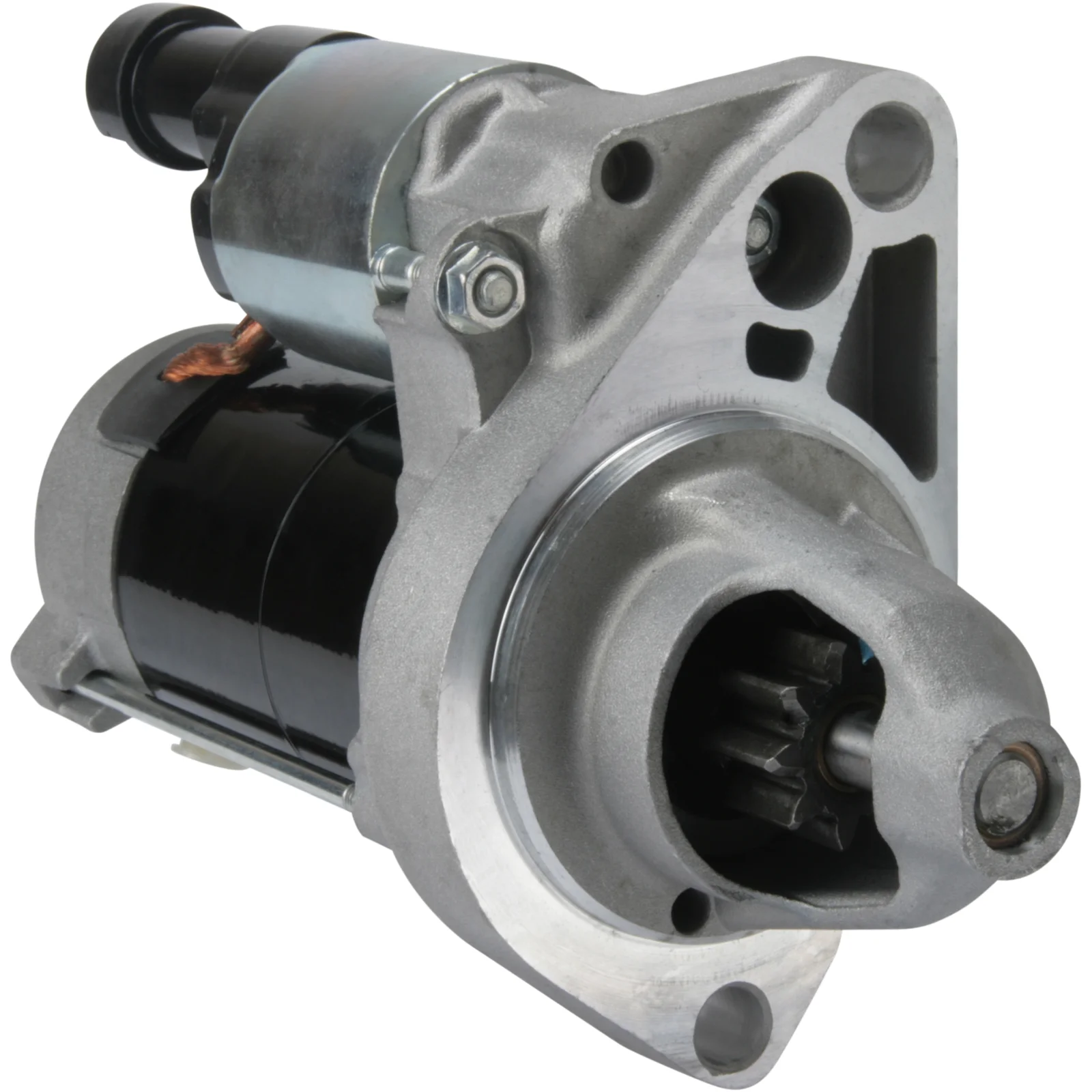

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.1, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.1
Mounting flange: 75.00
Drive distance: 33.00
Mounting hole 2 mm: 11.50
Mounting hole 1 mm: 13.50
Distance / back: 155.50
Distance / front: 66.50
Number / teeth: 9
B+: M8
Terminal 50: Plug
Gear type: GR
Distributor mm: 125.00
Rotation: CW
Total length mm: 222.00
Number / mounting holes: 2 (0)

Files

  • OEM
    cs1458, DS4R5, DS4RC, DS4RD, F032114389, RGO 114389, 1986S00583, 31200-rna-003, 31200-rna-a01, 31200-RNA-A11, 31200-RZP-E01, 428000-3410, 428000-3420, 428000-4520, 428000-4521, 428000-5000, 428000-5001, 428000-5010, 428000-5011, 428000-5280

  • Normalised article numbler
    cs1458, cst40367, drs0639, ds4r5, ds4rc, ds4rd, dsn1390, dsn1391, f032114389, f042200171, f042201000, lrs02577, rgo114389, s6175, s6300s, 8ea011611891, 1986s00583, 17957n, 17957r, 31200rna003, 31200rnaa01, 31200rnaa11, 31200rzpe01, 101458, 220881, 220881a, 254249, 438423, 458842, 11040858, 120534092, 120556092, 120562092, 322062092, 0986025610, 4280003410, 4280003420, 4280004520, 4280004521, 4280005000, 4280005001, 4280005010, 4280005011, 4280005280
  • Description
    Voltage: 12
    kW: 1.1
    Mounting flange: 75.00
    Drive distance: 33.00
    Mounting hole 2 mm: 11.50
    Mounting hole 1 mm: 13.50
    Distance / back: 155.50
    Distance / front: 66.50
    Number / teeth: 9
    B+: M8
    Terminal 50: Plug
    Gear type: GR
    Distributor mm: 125.00
    Rotation: CW
    Total length mm: 222.00
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1458, DS4R5, DS4RC, DS4RD, F032114389, RGO 114389, 1986S00583, 31200-rna-003, 31200-rna-a01, 31200-RNA-A11, 31200-RZP-E01, 428000-3410, 428000-3420, 428000-4520, 428000-4521, 428000-5000, 428000-5001, 428000-5010, 428000-5011, 428000-5280

    • Normalised article numbler
      cs1458, cst40367, drs0639, ds4r5, ds4rc, ds4rd, dsn1390, dsn1391, f032114389, f042200171, f042201000, lrs02577, rgo114389, s6175, s6300s, 8ea011611891, 1986s00583, 17957n, 17957r, 31200rna003, 31200rnaa01, 31200rnaa11, 31200rzpe01, 101458, 220881, 220881a, 254249, 438423, 458842, 11040858, 120534092, 120556092, 120562092, 322062092, 0986025610, 4280003410, 4280003420, 4280004520, 4280004521, 4280005000, 4280005001, 4280005010, 4280005011, 4280005280
