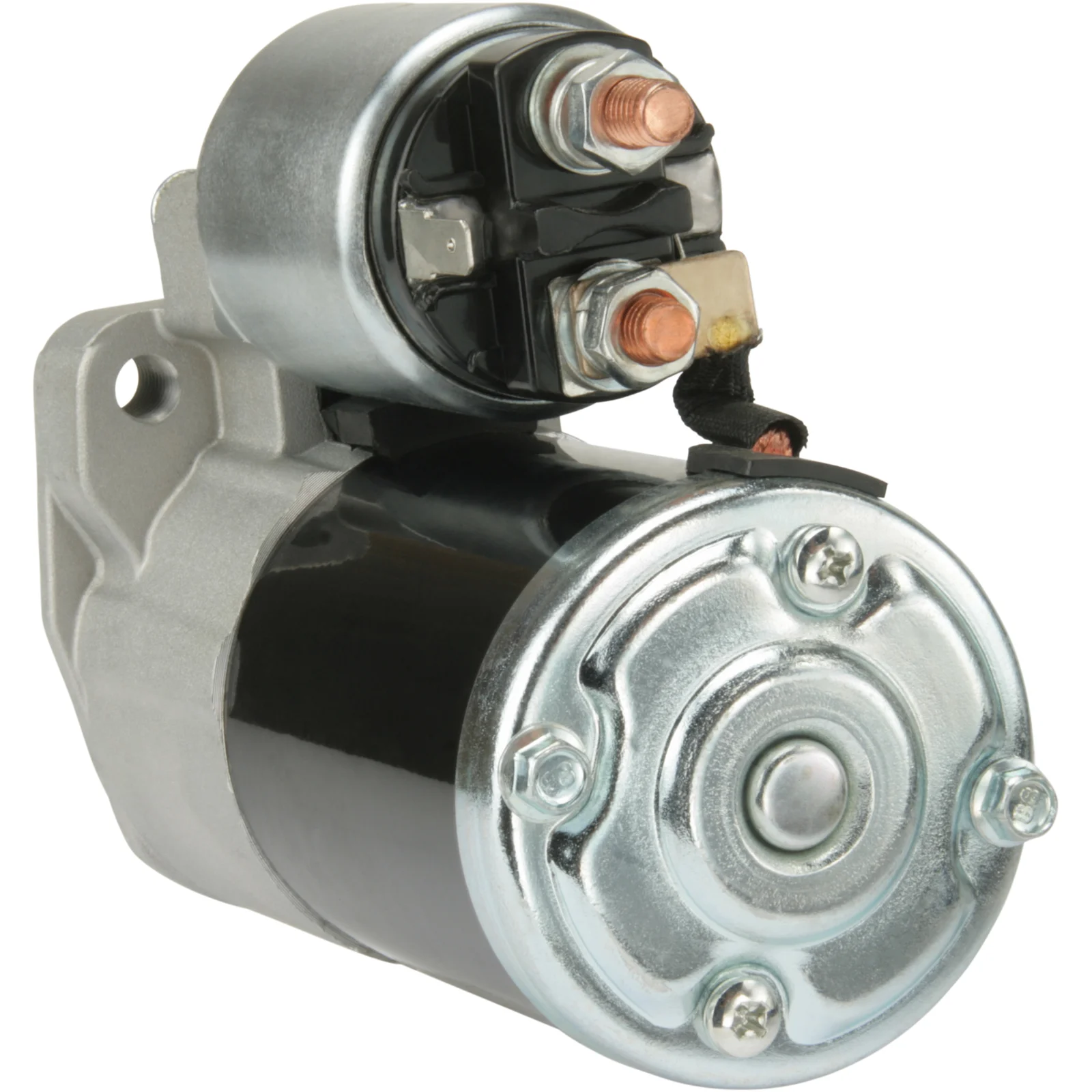

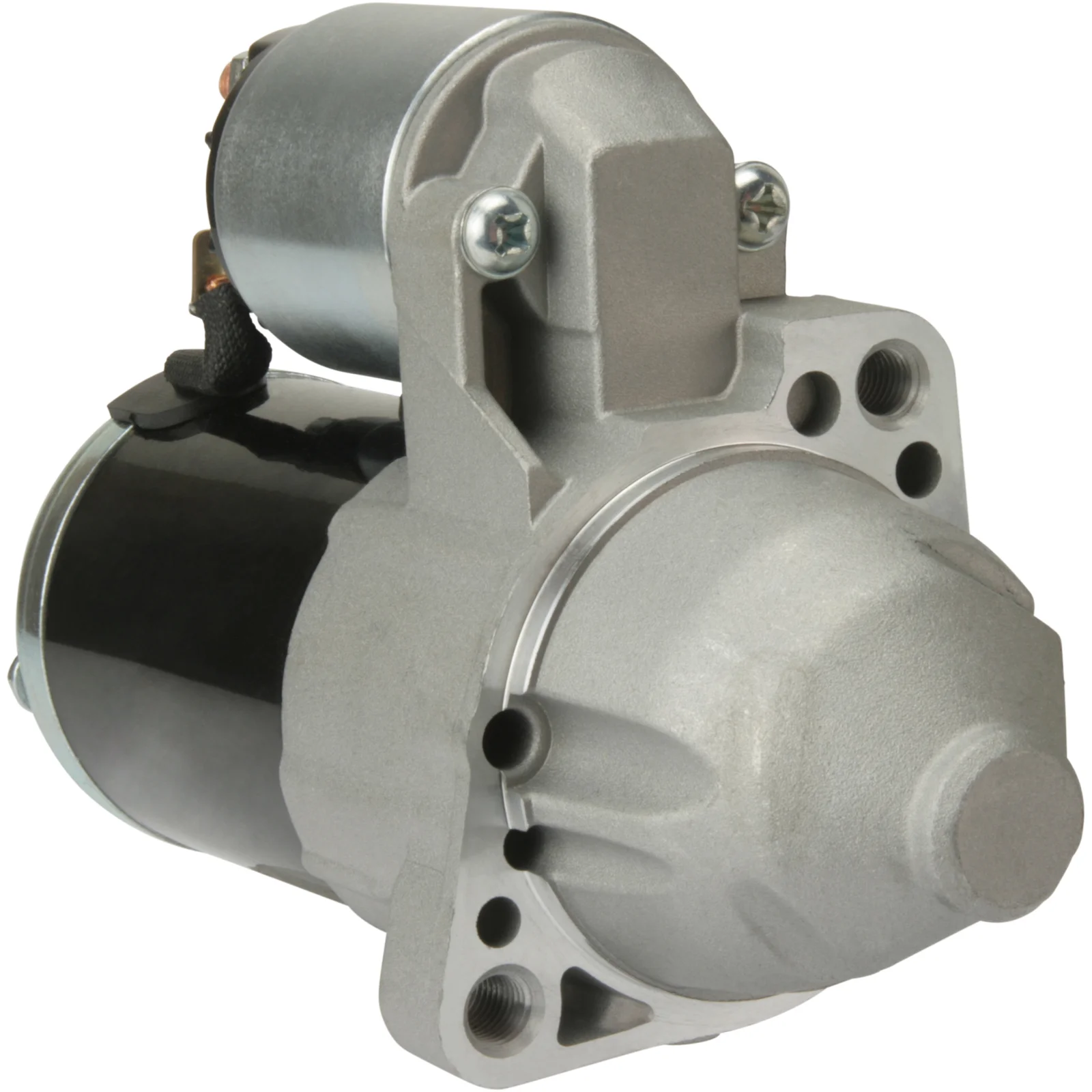

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115448

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 8, Rotation: CW

Description

Mits. Lancer Starter motor 12V-1.4kW 12V - 1.4kW, 8k A - 70mm, B - 28mm For Yourex product order 91-380-1571 Voltage: 12 kilowatt: 1.4 Mounting flange: 70.00 Drive distance: 28.50 Distance/behind: 135.50 Distance/in front: 60.00 Number of teeth: 8 B+: M8 Position/50: 45 Terminal 50: 6.30 Gear type: GR Dist. in millimeters: 94.00 Rotation: CW Total length in millimeters: 198.00 Product info: BN Number of mounting holes: 2 (2)

Files

  • OEM
    cs1516, F032115448, M000T21571, M000T32071, M000T32071ZC, M000T38771, M00T38771, M0T-21571, M0T-38771, M0T21571, M0T32071, M0T32071ZC, M0T38771, M1810A011D, RGO 115448, 0986 026 020, 1810A011, 1810A205, 1986S01089, 1986S01226, 115448, 05034555AA, 5034555aa

  • Normalised article numbler
    cs1516, cst35230, cst35286, drs0245, drs0711, f032115448, f042202539, lrs02259, m000t21571, m000t32071, m000t32071zc, m000t38771, m00t38771, m0t21571, m0t32071, m0t32071zc, m0t38771, m1810a011d, rgo115448, s3219s, s5188, s5370s, 8ea011612731, 8ea011612741, 1810a011, 1810a205, 1986s01089, 1986s01226, 5802fd, 17994, 19037, 19037n, 19225n, 115448, 220884, 220884a, 253430, 254449, 254568, 255085, 438334, 458681, 05034555aa, 5034555aa, 11040854, 11090408, 150592082, 150592092, 326073082, 634029092, 830901082, 0986026020
  • Description
    Mits. Lancer Starter motor 12V-1.4kW 12V - 1.4kW, 8k A - 70mm, B - 28mm For Yourex product order 91-380-1571 Voltage: 12 kilowatt: 1.4 Mounting flange: 70.00 Drive distance: 28.50 Distance/behind: 135.50 Distance/in front: 60.00 Number of teeth: 8 B+: M8 Position/50: 45 Terminal 50: 6.30 Gear type: GR Dist. in millimeters: 94.00 Rotation: CW Total length in millimeters: 198.00 Product info: BN Number of mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      cs1516, F032115448, M000T21571, M000T32071, M000T32071ZC, M000T38771, M00T38771, M0T-21571, M0T-38771, M0T21571, M0T32071, M0T32071ZC, M0T38771, M1810A011D, RGO 115448, 0986 026 020, 1810A011, 1810A205, 1986S01089, 1986S01226, 115448, 05034555AA, 5034555aa

    • Normalised article numbler
      cs1516, cst35230, cst35286, drs0245, drs0711, f032115448, f042202539, lrs02259, m000t21571, m000t32071, m000t32071zc, m000t38771, m00t38771, m0t21571, m0t32071, m0t32071zc, m0t38771, m1810a011d, rgo115448, s3219s, s5188, s5370s, 8ea011612731, 8ea011612741, 1810a011, 1810a205, 1986s01089, 1986s01226, 5802fd, 17994, 19037, 19037n, 19225n, 115448, 220884, 220884a, 253430, 254449, 254568, 255085, 438334, 458681, 05034555aa, 5034555aa, 11040854, 11090408, 150592082, 150592092, 326073082, 634029092, 830901082, 0986026020
