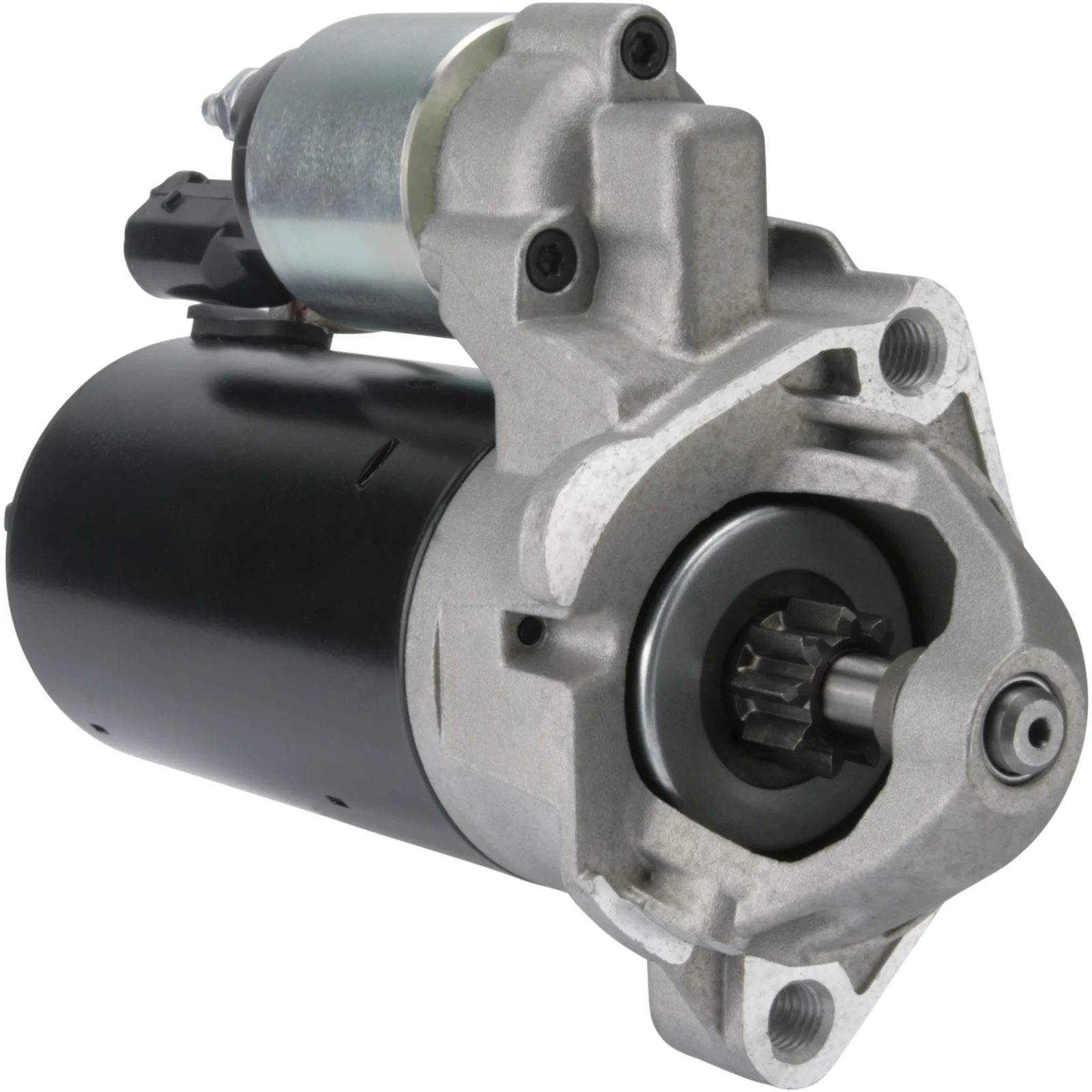

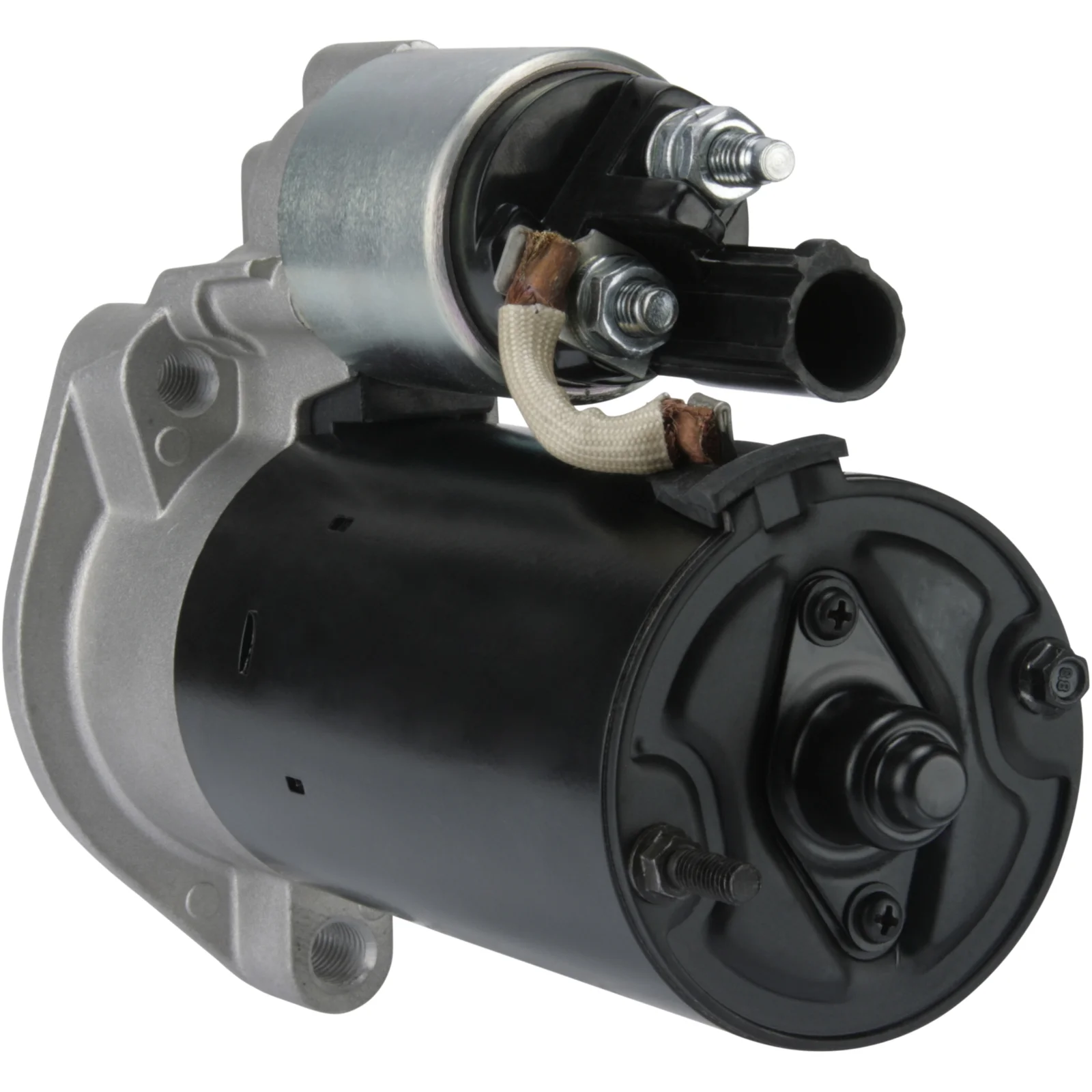

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114177

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Description

Starter motor 12V-2.0kW (A/T) 12V - 2.0kW, 9k A - 82mm, B - 15mm Audi A/T, Seat CVT For Yourrex product order 91-620-2161

Voltage: 12
kW: 2.0
Mounting flange: 82.50
Drive distance: 15.50
Distance/backup: 189.00
Distance/front: 54.00
Number/teeth: 9
B+: M8
Position/50: 20
Terminal 50: Plug
Gear type: GR
Distance mm: 101.00
Rotation: CW
Total length mm: 241.50
Clutch type: Dry
Drive type: Steel
Number/mounting holes: 2 (2)

Files

  • OEM
    cs1423, F032114177, RGO 114177, 0001 109 064, 0001 109 065, 03G 911 023A, 03G 911023AX, 03g911023a, 03G911023AX, 0986 021 610, 1986S00725, 114177, 304193, 0001109064, 0001109065

  • Normalised article numbler
    cs1423, cst10384, drt1610, f032114177, f042s0h099, lrs02335, rgo114177, s0175, s0175pr, strh099, 03g911023a, 03g911023ax, 8ea012526091, 1986s00725, 3057, 33327n, 101423, 106218, 114177, 220870, 220870a, 254007, 304193, 0001109064, 0001109065, 8021610, 8212323, 11021610, 42021610, 311247092, 0986021610, 063521090640
  • Description
    Starter motor 12V-2.0kW (A/T) 12V - 2.0kW, 9k A - 82mm, B - 15mm Audi A/T, Seat CVT For Yourrex product order 91-620-2161

    Voltage: 12
    kW: 2.0
    Mounting flange: 82.50
    Drive distance: 15.50
    Distance/backup: 189.00
    Distance/front: 54.00
    Number/teeth: 9
    B+: M8
    Position/50: 20
    Terminal 50: Plug
    Gear type: GR
    Distance mm: 101.00
    Rotation: CW
    Total length mm: 241.50
    Clutch type: Dry
    Drive type: Steel
    Number/mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      cs1423, F032114177, RGO 114177, 0001 109 064, 0001 109 065, 03G 911 023A, 03G 911023AX, 03g911023a, 03G911023AX, 0986 021 610, 1986S00725, 114177, 304193, 0001109064, 0001109065

    • Normalised article numbler
      cs1423, cst10384, drt1610, f032114177, f042s0h099, lrs02335, rgo114177, s0175, s0175pr, strh099, 03g911023a, 03g911023ax, 8ea012526091, 1986s00725, 3057, 33327n, 101423, 106218, 114177, 220870, 220870a, 254007, 304193, 0001109064, 0001109065, 8021610, 8212323, 11021610, 42021610, 311247092, 0986021610, 063521090640
