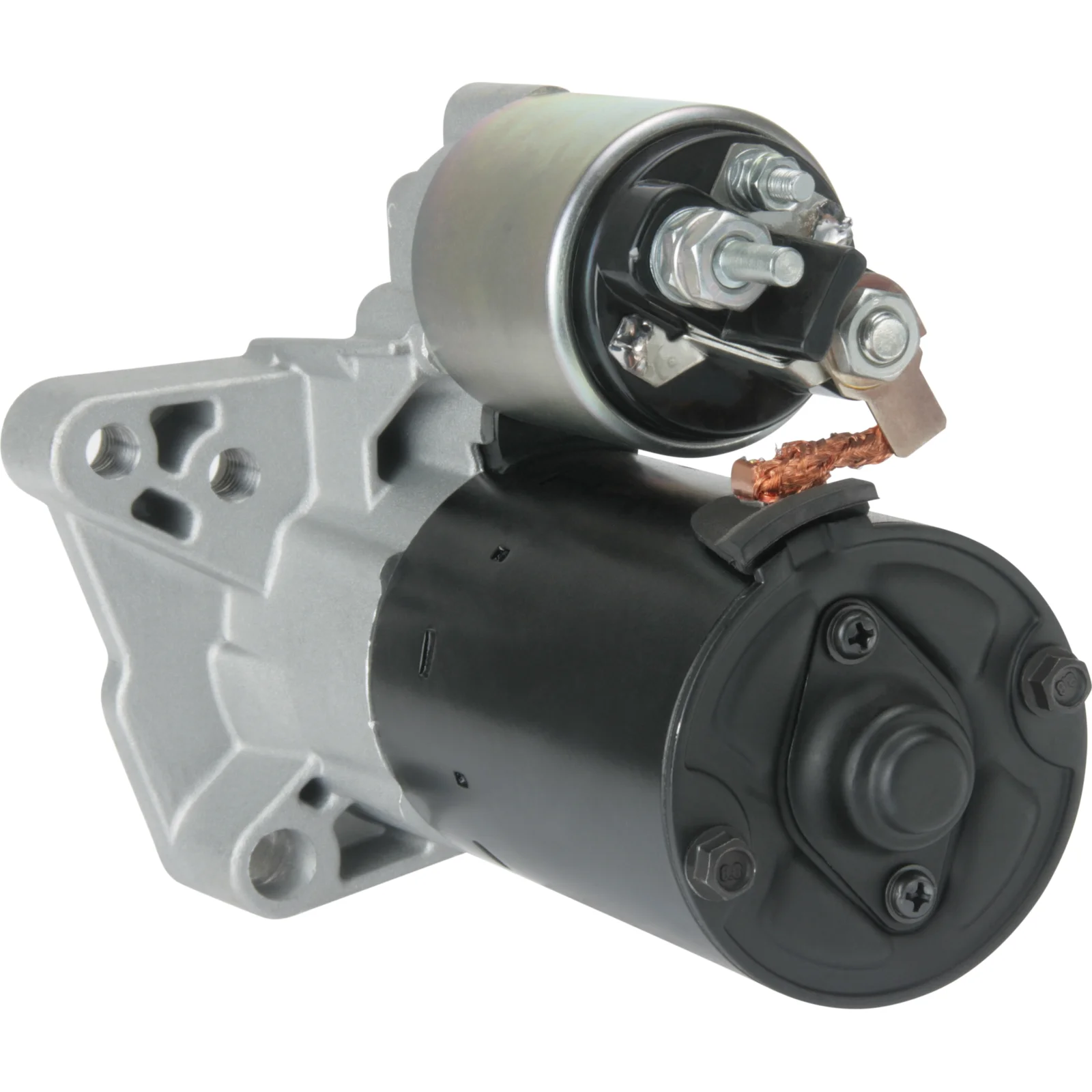

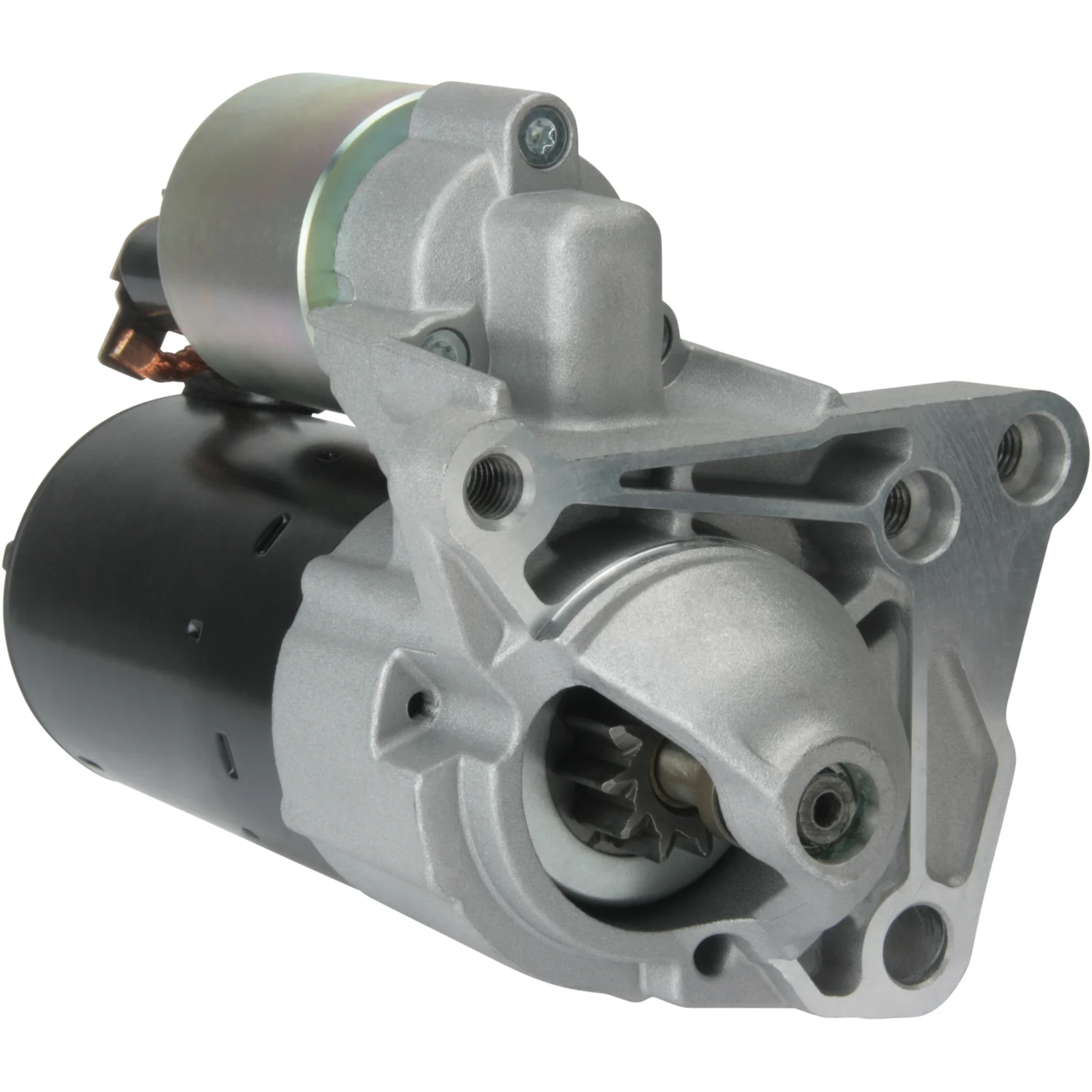

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115698

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.1, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 1.1
Mounting flange: 66.00
Drive distance: 0.00
Mounting hole 4 mm: M10
Mounting hole 3 mm: 12.00
Distance / rear: 158.00
Distance / front: 34.00
Number / teeth: 11
B+: M8
Position / 50: 5
Terminal 50: M5
Gear type: GR
Distance 2: 74.00
Distance 3: 104.50
Distance 4: 73.00
Distance mm: 22.00
Rotation: CW
Total length mm: 200.00
Product info: BN
Number / mounting holes: 4 (3)

Files

  • OEM
    F032115698, RGO 115698, TS1281, 1986S00679, 0001107476, 0001107477, 8200792969

  • Normalised article numbler
    cst10482, drs0233, f032115698, lrs02490, rgo115698, s0741s, ts1281, 1986s00679, 3088, 30500nos, 31279n, 254162, 438399, 438501, 0001107476, 0001107477, 11025390, 42025390, 330062112, 570564114, 0986025390, 8200792969
  • Description
    Voltage: 12
    kW: 1.1
    Mounting flange: 66.00
    Drive distance: 0.00
    Mounting hole 4 mm: M10
    Mounting hole 3 mm: 12.00
    Distance / rear: 158.00
    Distance / front: 34.00
    Number / teeth: 11
    B+: M8
    Position / 50: 5
    Terminal 50: M5
    Gear type: GR
    Distance 2: 74.00
    Distance 3: 104.50
    Distance 4: 73.00
    Distance mm: 22.00
    Rotation: CW
    Total length mm: 200.00
    Product info: BN
    Number / mounting holes: 4 (3)

    Files

  • Suitable for these vehicles

    • OEM
      F032115698, RGO 115698, TS1281, 1986S00679, 0001107476, 0001107477, 8200792969

    • Normalised article numbler
      cst10482, drs0233, f032115698, lrs02490, rgo115698, s0741s, ts1281, 1986s00679, 3088, 30500nos, 31279n, 254162, 438399, 438501, 0001107476, 0001107477, 11025390, 42025390, 330062112, 570564114, 0986025390, 8200792969
