Article no.: F032113020

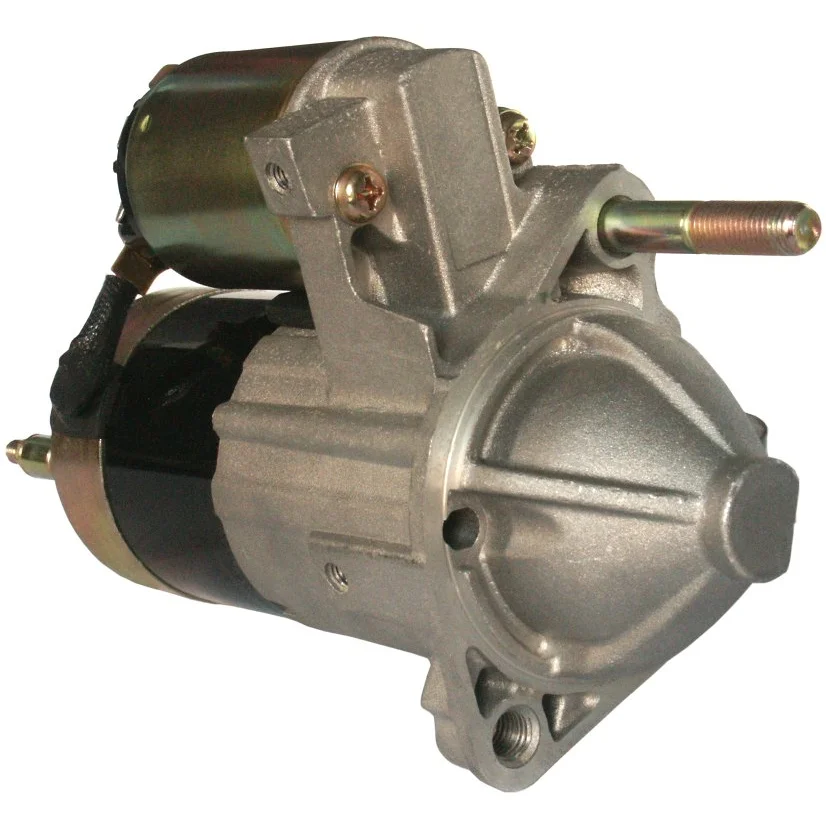

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.2, No./teeth: 8, Rotation: CW

Description

Hyundai V6 Starter motor 12V-1.2kW 12V - 1.2kW, 8k Automatic! For Yourrex product order 91-228-3721

Voltage: 12
kW: 1.2
Mount. flange: 70.00
Drive distance: 10.00
Dist./back: 146.00
Dist./front: 45.50
Number of teeth: 8
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. mm: 97.50
Rotation: CW
Total length mm: 216.50
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number of mounting holes: 2 (2)

Files

  • OEM
    cs1492, F032113020, M 62957, m62957, RGO 113020, tm000a14401, 6870, 36100-37210, 36100-37230, 113020, 1195923

  • Normalised article numbler
    cs1492, cst32109, drs3927, f032113020, f042001105, f042202020, f042s01105, j5210505, les0242, lrs01745, m62957, rgo113020, s3102s, s3102valeo, s8776, s9080, sm00100r, smn0005, sr4116x, str3521, str3522, tm000a14401, 6870, 17763, 17764, 17764n, 17764r, 17829n, 17847, 19124n, 21989md, 21990md, 113020, 177763, 220500, 220500a, 253309, 254273, 458437, 600071, 600109, 600232, 600738, 1195923, 8213486, 11040742, 326040082, 0986026180, 3610037210, 3610037230, 944280705050
  • Description
    Hyundai V6 Starter motor 12V-1.2kW 12V - 1.2kW, 8k Automatic! For Yourrex product order 91-228-3721

    Voltage: 12
    kW: 1.2
    Mount. flange: 70.00
    Drive distance: 10.00
    Dist./back: 146.00
    Dist./front: 45.50
    Number of teeth: 8
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 97.50
    Rotation: CW
    Total length mm: 216.50
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number of mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      cs1492, F032113020, M 62957, m62957, RGO 113020, tm000a14401, 6870, 36100-37210, 36100-37230, 113020, 1195923

    • Normalised article numbler
      cs1492, cst32109, drs3927, f032113020, f042001105, f042202020, f042s01105, j5210505, les0242, lrs01745, m62957, rgo113020, s3102s, s3102valeo, s8776, s9080, sm00100r, smn0005, sr4116x, str3521, str3522, tm000a14401, 6870, 17763, 17764, 17764n, 17764r, 17829n, 17847, 19124n, 21989md, 21990md, 113020, 177763, 220500, 220500a, 253309, 254273, 458437, 600071, 600109, 600232, 600738, 1195923, 8213486, 11040742, 326040082, 0986026180, 3610037210, 3610037230, 944280705050
