HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115728

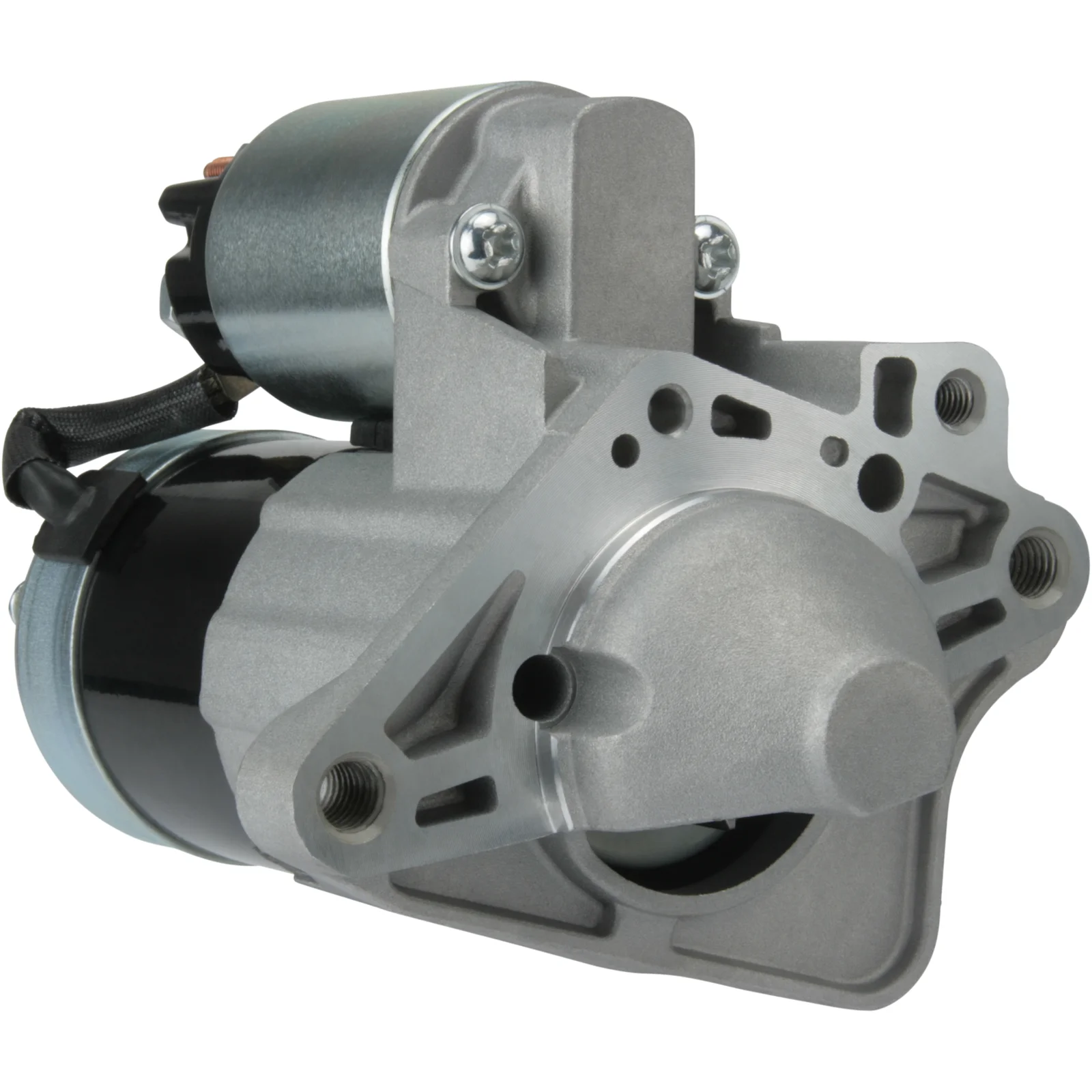

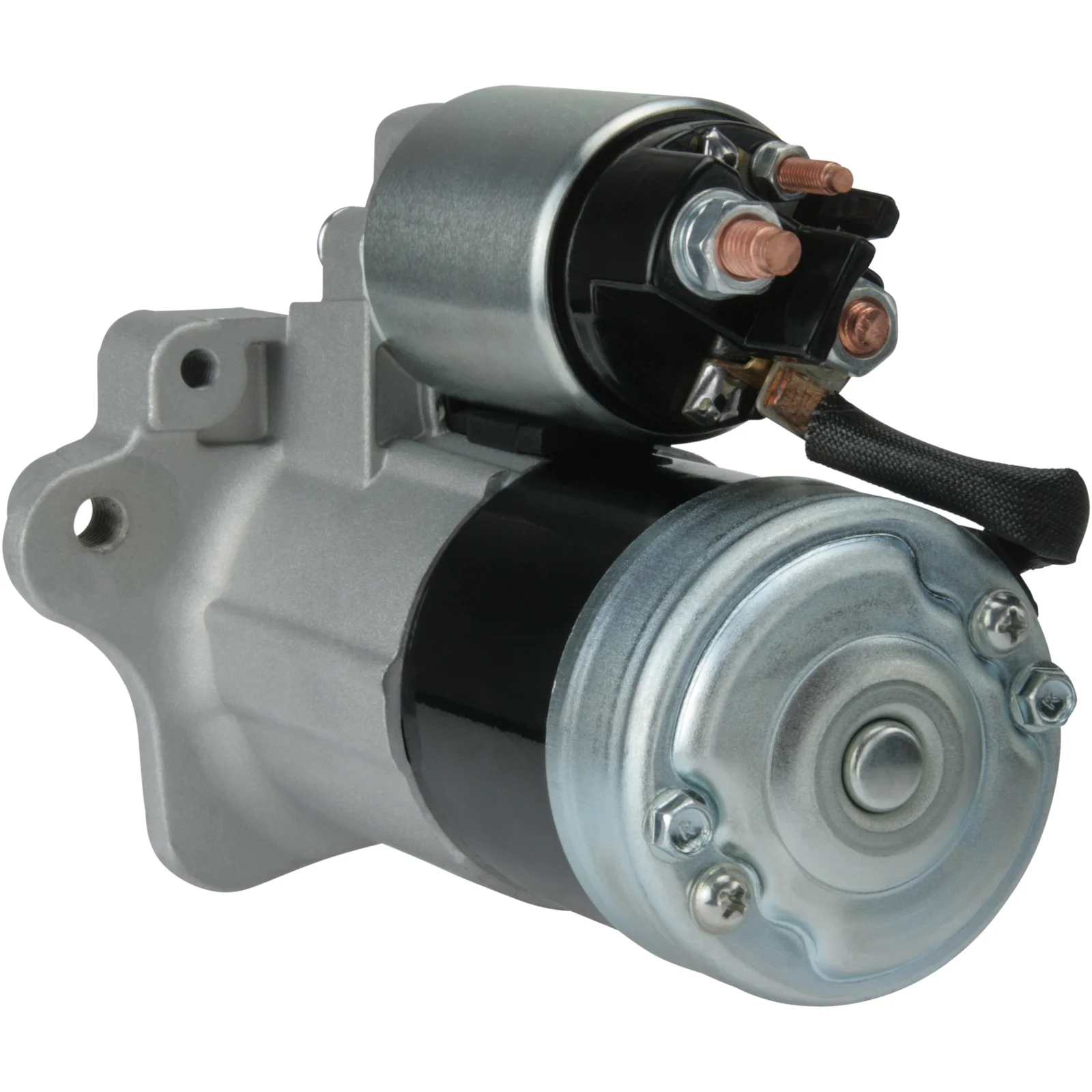

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.2, No./teeth: 12, Rotation: CW

Description

Voltage: 12
kW: 1.2
Mount. flange: 63.00
Drive dist.: 0.00
Mount. hole 3 mm: M10
Dist./back: 158.50
Dist./front: 36.50
No./teeth: 12
B+: M8
Position/50: 5
Terminal 50: M5
Gear type: GR
Dist. 2: 118.50
Dist. 3: 112.50
Dist. mm: 28.50
Rotation: CW
Total length mm: 195.00
Prod. info: BN
No./mount. holes: 3 (3)

Files

  • OEM
    cs1524, F032115728, M000T93381, M0T93381, RGO 115728, 1986S00591, 7711497302, 8200665520

  • Normalised article numbler
    cs1524, cst35241, drs0638, drs0638n, f032115728, m000t93381, m0t93381, rgo115728, s5185, 8ea011612761, 1986s00591, 31242n, 31242nos, 107217, 220758, 220758a, 254394, 11040844, 42001221, 330066122, 570562123, 0986026060, 7711497302, 8200665520
  • Description
    Voltage: 12
    kW: 1.2
    Mount. flange: 63.00
    Drive dist.: 0.00
    Mount. hole 3 mm: M10
    Dist./back: 158.50
    Dist./front: 36.50
    No./teeth: 12
    B+: M8
    Position/50: 5
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 118.50
    Dist. 3: 112.50
    Dist. mm: 28.50
    Rotation: CW
    Total length mm: 195.00
    Prod. info: BN
    No./mount. holes: 3 (3)

    Files

  • Suitable for these vehicles

    • OEM
      cs1524, F032115728, M000T93381, M0T93381, RGO 115728, 1986S00591, 7711497302, 8200665520

    • Normalised article numbler
      cs1524, cst35241, drs0638, drs0638n, f032115728, m000t93381, m0t93381, rgo115728, s5185, 8ea011612761, 1986s00591, 31242n, 31242nos, 107217, 220758, 220758a, 254394, 11040844, 42001221, 330066122, 570562123, 0986026060, 7711497302, 8200665520
