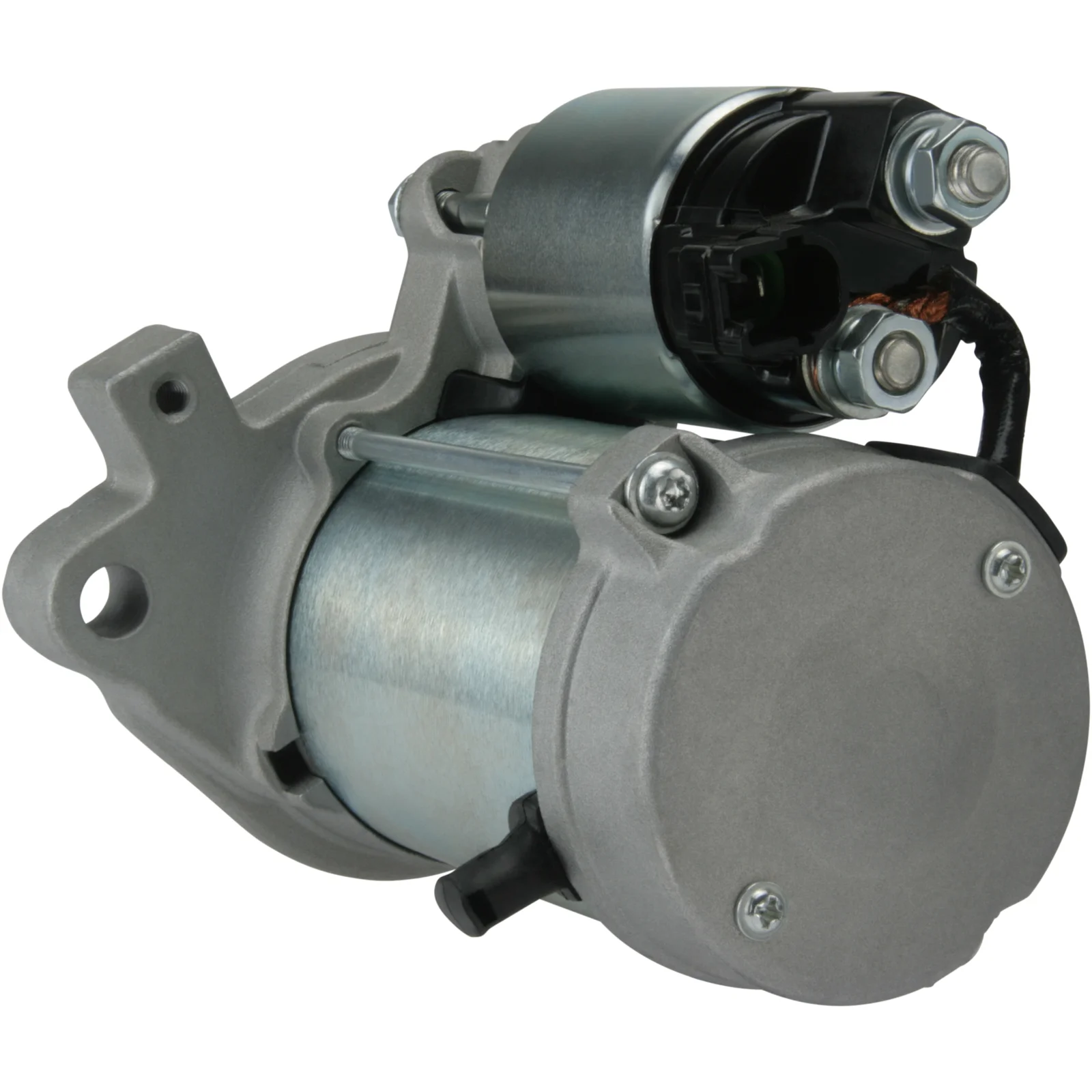

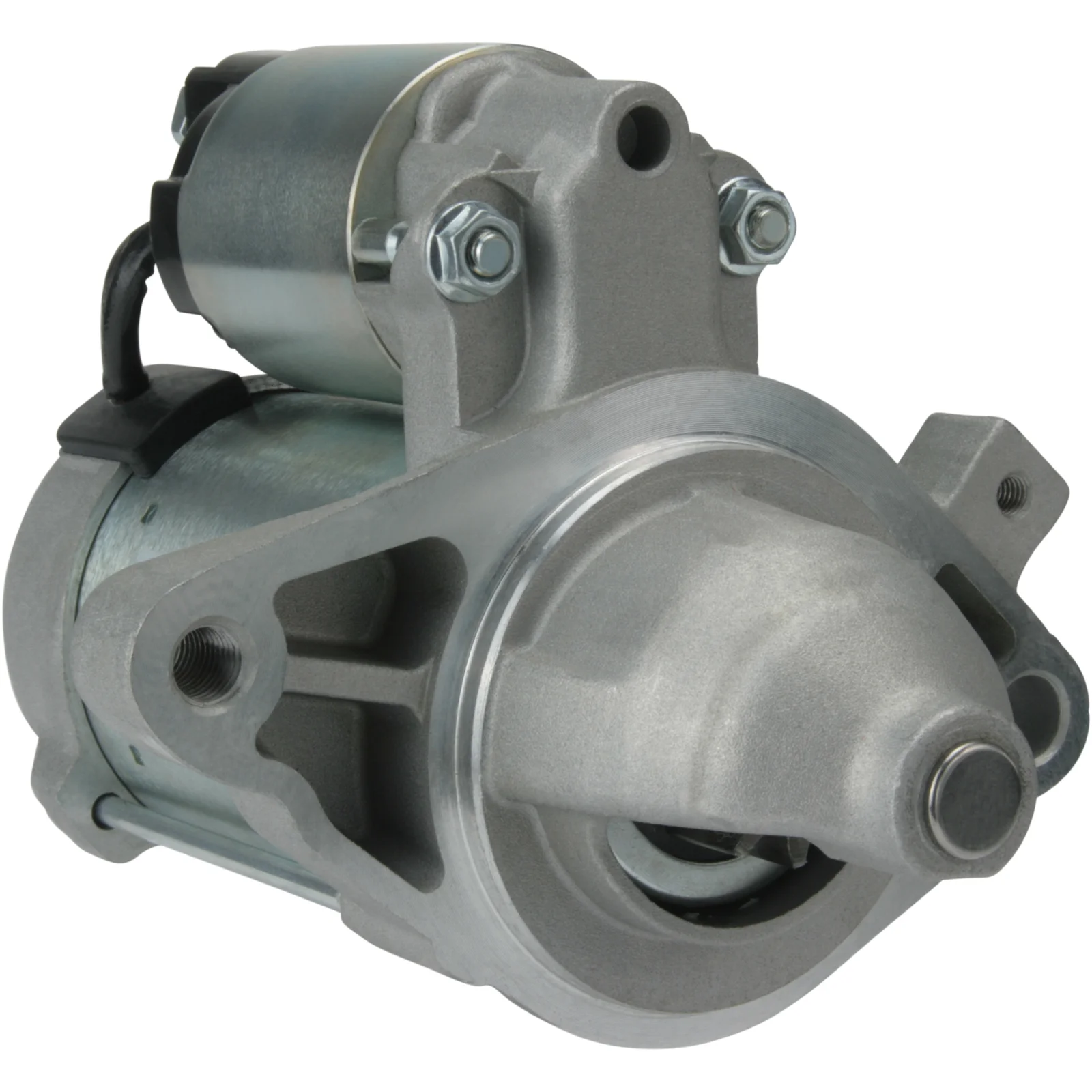

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114661

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.3, No./teeth: 9, Rotation: CW

Description

Toyota Yaris Starter motor 12V-1.3kW 12V - 1.3kW, 9k A - 74mm, B - 26mm 12V - 1.3kW, 9k For Your product order 91-555-4336

Voltage: 12
kW: 1.3
Mounting flange: 74.00
Drive distance: 25.50
Mounting hole 1 mm: 11.50
Distance / rear: 130.00
Distance / front: 58.00
Number / teeth: 9
B+: M8
Position / 50: 40
Terminal 50: Plug
Gear type: GR
Distance mm: 129.00
Rotation: CW
Total length mm: 190.00
Product info: BN
Number / mounting holes: 2 (1)

Files

  • OEM
    cs1531, F032114661, RGO 114661, 1986S00989, 28100-0Q041, 28100-0q041, 28100-0Q050, 114661, 428000-3360, 428000-3361, 428000-4560, 428000-4561

  • Normalised article numbler
    cs1531, cst40320, drs0473, dsn948, f032114661, lrs02276, rgo114661, s6099, s6099denso, 8ea011611601, 1986s00989, 33276, 33276r, 33277n, 114661, 220677, 220677a, 253447, 254409, 281000q041, 281000q050, 458949, 458965, 11040815, 190903092, 335218092, 0986025680, 4280003360, 4280003361, 4280004560, 4280004561, 063280075010
  • Description
    Toyota Yaris Starter motor 12V-1.3kW 12V - 1.3kW, 9k A - 74mm, B - 26mm 12V - 1.3kW, 9k For Your product order 91-555-4336

    Voltage: 12
    kW: 1.3
    Mounting flange: 74.00
    Drive distance: 25.50
    Mounting hole 1 mm: 11.50
    Distance / rear: 130.00
    Distance / front: 58.00
    Number / teeth: 9
    B+: M8
    Position / 50: 40
    Terminal 50: Plug
    Gear type: GR
    Distance mm: 129.00
    Rotation: CW
    Total length mm: 190.00
    Product info: BN
    Number / mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      cs1531, F032114661, RGO 114661, 1986S00989, 28100-0Q041, 28100-0q041, 28100-0Q050, 114661, 428000-3360, 428000-3361, 428000-4560, 428000-4561

    • Normalised article numbler
      cs1531, cst40320, drs0473, dsn948, f032114661, lrs02276, rgo114661, s6099, s6099denso, 8ea011611601, 1986s00989, 33276, 33276r, 33277n, 114661, 220677, 220677a, 253447, 254409, 281000q041, 281000q050, 458949, 458965, 11040815, 190903092, 335218092, 0986025680, 4280003360, 4280003361, 4280004560, 4280004561, 063280075010
