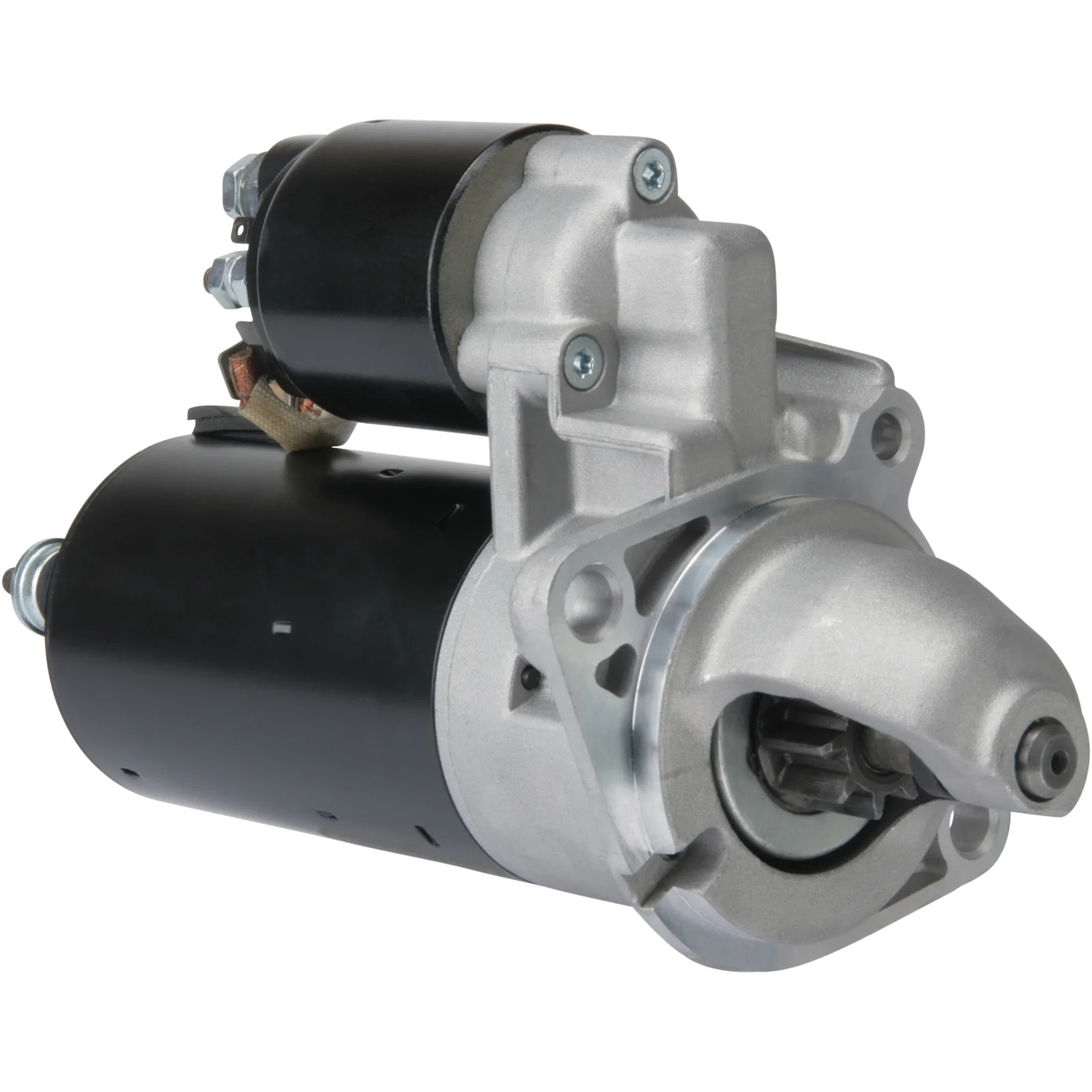

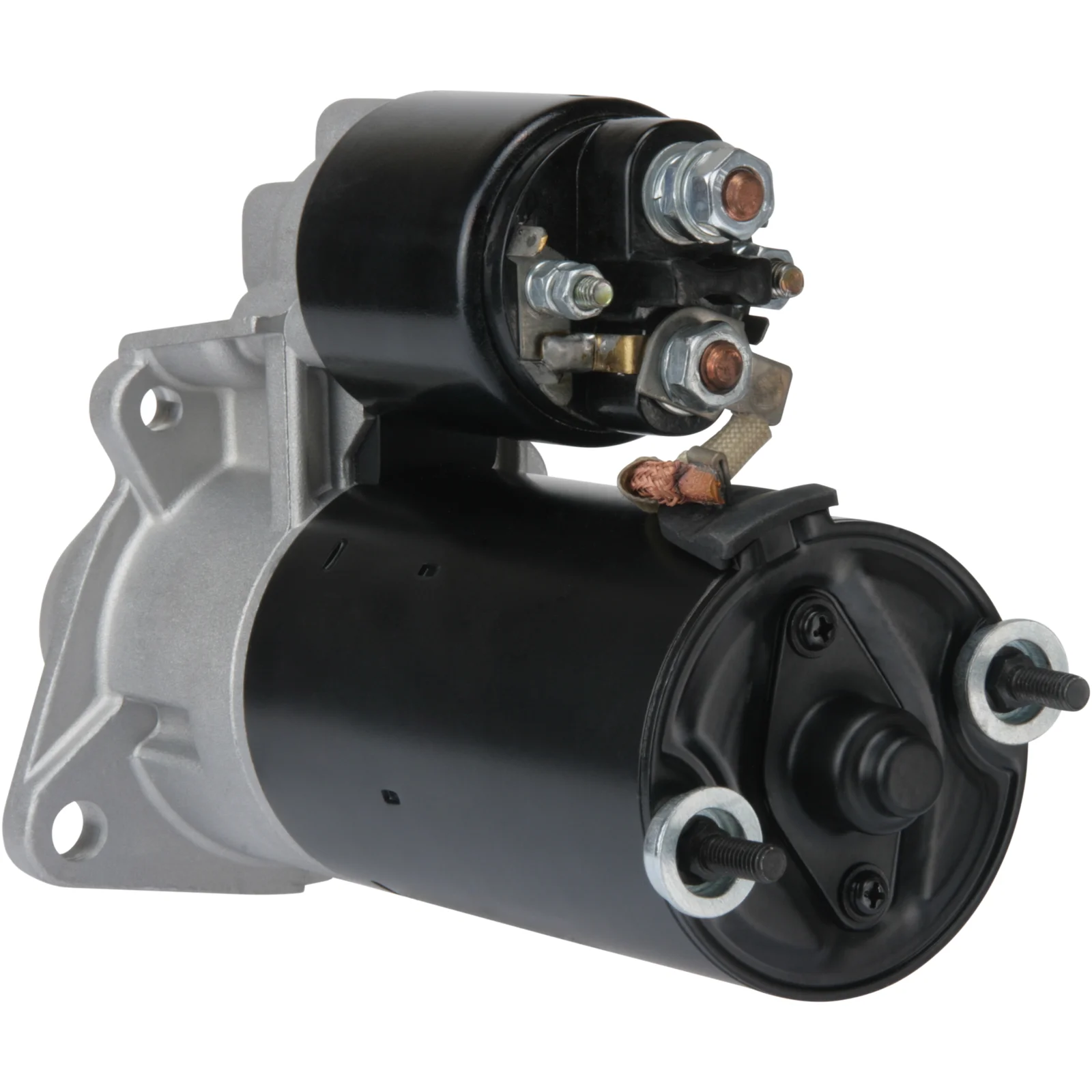

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114118

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mounting flange: 76.20
Drive distance: 21.00
Mounting hole 3 mm: 10.50
Mounting hole 2 mm: 10.50
Distance/back: 171.00
Distance/front: 59.50
Number/teeth: 9
B+: M8
Position/B+: 60
Position/50: 15
Terminal 50: M6
Gear type: GR
Distance in mm: 105.00
Rotation: CW
Total length in mm: 244.00
Terminal 30h: M5
Position/30h: 45
Drive type: Steel
Production info: BN
Number/mounting holes: 3 (0)

Files

  • OEM
    b001111158, cs516, F032114118, RGO 114118, 0001108065, 0001108115, 1266463, 1714750, 1715238, 1735400, 2354709, 63223435, 12411266463, 12411466102, 12411714750, 12411715238, 12411726463, 12411735400, 12411739273

  • Normalised article numbler
    b001111158, cs516, drs4900, f032114118, f042002013, f042s02013, lrs00750, ms55, rgo114118, s0044, s0044pr, s0073pr, str2014, vs249, 8ea011610401, 8ea726162001, 1445, 3608, 10516, 17236n, 17236r, 103283, 220169, 220169a, 261290, 455671, 0001108065, 0001108115, 1266463, 1514900, 1714750, 1715238, 1735400, 2354709, 8014900, 8212483, 11014900, 63223435, 315109092, 943223435, 944280149, 0986014900, 0986014901, 0986014907, 0986024613, 12411266463, 12411466102, 12411714750, 12411715238, 12411726463, 12411735400, 12411739273, 943223435010, 944280149000
  • Description
    Voltage: 12
    kW: 1.4
    Mounting flange: 76.20
    Drive distance: 21.00
    Mounting hole 3 mm: 10.50
    Mounting hole 2 mm: 10.50
    Distance/back: 171.00
    Distance/front: 59.50
    Number/teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 15
    Terminal 50: M6
    Gear type: GR
    Distance in mm: 105.00
    Rotation: CW
    Total length in mm: 244.00
    Terminal 30h: M5
    Position/30h: 45
    Drive type: Steel
    Production info: BN
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      b001111158, cs516, F032114118, RGO 114118, 0001108065, 0001108115, 1266463, 1714750, 1715238, 1735400, 2354709, 63223435, 12411266463, 12411466102, 12411714750, 12411715238, 12411726463, 12411735400, 12411739273

    • Normalised article numbler
      b001111158, cs516, drs4900, f032114118, f042002013, f042s02013, lrs00750, ms55, rgo114118, s0044, s0044pr, s0073pr, str2014, vs249, 8ea011610401, 8ea726162001, 1445, 3608, 10516, 17236n, 17236r, 103283, 220169, 220169a, 261290, 455671, 0001108065, 0001108115, 1266463, 1514900, 1714750, 1715238, 1735400, 2354709, 8014900, 8212483, 11014900, 63223435, 315109092, 943223435, 944280149, 0986014900, 0986014901, 0986014907, 0986024613, 12411266463, 12411466102, 12411714750, 12411715238, 12411726463, 12411735400, 12411739273, 943223435010, 944280149000
