HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112251

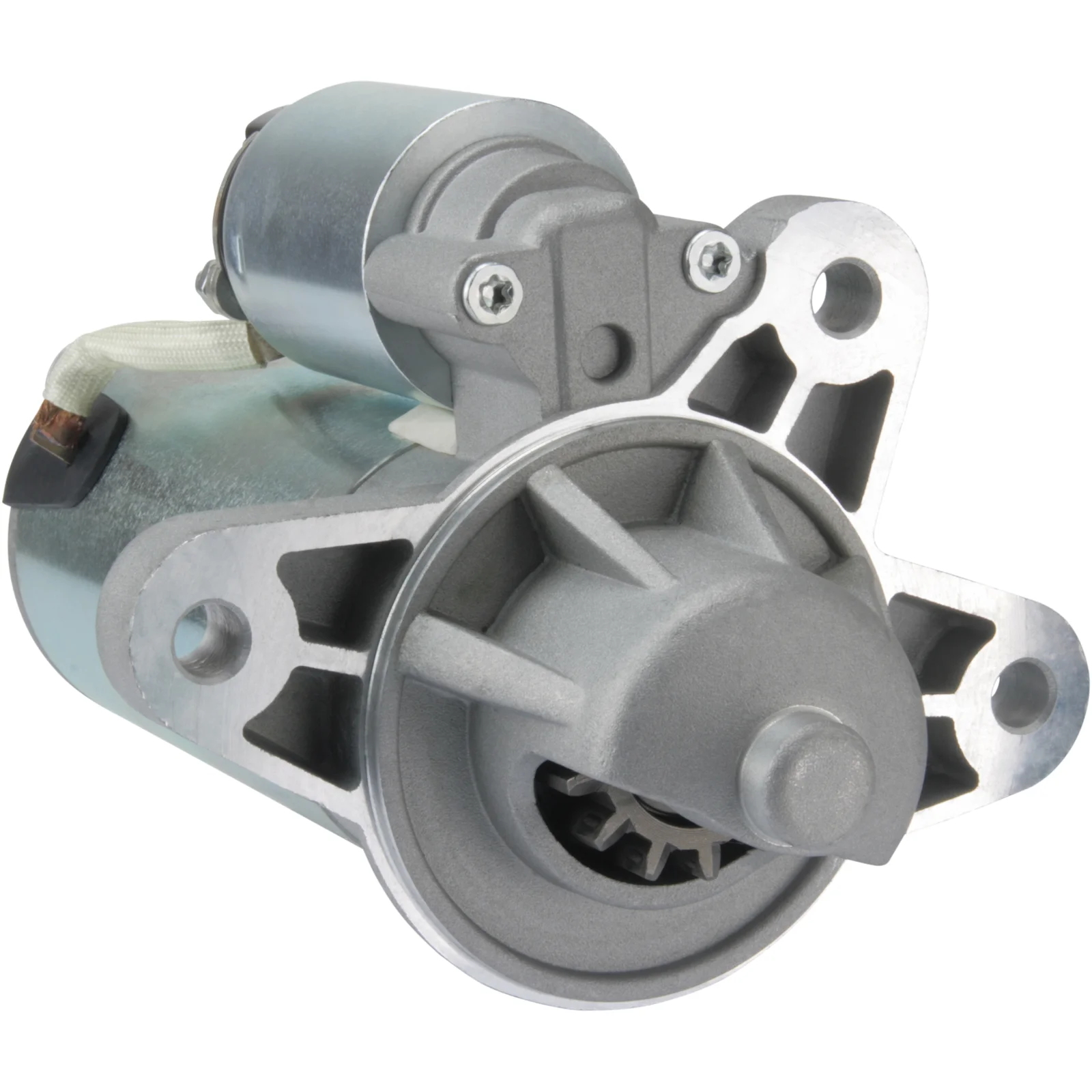

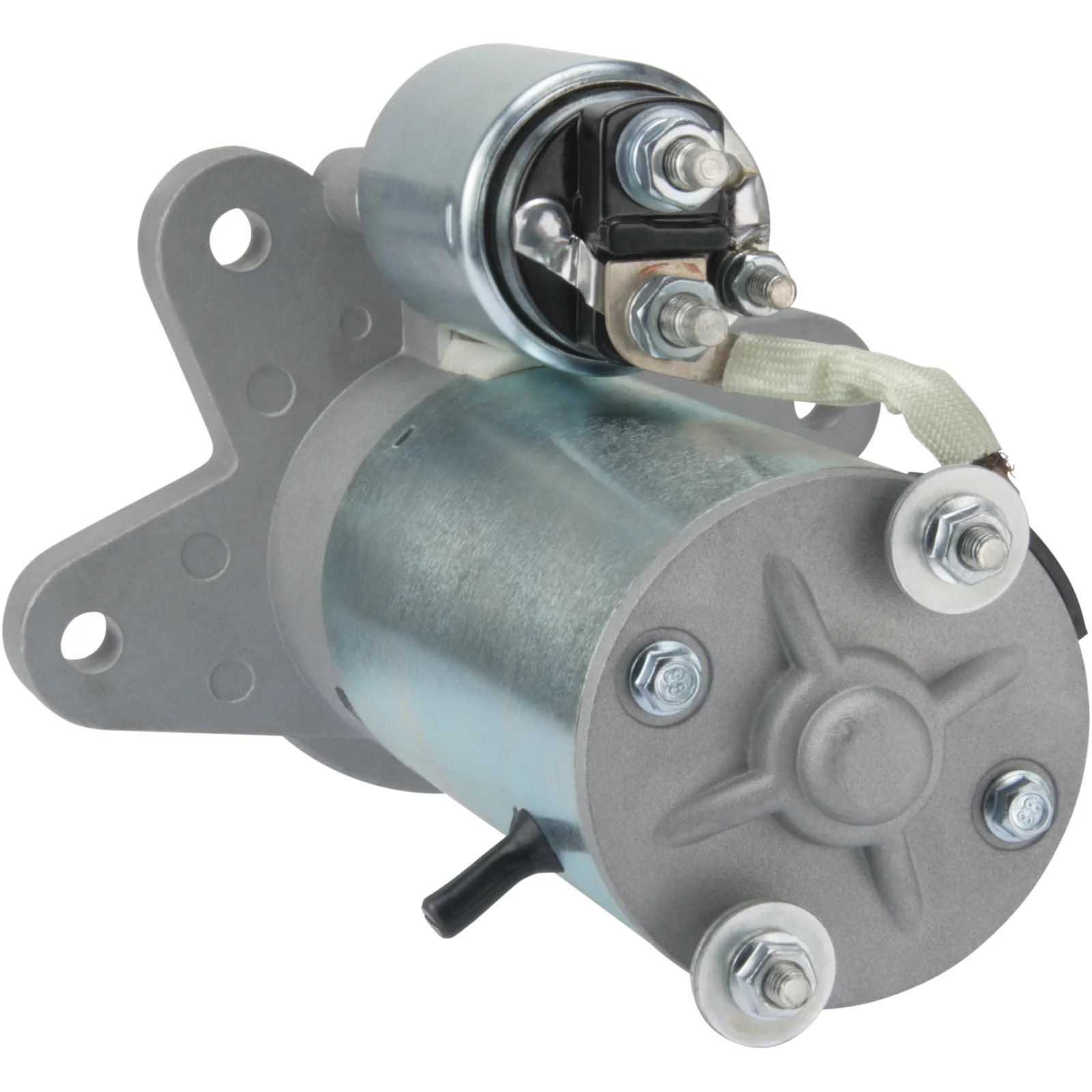

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.3, No./teeth: 13, Rotation: CW

Description

Ford Transit Diesel starter motor. 12V - 2.3kW, 13 teeth For Yourrex product order 91-180-0977

Voltage: 12
kW: 2.3
Mounting flange: 92.00
Drive distance: 20.50
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 200.00
Distance / front: 58.50
Number / teeth: 13
B+: M8
Position/50: 15
Terminal 50: M6
Gear type: GR
Distance 2: 145.00
Distance 3: 117.00
Distance mm: 76.00
Rotation: CW
Total length mm: 258.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    00e091, AZE4101, AZE4562, cer3087, cs977, D7R70, ESA1255, ESA255, F032112251, R835F11000AC, R835F11000BB, r835x11000ac, r98vb11000b1a, RGO 112251, 11.139.331, 11.139.410, 20-100-01011, 20-100-01020, 97VB 11000AA, 97VB 11000AB, 97vb11000aa, 97vb11000ab, 97VB11000AC, 97VB11000BB, 98VB11000AA, 98VB11000AB, 98VB11000AB1A, 98VB11000B1A, 98vb11000b1a, 98VB11000B3A, 98vb11000b3a, 98VB11000B3B, 98vb11000b3b, 98VB11000BA, 98VB11000BBB, 98VB11000BC, 755f11000bb, 795F11000AA, 795f11000ca, 835f11000aa, 835F11000AB, 835f11000ac, 835f11000bb, 835FX11000B, 835fx11000bb, 884f11000aa, 0986 020 181, 1986S00912, 27501a, 27501b, 27501e, 112161, 112251, 1008823, 1024508, 1027928, 1059179, 1073108, 1093471, 1105310, 1596530, 1626195, 1653209, 5026497, 6039198, 6071805, 6160440, 6996767

  • Normalised article numbler
    00e091, aze4101, aze4562, bso7039, cer3087, cs977, cst14100, d7r70, drs0950, drs3535, drs3535n, esa1255, esa255, f032112251, f032us0060, f042002072, f042s02072, frs196, is9331, les0128, lrs00673, lrs00976, lrt00176, ms129, qs2096, r835f11000ac, r835f11000bb, r835x11000ac, r98vb11000b1a, rgo112251, s9001, str10001, str10002, str2218, str2218h, str2218v, str61800, 8ea011350531, 8ea011610581, 8ea012140251, 8ea737150001, 97vb11000aa, 97vb11000ab, 97vb11000ac, 97vb11000bb, 98vb11000aa, 98vb11000ab, 98vb11000ab1a, 98vb11000b1a, 98vb11000b3a, 98vb11000b3b, 98vb11000ba, 98vb11000bbb, 98vb11000bc, 755f11000bb, 795f11000aa, 795f11000ca, 835f11000aa, 835f11000ab, 835f11000ac, 835f11000bb, 835fx11000b, 835fx11000bb, 884f11000aa, 1986s00912, 4425, 10337, 10977, 27501a, 27501b, 27501e, 104428, 104940, 105325, 112161, 112251, 201078, 220164, 220164a, 250280, 252187, 433292, 438065, 455895, 726006, 726806, 1008823, 1024508, 1027928, 1059179, 1073108, 1093471, 1105310, 1596530, 1626195, 1653209, 2010950, 5026497, 6039198, 6071805, 6160440, 6996767, 8080021, 8212352, 11020180, 11139331, 11139410, 20513048, 42020181, 063227501, 320006132, 320012132, 0986010950, 0986020181, 2010001011, 2010001020, 943289180010
  • Description
    Ford Transit Diesel starter motor. 12V - 2.3kW, 13 teeth For Yourrex product order 91-180-0977

    Voltage: 12
    kW: 2.3
    Mounting flange: 92.00
    Drive distance: 20.50
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 200.00
    Distance / front: 58.50
    Number / teeth: 13
    B+: M8
    Position/50: 15
    Terminal 50: M6
    Gear type: GR
    Distance 2: 145.00
    Distance 3: 117.00
    Distance mm: 76.00
    Rotation: CW
    Total length mm: 258.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)
