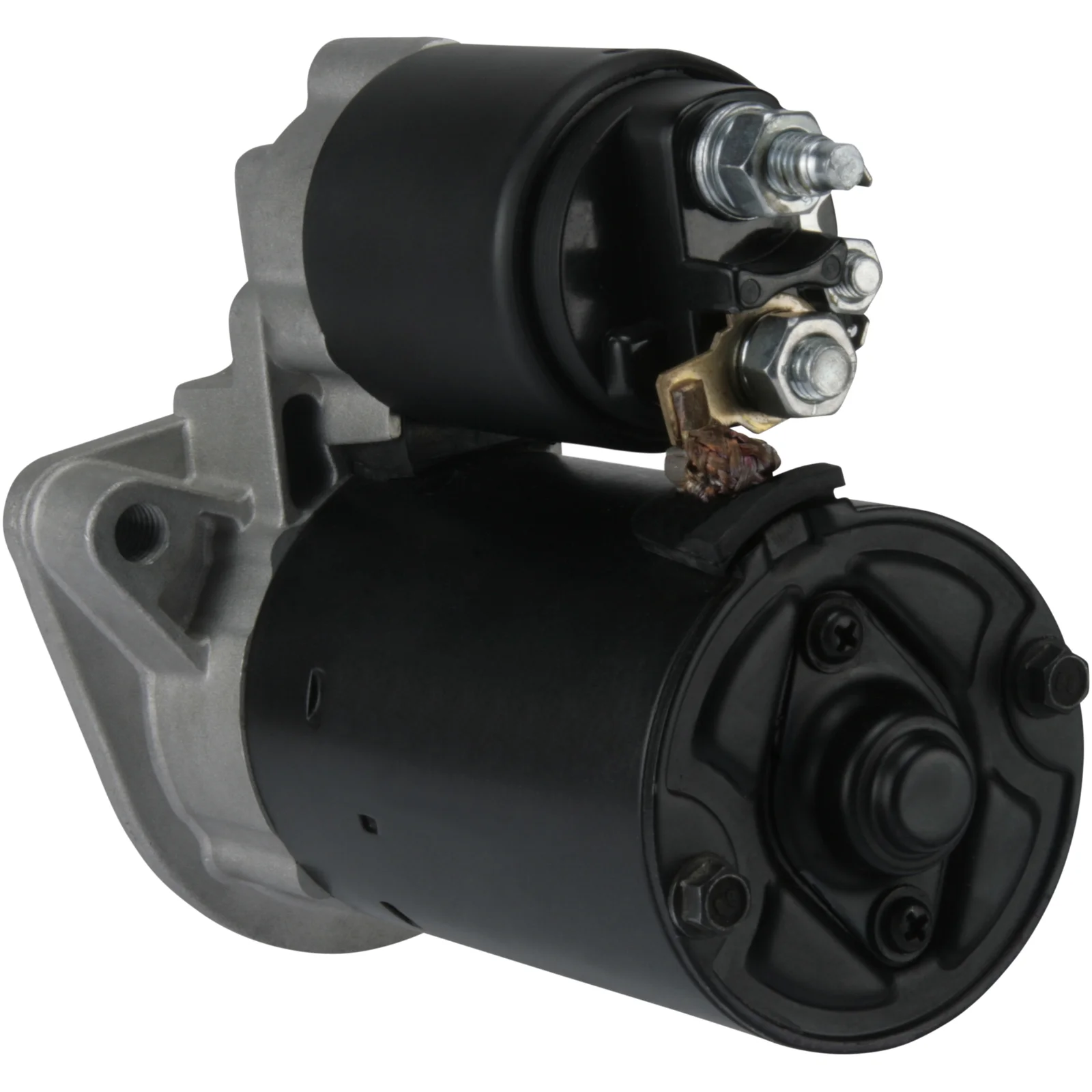

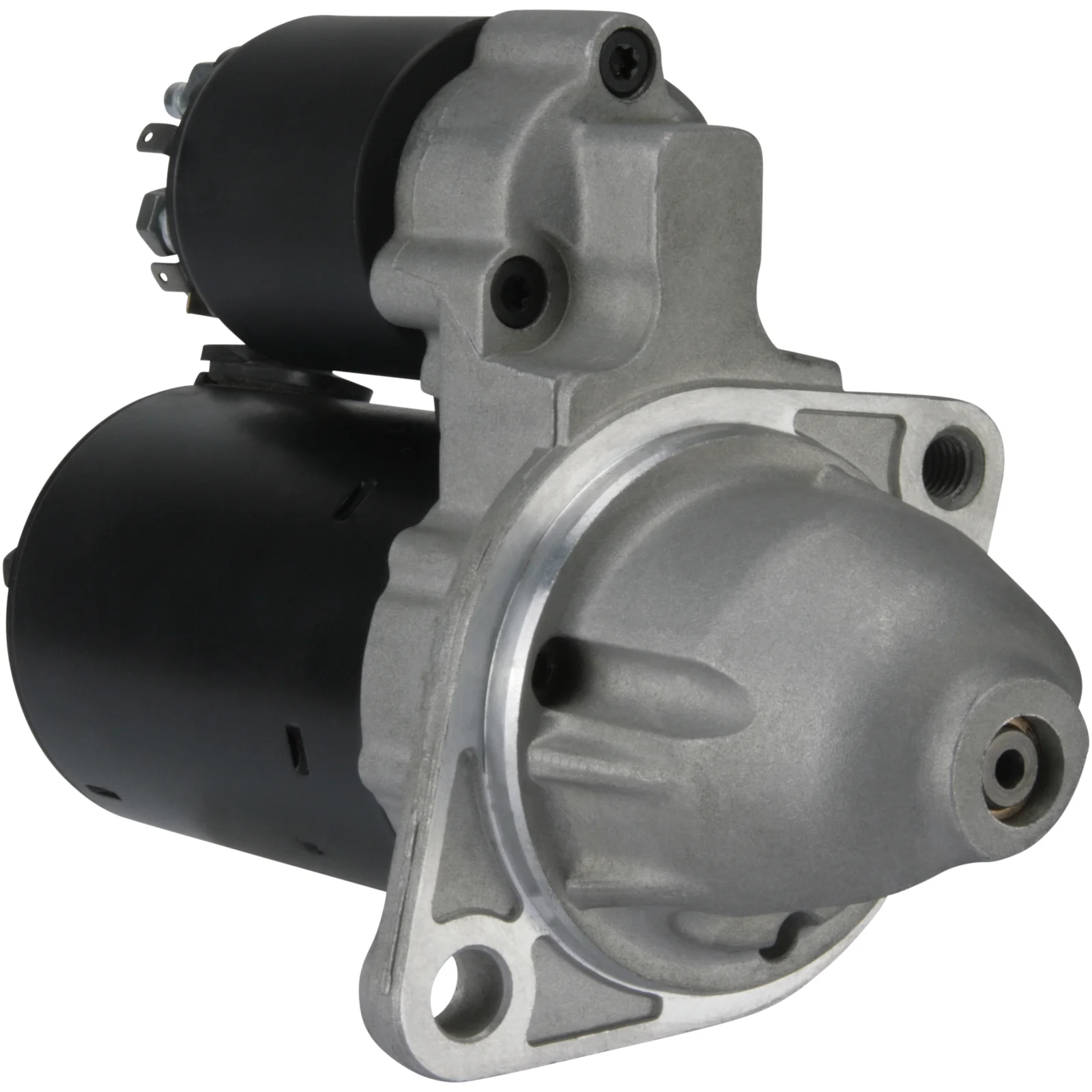

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114297

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.2, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.2
Mount. flange: 76.00
Drive dist.: 26.00
Mount. hole 2 mm: 11.00
Dist./back: 132.00
Dist./front: 60.00
No./teeth: 9
B+: M8
Position/50: 15
Terminal 50: M6
Gear type: DD/GR
Dist. mm: 103.50
Rotation: CW
Total length mm: 199.00
No./mount. holes: 2 (1)

Files

  • OEM
    cs1413, F032114297, RGO 114297, 1986S00012, 1986S00686, 428000-1750, 0001107425, 0001107426, 0001107525, 0001107526, 7523450, 12412354706, 12417523450, 12417524843, 12417526239, 12417610341, 12417610348

  • Normalised article numbler
    cs1413, cst10417, cst30171, drt0890, f032114297, f042200176, f042s0h106, les0496, lrs02299, rgo114297, s0244, s0244pr, strh106, 8ea012527831, 1986s00012, 1986s00686, 3181, 33206n, 101413, 105388, 220871, 220871a, 253470, 438492, 458792, 0001107425, 0001107426, 0001107525, 0001107526, 7523450, 8020890, 8212437, 11020890, 42020890, 315045092, 0986020890, 0986020893, 0986023403, 0986024803, 4280001750, 12412354706, 12417523450, 12417524843, 12417526239, 12417610341, 12417610348
  • Description
    Voltage: 12
    kW: 1.2
    Mount. flange: 76.00
    Drive dist.: 26.00
    Mount. hole 2 mm: 11.00
    Dist./back: 132.00
    Dist./front: 60.00
    No./teeth: 9
    B+: M8
    Position/50: 15
    Terminal 50: M6
    Gear type: DD/GR
    Dist. mm: 103.50
    Rotation: CW
    Total length mm: 199.00
    No./mount. holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      cs1413, F032114297, RGO 114297, 1986S00012, 1986S00686, 428000-1750, 0001107425, 0001107426, 0001107525, 0001107526, 7523450, 12412354706, 12417523450, 12417524843, 12417526239, 12417610341, 12417610348

    • Normalised article numbler
      cs1413, cst10417, cst30171, drt0890, f032114297, f042200176, f042s0h106, les0496, lrs02299, rgo114297, s0244, s0244pr, strh106, 8ea012527831, 1986s00012, 1986s00686, 3181, 33206n, 101413, 105388, 220871, 220871a, 253470, 438492, 458792, 0001107425, 0001107426, 0001107525, 0001107526, 7523450, 8020890, 8212437, 11020890, 42020890, 315045092, 0986020890, 0986020893, 0986023403, 0986024803, 4280001750, 12412354706, 12417523450, 12417524843, 12417526239, 12417610341, 12417610348
