Article no.: F032111310

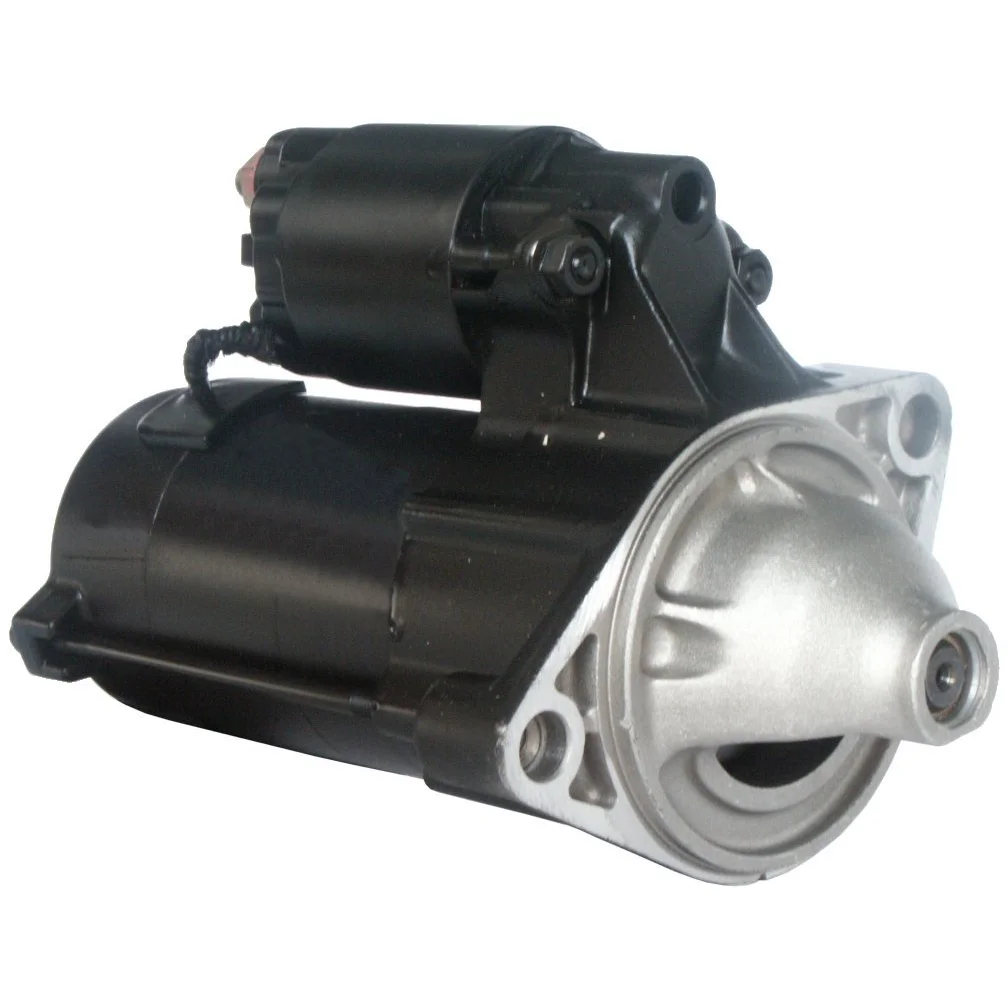

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.8, No./teeth: 8, Rotation: CW

Description

Suzuki Starter motor 12V-0.8kW 12V - 0.8kW, 8 teeth for Yourex product order 91-528-1437

Voltage: 12
kW: 0.8
Mounting flange: 75.00
Drive distance: 6.00
Distance/ back: 160.00
Distance/ front: 41.00
Number/ teeth: 8
B+: M8
Position/B+: 60
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Distance in mm: 101.50
Rotation: CW
Total length in mm: 206.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number/ mounting holes: 2 (2)

Files

  • OEM
    F032111310, js512, M000T84781, M002T30381, M002T33781, M002T33785, M002T41381, M002T41881, M002T41885, M002T46081, M002T46081ZE, M003T33781, M003T33781ZC, M003T33785, M003T33871, M003T41881, M003T41885, M003T44281, m0t84781, M2T-30381, M2T-41381, m2t30381, m2t33781, m2t33785, m2t41381, m2t41881, m2t41885, m2t46081, M2T46081ZE, M3T 33871, M3T-33781, M3T-33785, M3T-41881, M3T-44281, m3t33585, m3t33781, m3t33781zc, m3t33785, m3t33871, m3t41881, m3t41885, m3t44281, RGO 111310, 0986 014 371, 0986 016 451, 028000-9900, 028000-9901, 028000-9902, 31000-82631, 31100-60b50, 31100-60B50-000, 31100-60B51, 31100-60b51, 31100-60B51-000, 31100-60G10, 31100-60g10, 31100-60G10-000, 31100-60g11, 31100-60G11-000, 31100-62030, 31100-64G00, 31100-64g00, 31100-64G00-000, 31100-69G00, 31100-79F00, 31100-79F00-000, 31100-80e00, 31100-80E00-000, 31100-80E10, 31100-80E10-000, 31100-82010, 31100-82011, 31100-82016, 31100-82030, 31100-82031, 31100-820d1, 31100-82610, 31100-82611, 31100-82612, 31100-82632, 31100-826A0, 31100-826a0, 31100-826A1, 31100-826a1, 31100-826d2, 31100-83e00, 31100-83E00-000, 31100-86130, 31100-92330, 31100-M70F00, 31100-m70f00, 31100-M79F00, 31100-M82011, 31100-m82011, 31100-M82012, 31100-M82013, 31100-m82020, 31100-m82021, 111310, 128000-0600, 128000-0609, 128000-2860, 128000-2861, 128000-2862, 128000-6210, 128000-6211, 128000-6212, 228000-4640, 228000-4641, 228000-5480, 228000-5481, 228000-7160, 228000-7161, 228000-9670, 428000-1570, 26925159a, 26925159B, 26925159E, 30005226, 30005563, 63103019

  • Normalised article numbler
    ams162, azs212, cst40114, drs2271, drs3043, drs3745, drs3746, f032111310, f042001140, f042s01140, frs673, j5218004, j5218010, j5218029, js512, lrs00557, lrs00722, m000t84781, m002t30381, m002t33781, m002t33785, m002t41381, m002t41881, m002t41885, m002t46081, m002t46081ze, m003t33781, m003t33781zc, m003t33785, m003t33871, m003t41881, m003t41885, m003t44281, m0t84781, m2t30381, m2t33781, m2t33785, m2t41381, m2t41881, m2t41885, m2t46081, m2t46081ze, m3t33585, m3t33781, m3t33781zc, m3t33785, m3t33871, m3t41881, m3t41885, m3t44281, qs1882, rgo111310, s5424s, sr395x, sr4502x, str3585, str71015, vs230, 8ea011610831, 8ea726488001, 1314, 9746, 11508, 16971, 17142n, 20512, 21189nd, 21238nd, 21549mi, 21783mi, 31100m70f00, 31100m79f00, 31100m82011, 31100m82012, 31100m82013, 31100m82020, 31100m82021, 103251, 104049, 111310, 220194, 220194a, 251052, 252071, 252077, 260395, 438459, 455609, 458318, 458319, 3110060b50, 3110060b50000, 3110060b51, 3110060b51000, 3110060g10, 3110060g10000, 3110060g11, 3110060g11000, 3110064g00, 3110064g00000, 3110069g00, 3110079f00, 3110079f00000, 3110080e00, 3110080e00000, 3110080e10, 3110080e10000, 3110083e00, 3110083e00000, 3752804, 3752810, 8052804, 8052810, 11040296, 11040303, 11040304, 20500722, 26925159a, 26925159b, 26925159e, 30005226, 30005563, 31100820d1, 31100826a0, 31100826a1, 31100826d2, 63103019, 0280009900, 0280009901, 0280009902, 345002082, 345002092, 345010082, 345013082, 943241102, 0986012271, 0986014371, 0986016451, 1280000600, 1280000609, 1280002860, 1280002861, 1280002862, 1280006210, 1280006211, 1280006212, 2280004640, 2280004641, 2280005480, 2280005481, 2280007160, 2280007161, 2280009670, 3100082631, 3110062030, 3110082010, 3110082011, 3110082016, 3110082030, 3110082031, 3110082610, 3110082611, 3110082612, 3110082632, 3110086130, 3110092330, 4280001570, 943241102010, 944280528040, 944280528100
  • Description
    Suzuki Starter motor 12V-0.8kW 12V - 0.8kW, 8 teeth for Yourex product order 91-528-1437

    Voltage: 12
    kW: 0.8
    Mounting flange: 75.00
    Drive distance: 6.00
    Distance/ back: 160.00
    Distance/ front: 41.00
    Number/ teeth: 8
    B+: M8
    Position/B+: 60
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Distance in mm: 101.50
    Rotation: CW
    Total length in mm: 206.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number/ mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      F032111310, js512, M000T84781, M002T30381, M002T33781, M002T33785, M002T41381, M002T41881, M002T41885, M002T46081, M002T46081ZE, M003T33781, M003T33781ZC, M003T33785, M003T33871, M003T41881, M003T41885, M003T44281, m0t84781, M2T-30381, M2T-41381, m2t30381, m2t33781, m2t33785, m2t41381, m2t41881, m2t41885, m2t46081, M2T46081ZE, M3T 33871, M3T-33781, M3T-33785, M3T-41881, M3T-44281, m3t33585, m3t33781, m3t33781zc, m3t33785, m3t33871, m3t41881, m3t41885, m3t44281, RGO 111310, 0986 014 371, 0986 016 451, 028000-9900, 028000-9901, 028000-9902, 31000-82631, 31100-60b50, 31100-60B50-000, 31100-60B51, 31100-60b51, 31100-60B51-000, 31100-60G10, 31100-60g10, 31100-60G10-000, 31100-60g11, 31100-60G11-000, 31100-62030, 31100-64G00, 31100-64g00, 31100-64G00-000, 31100-69G00, 31100-79F00, 31100-79F00-000, 31100-80e00, 31100-80E00-000, 31100-80E10, 31100-80E10-000, 31100-82010, 31100-82011, 31100-82016, 31100-82030, 31100-82031, 31100-820d1, 31100-82610, 31100-82611, 31100-82612, 31100-82632, 31100-826A0, 31100-826a0, 31100-826A1, 31100-826a1, 31100-826d2, 31100-83e00, 31100-83E00-000, 31100-86130, 31100-92330, 31100-M70F00, 31100-m70f00, 31100-M79F00, 31100-M82011, 31100-m82011, 31100-M82012, 31100-M82013, 31100-m82020, 31100-m82021, 111310, 128000-0600, 128000-0609, 128000-2860, 128000-2861, 128000-2862, 128000-6210, 128000-6211, 128000-6212, 228000-4640, 228000-4641, 228000-5480, 228000-5481, 228000-7160, 228000-7161, 228000-9670, 428000-1570, 26925159a, 26925159B, 26925159E, 30005226, 30005563, 63103019

    • Normalised article numbler
      ams162, azs212, cst40114, drs2271, drs3043, drs3745, drs3746, f032111310, f042001140, f042s01140, frs673, j5218004, j5218010, j5218029, js512, lrs00557, lrs00722, m000t84781, m002t30381, m002t33781, m002t33785, m002t41381, m002t41881, m002t41885, m002t46081, m002t46081ze, m003t33781, m003t33781zc, m003t33785, m003t33871, m003t41881, m003t41885, m003t44281, m0t84781, m2t30381, m2t33781, m2t33785, m2t41381, m2t41881, m2t41885, m2t46081, m2t46081ze, m3t33585, m3t33781, m3t33781zc, m3t33785, m3t33871, m3t41881, m3t41885, m3t44281, qs1882, rgo111310, s5424s, sr395x, sr4502x, str3585, str71015, vs230, 8ea011610831, 8ea726488001, 1314, 9746, 11508, 16971, 17142n, 20512, 21189nd, 21238nd, 21549mi, 21783mi, 31100m70f00, 31100m79f00, 31100m82011, 31100m82012, 31100m82013, 31100m82020, 31100m82021, 103251, 104049, 111310, 220194, 220194a, 251052, 252071, 252077, 260395, 438459, 455609, 458318, 458319, 3110060b50, 3110060b50000, 3110060b51, 3110060b51000, 3110060g10, 3110060g10000, 3110060g11, 3110060g11000, 3110064g00, 3110064g00000, 3110069g00, 3110079f00, 3110079f00000, 3110080e00, 3110080e00000, 3110080e10, 3110080e10000, 3110083e00, 3110083e00000, 3752804, 3752810, 8052804, 8052810, 11040296, 11040303, 11040304, 20500722, 26925159a, 26925159b, 26925159e, 30005226, 30005563, 31100820d1, 31100826a0, 31100826a1, 31100826d2, 63103019, 0280009900, 0280009901, 0280009902, 345002082, 345002092, 345010082, 345013082, 943241102, 0986012271, 0986014371, 0986016451, 1280000600, 1280000609, 1280002860, 1280002861, 1280002862, 1280006210, 1280006211, 1280006212, 2280004640, 2280004641, 2280005480, 2280005481, 2280007160, 2280007161, 2280009670, 3100082631, 3110062030, 3110082010, 3110082011, 3110082016, 3110082030, 3110082031, 3110082610, 3110082611, 3110082612, 3110082632, 3110086130, 3110092330, 4280001570, 943241102010, 944280528040, 944280528100
