HC-Cargo Starter motor
HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032113445

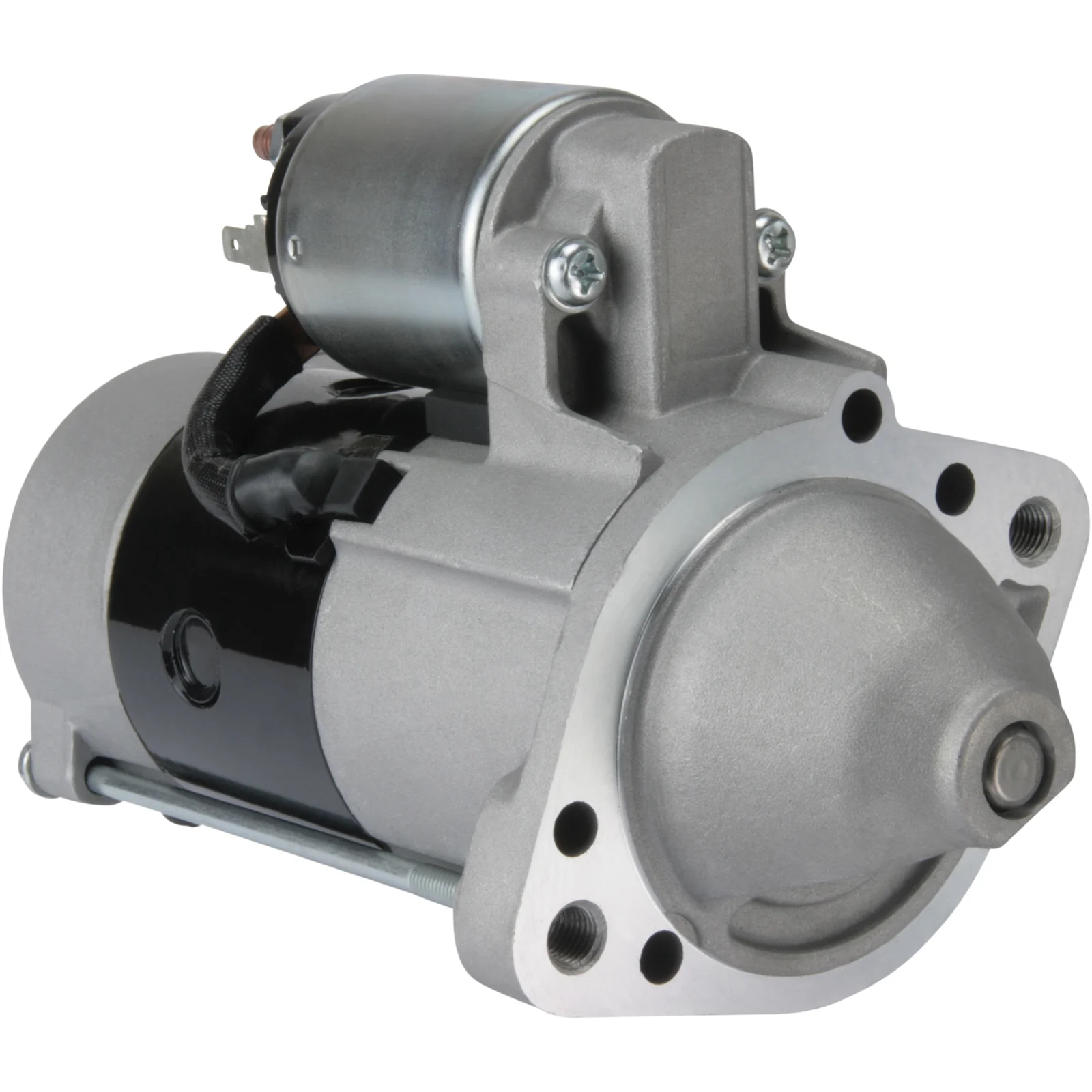

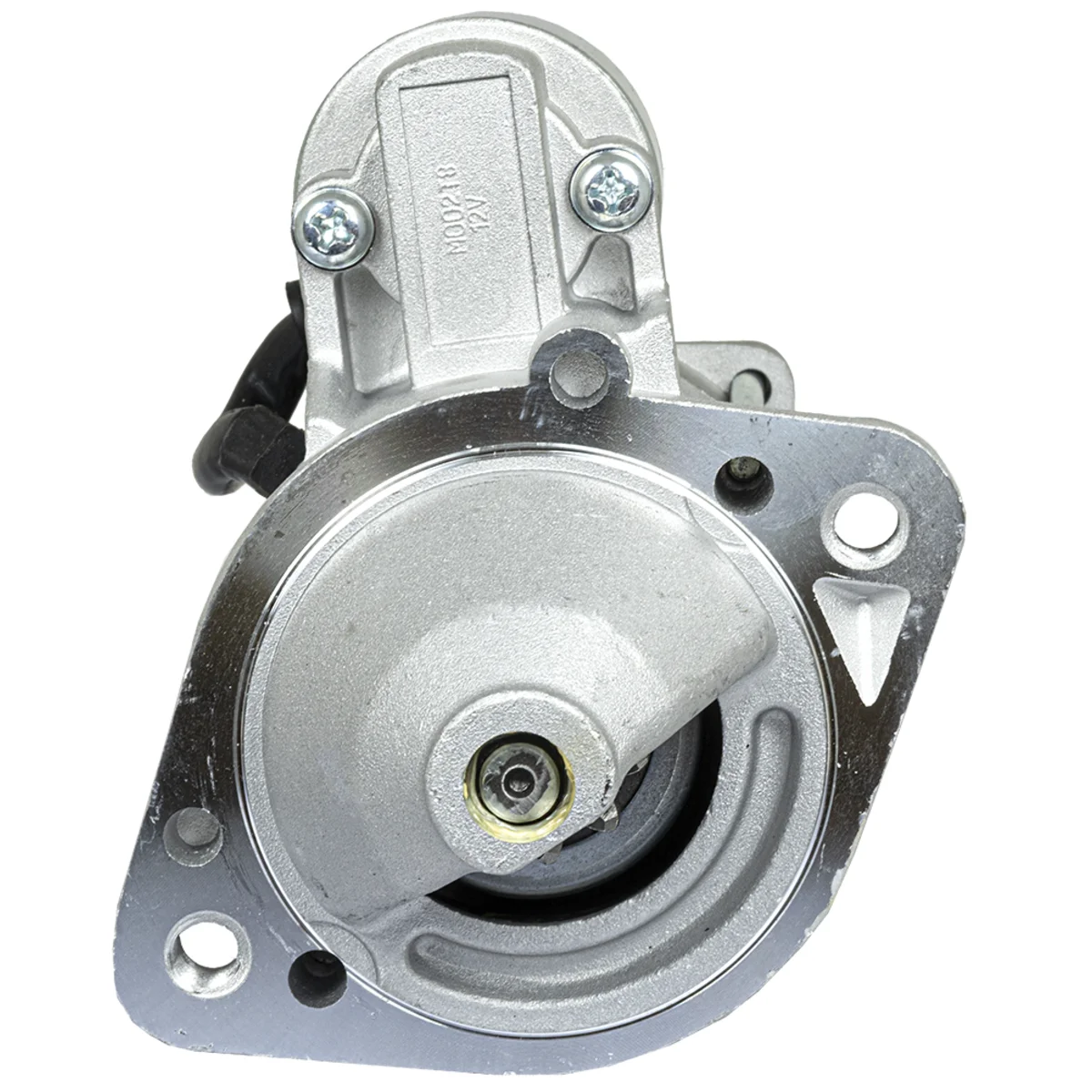

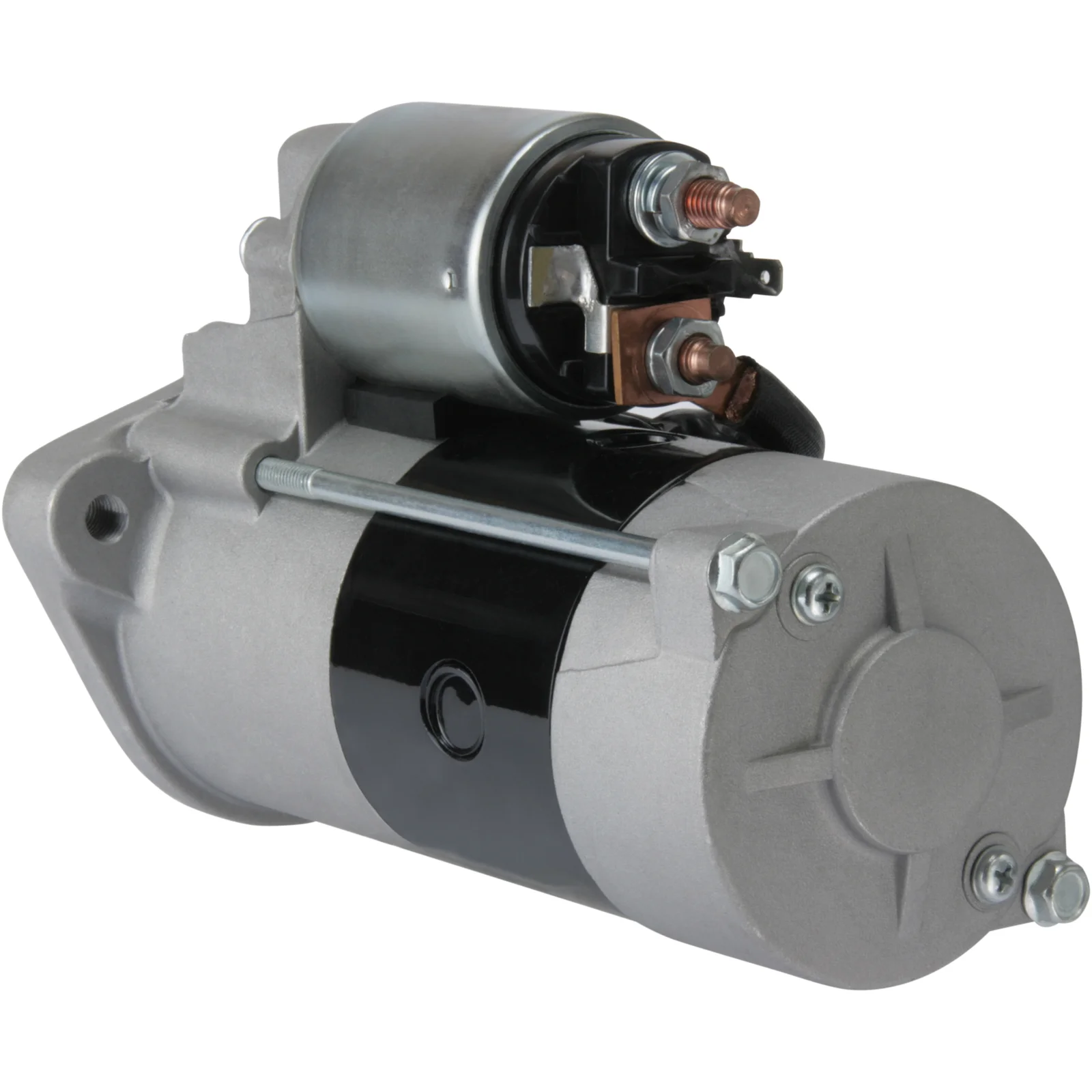

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 10, Rotation: CW

Description

Order 91-380-8717, Starter motor For Yourex product order 91-380-8717

Voltage: 12
kW: 2.2
Mounting flange: 77.00
Drive distance: 9.00
Distance / back: 183.00
Distance / front: 44.50
Number / teeth: 10
B+: M8
Position / 50: 15
Terminal 50: 6.30
Gear type: GR
Distance mm: 105.00
Rotation: CW
Total length mm: 239.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (2)

Files

  • OEM
    F032113445, js1227, M002T84171, M002T84171ZT, M002T84571, M002T87171, M002T87171ZT, M002T87371, M002T88071, M2T-87171, M2T-87171ZT, M2T-88071, M2T84170, m2t84171, M2T84171ZT, m2t84571, m2t87171, m2t87171zt, m2t87371, m2t88071, MD 315548, MD 344183, md314167, md315547, md315548, md331137, md344183, RGO 113445, TM000A34101, TM000A36101, 1986S00925, 1986S01027, 36100-42250, 36100-42255, 36100-42350, 36100-42450, 113445, 63187001

  • Normalised article numbler
    cst32115, cst32130, cst35124, drs0791, drs3869, drs3869n, drs3869x, f032113445, f042001184, f042s01184, js1227, lrs01436, m002t84171, m002t84171zt, m002t84571, m002t87171, m002t87171zt, m002t87371, m002t88071, m2t84170, m2t84171, m2t84171zt, m2t84571, m2t87171, m2t87171zt, m2t87371, m2t88071, md314167, md315547, md315548, md331137, md344183, rgo113445, s3166s, s5026, s5223, str7039, tm000a34101, tm000a36101, 8ea011610701, 8ea012527601, 1986s00925, 1986s01027, 6949n, 9684, 32695n, 32695r, 105481, 113445, 201227, 201351, 220086, 220086a, 220498, 220498a, 220614, 220614a, 252349, 253244, 254437, 600081, 600206, 600223, 8080104, 8212770, 8213104, 11040659, 63187001, 326037122, 326047122, 326071102, 0986022740, 0986023340, 3610042250, 3610042255, 3610042350, 3610042450
  • Description
    Order 91-380-8717, Starter motor For Yourex product order 91-380-8717

    Voltage: 12
    kW: 2.2
    Mounting flange: 77.00
    Drive distance: 9.00
    Distance / back: 183.00
    Distance / front: 44.50
    Number / teeth: 10
    B+: M8
    Position / 50: 15
    Terminal 50: 6.30
    Gear type: GR
    Distance mm: 105.00
    Rotation: CW
    Total length mm: 239.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      F032113445, js1227, M002T84171, M002T84171ZT, M002T84571, M002T87171, M002T87171ZT, M002T87371, M002T88071, M2T-87171, M2T-87171ZT, M2T-88071, M2T84170, m2t84171, M2T84171ZT, m2t84571, m2t87171, m2t87171zt, m2t87371, m2t88071, MD 315548, MD 344183, md314167, md315547, md315548, md331137, md344183, RGO 113445, TM000A34101, TM000A36101, 1986S00925, 1986S01027, 36100-42250, 36100-42255, 36100-42350, 36100-42450, 113445, 63187001

    • Normalised article numbler
      cst32115, cst32130, cst35124, drs0791, drs3869, drs3869n, drs3869x, f032113445, f042001184, f042s01184, js1227, lrs01436, m002t84171, m002t84171zt, m002t84571, m002t87171, m002t87171zt, m002t87371, m002t88071, m2t84170, m2t84171, m2t84171zt, m2t84571, m2t87171, m2t87171zt, m2t87371, m2t88071, md314167, md315547, md315548, md331137, md344183, rgo113445, s3166s, s5026, s5223, str7039, tm000a34101, tm000a36101, 8ea011610701, 8ea012527601, 1986s00925, 1986s01027, 6949n, 9684, 32695n, 32695r, 105481, 113445, 201227, 201351, 220086, 220086a, 220498, 220498a, 220614, 220614a, 252349, 253244, 254437, 600081, 600206, 600223, 8080104, 8212770, 8213104, 11040659, 63187001, 326037122, 326047122, 326071102, 0986022740, 0986023340, 3610042250, 3610042255, 3610042350, 3610042450
