HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032110864

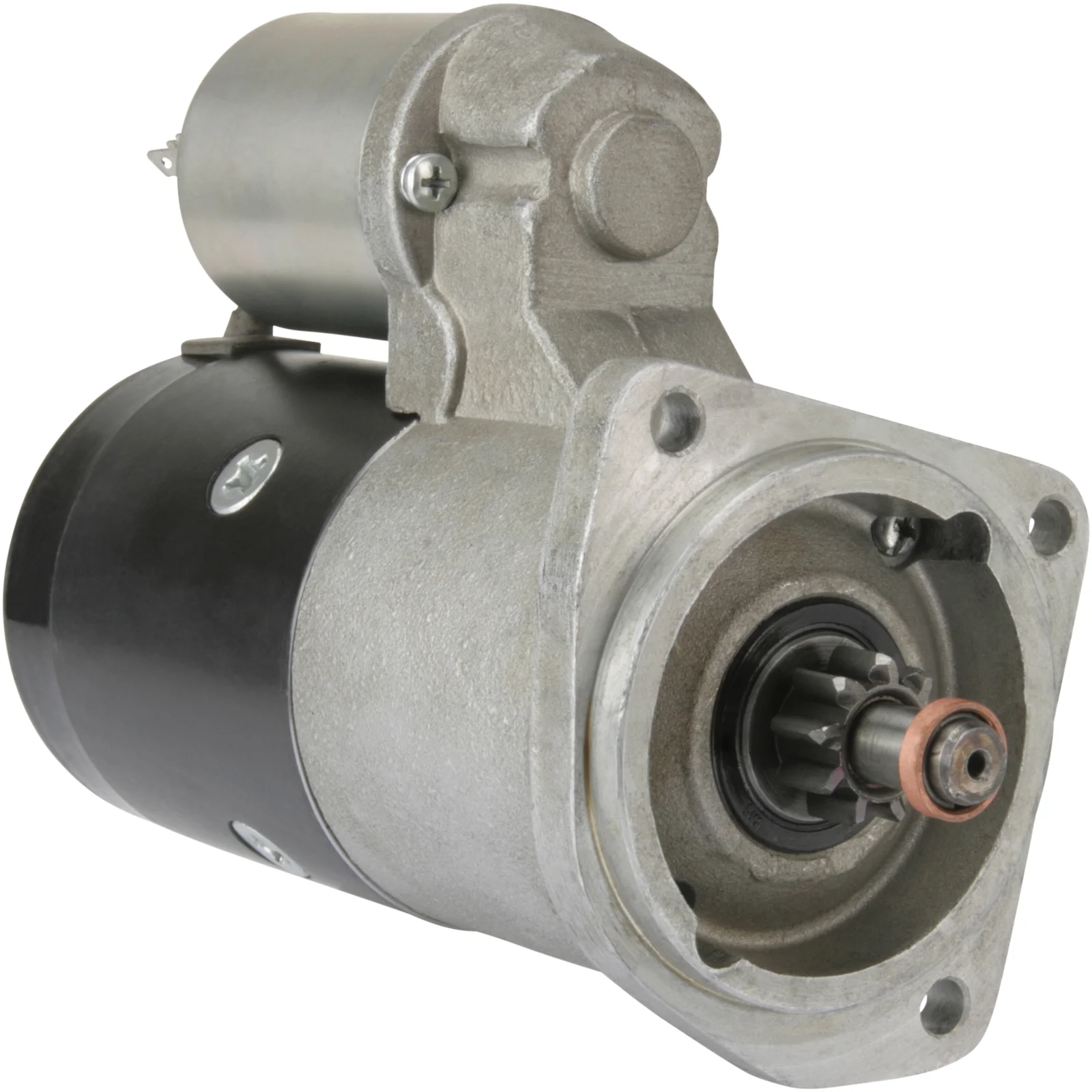

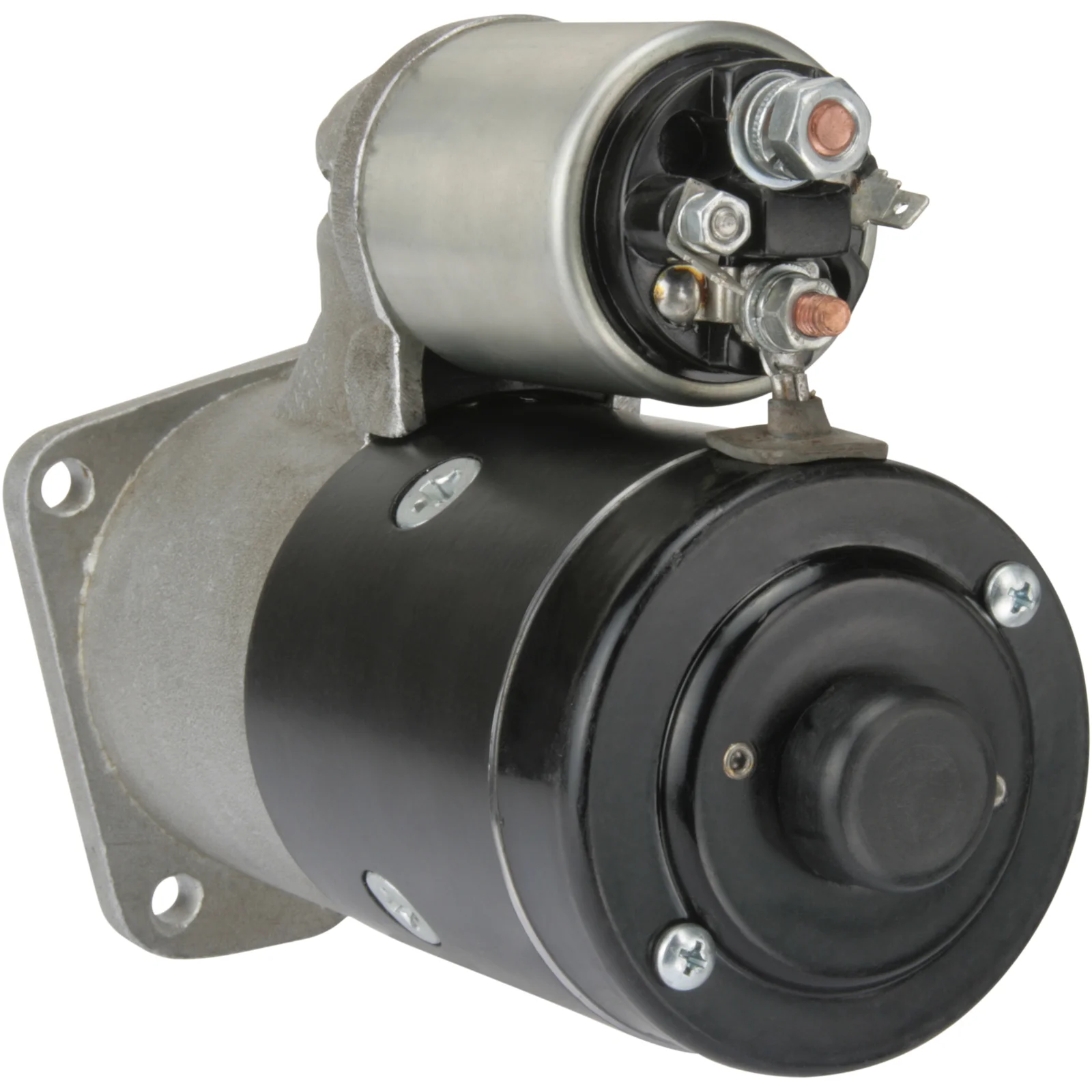

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.7, No./teeth: 9, Rotation: CW

Description

Starter motor 12V - 0.7kW, 9k 12V - 0.7kW, 9k For Yourrex product order 91-620-1057 Voltage: 12 kW: 0.7 Mount. flange: 82.50 Drive dist.: 15.00 Mount. hole 3 mm: 8.50 Mount. hole 2 mm: 8.50 Mount. hole 1 mm: 8.50 Dist./back: 176.00 Dist./front: 35.00 No./teeth: 9 B+: M8 Position/15a: 45 Terminal 15a: 6.30 Position/50: 10 Terminal 50: 6.30 Gear type: DD/GR Dist. 2: 104.50 Dist. 3: 74.00 Dist. mm: 74.00 Rotation: CW Total length mm: 225.00 Clutch type: Dry Drive type: Steel Prod. info: BN Waterproof: No Oil sealed: No No./mount. holes: 3 (0)

Files

  • OEM
    cs276, F032110864, RGO 110864, 0001 212 206, 0001 212 207, 0986 010 570, 9000 692 051, 110864, 0001212206, 0001212207, 055911023a, 055911023AX, 9000692051

  • Normalised article numbler
    cs276, drs0570, f032110864, frs574, lrs00386, qs1365, rgo110864, sr65x, str50092, 8ea012526411, 8ea726044001, 1098, 10276, 11414, 16548, 16548r, 21351bo, 103074, 110864, 261001, 436018, 0001212206, 0001212207, 4110570, 8010570, 11010570, 42013380, 42212206, 055911023a, 055911023ax, 66925137, 311115092, 943251628, 0986010570, 0986010577, 9000692051, 943251628010
  • Description
    Starter motor 12V - 0.7kW, 9k 12V - 0.7kW, 9k For Yourrex product order 91-620-1057 Voltage: 12 kW: 0.7 Mount. flange: 82.50 Drive dist.: 15.00 Mount. hole 3 mm: 8.50 Mount. hole 2 mm: 8.50 Mount. hole 1 mm: 8.50 Dist./back: 176.00 Dist./front: 35.00 No./teeth: 9 B+: M8 Position/15a: 45 Terminal 15a: 6.30 Position/50: 10 Terminal 50: 6.30 Gear type: DD/GR Dist. 2: 104.50 Dist. 3: 74.00 Dist. mm: 74.00 Rotation: CW Total length mm: 225.00 Clutch type: Dry Drive type: Steel Prod. info: BN Waterproof: No Oil sealed: No No./mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs276, F032110864, RGO 110864, 0001 212 206, 0001 212 207, 0986 010 570, 9000 692 051, 110864, 0001212206, 0001212207, 055911023a, 055911023AX, 9000692051

    • Normalised article numbler
      cs276, drs0570, f032110864, frs574, lrs00386, qs1365, rgo110864, sr65x, str50092, 8ea012526411, 8ea726044001, 1098, 10276, 11414, 16548, 16548r, 21351bo, 103074, 110864, 261001, 436018, 0001212206, 0001212207, 4110570, 8010570, 11010570, 42013380, 42212206, 055911023a, 055911023ax, 66925137, 311115092, 943251628, 0986010570, 0986010577, 9000692051, 943251628010
