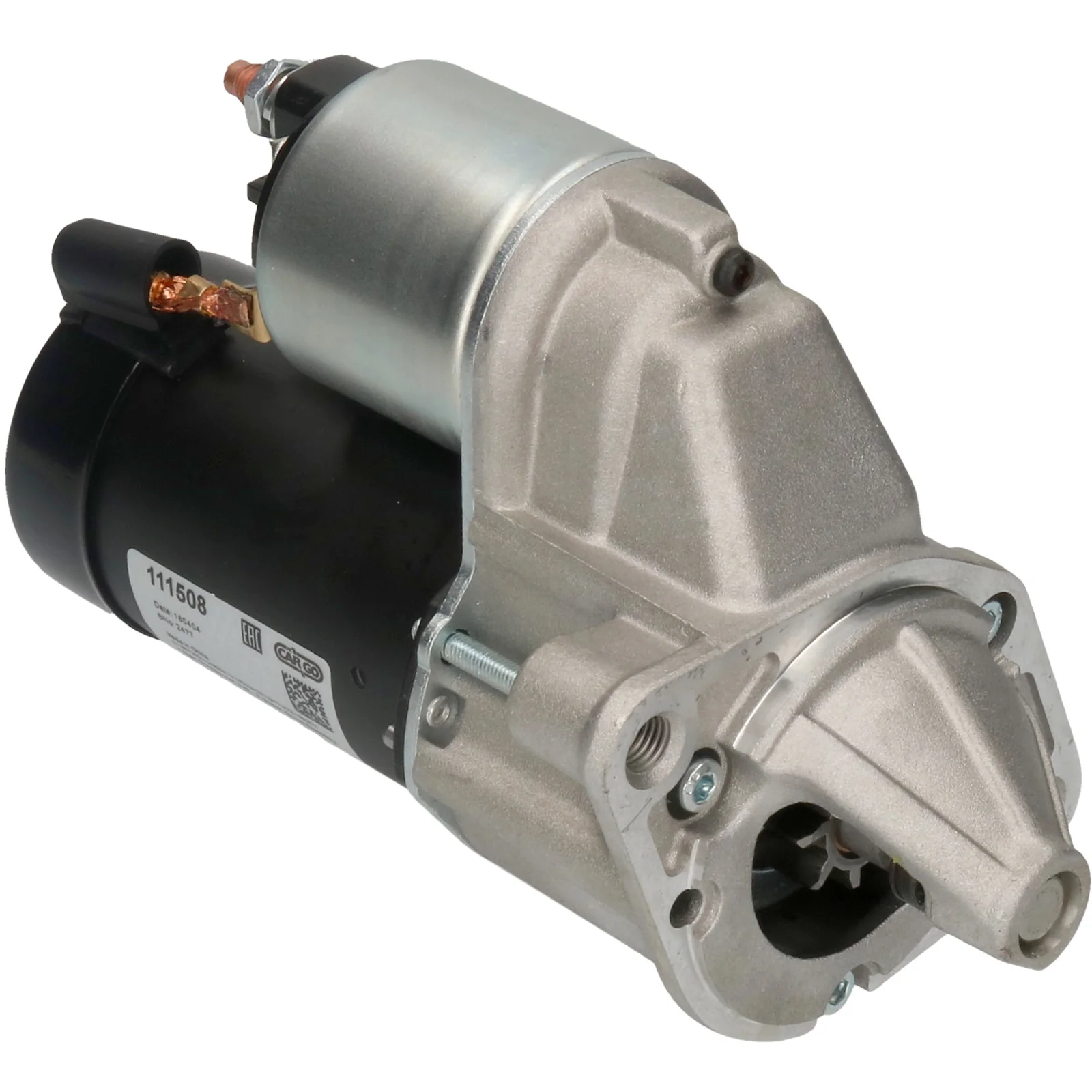

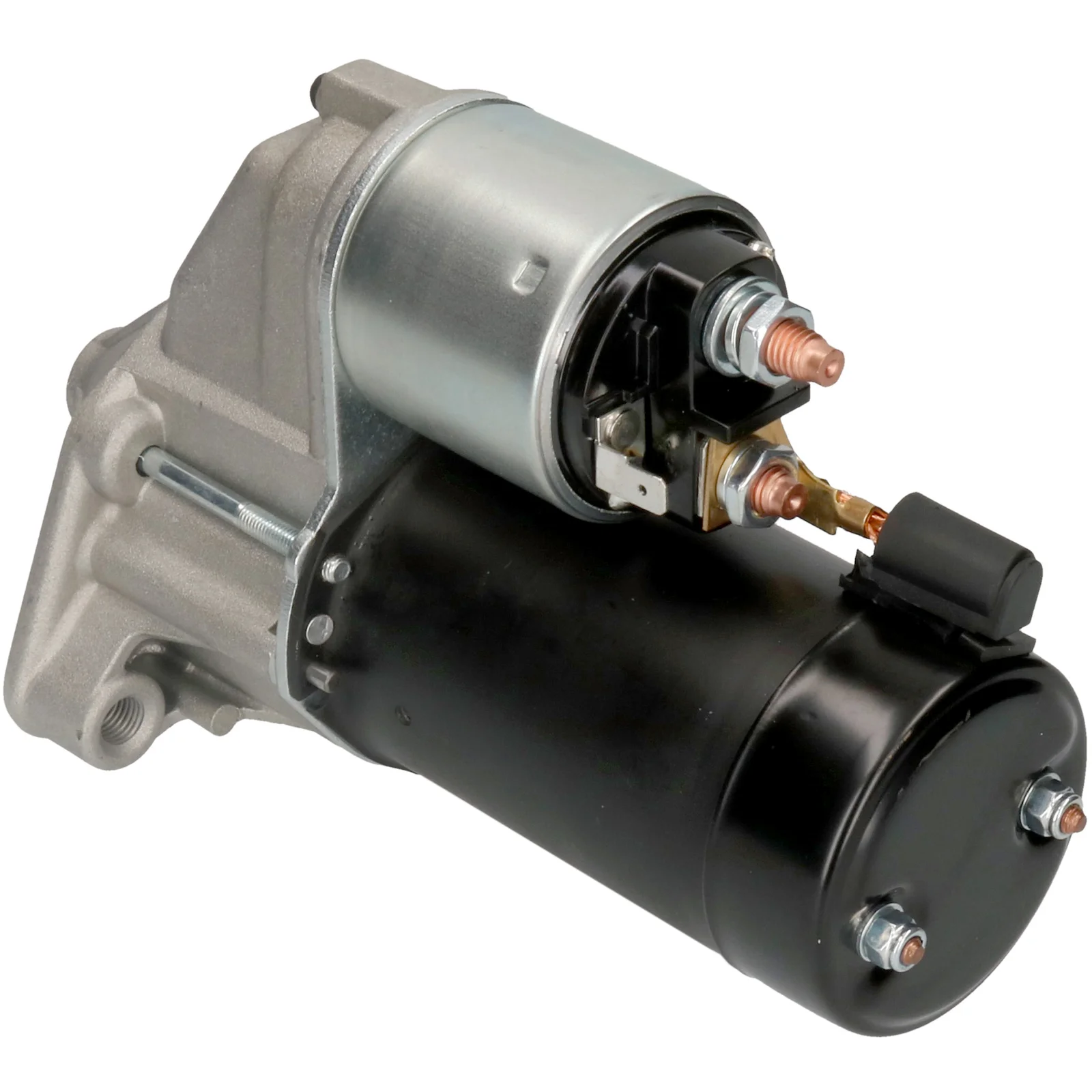

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111508

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.2, No./teeth: 8, Rotation: CW

Description

Mits. Carisma Starter motor 12V-1.2kW 12V - 1.2kW, 8 teeth 12V - 1.2kW, 8 teeth Note! Manual transmission! For YourEx product order F032111508

Voltage: 12
kW: 1.2
Mounting flange: 71.00
Drive distance: 3.50
Distance/back: 171.50
Distance/front: 38.00
Number/teeth: 8
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Distance mm: 105.00
Rotation: CW
Total length mm: 207.50
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 2 (2)

Files

  • OEM
    cs886, D6RA76, d6ra76, F032111508, MD 308088, md308088, RGO 111508, 111508, 455697

  • Normalised article numbler
    bso7251, cs886, cst15217, d6ra76, drs3277, f032111508, f042s0h025, frs677, is9414, j5215030, lrt00101, md308088, ms106, nd217, qs2300, rgo111508, s3013, str10007, str54011, strh025, 8ea012528351, 8ea737085001, 4149, 9523, 10886, 11707, 31101n, 103736, 111508, 220481, 220481a, 252026, 432673, 455697, 8018561, 8212759, 11040601, 20510101, 326021082, 0986018561, 944280185610
  • Description
    Mits. Carisma Starter motor 12V-1.2kW 12V - 1.2kW, 8 teeth 12V - 1.2kW, 8 teeth Note! Manual transmission! For YourEx product order F032111508

    Voltage: 12
    kW: 1.2
    Mounting flange: 71.00
    Drive distance: 3.50
    Distance/back: 171.50
    Distance/front: 38.00
    Number/teeth: 8
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Distance mm: 105.00
    Rotation: CW
    Total length mm: 207.50
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      cs886, D6RA76, d6ra76, F032111508, MD 308088, md308088, RGO 111508, 111508, 455697

    • Normalised article numbler
      bso7251, cs886, cst15217, d6ra76, drs3277, f032111508, f042s0h025, frs677, is9414, j5215030, lrt00101, md308088, ms106, nd217, qs2300, rgo111508, s3013, str10007, str54011, strh025, 8ea012528351, 8ea737085001, 4149, 9523, 10886, 11707, 31101n, 103736, 111508, 220481, 220481a, 252026, 432673, 455697, 8018561, 8212759, 11040601, 20510101, 326021082, 0986018561, 944280185610
