Article no.: F032113843

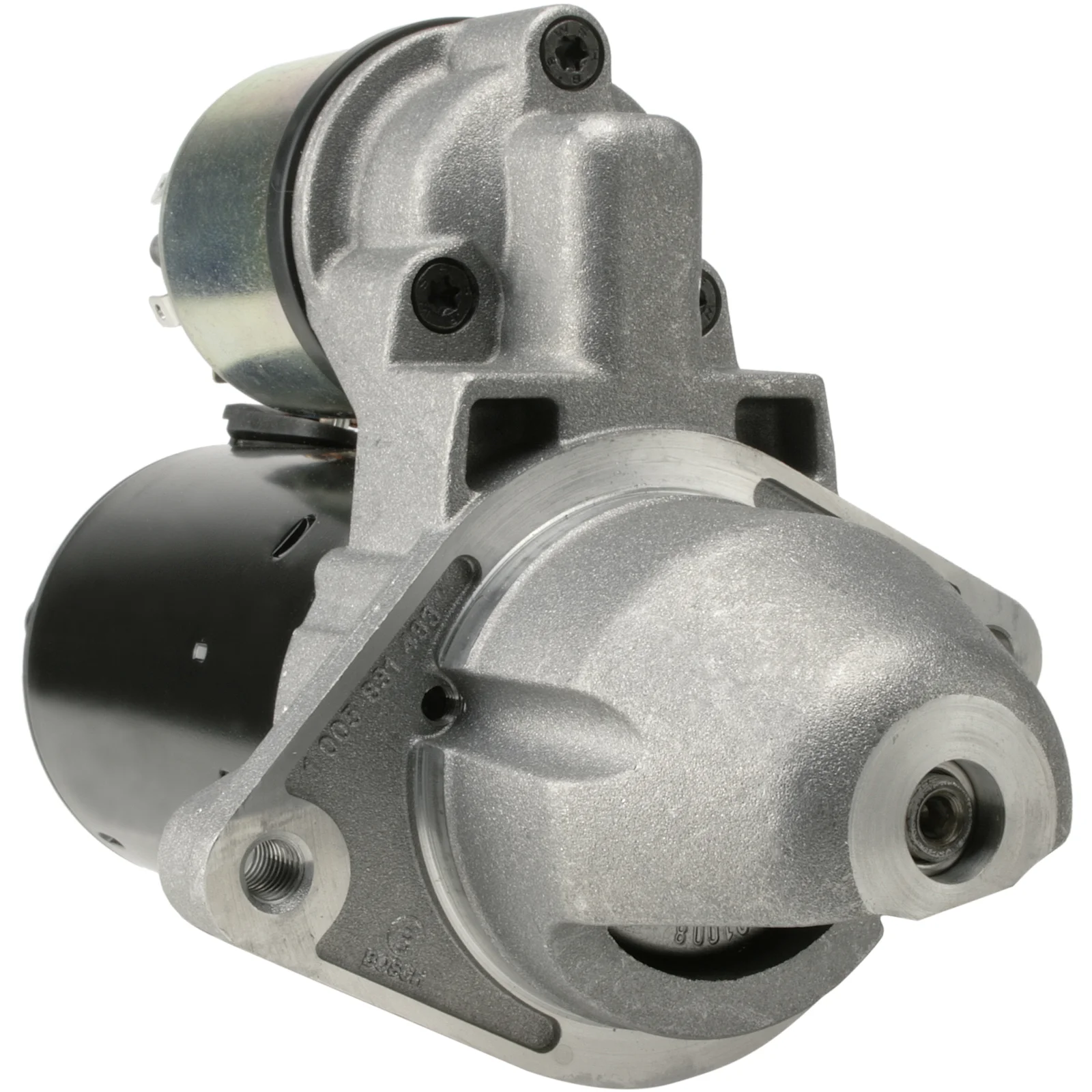

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.1, No./teeth: 9, Rotation: CW

Description

Opel 1.3 CDTi Starter motor 12V-1.1kW 12V - 1.1kW Left-hand DE threaded hole. For Yourex product order 91-430-2124

Voltage: 12
kW: 1.1
Mounting flange: 64.00
Drive distance: 24.00
Mounting hole 1 mm: 8.50
Distance/back: 133.50
Distance/front: 58.00
Number of/teeth: 9
Bplus: M8
Position/50: 15
Terminal 50: M6
Gear type: GR
Distance mm: 101.50
Rotation: CW
Total length mm: 199.00
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number of/mounting holes: 2 (1)

Files

  • OEM
    AZD2125, cs1334, D6G33, D6G332, F002G20485, F032113843, R1540025, RGO 113843, 0001 107 429, 0001 107 437, 11.131.902, 0986 021 240, 1986S00007, 1986S00675, 31100-84ec0, 31100-85E00, 31100-m86j01, 113843, 0001107429, 0001107437, 0001107444, 6202071, 6202083, 6202095, 33353237, 55353237, 55353257, 55561503, 55569540, 55578093, 93178138, 93186246, 93189232

  • Normalised article numbler
    azd2125, cs1334, cst10251, cst10474, cst15128, d6g33, d6g332, drt1240, drt1240n, drt1240x, f002g20485, f032113843, f042202510, f042s02167, f042s02201, is1286, lrs02168, ms35, msn2078, r1540025, rgo113843, s0100, s3018, s3018pr, str2243, 8ea011350451, 8ea012526971, 8ea738232001, 1986s00007, 1986s00675, 3141, 31100m86j01, 33169n, 33169r, 101334, 105517, 113843, 220211, 220211a, 253342, 254476, 254977, 406513, 438270, 446513, 726188, 726988, 0001107429, 0001107437, 0001107444, 3110084ec0, 3110085e00, 6202071, 6202083, 6202095, 8021240, 8212820, 11021240, 11131902, 33353237, 42107429, 55353237, 55353257, 55561503, 55569540, 55578093, 93178138, 93186246, 93189232, 328050092, 328075092, 0986021240, 0986021243, 063521074370, 944280212400
  • Description
    Opel 1.3 CDTi Starter motor 12V-1.1kW 12V - 1.1kW Left-hand DE threaded hole. For Yourex product order 91-430-2124

    Voltage: 12
    kW: 1.1
    Mounting flange: 64.00
    Drive distance: 24.00
    Mounting hole 1 mm: 8.50
    Distance/back: 133.50
    Distance/front: 58.00
    Number of/teeth: 9
    Bplus: M8
    Position/50: 15
    Terminal 50: M6
    Gear type: GR
    Distance mm: 101.50
    Rotation: CW
    Total length mm: 199.00
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number of/mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      AZD2125, cs1334, D6G33, D6G332, F002G20485, F032113843, R1540025, RGO 113843, 0001 107 429, 0001 107 437, 11.131.902, 0986 021 240, 1986S00007, 1986S00675, 31100-84ec0, 31100-85E00, 31100-m86j01, 113843, 0001107429, 0001107437, 0001107444, 6202071, 6202083, 6202095, 33353237, 55353237, 55353257, 55561503, 55569540, 55578093, 93178138, 93186246, 93189232

    • Normalised article numbler
      azd2125, cs1334, cst10251, cst10474, cst15128, d6g33, d6g332, drt1240, drt1240n, drt1240x, f002g20485, f032113843, f042202510, f042s02167, f042s02201, is1286, lrs02168, ms35, msn2078, r1540025, rgo113843, s0100, s3018, s3018pr, str2243, 8ea011350451, 8ea012526971, 8ea738232001, 1986s00007, 1986s00675, 3141, 31100m86j01, 33169n, 33169r, 101334, 105517, 113843, 220211, 220211a, 253342, 254476, 254977, 406513, 438270, 446513, 726188, 726988, 0001107429, 0001107437, 0001107444, 3110084ec0, 3110085e00, 6202071, 6202083, 6202095, 8021240, 8212820, 11021240, 11131902, 33353237, 42107429, 55353237, 55353257, 55561503, 55569540, 55578093, 93178138, 93186246, 93189232, 328050092, 328075092, 0986021240, 0986021243, 063521074370, 944280212400
