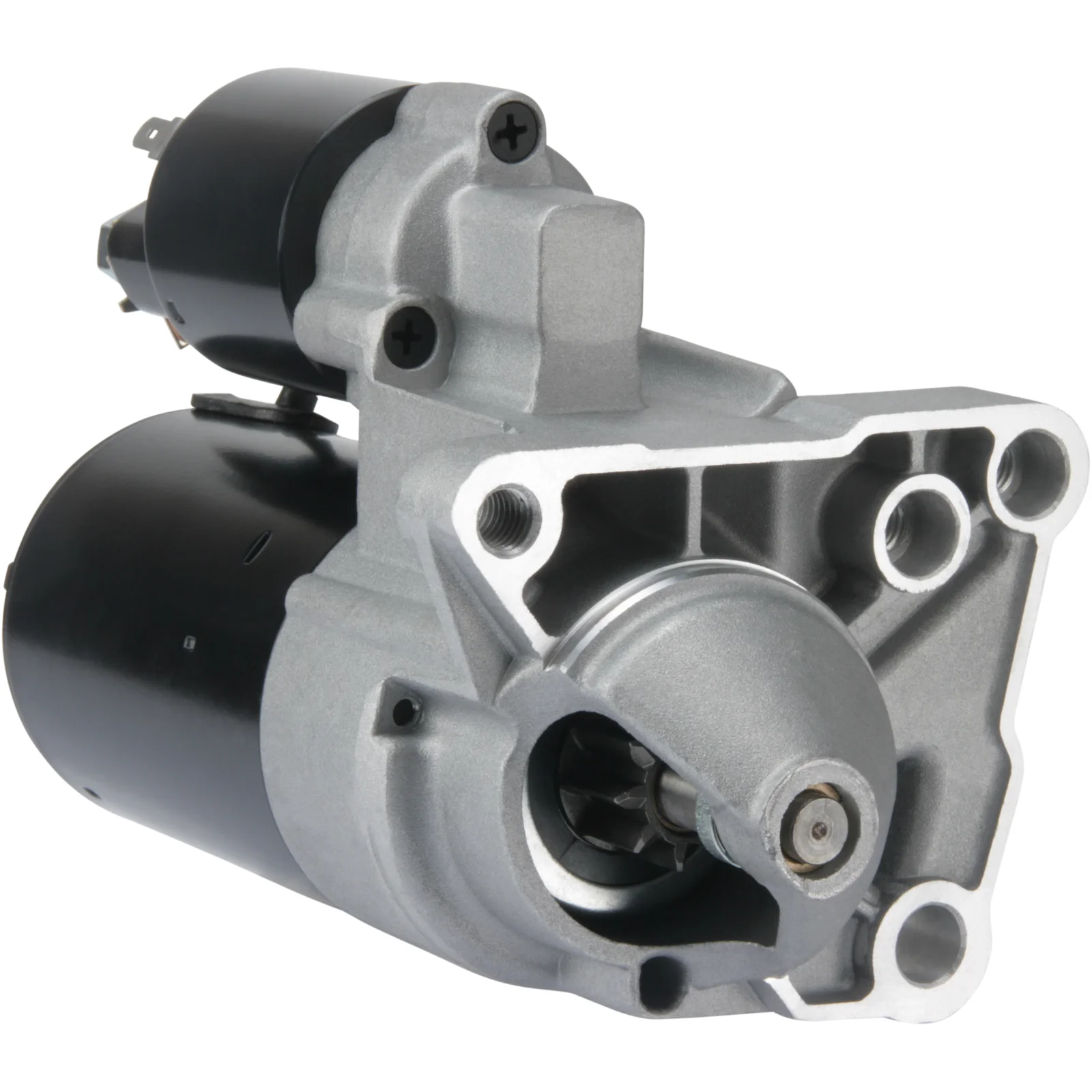

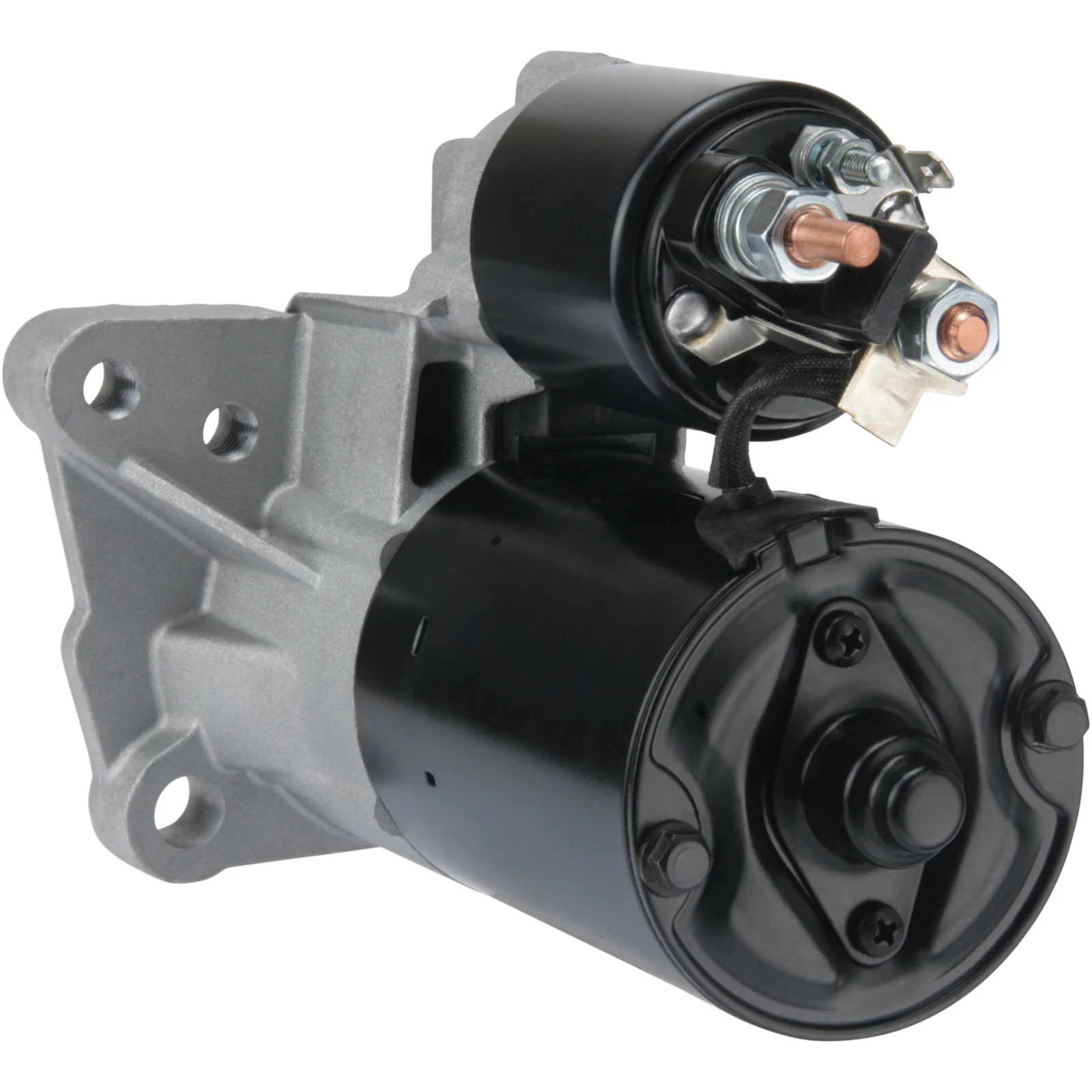

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114814

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.9, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 0.9
Mounting flange: 66.00
Drive distance: 0.00
Mounting hole 3 mm: M10
Mounting hole 2 mm: 12.00
Distance/backup: 162.00
Distance/front: 32.00
Number/teeth: 9
B+: M8
Position/50: 2
Terminal 50: M5
Gear type: GR
Distance 2: 105.00
Distance 3: 93.00
Distance mm: 74.50
Rotation: CW
Total length mm: 208.00
Number/mounting holes: 4 (3)

Files

  • OEM
    cs1255, F032114814, R1040045, RGO 114814, 23300-00Q1D, 23300-00QAH, 0001106023, 0001106024, 0001106028, 4412612, 4419084, 8252875, 9512934, 91167226, 91169473, 93161060, 93177609, 93863425, 7711134794, 7711135101, 7711497395, 8200069377, 8200186148, 8200199737, 8200466754, 8200466758, 8200466784, 8200724805, 8200724810, 8200929534

  • Normalised article numbler
    cs1255, cst10260, drs8860, f032114814, lrs01545, r1040045, rgo114814, s0223, s0223bosch, s0223pr, 8ea012527971, 32545, 32545n, 32545r, 101255, 104727, 201143, 220462, 220462a, 253034, 438399, 438415, 438501, 438505, 458274, 458908, 0001106023, 0001106024, 0001106028, 2330000q1d, 2330000qah, 4412612, 4419084, 8018860, 8252875, 9512934, 11018860, 42018860, 91167226, 91169473, 93161060, 93177609, 93863425, 330035092, 0986018860, 0986018863, 7711134794, 7711135101, 7711497395, 8200069377, 8200186148, 8200199737, 8200466754, 8200466758, 8200466784, 8200724805, 8200724810, 8200929534
  • Description
    Voltage: 12
    kW: 0.9
    Mounting flange: 66.00
    Drive distance: 0.00
    Mounting hole 3 mm: M10
    Mounting hole 2 mm: 12.00
    Distance/backup: 162.00
    Distance/front: 32.00
    Number/teeth: 9
    B+: M8
    Position/50: 2
    Terminal 50: M5
    Gear type: GR
    Distance 2: 105.00
    Distance 3: 93.00
    Distance mm: 74.50
    Rotation: CW
    Total length mm: 208.00
    Number/mounting holes: 4 (3)

    Files

  • Suitable for these vehicles

    • OEM
      cs1255, F032114814, R1040045, RGO 114814, 23300-00Q1D, 23300-00QAH, 0001106023, 0001106024, 0001106028, 4412612, 4419084, 8252875, 9512934, 91167226, 91169473, 93161060, 93177609, 93863425, 7711134794, 7711135101, 7711497395, 8200069377, 8200186148, 8200199737, 8200466754, 8200466758, 8200466784, 8200724805, 8200724810, 8200929534

    • Normalised article numbler
      cs1255, cst10260, drs8860, f032114814, lrs01545, r1040045, rgo114814, s0223, s0223bosch, s0223pr, 8ea012527971, 32545, 32545n, 32545r, 101255, 104727, 201143, 220462, 220462a, 253034, 438399, 438415, 438501, 438505, 458274, 458908, 0001106023, 0001106024, 0001106028, 2330000q1d, 2330000qah, 4412612, 4419084, 8018860, 8252875, 9512934, 11018860, 42018860, 91167226, 91169473, 93161060, 93177609, 93863425, 330035092, 0986018860, 0986018863, 7711134794, 7711135101, 7711497395, 8200069377, 8200186148, 8200199737, 8200466754, 8200466758, 8200466784, 8200724805, 8200724810, 8200929534
