HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115723

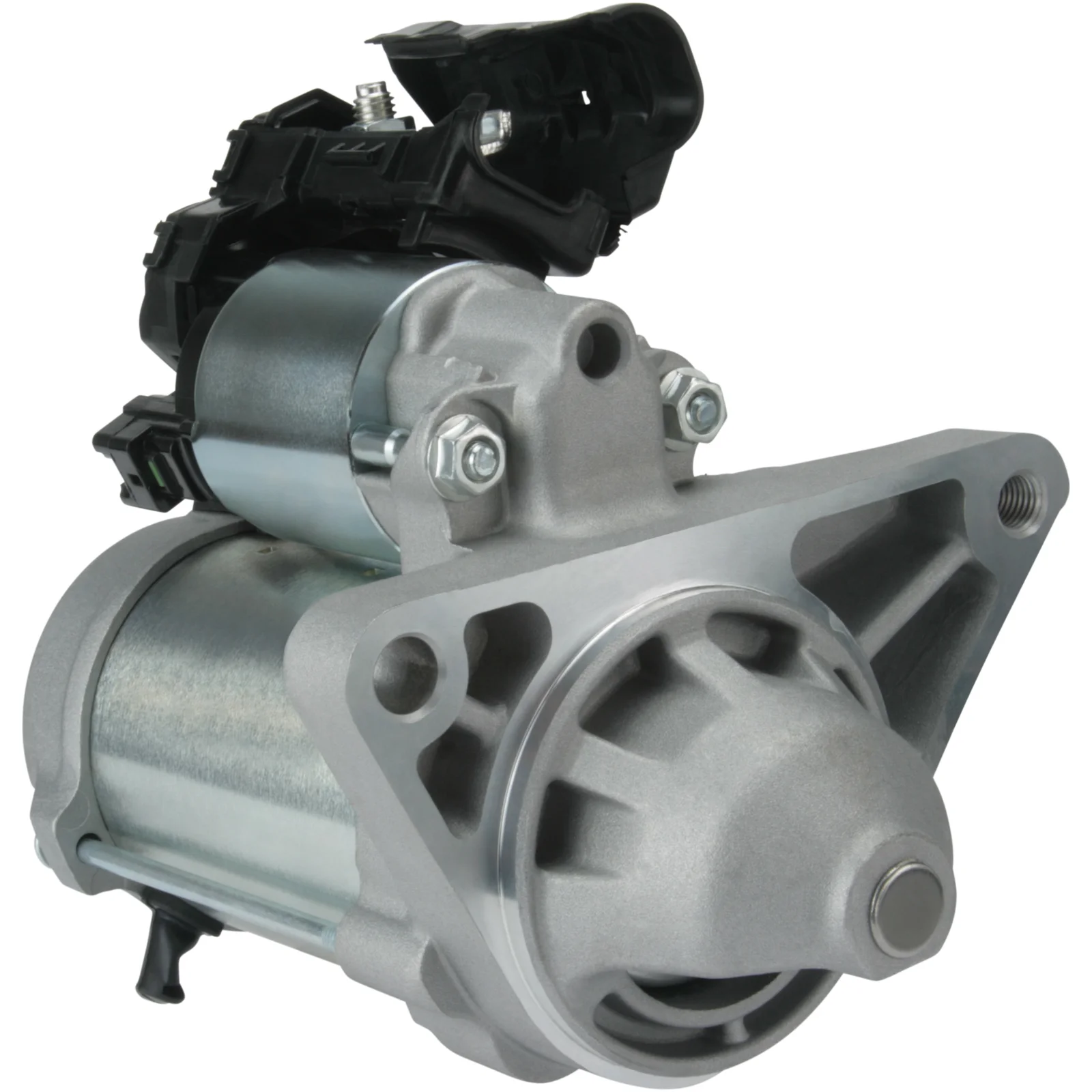

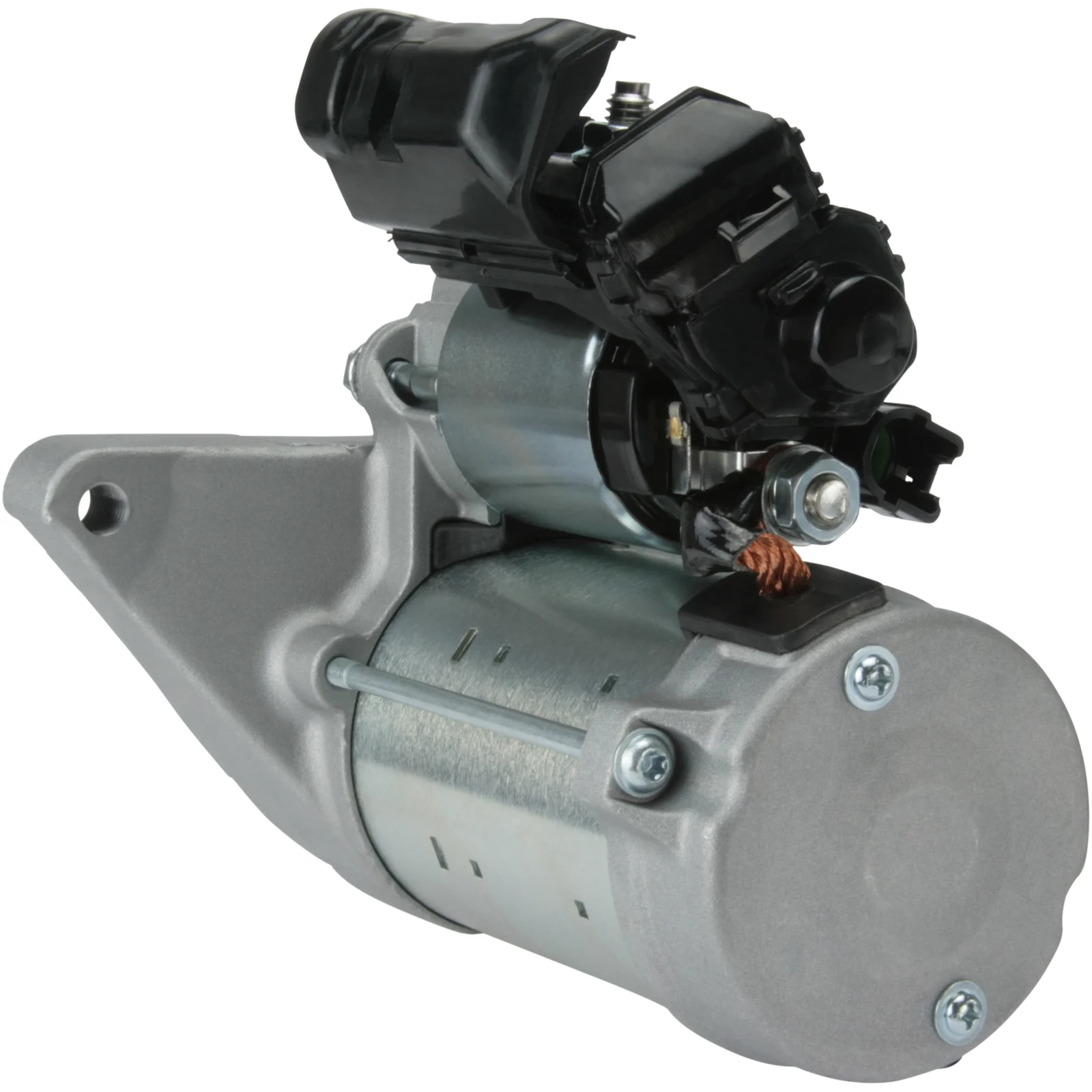

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mounting flange: 74.00
Drive distance: 13.00
Mounting hole 2 mm: 11.50
Distance / back: 150.00
Distance / front: 46.50
Number / teeth: 9
B+: M8
Position / 50: 20
Terminal 50: Plug
Gear type: GR
Distance in millimeters: 121.00
Rotation: CW
Total length in millimeters: 196.50
Product information: BN
Number / mounting holes: 2 (1)

Files

  • OEM
    F032115723, RGO 115723, 1986S00607, 28100-0n040, 28100-0N060, 28100-33090, 28100-33110, 428000-6060, 428000-6061, 428000-6080, 428000-6190, 428000-6191, 428000-6220

  • Normalised article numbler
    cst40288, drs0522, dsn945, f032115723, lrs02579, rgo115723, s6039, s6039denso, 8ea011612051, 1986s00607, 30403n, 220676, 220676a, 254251, 281000n040, 281000n060, 458859, 8080338, 11040828, 190594092, 335237092, 0986026110, 2810033090, 2810033110, 4280006060, 4280006061, 4280006080, 4280006190, 4280006191, 4280006220
  • Description
    Voltage: 12
    kW: 1.4
    Mounting flange: 74.00
    Drive distance: 13.00
    Mounting hole 2 mm: 11.50
    Distance / back: 150.00
    Distance / front: 46.50
    Number / teeth: 9
    B+: M8
    Position / 50: 20
    Terminal 50: Plug
    Gear type: GR
    Distance in millimeters: 121.00
    Rotation: CW
    Total length in millimeters: 196.50
    Product information: BN
    Number / mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      F032115723, RGO 115723, 1986S00607, 28100-0n040, 28100-0N060, 28100-33090, 28100-33110, 428000-6060, 428000-6061, 428000-6080, 428000-6190, 428000-6191, 428000-6220

    • Normalised article numbler
      cst40288, drs0522, dsn945, f032115723, lrs02579, rgo115723, s6039, s6039denso, 8ea011612051, 1986s00607, 30403n, 220676, 220676a, 254251, 281000n040, 281000n060, 458859, 8080338, 11040828, 190594092, 335237092, 0986026110, 2810033090, 2810033110, 4280006060, 4280006061, 4280006080, 4280006190, 4280006191, 4280006220
