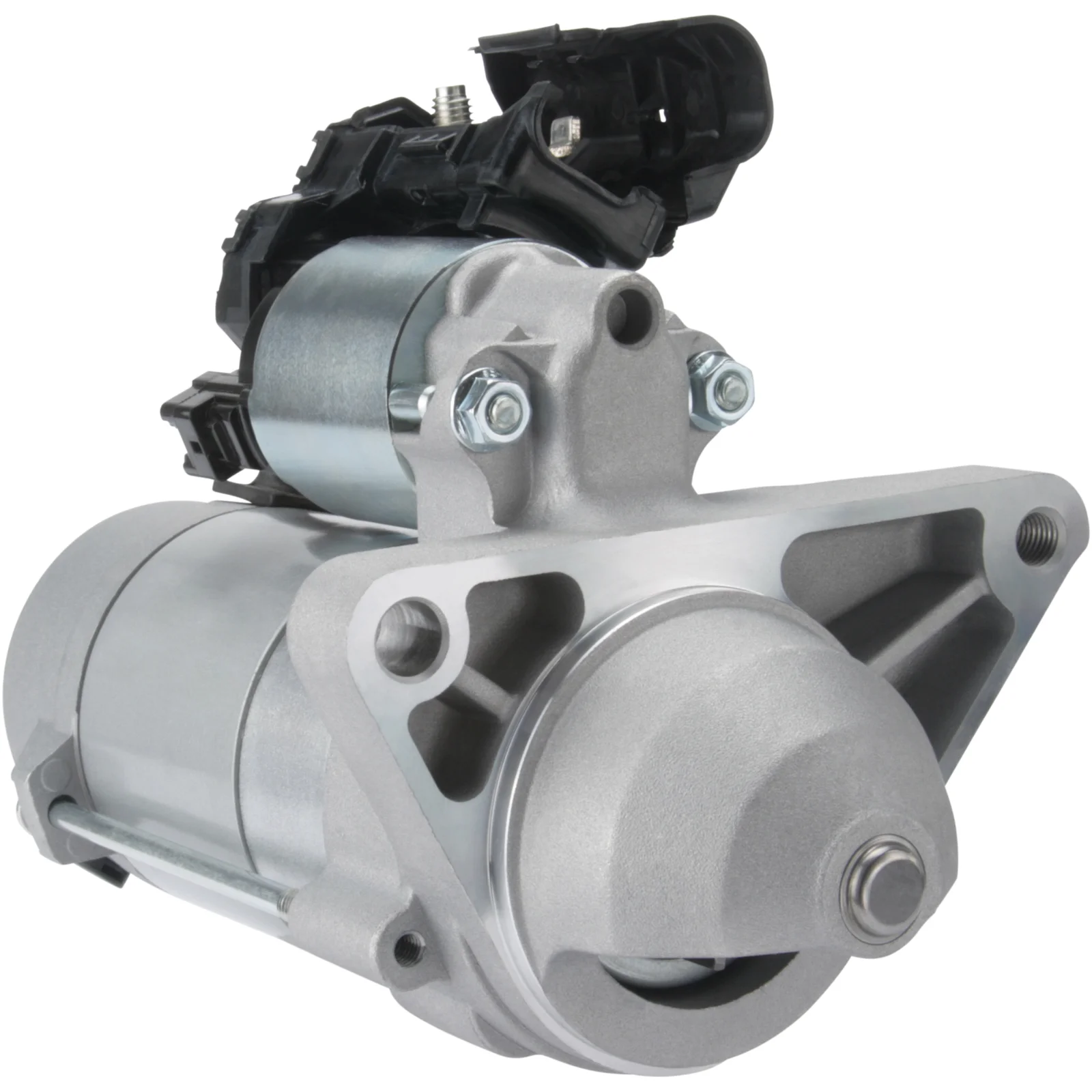

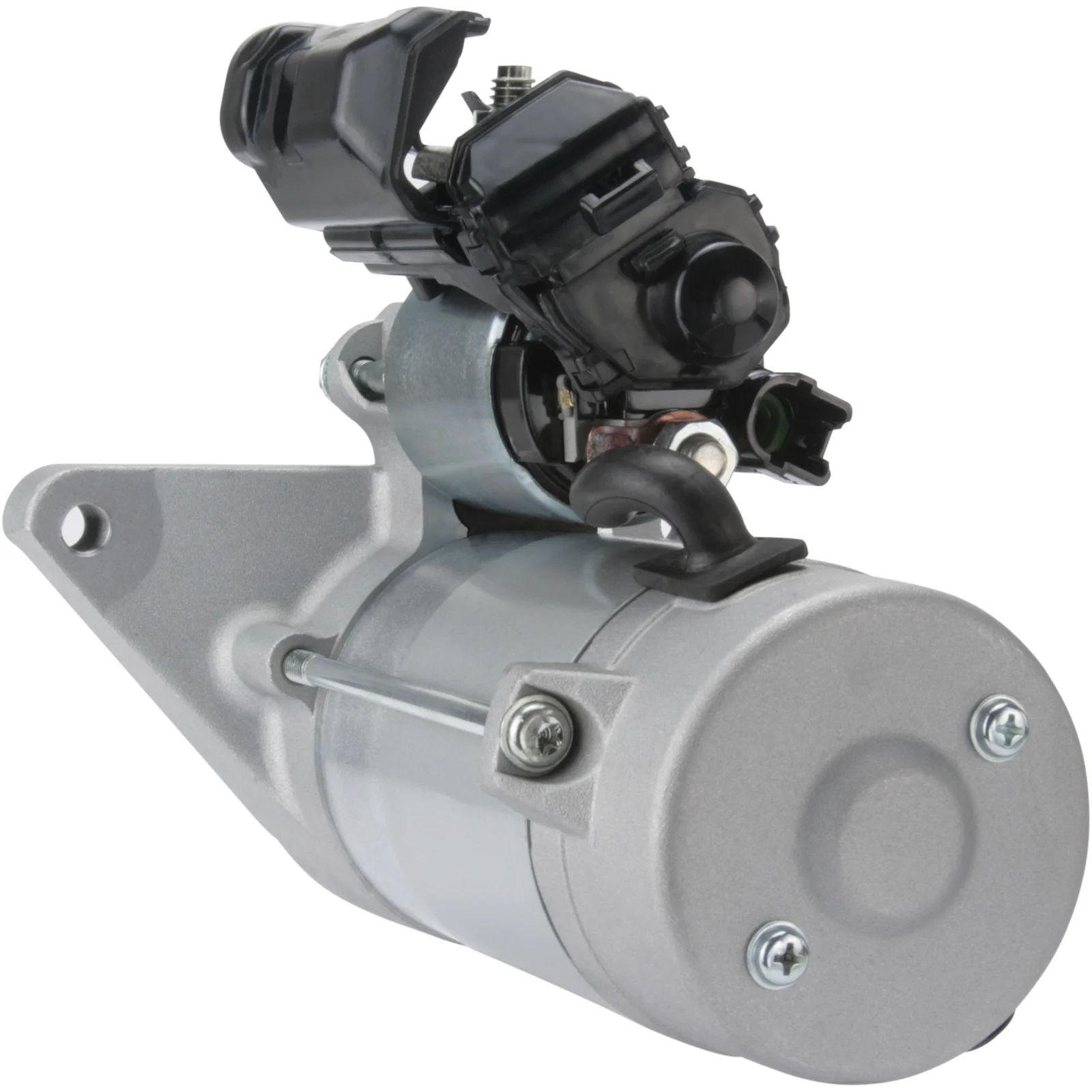

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115644

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mount. flange: 74.00
Drive distance: 13.00
Mount. hole 2 mm: 11.00
Distance/behind: 182.50
Distance/in front: 48.00
Number/teeth: 10
B+: M8
Position/50: 20
Terminal 50: Plug
Gear type: GR
Distance in mm: 121.50
Rotation: CW
Total length in mm: 229.00
Prod. info: BN
Number/mounting holes: 2 (1)

Files

  • OEM
    cs1549, F032115644, RGO 115644, 1986S00592, 28100-0n050, 28100-33100, 28100-33120, 28100-33121, 428000-6070, 428000-6071, 428000-6090, 428000-6200

  • Normalised article numbler
    cs1549, cst40319, drs0657, dsn946, f032115644, lrs02511, rgo115644, s6040, s6040denso, s6316s, 1986s00592, 31239n, 220928, 220928a, 254183, 281000n050, 438373, 458942, 11040842, 190902102, 335233102, 0986027050, 2810033100, 2810033120, 2810033121, 4280006070, 4280006071, 4280006090, 4280006200
  • Description
    Voltage: 12
    kW: 2.0
    Mount. flange: 74.00
    Drive distance: 13.00
    Mount. hole 2 mm: 11.00
    Distance/behind: 182.50
    Distance/in front: 48.00
    Number/teeth: 10
    B+: M8
    Position/50: 20
    Terminal 50: Plug
    Gear type: GR
    Distance in mm: 121.50
    Rotation: CW
    Total length in mm: 229.00
    Prod. info: BN
    Number/mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      cs1549, F032115644, RGO 115644, 1986S00592, 28100-0n050, 28100-33100, 28100-33120, 28100-33121, 428000-6070, 428000-6071, 428000-6090, 428000-6200

    • Normalised article numbler
      cs1549, cst40319, drs0657, dsn946, f032115644, lrs02511, rgo115644, s6040, s6040denso, s6316s, 1986s00592, 31239n, 220928, 220928a, 254183, 281000n050, 438373, 458942, 11040842, 190902102, 335233102, 0986027050, 2810033100, 2810033120, 2810033121, 4280006070, 4280006071, 4280006090, 4280006200
