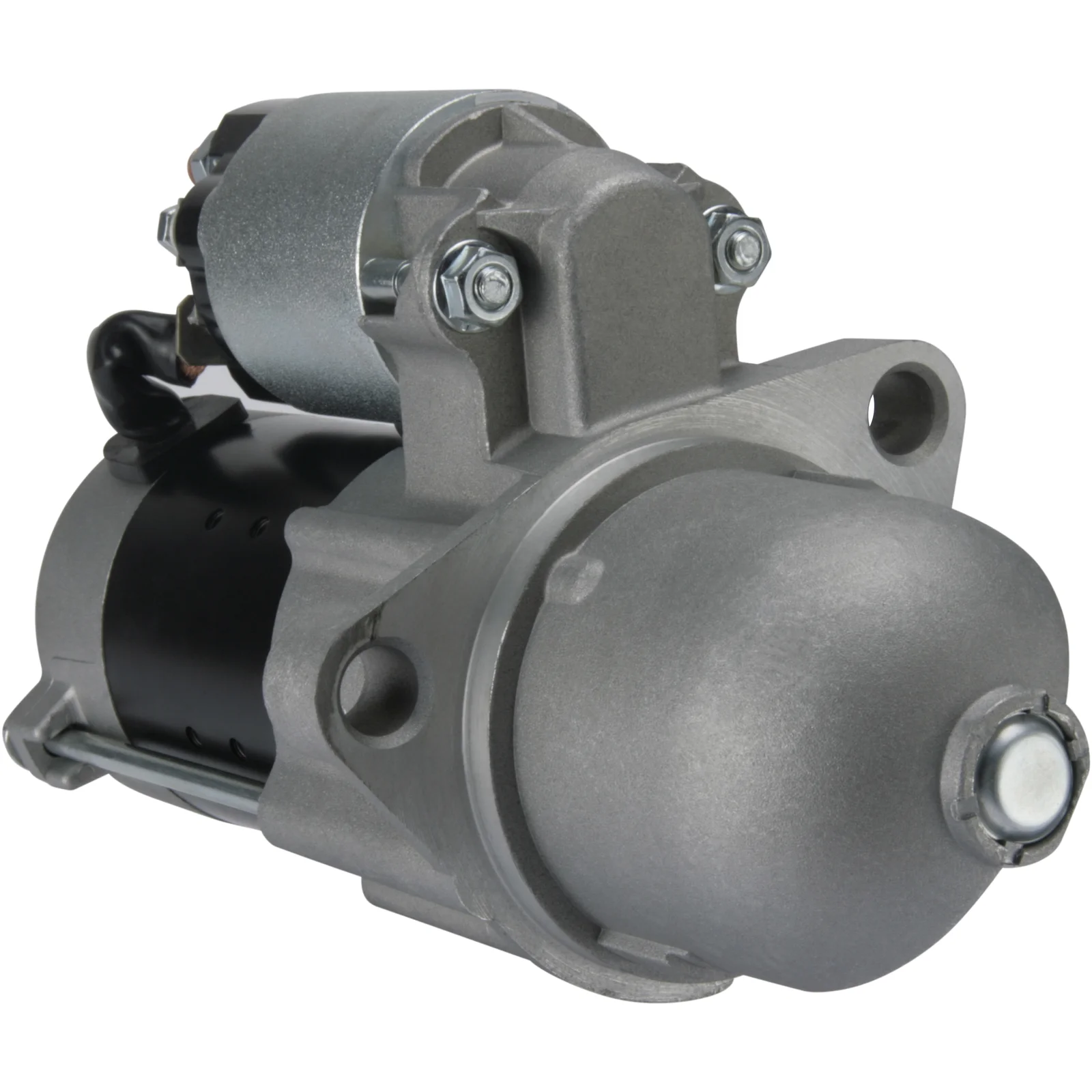

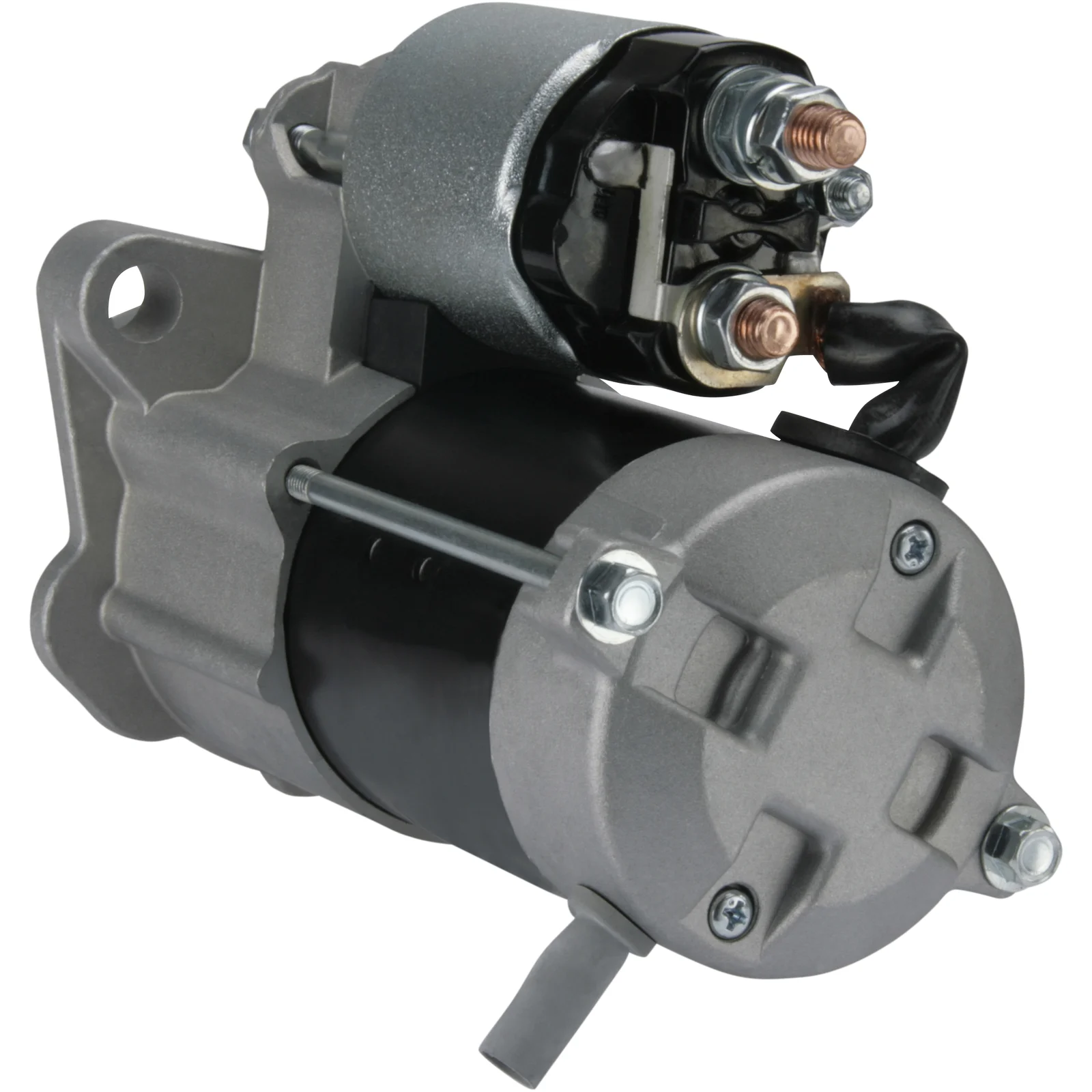

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114341

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.2, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.2
Mounting flange: 75.00
Drive distance: 31.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance/back: 142.00
Distance/front: 69.50
Number/teeth: 9
B+: M8
Position/50: 10
Terminal 50: M5
Gear type: GR
Distance mm: 94.50
Rotation: CW
Total length mm: 214.00
Product info: BN

Files

  • OEM
    F032114341, RGO 114341, 1986S01507, 3632009, 6202015, 6202037, 6202055, 6202125, 8000180, 9000902, 9000934, 9000967, 10465551, 12567585, 12575626, 12586764, 55353996, 55556245, 89017756, 89018113

  • Normalised article numbler
    cst60128, drs0625, drs9840, drs9840n, f032114341, f042000212, f042s00212, lrs02340, rgo114341, s1167s, str8273, 1986s01507, 6493, 6493n, 101395, 106208, 220657, 220657a, 253264, 254012, 3632009, 6202015, 6202037, 6202055, 6202125, 8000180, 8019840, 9000902, 9000934, 9000967, 10465551, 11019840, 12567585, 12575626, 12586764, 55353996, 55556245, 89017756, 89018113, 130593092, 328047092, 328064112, 0986019840, 0986022041, 0986022043
  • Description
    Voltage: 12
    kW: 1.2
    Mounting flange: 75.00
    Drive distance: 31.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance/back: 142.00
    Distance/front: 69.50
    Number/teeth: 9
    B+: M8
    Position/50: 10
    Terminal 50: M5
    Gear type: GR
    Distance mm: 94.50
    Rotation: CW
    Total length mm: 214.00
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032114341, RGO 114341, 1986S01507, 3632009, 6202015, 6202037, 6202055, 6202125, 8000180, 9000902, 9000934, 9000967, 10465551, 12567585, 12575626, 12586764, 55353996, 55556245, 89017756, 89018113

    • Normalised article numbler
      cst60128, drs0625, drs9840, drs9840n, f032114341, f042000212, f042s00212, lrs02340, rgo114341, s1167s, str8273, 1986s01507, 6493, 6493n, 101395, 106208, 220657, 220657a, 253264, 254012, 3632009, 6202015, 6202037, 6202055, 6202125, 8000180, 8019840, 9000902, 9000934, 9000967, 10465551, 11019840, 12567585, 12575626, 12586764, 55353996, 55556245, 89017756, 89018113, 130593092, 328047092, 328064112, 0986019840, 0986022041, 0986022043
