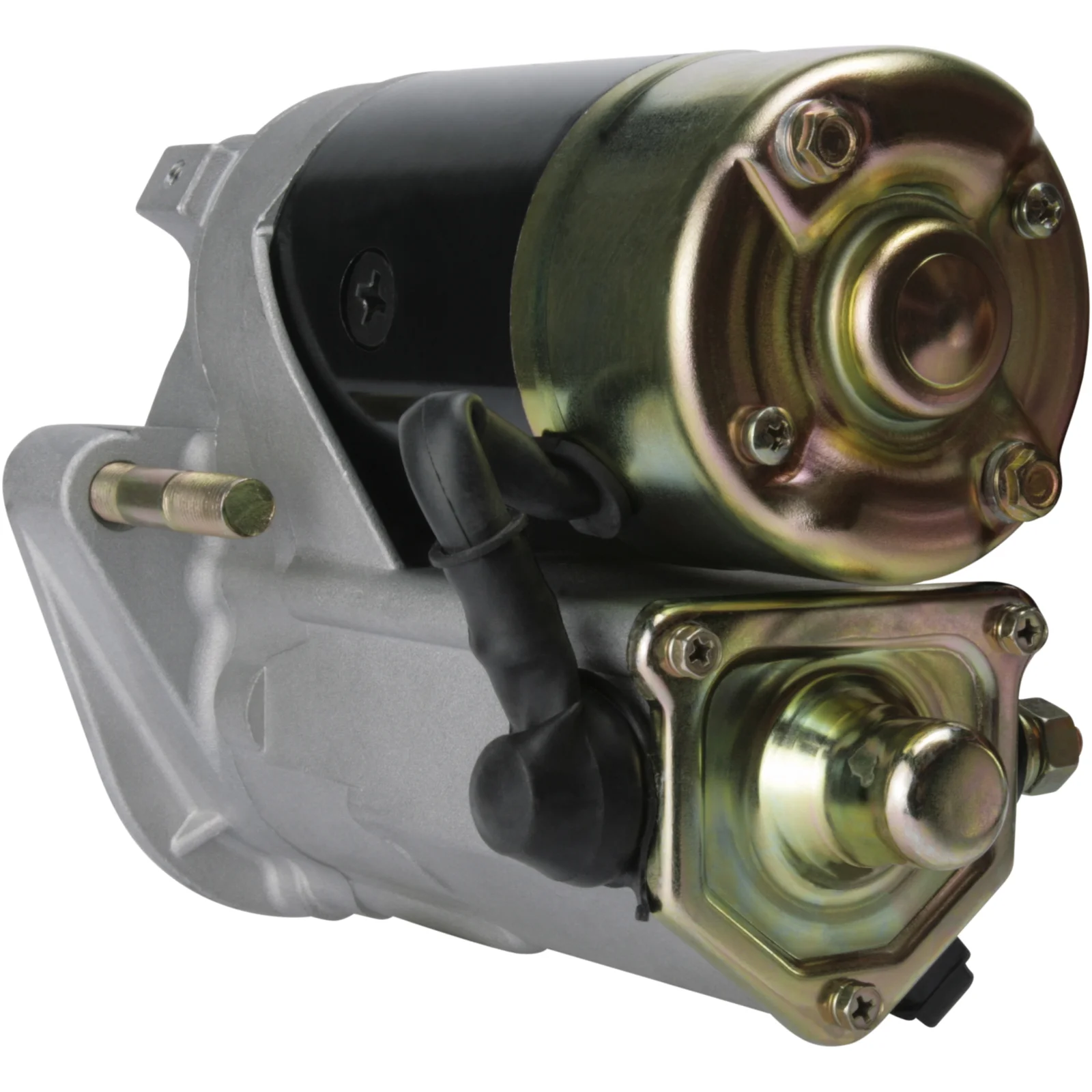

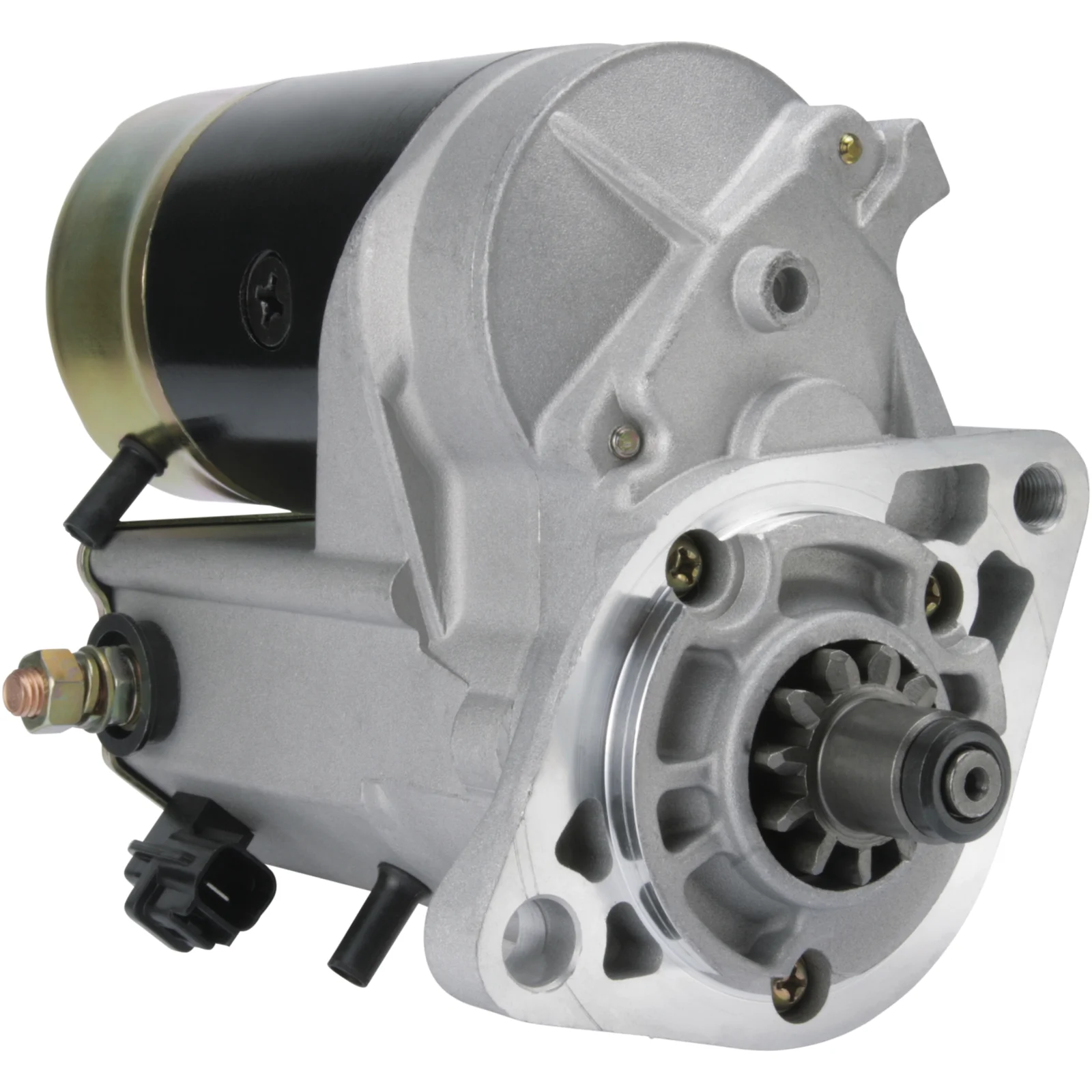

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032113938

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.7, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 2.7
Mounting flange: 82.50
Drive distance: 18.00
Mounting hole 2 mm: 13.50
Distance/back: 202.00
Distance/front: 44.00
Number/teeth: 11
B+: M10
Position/50: 15
Terminal 50: Plug
Gear type: GR
Distance in millimeters: 129.50
Rotation: CW
Total length in millimeters: 258.00
Number/mounting holes: 2 (1)

Files

  • OEM
    cs1447, F032113938, js1155, RGO 113938, 1986S00913, 28100-30050, 28100-30051, 28100-30070, 28100-30071, 28100-30080, 28100-30081, 28100-67070, 28100-67090, 228000-5340, 228000-5341, 228000-5342, 228000-5650, 228000-5651, 228000-5652, 428000-0290, 428000-0291, 428000-1370, 428000-1371, 428000-3110

  • Normalised article numbler
    cs1447, cst40239, cst40379, drs0434, drs3965, dsn1229, f032113938, f042s0h078, j5212113, js1155, les0639, lrs02217, lrs02374, rgo113938, s6021, strh078, 8ea012527341, 8ea737760001, 1986s00913, 9728, 18630an, 33217n, 101447, 105404, 201155, 201163, 220789, 220789a, 252447, 253388, 254046, 458865, 8052287, 8212807, 11040632, 11040770, 190930112, 335065112, 335069112, 335224112, 0986020591, 0986024320, 2280005340, 2280005341, 2280005342, 2280005650, 2280005651, 2280005652, 2810030050, 2810030051, 2810030070, 2810030071, 2810030080, 2810030081, 2810067070, 2810067090, 4280000290, 4280000291, 4280001370, 4280001371, 4280003110
  • Description
    Voltage: 12
    kW: 2.7
    Mounting flange: 82.50
    Drive distance: 18.00
    Mounting hole 2 mm: 13.50
    Distance/back: 202.00
    Distance/front: 44.00
    Number/teeth: 11
    B+: M10
    Position/50: 15
    Terminal 50: Plug
    Gear type: GR
    Distance in millimeters: 129.50
    Rotation: CW
    Total length in millimeters: 258.00
    Number/mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      cs1447, F032113938, js1155, RGO 113938, 1986S00913, 28100-30050, 28100-30051, 28100-30070, 28100-30071, 28100-30080, 28100-30081, 28100-67070, 28100-67090, 228000-5340, 228000-5341, 228000-5342, 228000-5650, 228000-5651, 228000-5652, 428000-0290, 428000-0291, 428000-1370, 428000-1371, 428000-3110

    • Normalised article numbler
      cs1447, cst40239, cst40379, drs0434, drs3965, dsn1229, f032113938, f042s0h078, j5212113, js1155, les0639, lrs02217, lrs02374, rgo113938, s6021, strh078, 8ea012527341, 8ea737760001, 1986s00913, 9728, 18630an, 33217n, 101447, 105404, 201155, 201163, 220789, 220789a, 252447, 253388, 254046, 458865, 8052287, 8212807, 11040632, 11040770, 190930112, 335065112, 335069112, 335224112, 0986020591, 0986024320, 2280005340, 2280005341, 2280005342, 2280005650, 2280005651, 2280005652, 2810030050, 2810030051, 2810030070, 2810030071, 2810030080, 2810030081, 2810067070, 2810067090, 4280000290, 4280000291, 4280001370, 4280001371, 4280003110
