Article no.: F032111120

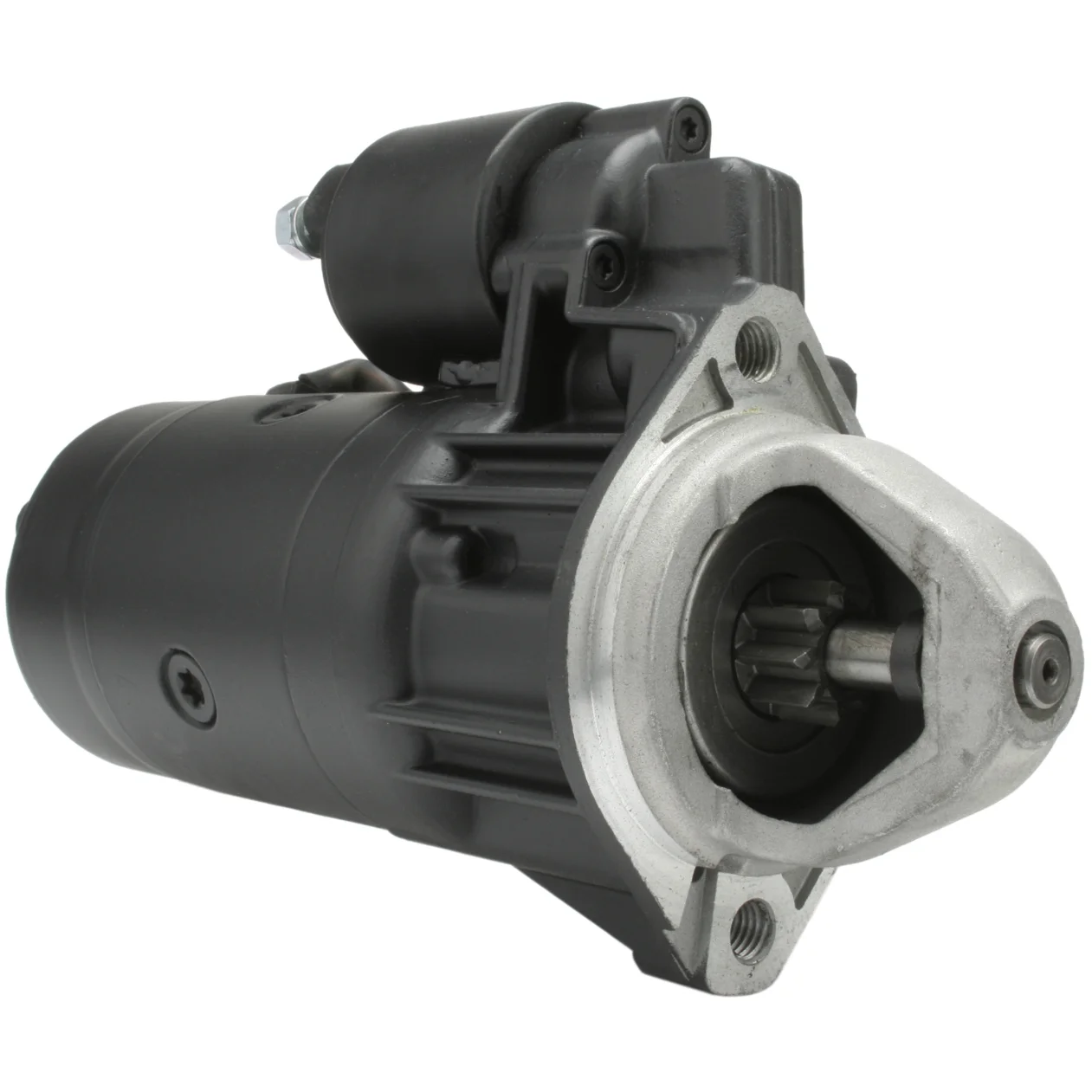

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Description

Start 12V-2.2kW fits Volvo 12V - 2.2kW, 9k A - 82.5mm, B - 21mm For Yourex product order 91-600-1314

Voltage: 12
kW: 2.2
Mounting flange: 82.50
Drive distance: 21.50
Distance/back: 210.00
Distance/front: 62.50
Number of/by teeth: 9
B+: M8
Position/50: 55
Terminal 50: 6.30
Gear type: GR
Distance in millimeters: 105.00
Rotation: CW
Total length in millimeters: 272.50
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number of/mounting holes: 2 (2)

Files

  • OEM
    b001233104, b001233112, cs386, F032111120, RGO 111120, S13-91, s13-91, S13-91A, s13-91a, 0001 218 004, 0001 218 005, 0001 218 017, 0001 218 111, 0001 218 112, 0001 218 130, 0001 362 083, 0986 013 140, 111120, 0001218004, 0001218005, 0001218017, 0001218111, 0001218112, 0001218130, 1257939, 1328391, 1328392, 1516757R, 3544627, 3544627-7, 5002050, 5003003, 5003708, 13283916, 50030030, 069911023b, 069911023BX

  • Normalised article numbler
    b001233104, b001233112, cs386, cst10130, drs3140, f032111120, frs596, is9435, lrs00661, lrs02008, ms10, qs1358, rgo111120, s0043, s1391, s1391a, sr97x, str50095, str72029, 8ea012526061, 8ea726134001, 1188, 7465n, 10386, 11423, 17009, 17009n, 17138, 21289bo, 21289hi, 103187, 111120, 250103, 250408, 250489, 251039, 436042, 438495, 0001218004, 0001218005, 0001218017, 0001218111, 0001218112, 0001218130, 1257939, 1328391, 1328392, 0001362083, 1516757r, 3544627, 4013140, 4113140, 5002050, 5003003, 5003708, 8013140, 11013140, 13283916, 35446277, 50030030, 069911023b, 069911023bx, 300020092, 338017092, 338021092, 810549092, 810550102, 943251501, 0986011120, 0986013140, 0986013143, 0986013147, 943251501010, 944280131400
  • Description
    Start 12V-2.2kW fits Volvo 12V - 2.2kW, 9k A - 82.5mm, B - 21mm For Yourex product order 91-600-1314

    Voltage: 12
    kW: 2.2
    Mounting flange: 82.50
    Drive distance: 21.50
    Distance/back: 210.00
    Distance/front: 62.50
    Number of/by teeth: 9
    B+: M8
    Position/50: 55
    Terminal 50: 6.30
    Gear type: GR
    Distance in millimeters: 105.00
    Rotation: CW
    Total length in millimeters: 272.50
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number of/mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      b001233104, b001233112, cs386, F032111120, RGO 111120, S13-91, s13-91, S13-91A, s13-91a, 0001 218 004, 0001 218 005, 0001 218 017, 0001 218 111, 0001 218 112, 0001 218 130, 0001 362 083, 0986 013 140, 111120, 0001218004, 0001218005, 0001218017, 0001218111, 0001218112, 0001218130, 1257939, 1328391, 1328392, 1516757R, 3544627, 3544627-7, 5002050, 5003003, 5003708, 13283916, 50030030, 069911023b, 069911023BX

    • Normalised article numbler
      b001233104, b001233112, cs386, cst10130, drs3140, f032111120, frs596, is9435, lrs00661, lrs02008, ms10, qs1358, rgo111120, s0043, s1391, s1391a, sr97x, str50095, str72029, 8ea012526061, 8ea726134001, 1188, 7465n, 10386, 11423, 17009, 17009n, 17138, 21289bo, 21289hi, 103187, 111120, 250103, 250408, 250489, 251039, 436042, 438495, 0001218004, 0001218005, 0001218017, 0001218111, 0001218112, 0001218130, 1257939, 1328391, 1328392, 0001362083, 1516757r, 3544627, 4013140, 4113140, 5002050, 5003003, 5003708, 8013140, 11013140, 13283916, 35446277, 50030030, 069911023b, 069911023bx, 300020092, 338017092, 338021092, 810549092, 810550102, 943251501, 0986011120, 0986013140, 0986013143, 0986013147, 943251501010, 944280131400
